INSTRUCTIONS FOR USE
Induction hob

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the G600 GI6432BXWF and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Gorenje G600 GI6432BXWF

Summary of Contents for Gorenje G600 GI6432BXWF

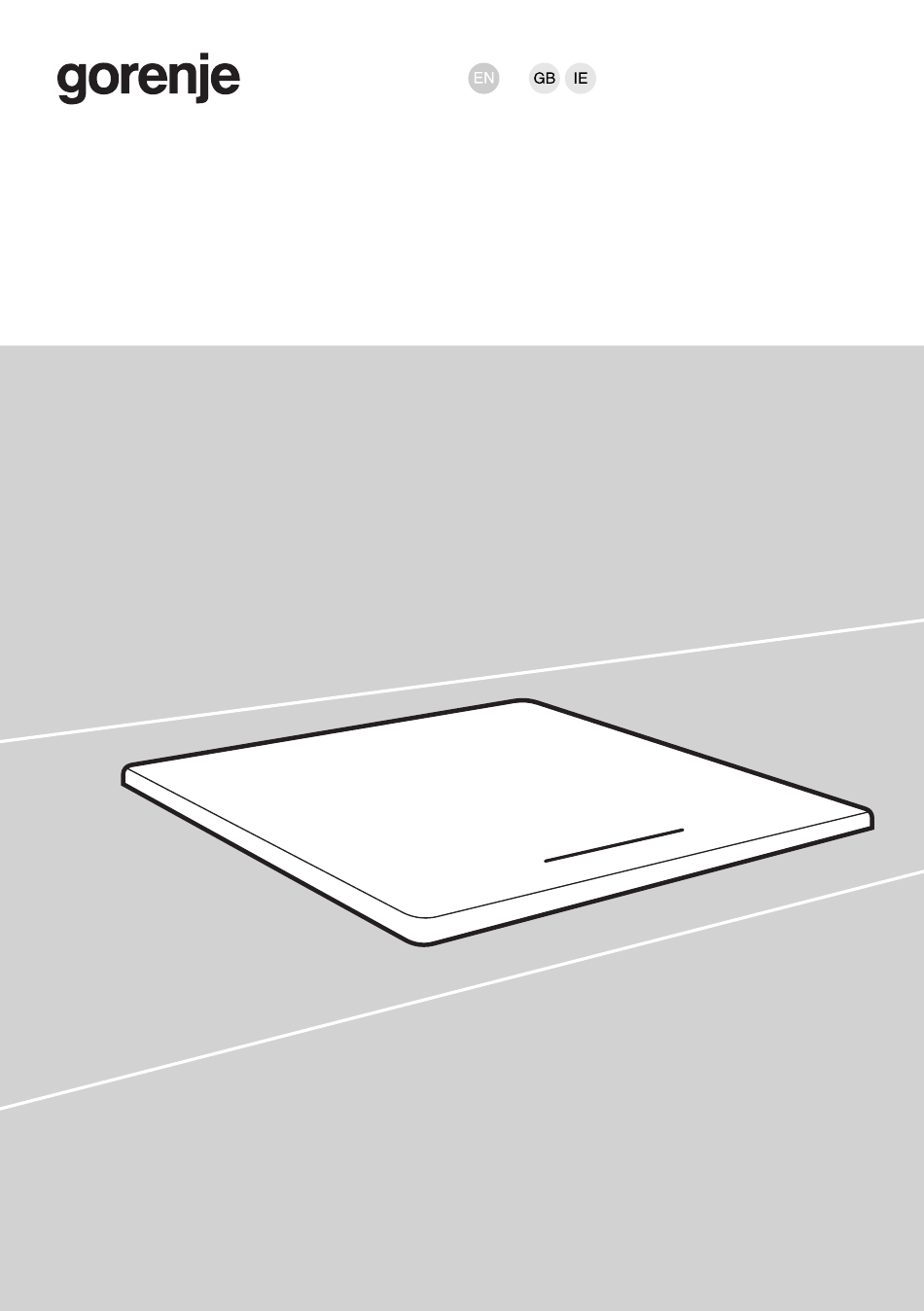

  • Page 1 INSTRUCTIONS FOR USE Induction hob...
  • Page 2 For more detailed instructions and tips, please visit http://www.gorenje.com or scan the QR code on the rating plate. The following symbols are used throughout the manual and they have the following meanings:...

  • Page 3: Safety Precautions

    1. Safety precautions IMPORTANT SAFETY PRECAUTIONS CAREFULLY READ THE INSTRUCTIONS AND SAVE THEM FOR FUTURE REFERENCE. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
  • Page 4 WARNING: If the surface is cracked, switch off the appliance to avoid the possibility of electric shock. Switch off all cooking zones using their respective controls and remove the fuse or trip the main circuit breaker so that the appliance is fully isolated from the power mains.

  • Page 5: Before Connecting The Appliance

    After use, switch off the hob element by its control and do not rely on the pan detector. The appliance may only be connected to the power mains by an authorized service technician or expert. Tampering with the appliance or nonprofessional repair thereof may result in risk of severe injury or damage to the product.
  • Page 6 3. Induction hob installation Installation dimensions 60 cm min.10 min.40 490-492 min.600 min.50 560-562 80 cm min.10 min.40 490-492 min.600 min.50 760-762 INFORMATION! Installation and connection of the appliance to the power mains may only be carried out by a qualified technician.
  • Page 7 INFORMATION! The appliance already has a pre-installed gasket. • The induction hob is suitable for installation into a worktop above a kitchen cabinet with a minimum width of 600 mm. • Any kitchen cabinetry suspended above the induction hob should be high enough not to disturb the work process.
  • Page 8 Lower cabinet with an oven • Installing an oven under the induction hob is possible for oven models with a cooling fan. min. 28 mm • Before installing the oven, the kitchen cabinet rear wall has to be removed in the area of the opening for installation.
  • Page 9 Appliances without faceted edges or decorative frames, are suitable for flush mounting. GLASS CUT-OUT Installation procedure • The appliance may only be installed into a temperature- and water-resistant countertop, such as a countertop made of natural stone (marble, granite) or solid wood (the edges along the cut-out have to be sealed).
  • Page 10 Stone countertop WARNING! Pay particular attention to built-in dimensions with (natural) stone countertops. When choosing the silicone sealant, observe the countertop material and consult the countertop manufacturer. Use of inappropriate silicone sealants can result in permanent discolouration of some parts. 1.
  • Page 11 WARNING! If the oven is installed under a flush-mounted cooking hob, then the worktop thickness should be at least 40 mm.

  • Page 12: Power Cord

    4. Connecting the induction hob to the power mains • Power mains protection must conform to the relevant regulations. • Before connecting the appliance, make sure the voltage specified on the rating plate conforms to the voltage of the power mains. •...

  • Page 13: Connecting The Appliance

    4.2 Connecting the appliance 1. Open the cover of the connection terminal box. 2. Connect everything according to your type of appliance. The jumpers are provided on the connection terminal. 3. Run the power cord through a cord strain relief (clamp) that protects the cable from being pulled out.
  • Page 14 Table continued from last page Connection diagram 2-phase connection (16A) • 2 phases, 1 neutral conductor (2 1N, 380 415 V~ /50 Hz): Voltage between the line and neutral conductor is 220 240 V~.; voltage between lines is 380 415 V~. Install a jumper between the terminals 4 and 5.
  • Page 15 Maximum power setting - "Power management" After connecting the appliance to the power mains, press the following key for 3 seconds . As you hold down the key, a short audible signal sounds twice. The following menu will open . By pressing the key, you enter the additional menu, where you can use the <...

  • Page 16: Operating The Cooking Hob

    5. Operating the cooking hob 5.1 Control unit (depending on the model) The appliance can have 3 or 4 sliders. BOIL BOIL BOIL BOIL BOIL BOIL Key/display Description Switching the hob on/off key can be used to turn the appliance on or off. Lock/child lock The appliance can be locked and unlocked to prevent it from being switched on unintentionally.
  • Page 17 Table continued from last page Key/display Description Wi-Fi connectivity settings (depending on the model) When the user interface is on and the cooking zones are off, hold down the key and release it when you want to enter the menu displayed on the timer. Pause With this function, you can pause the operation of the entire hob for up to 10 minutes.

  • Page 18: Automatic Pan Detection

    initial step intermediate step waiting/implementation optional step 5.2 Switching the hob on/off 1. By pressing you switch on the cooking hob. 2. The slider indicating the cooking zones is half-illuminated (when automatic pan detection is on). 3. Place the cookware onto the selected cooking zone, and the corresponding slider bar will light up fully.
  • Page 19 5.4 Pan movement detection The hob automatically detects the movement of the pan from one cooking zone to another if the "automatic pan detection" function is enabled. All power and timer settings can be transferred. 1. Transfer the cookware from one active cooking zone to another free cooking zone. The preset power level and the preset timer will start flashing on the new cooking zone.

  • Page 20: Automatic Heating

    5.7 Automatic heating 120s By activating the function, the selected cooking zone heats up for a period of time at a higher power, before it automatically switches to the set level. To turn on the function, select the power level and hold it for 3 seconds.
  • Page 21 1. By pressing for 1 second you activate the function. A short audible signal will be emitted. 2. Set the cooking level on the lower or upper slider. 3. Switch off the function by pressing or by touching 0 on the slider. A short audible signal will be emitted.
  • Page 22 1. Restart the user interface within 9 seconds of switching off the hob. 2. After power-up, the indicator flashes for 7 seconds. 3. Within 7 seconds of switching on the appliance, activate the key, to restore the settings set before switching off the hob. When the settings are restored, an acoustic signal will be emitted. 4.

  • Page 23: Time Functions

    5.13 Time functions The appliance allows you to set a countdown timer that is connected to the entire cooking hob or to set the programme hours that are connected to each cooking zone. Countdown timer for the entire cooking hob 9:59 The countdown timer can only be set when the user interface is switched on.

  • Page 24: User Settings

    INFORMATION! When using two or more time functions, the associated timer icon currently displayed on the screen is fully illuminated. Other icons of the set time functions will be half-illuminated, indicating that the functions are set but currently not shown on the display. To display the selected set time function, click on the corresponding key.

  • Page 25: Child Lock

    INFORMATION! Entering the user settings is disabled if the active timer is connected to the entire cooking hob. Key/display Description Setting the power limit After connecting the appliance to the mains, activate the following key After 2 minutes, the power setting is no longer possible. Volume adjustment Use the slider to set the desired volume level from 0 to 3.

  • Page 26: Extra Functions

    1. Touch and hold for 3 seconds. 2. Loc appears on the timer function display. A beep sounds, and the hob is now locked. 3. When the hob is locked, touch and hold for 3 seconds. A beep sounds, and the hob is now unlocked.
  • Page 27 INFORMATION! The additional function continues to be active even if the pause "Stop&Go" function is used for less than 20 seconds. It can also be restored with the memory function. 5.17 Connecting the appliance to the ConnectLife application ConnectLife is a smart home platform that connects people, devices and services. The ConnectLife application includes advanced digital services and carefree solutions that allow users to monitor and control appliances, receive notifications from a smartphone, and update software (supported features may vary depending on your appliance and the region/country in which you are located).
  • Page 28 Table continued from last page Connecting the appliance: With a long press of the key (between 4 and 7 seconds), "CSt" will appear on the display unit. By releasing the key, the connection is activated. A 5-minute timer appears on the display. During this time, scan the enclosed 3D code.

  • Page 29: Tips And Hints

    6. Tips and hints 6.1 Cooking hob (conventional or glass ceramic) • The hob is resistant to temperature changes. • Using the cooking hob surface as a storage area may result in scratches or other damage to it. • Do not use the glass ceramic hob if it is cracked or broken. If a sharp object falls on the hob, the hob may break.

  • Page 30: Induction Cookware

    6.3 Induction cookware The magnet test: Use a small magnet to check whether the pan or pot bottom is ferromagnetic. If the magnet sticks to the bottom of the pan, then it is suitable for an induction cooker. Make sure the pot or pan is in the middle of the cooking zone For best cooking results, the ferromagnetic area on the cookware bottom should match the size of the cooking zone.

  • Page 31: Energy Saving Tips

    Pan bottom has to be flat. 6.4 Energy saving tips • When purchasing cookware, consider that the diameter indicated on the pan usually pertains to the upper edge or the lid, which is normally larger than the diameter of the pan bottom. •...

  • Page 32: Cleaning And Maintenance

    7. Cleaning and maintenance After each use, wait for the glass-ceramic surface to cool down and clean it. Otherwise, all remaining impurities will burn onto the hot surface the next time you use the hob. For regular maintenance of the glass-ceramic hob, use special care products that create a protective film on the surface to prevent the dirt from sticking onto it.
  • Page 33 8. Problems and errors During the warranty period, only a service centre authorised by the manufacturer may carry out any repairs. Before making any repairs, make sure the appliance is disconnected from the power mains by disconnecting the fuse. Do not perform any unauthorised repairs to the appliance, as this may result in electric shock and a short circuit hazard.

  • Page 34: Technical Data

    8.1 Noises during induction cooking Noises and sounds Cause Solution Inductiongenerated Induction technology is based on the This is normal and it is not a operating noise properties of some metals under result of any malfunction. electromagnetic effect. It results in so-called eddy currents that force the molecules to oscillate.
  • Page 35 10. Disposal Our product packaging is made of environmentally friendly materials that can be recycled, disposed of, or destroyed without any hazard to the environment. To this end, packaging materials are labelled appropriately. The symbol on the product or its packaging indicates that the product should not be treated as normal household waste.

  • Page 36: Compliance Information

    11. Compliance information Radio equipment type: HLW3215-TG01 module Wi-Fi indicator Operating frequency range: 2.4000 GHz - 2.4835 GHz Maximum output power: ≤10 dBm/MHz (EIRP) (Antenna gain <10 dBi) Maximum antenna gain: Gain: 0 dBi Bluetooth indicator Frequency range: 2.400 GHz - 2.4835 GHz Carrier Output: 6 dBm (≤10 dBm) Emission type:...
  • Page 37 927113-a11...
