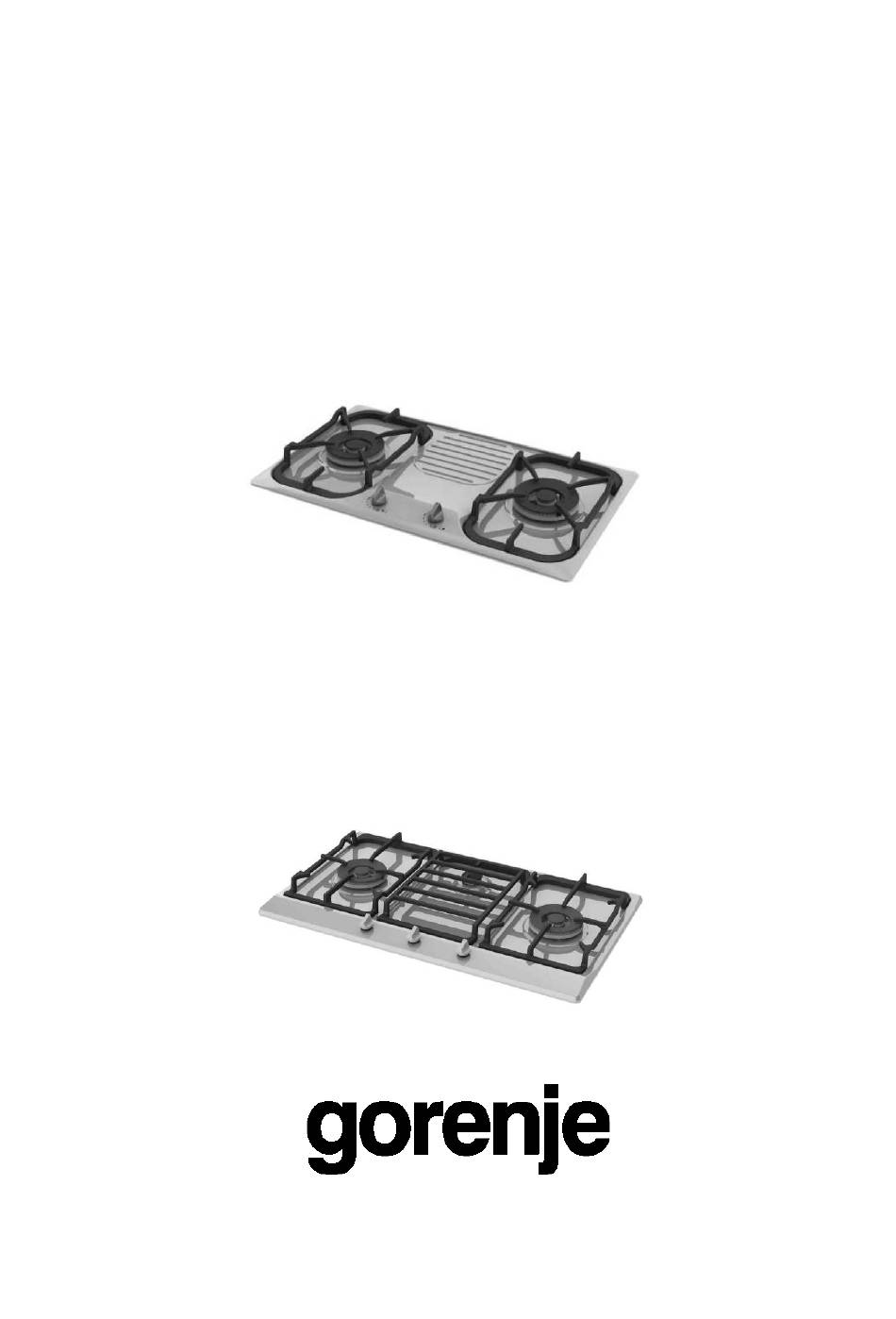

Instructions for the installation
and advice for the maintenance
Instructions Manual
GW721X / HG2VRSMXG0XS
GW931X / HI3VRSMXG0XS
COD. 04031... - 24.01.2018

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GW931X/HI3VRSMXG0XS and is the answer not in the manual?

Questions and answers

Summary of Contents for Gorenje GW931X/HI3VRSMXG0XS

  • Page 1 Instructions for the installation and advice for the maintenance Instructions Manual GW721X / HG2VRSMXG0XS GW931X / HI3VRSMXG0XS COD. 04031... - 24.01.2018...
  • Page 2 WARNING: Children less than 8 years of age shall be kept away unless continuously supervised. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
  • Page 3 DESCRIPTION OF THE HOT PLATES GW721X / HG2VRSMXG0XS GW931X / HI3VRSMXG0XS Overall measurement (mm) Overall measurement (mm) Width 860 x Depth 500 x Height 40 Width 730 x Depth 430 x Height 50 1 Ultra rapid burner of 4500 W 2 Ultra rapid burner of 4500 W 4 Auxiliary gas burner...
  • Page 4 1) BURNERS Power Pan Ø Burners A diagram is screen-printed above each knob on the ratings in cm front panel. This diagram indicates to which burner the knob in question corresponds. After having Ultra rapid 4500 24 ÷ 26 opened the gas mains or gas bottle tap, light the burners as described below: Auxiliary 1000...
  • Page 5 2) WARNINGS AND ADVICE FOR THE USER: use of a gas cooking appliance produces heat and moisture in the room in which it is installed. The room must therefore be well ventilated by keeping the natural air vents clear (fig. 3) and by activating the mechanical aeration device (suction hood or electric fan fig.
  • Page 6 CLEANING IMPORTANT: “C” (fig. 6 and 6/A) have correctly positioned on always disconnect the appliance from the gas the burner head. It must be steady. and electricity mains before carrying out any - The exact position of the pan support is cleaning operation.
  • Page 7: Technical Information For The Installer

    INSTALLATION TECHNICAL INFORMATION The appliance belongs to class 3 and is therefore FOR THE INSTALLER subject to all the provisions established by the provisions governing such appliances. Installation, adjustments of controls and maintenance must only be carried out by a 5) FIXING THE HOT PLATE qualified engineer.
  • Page 8: Room Ventilation

    INSTALLATION IMPORTANT INSTALLATION required for regular gas combustion and ventilation SPECIFICATIONS of the relative room, the volume of which must not be less than 20 m . Air must naturally flow through The installer should note that the appliance that permanent openings in the walls of the room in side walls should be no higher than the hot question.
  • Page 9: Gas Connection

    INSTALLATION 8) GAS CONNECTION the seals must comply with the standards. It is advisable to apply the special adapter to the Before connecting the appliance, check that the flexible pipe. This is easily available from the values on the data label affixed to the underside shops and facilitates connection with the hose of the hot plate correspond to those of the gas nipple of the pressure governor on the bottle.
  • Page 10: Electrical Connection

    INSTALLATION 9) ELECTRICAL CONNECTION breaker should be sized according to the load rating of the appliance and possess a minimum 3 mm gap between its contacts. - Remember that the earth wire must not be IMPORTANT: the appliance must be installed interrupted by the circuit-breaker.
  • Page 11 ADJUSTMENTS Always disconnect the appliance from the It is understood that only burners operating with electricity main before making any adjustments. G20 12T (Natural) gas should be subjected to the All seals must be replaced by the technician at above mentioned adjustments. The screw must the end of any adjustments or regulations.
  • Page 12: Replacing The Injectors

    CONVERSIONS 11) REPLACING THE INJECTORS paragraphs 10. The technician must reset any seals on the regulating or pre-regulating devices. The burners can be adapted to different types of The envelope with the injectors and the labels gas by mounting injectors suited to the type of gas can be included in the kit, or at disposal to the in question.
  • Page 13 SERVICING Always disconnect the appliance from the Greasing the taps (see fig. 18 - 19) electricity and gas mains before proceeding with If a tap becomes stiff to operate, it must be any servicing operation. immediately greased in compliance with the following instructions: 12) REPLACING HOT PLATE PARTS - remove the tap.
  • Page 14 SERVICING CABLE TYPES AND SECTIONS TYPE OF TYPE OF SINGLE - PHASE HOT PLATE CABLE POWER SUPPLY Gas hot plate H05 RR - F Section 3 x 0,75 mm ATTENTION!!! If the power supply cable is replaced, the installer should leave the ground wire (B) longer than the phase conductors (fig.
  • Page 15 TECHNICAL DATA ON THE DATA LABEL GW721X / HG2VRSMXG0XS GW931X / HI3VRSMXG0XS LPG - (G30) 20Y = 28 mbar LPG - (G30) 20Y = 28 mbar NATURAL - (G20) 12T = 20 mbar NATURAL - (G20) 12T = 20 mbar ΣQn LPG Gas Rate = 10.0 kW ΣQn LPG Gas Rate = 9.0 kW ΣQn NATURAL (G20) Gas Rate= 10.0 kW...
  • Page 16: Technical Assistance And Spare Parts

    TECHNICAL ASSISTANCE AND SPARE PARTS Before leaving the factory, this appliance will have been tested and regulated by expert and specialized personnel in order to guarantee the best performances. Any repairs or adjustments which may be subsequently required may only be carried out by qualified personnel with the utmost care and attention.
