PTN WVG2A User Manual

PC Graphics/Stereo Audio Selection Switcher
USER MANUAL
WVG2A is a high-performance switcher for computer graphic signal and stereo audio signal
respectively with 2 inputs and 1 output.
Status Display: Three Front panel LED indicators can show you the working status anytime. (red for
power, green for inputs)
High Bandwidth: It reaches to 1GHz(-3dB), fully loading
High Resolution: including QUXGA, QXGA, WQXGA, WQUXGA etc., up to 3200×2400@60(-3dB);
Auto-switching function: WVG2A USB can detect the H/V signal of the computer graphics and switch
automatically with the 4:3, 16:9, 16:10 screen display.
Extensibility: It can realized remote control by PTN contact closure(WP2 control panel)
RS-232 serial control port: It is compatible with PC software and the third party device
GCSSP(Gain Compensation and Synchronization Signal Proofread technology) inside
Audio sync-switching with the video
Antistatic case design: providing good protection for long-term and stable performance
Internal& international power supply (100Volt~240Volt AC, 50/60Hz)
Wall/Table-mountable metal enclosure, PT case design
PTN Electronics Limited
WVG2A
VGA/Stereo Audio Selection Switcher 2x1

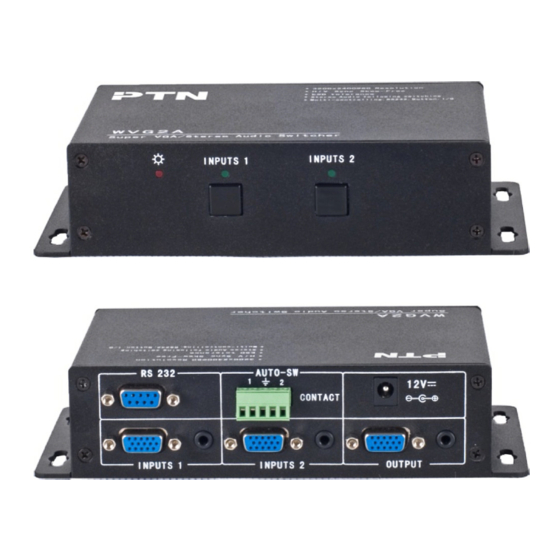

Front Panel
Rear Panel
