- Page 1 VGA/Stereo Audio Selection Switcher 8x1 USER MANUAL WVG8A PTN VGA/Stereo Audio Selection Switcher 8x1 Version: WVG8A2013V1.1 PTN Electronics Limited www.PTN-electronics.com...
- Page 2 Please refer to the dealers for the latest details. This manual is copyright PTN Electronics Limited. All rights reserved. No part of this publication may be copied or reproduced without the prior written consent of PTN Electronics Limited.
-
Page 3: Table Of Contents
VGA/Stereo Audio Selection Switcher 8x1 Table of Contents 1. Introduction ....................... 1 1.1. Introduction to WVG8A .................. 1 1.2. Package Contents ..................1 2. Features ........................1 3. Specification ......................1 4. Operations of the Control Panel and the IR Remote ..........3 4.1. -
Page 4: Introduction

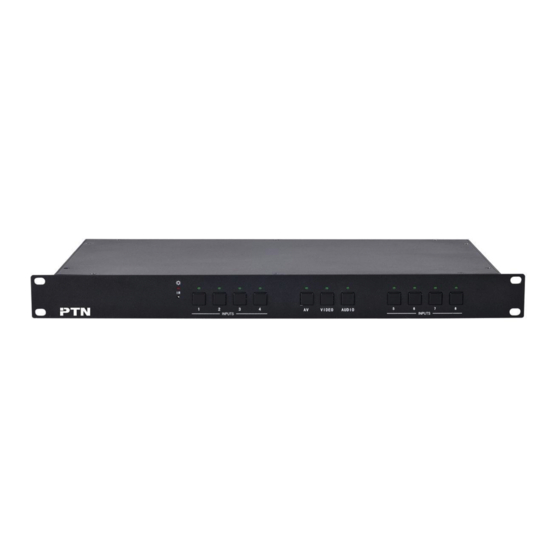

1. Introduction 1.1. Introduction to WVG8A WVG8A is an 8x1 selection switcher for VGA & stereo audio. It supports auto-switching and has a bandwidth up to 3200*2400@60MHz. It’s a high performance device for conference room, educational facility, multi-media meeting room, demonstration hall etc. - Page 5 Max DC 1.5V Humidity 10% ~ 90% compensation Power Temperature -20 ~ +70℃ Consumption 100VAC ~ 240VAC, Power Supply Product Weight 2.6Kg 50/60Hz Case Dimension W483 x H44x D235mm NOTE: All nominal levels are at ± 10%. PTN Electronics Limited www.PTN-electronics.com...
-
Page 6: Operations Of The Control Panel And The Ir Remote
Audio button: To transfer only audio signals from input channel to output channel AUDIO Example: To transfer audio signals from input channel No.2 to output channel No.3. Operation: Press buttons in this order “2”, “AUDIO”. 4.2. Usage of the IR Remote PTN Electronics Limited www.PTN-electronics.com... -
Page 7: System Connection
3.5mm mini jack. VGA input channels, 8 in total. ② VGA INPUTS Female 15 pin HD connector. Audio output channel. ③ AUDIO OUTPUT 3.5mm mini jack. VGA output channel. ④ VGA OUTPUT Female 15 pin HD connector. PTN Electronics Limited www.PTN-electronics.com... -
Page 8: Connection With Control System
2) Install the serial driver. 3) Run the COM software and check the connecting state. 4) If it’s OK, then we can control WVG8A by sending RS232 command codes. If not, probably the control line is bad contact. PTN Electronics Limited... -
Page 9: System Diagram
To cancel the previous operation. Switch to the “demo” mode, 1->1, 2->2, 3->3 … and so Demo. [x1]#. Transfer signals from the input channel [x1] to the output channel [x1]. [x1]$. Switch off the output channel [x1]. PTN Electronics Limited www.PTN-electronics.com... -
Page 10: Troubleshooting & Maintenance
Make sure the destination device is exactly on the controlled output channel. If not the problem mentioned above, probably there is something broken inside the PTN Electronics Limited www.PTN-electronics.com... -
Page 11: Safety Operation Guide
DO NOT repair it on your own, in case of accident or increasing the damage of the equipment. 7) DO NOT splash any chemistry substance or liquid in the equipment or around. PTN Electronics Limited www.PTN-electronics.com... -
Page 12: After-Sales Service
VGA/Stereo Audio Selection Switcher 8x1 10. After-sales Service 1) If there appear some problems when running WVG8A, please check and deal with the problems reference to this user manual. Any transport costs are borne by the users during the warranty.
