rev.09

MCR41-MCR42 User Manual

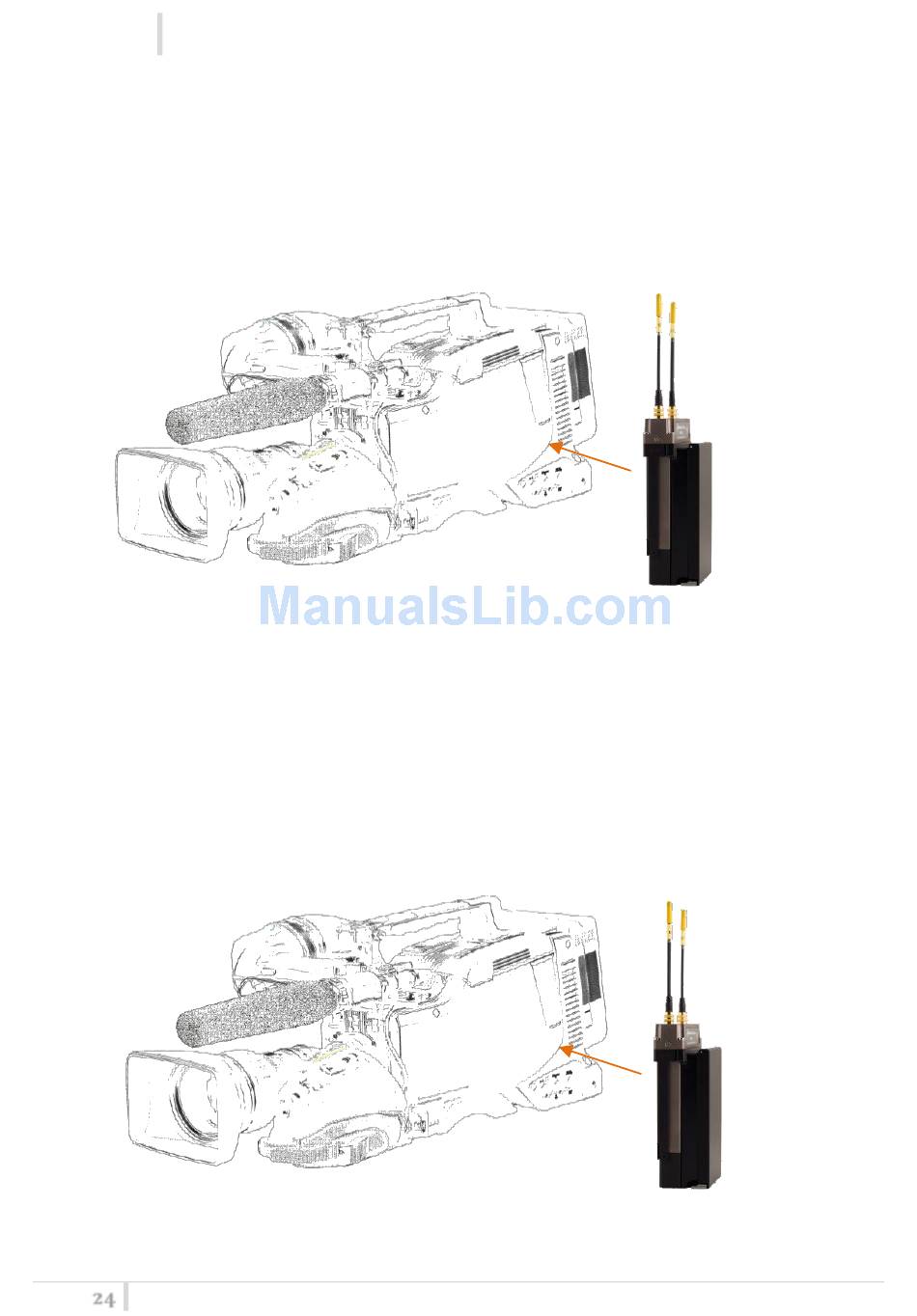

Stand Alone Mounting

MCR42: Line1 is configured to AES3 output (audio 1 & 2) and PTT

- CAM50-2: Line 1 (digital audio 1&2) connected to XLR-3F AES3 (digital input of the camera)

- CAM50-3: PTT 1&2 connected to 2 XLR-3F intercom/audio inputs of the camera

- CD34: connected to camera power source (if not using the battery pack)

MCR42: Line1&2 are configured to analogue output and PTT

- CAM50-2: Line1 (audio 1) connected to XLR-3F (analogue input of the camera)

- CAM50-2: Line2 (audio 2) connected to XLR-3F (analogue input of the camera

- CAM50-3: PTT 1&2 connected to 2 XLR-3F intercom/audio inputs of the camera

- CD34: connected to camera power source (if not using the battery pack)
