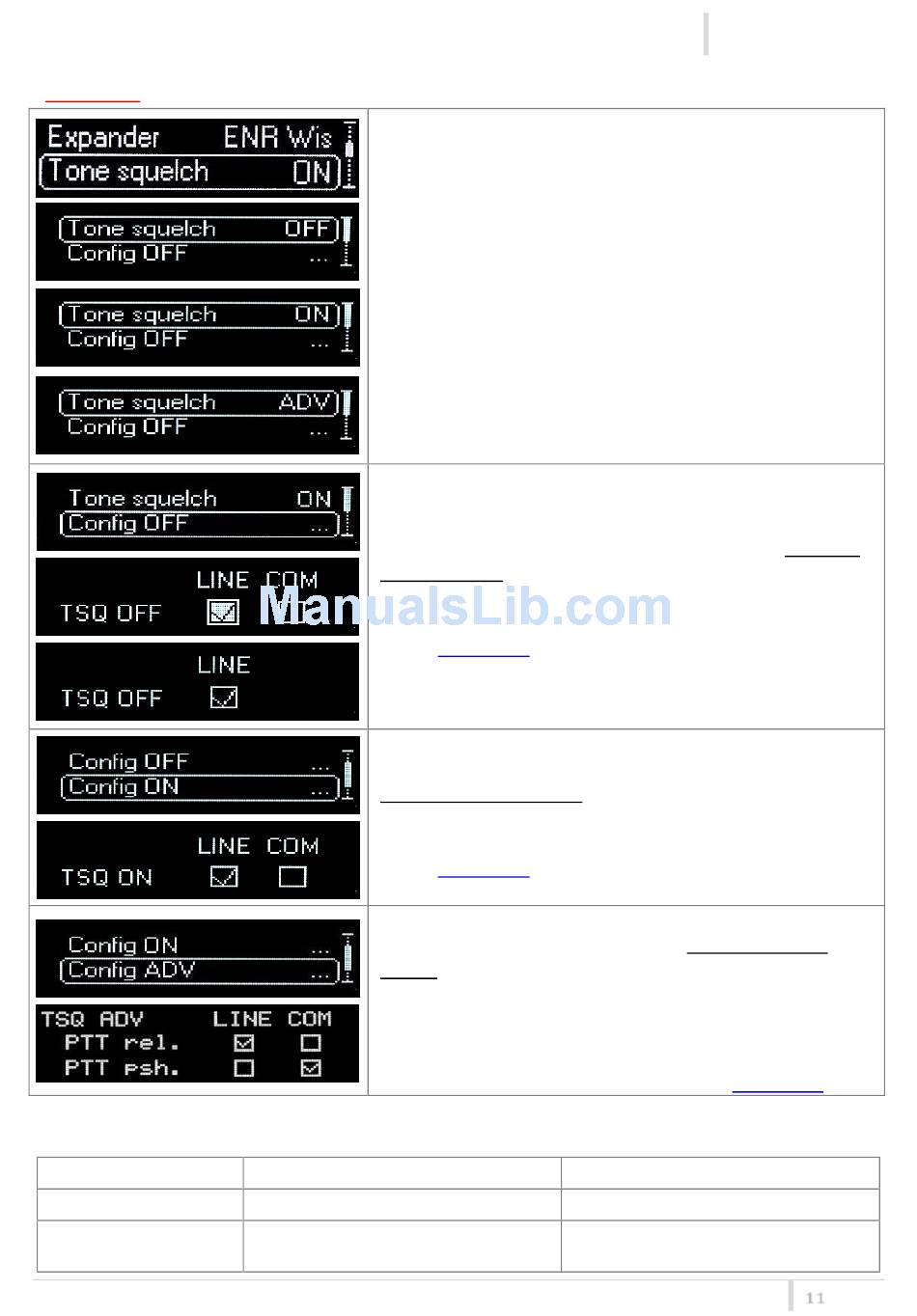

EDIT RX1: Tone Squelch
NOTE: With squelch and tone squelch the audio output is activate when:
Tone squelch OFF
Tone squelch ON
MCR41-MCR42 User Manual
MCR42 is able to detect a digital tone squelch generated
by a Wisycom transmitters (ex. MTH400/MTH300/MTP40/
MTP30).
Tone squelch ON: when the tone squelch is enabled the
audio is muted unless the correct carrier is detected. Tone
squelch allows to work with lower RF squelch, increasing
the coverage and the robustness especially in presence of
digital television carriers (DVB-T).
Tone squelch ADVanced: when tone squelch is in
advanced mode the receiver processes also PTT data (push
to talk): activating the command audio output when the
button is pressed on remote transmitter.
When tone squelch is off it is possible to choose where to
put the output between LINE and COM.
The COM column is present only using the Stand alone
socket BPA42-PTT
When tone squelch is set to ON it is possible to choose
where to put the output between LINE and COM.
The COM column is present only using the Stand alone
socket BPA42-PTT
When tone squelch is in advanced mode it is possible to
access a more complex audio matrix where to put the
output between LINE and COM and between PTT rel.
(released) and PTT psh (pushed)
Usually Line is always ticked and Com (PTT) is ticked on
"PTT push." as additional return channel (intercom).
The COM column is present only using the
Squelch OFF
Always
If tone is detected
rev.09
BPA42-PTT
Squelch = 0,3,6,... dBµV
RF level ≥ Squelch
RF level ≥ Squelch & tone squelch
is detected
