Windows Xp, Windows 2000 - SMA SUNNY WEBBOX Installation Manual

SMA Solar Technology AG

6.4.3 Windows XP, Windows 2000

1. Start the computer.
2. In Windows, select "Start > Settings > Network connections".
3. Double-click the LAN connection via which the Sunny WebBox is connected.
– If Windows displays several LAN connections, there are probably several network
connections installed in the computer. Ensure that you select the correct network connection,
with which the computer is connected to the Sunny WebBox. If necessary, refer to the
manual of your computer.
– If no LAN connection is displayed, please refer to section 11.1 "General Troubleshooting
for the Sunny WebBox" (page 47).
☑ The "Local Area Connection Status" window opens.
4. Select [Properties] on the "General" tab.

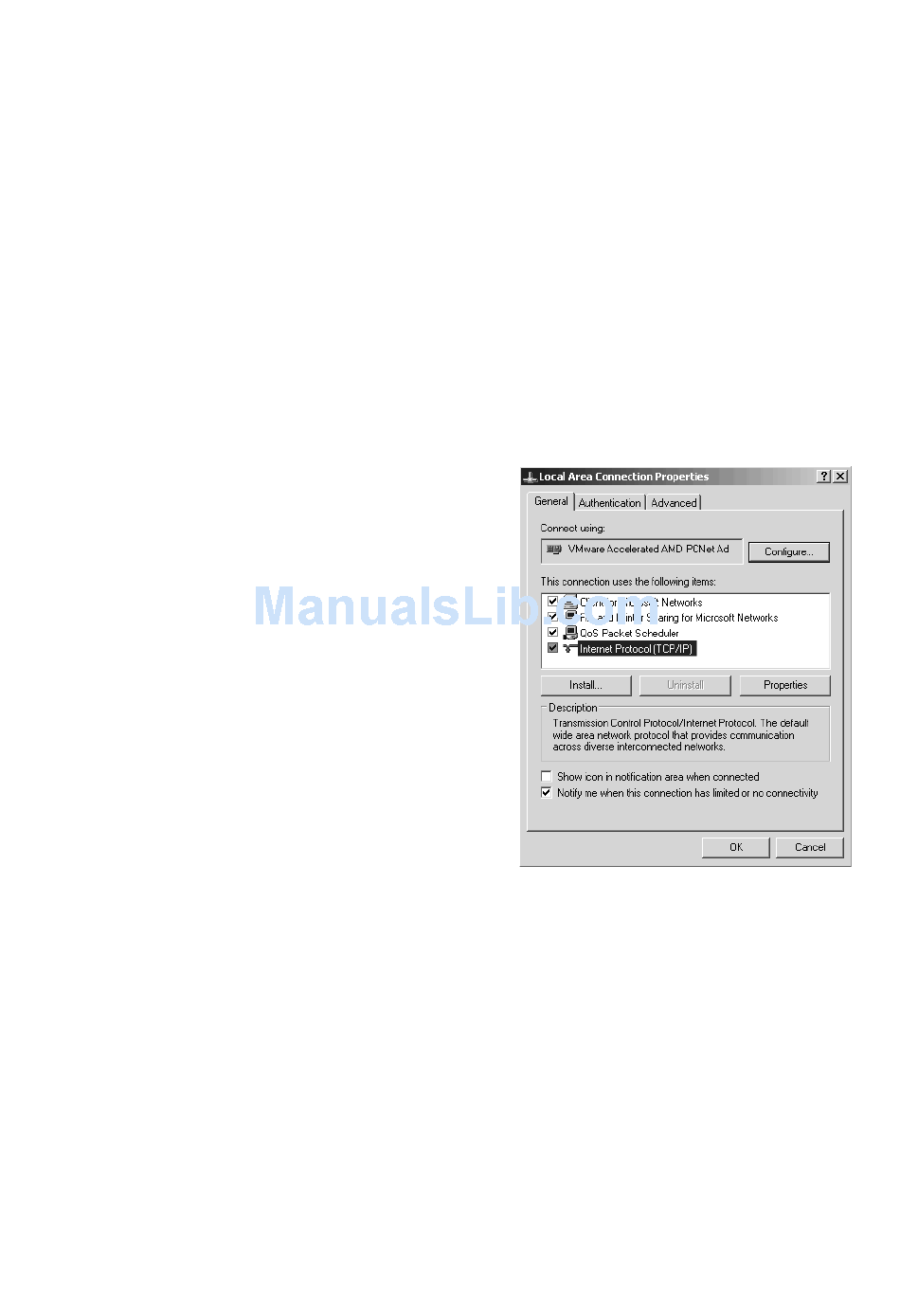

☑ The window "Local Area Connection Properties"
opens.
5. Mark "Internet Protocol (TCP/IP)" and select
[Properties].
☑ The window "Internet Protocol (TCP/IP)
Properties" opens.
6. Note the current network settings in the "Internet Protocol (TCP/IP) Properties" window. This
enables you to reset the computer network settings after configuration of the Sunny WebBox.
Installation Guide SWebBox20-IEN110711
Commissioning
25
