Plant Monitoring
Sunny WeBBOX with BLUETOOTH

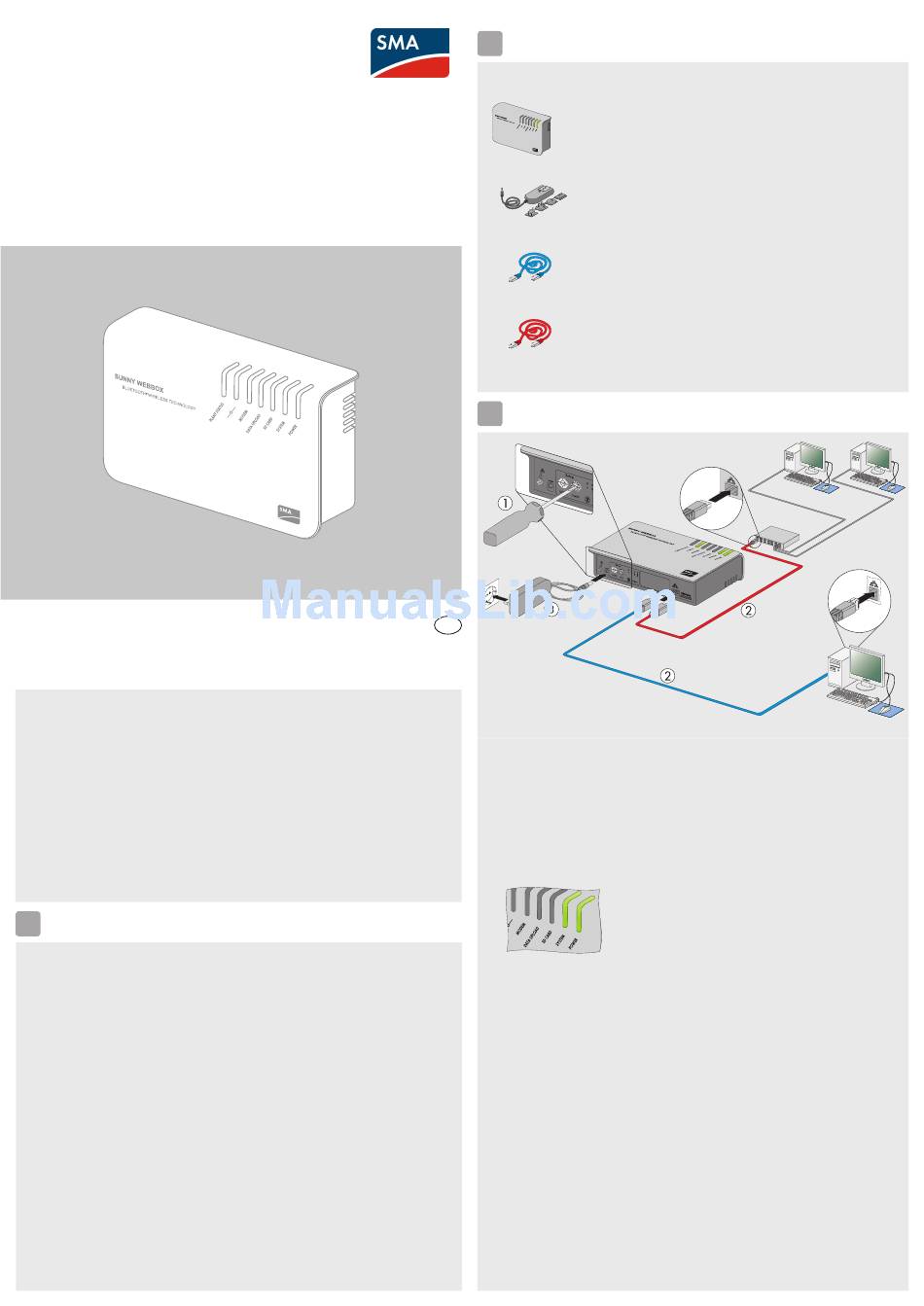

quick Reference Guide for Commissioning
SWebbox20-SE-BEN120212 | 98-0024212 | Version 1.2

SyStem RequiRementS

Operating system:
• Microsoft Windows 7
• Microsoft Windows Vista
• Microsoft Windows XP SP2
• Linux with Kernel as of version 2.6.12* (KDE) or later
• MacOS as of version 10.6*
* with Sun Java Runtime Environment (JRE) as of version 6
Recommended screen resolution:
• 1 024 x 768 pixels
Web browser:
• Internet Explorer as of version 8
• Firefox as of version 3.6
a
pRepaRatiOn
This quick reference guide will guide you through the commissioning stages of your
Sunny WebBox with Bluetooth with the help of the Sunny WebBox Assistant.
Download the Sunny WebBox Assistant from the download area at www.SMA.de/en. Make
sure that all the SMA Bluetooth devices of your PV plant have been set and put into operation
under the same NetID. Your installer will inform you which NetID is applicable.
Identify the ideal installation/mounting location for the Sunny WebBox with Bluetooth using
the Sunny Explorer software or the Sunny Beam with Bluetooth. Note the information in the
installation manual of the Sunny WebBox with Bluetooth
WiReLeSS teCHnOLOGy
®
on the installation/mounting location.
B
unpaCkinG
For commissioning, you will need the following items from the packaging:

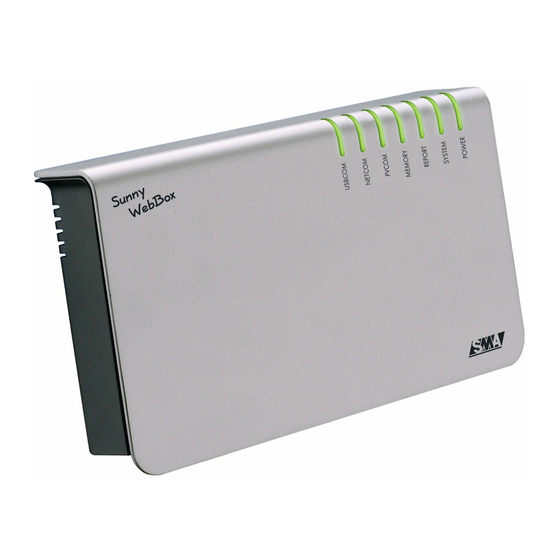

Sunny WebBox with Bluetooth
Plug-in power supply with travel adapter
Blue patch cable (crossover cable)
Red patch cable
C
COmmiSSiOninG tHe Sunny WeBBOX
EN
1. Set the NetID of your PV plant in the Sunny WebBox.
2. Connect the Sunny WebBox and a node (e.g., router, network switch, hub) using the
red patch cable (recommended).
or
use the blue patch cable to connect the Sunny WebBox directly to a computer.
3. Connect the plug-in power supply to the Sunny WebBox and plug into a socket-outlet.
☑
The Sunny WebBox starts up and is ready for operation once the "SYSTEM" and
"POWER" LEDs are green. The start-up sequence can take up to 90 seconds.
☒
If the "SYSTEM" or "POWER" LEDs are not lit, see Section "TROUBLESHOOTING".
®
