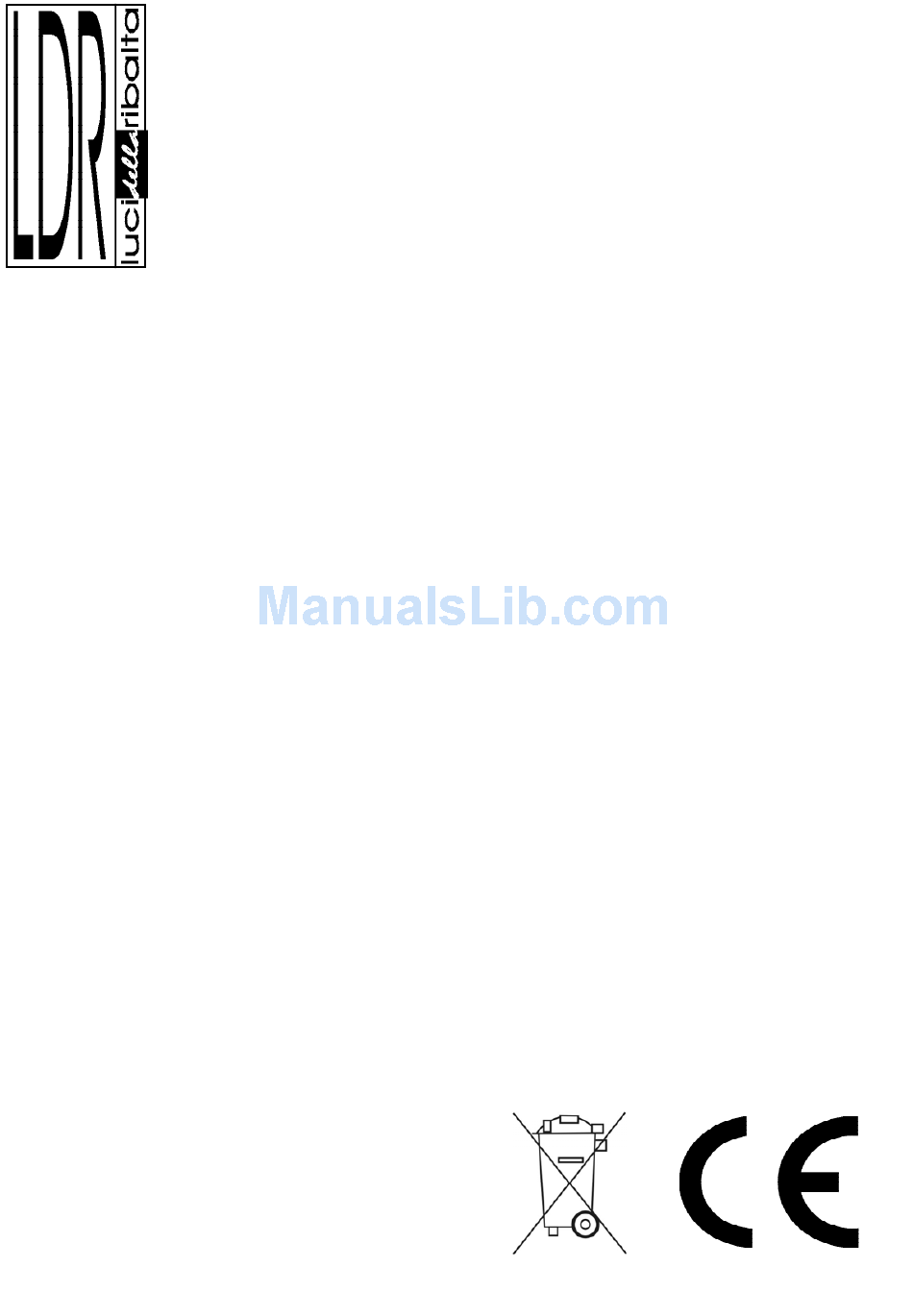

istruzioni per l'uso
operating instructions
Bedienungsanleitung
instrucciones de manejo
mode d'emploi
gebruiksaanwijzing
01207070
Astro 200 W, LED 3200K
01207080
Astro 200 C, LED 5600K
Luci della Ribalta srl, Via Berna 14, 46042 Castel Goffredo mn Italy. tel +39 0376 771 777 ‐ fax +39 0376 772 140 ‐ email info@ldr.it
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for LDR Astro 200 W LED 3200K
Summary of Contents for LDR Astro 200 W LED 3200K
- Page 1 Bedienungsanleitung instrucciones de manejo mode d'emploi gebruiksaanwijzing 01207070 Astro 200 W, LED 3200K 01207080 Astro 200 C, LED 5600K Luci della Ribalta srl, Via Berna 14, 46042 Castel Goffredo mn Italy. tel +39 0376 771 777 ‐ fax +39 0376 772 140 ‐ email info@ldr.it...
-
Page 2: Table Of Contents
12.9 To check LED temperature.............9 12.10 To check dimming value ..............9 12.11 To check function status ..............9 13. Remote control features................9 13.1 To change from DMX to local control from a remote desk ...9 13.2 To override LED temperature priority..........9 13.3 To control preloaded lighting effects...........10 13.4 To change dimmer resolution............10 13.5 To reset the spotlight from a remote desk ........10 13.6 To control the panel display sleep mode........10 13.7 To set the maximum fan speed............11 14. Control menu summary................11 15. Fuse replacement ....................13 MAINTENANCE 16. Cleaning and maintenance .................13 17. Spare parts....................13 18. Warranty.....................13 CERTIFICATES 19. LDR Conformity Certificate ................14 20. Complaint form – Modulo di reclamo – Reklamationsformular ....15 21. WEEE Directive – Direttiva RAEE – WEEE Richtlinie ........16 Luci della Ribalta srl, Via Berna 14, 46042 Castel Goffredo (MN) Italy Tel. +39 0376 771 777 – fax +39 0376 772 140 – email info@ldr.it – web www.ldr.it ... -
Page 3: Important Safety Information
IMPORTANT: Read these user instructions before using the lighting unit The instructions given here ensure a safe and correct usage of this product. A user’s failure to comply with the installation, operating, maintenance and safety procedures mentioned in this manual, as well as those generally applicable to this lighting equipment, may cause the unit not to perform as expected. Luci della Ribalta accepts no liability for direct, indirect, incidental, special, or consequential damages resulting from the customer’s failure to follow the installation, operating, maintenance and safety procedures in this manual or those generally applicable to lighting equipment. The limitation extends to damages for personal injury, property damage, loss of operations, loss of profits, loss of product or loss of time, whether incurred in by the customer, the customer’s employees or a third party. Apart from the instructions given on this manual, all relevant safety and health standards of the appropriate EU Directives must be complied with. 1. IMPORTANT SAFETY INFORMATION • This product is designed for interior use only. For details on maximum ambient temperature, minimum distance from flammable objects, please refer to the product label. • Continuous mains power is required for this spotlight as an internal dimmer controls the intensity via DMX or local rotary knob. Use of a phase control dimmed mains supply may damage the internal electronics. • This product must be fitted with a front protection shield (wire guard or safety glass). Should this not be supplied as a standard accessory, please make sure you buy it separately and install it before using the product. • There are no user serviceable parts in this product. Replacement of any internal component of this product must be carried out exclusively by professional personnel and only with original Luci della Ribalta srl components. Replacement of any part of the wiring system must comply with the original wiring diagram and with components identical or compatible with those originally fitted. • Installation of this product must be exclusively carried out by professional personnel in compliance with the safety norms in force in the country where the product is used. Luci della Ribalta srl, Via Berna 14, 46042 Castel Goffredo (MN) Italy Tel. +39 0376 771 777 – fax +39 0376 772 140 – email info@ldr.it – web www.ldr.it ... -
Page 4: Packing Contents
Iris diaphragm Operating instructions Operating instructions 3. OVERVIEW OF THE LED FOLLOWSPOT In comparison with conventional tungsten‐halogen spotlights, Astro has an LED solid‐state electronic light source, which is more energy efficient and longer lasting than a tungsten‐halogen lamp. The implications of using an LED source are as follows: • A 200W LED is ‘built‐in’ to the spotlight, and when the time comes to replace it, this will require servicing via your local dealer. The LED is not a plug‐in replacement component and is not user‐ serviceable. • The colour temperature of the LED is fixed at either ‘warm’ 3200K theatre‐standard, or ‘cool’ 5600K, which is becoming more common in TV studio applications and in theatres using colour filters. • Although regular colour filters may be used with an LED source, the non‐continuous spectrum of the LED produces a different effect with many standard colours. Lee Filters supply colour filters specifically for use with LED spotlights. These LED filters are matched to 5600K (cool) white sources. Please check you are using the correct source/filter combination. • The spotlight requires a constant mains power supply (not a dimmed supply) and a DMX signal. The DMX signal is used to control intensity and performance features of the followspot. Refer to the operational section of this manual for details. • Luci della Ribalta srl, Via Berna 14, 46042 Castel Goffredo (MN) Italy Tel. +39 0376 771 777 – fax +39 0376 772 140 – email info@ldr.it – web www.ldr.it ... -
Page 5: Mounting The Spigot
4. MOUNTING THE SPIGOT a. Make sure the tripod you are going to use features a 28mm top aperture. b. Remove the M12 nut and the washer from the spigot c. Insert the spigot in the central hole of the yoke of the followspot from beneath the yoke d. Add the plain screw and the M12 self locking nut and tighten the nut with a suitable tool. e. mount the followspot on the tripod. Make sure the structure you are fixing the product to can withstand the product load (see product label to check on weight) 5. MOUNTING THE COLOUR CHANGER (accessory, part nr. 20105106) Remove the colour frame from the followspot. At the front of the followspot, remove the 2 cross‐head self‐tapping screws from one of the two front colour runners. Re‐position the two screws in their original holes and tighten them. Repeat with the second colour runner. Take the supplied M4 screws and position each one of them, only half‐way through, in each one of the M4 Avdel brass inserts on the front plate of the followspot. Mount colour filters on the colour changer units. See relevant instructions supplied with the colour changer Position the colour changer unit on the front plate of the follow spot, making sure that the colour levers are positioned on the right‐hand side of the follow spot when viewed from behind and hang it to the previously positioned screws. Release the colour filters of the colour changer in order to have access to the screws and tighten them. Ensure the colour changer unit is secure, and all three screws are tight. Luci della Ribalta srl, Via Berna 14, 46042 Castel Goffredo (MN) Italy Tel. +39 0376 771 777 – fax +39 0376 772 140 – email info@ldr.it – web www.ldr.it ... -
Page 6: Mounting The Iris Diaphragm
8. ADJUSTING THE YOKE This followspot is provided with a yoke balancing adjustment. The balancing point is factory‐set for a standard usage of the product; however, should you need to adjust the balancing, please, proceed as follows: a. the followspot must be trIpod mounted b. using a Phillips screw driver slacken the 2 M5 screws on each side of the yoke. c. gently slide the followspot backwards or forwards to the required position d. make sure the yoke is correctly aligned horizontally e. tighten the 4 M5 screws Note: the followspot’s location must provide suitable ventilation for the LED module. 9. WIRING Before being connected to the mains, this unit needs to be wired with a suitable plug. Make sure the plug you are fitting withstands the LED power load. Ensure the plug conforms to the relevant EU/UL or national electrical standards. To perform a correct wiring, please refer to the instructions given on the label attached to the loose end of the mains cable. 10. VOLTAGE Before operating this unit please refer to the product label mounted at the back of the luminaire to check you are operating with the correct voltage. The Astro 200 LED can be operated between 100V and 260 VAC. Luci della Ribalta srl, Via Berna 14, 46042 Castel Goffredo (MN) Italy Tel. +39 0376 771 777 – fax +39 0376 772 140 – email info@ldr.it – web www.ldr.it ... -
Page 7: Controls
Priority of light over thermal control • Pre‐programmed special effects • Remote reset • LED display sleep mode • Maximum fan speed • LED temperature display Locate the separate mains cable with Neutrik powerCON locking mains connector, insert it into the panel socket at the rear of the LED module, and twist to lock it in place. When mains power is first connected the power indicator will light. When the power switch is turned on the followspot will perform a self‐check and if a DMX signal is present the display will show the dimmer DMX address (initial factory default setting is A001). One DMX address is used for intensity, and up to 7 additional addresses may be used for other remotely controlled functions. Note: The intensity DMX address must be set as a unique number and not used for other remote‐control functions. Remote‐control DMX addresses must be independent from any master control on the desk (master scene fader, blackout switch etc.) to ensure that preferences set by DMX level do not change during a fade. Fig 3: Rear Panel details 1: 4‐digit display 2: Power and data status display 3: Manual dimming control 4: DMX loop out (XLR5 F) 5: Main power switch 6: Fuse (slow‐blow, 110V/6A, 220V/3A) 7: AC input 100‐240VAC powerCON 8: DMX input (XLR5 M) 9: Function control buttons Luci della Ribalta srl, Via Berna 14, 46042 Castel Goffredo (MN) Italy Tel. +39 0376 771 777 – fax +39 0376 772 140 – email info@ldr.it – web www.ldr.it ... -
Page 8: Local Control Panel Operation
The following operational features may be set directly using the rear control panel. 12.1 To set DMX dimming address 1. On power up, the default display shows A001. Press ENTER and the display shows A.0.0.1. 2. Use the up/down buttons to select the intensity DMX address. This must be a unique address and not used for any other functions. 3. Press ENTER and the display will show the new address. 12.2 To change from DMX to local control 1. From the DMX address display; press the down arrow to show dL01. Press ENTER and the display changes to d.L.0.1. 2. Use the up/down buttons to select 2 for manual control or 1 for DMX control. 3. Press ENTER and the display will show the selected mode. 4. This feature can be also overridden from the control desk (details below). 12.3 To change LED temperature priority (from Live Show mode to longer life mode) The LED priority setting defaults to high performance to maintain light levels for TV recordings, or specific scenes of a live show. A temperature control feature is included to lengthen the life of the LED source by reducing intensity proportionally as the temperature reaches a critical limit (greater than 65°C / 140°F). Note: switching the temperature priority ON can lengthen the LED life, but this may result in the light level dimming automatically in hot ambient conditions. 1. From the DMX address display; press the down arrow to show 5L00. Press ENTER and the display changes to 5.L.0.0. (i.e. over temperature protection OFF). 2. Use the up/down buttons to change to 5.L.0.1. (i.e. over temperature protection ON). 3. Press ENTER and the display will show the selected mode. 4. This feature can be also controlled from the desk (details below). Luci della Ribalta srl, Via Berna 14, 46042 Castel Goffredo (MN) Italy Tel. +39 0376 771 777 – fax +39 0376 772 140 – email info@ldr.it – web www.ldr.it ... -
Page 9: To Use A Preloaded Lighting Effect
12.5 To change dimmer resolution (coarse or fine) 1. From the DMX address display, press the down arrow to show CL00. Press ENTER and the display changes to C.L.0.0. 2. Use the up/down buttons to select 0 for 256 steps (coarse fade) or 1 for 512 steps (fine fade) 3. Press ENTER and the display will show the selected mode. 4. This feature can be also controlled from the desk (details below). 12.6 To reset the unit The reset process performs a power cycle (off‐on). The preference settings and DMX address(es) remain unaltered. 1. From the DMX address display, press the down arrow to show rL00. Press ENTER and the display changes to r.L.0.0. 2. Use the up/down buttons to select 1 for a reset (0 = normal control). 3. Press ENTER to perform a reset. 4. This feature can be also controlled from the desk (details below). 12.7 Control panel display sleep mode 1. From the DMX address display, press the down arrow to show LL04. Press ENTER and the display changes to L.L.0.4. 2. Use the up/down buttons to select the time to elapse before the display is switched off: 1 = Display off after 30 seconds 2 = Display off after 45 seconds 3 = Display off after 60 seconds 4 = Continuously on (default) 3. Press ENTER and the display will show the selected mode. 4. This feature can be also controlled from the desk (details below). Luci della Ribalta srl, Via Berna 14, 46042 Castel Goffredo (MN) Italy Tel. +39 0376 771 777 – fax +39 0376 772 140 – email info@ldr.it – web www.ldr.it ... -
Page 10: To Set The Maximum Fan Speed
1. From the DMX address display, press the down arrow to show t‐‐‐‐ (temperature is displayed). Press ENTER and the display changes to t.0.0.0 2. Use the up/down buttons to select range: 0 = 0.1°C – 99.9°C or 1 = 32°F – 212°F 3. Press ENTER and the display will show the selected temperature range. 4. NOTE: there are two possible error messages: tErL = under the lowest limit tErH = over temperature 12.10 To check dimming value From the DMX address display, press the down arrow to show: AH‐‐ = DMX level 00 – FF Ad‐‐ = local control level 00 – FF 12.11 To check function status From the DMX address display, press the down arrow to show dEFA, indicating that some default settings have been changed. To reset to the default settings, press the ENTER button for 5 seconds, after which the display will show U5Er. 13. REMOTE CONTROL FEATURES 13.1 To change from DMX to local control from a remote desk The local control feature can set remotely by dedicating a DMX channel to switch between local and DMX control: 1. From the DMX address display, press the down arrow to show d000. Press ENTER and the display changes to d.0.0.0 2. Use the up/down buttons to select the dimmer mode address (1‐512). Note: this must be a unique DMX address and set to independent on the control desk. 3. Press ENTER and the display will show the selected address. 4. DMX values 0‐127 = intensity controlled by DMX remote desk DMX values 128‐255 = intensity controlled by rotary manual control on spotlight Luci della Ribalta srl, Via Berna 14, 46042 Castel Goffredo (MN) Italy Tel. +39 0376 771 777 – fax +39 0376 772 140 – email info@ldr.it – web www.ldr.it ... -
Page 11: To Override Led Temperature Priority
4. Use the selected DMX address on the remote desk as follows: DMX values 0‐15 = effects off DMX values 16‐31 = Flashing 10 times DMX values 32‐47 = Flashing 20 times DMX values 48‐63 = Flashing 10 times DMX values 64‐79 = Flashing 20 times DMX values 80‐95 = Fade in and fade out 10 times DMX values 96‐111 = Fade in and fade out 5 times DMX values 112‐127 = Fade in and fade out 3 times DMX values 128‐255 = Fade in and fade out 2 times 13.4 To change dimmer resolution (course or fine) from a remote desk 1. From the DMX address display, press the down arrow to show C000. Press ENTER and the display changes to C.0.0.1. 2. Use the up/down buttons to select the Dimmer Resolution mode address (1‐512) Note: this must be a unique DMX address and set to independent on the control desk. 3. Press ENTER and the display will show the selected address. 4. Use the selected DMX address on the remote desk as follows: DMX values 0‐31 = 256 steps (coarse dimming) DMX values 32‐255 = 512 steps (fine dimming) 13.5 To reset the spotlight from a remote desk 1. From the DMX address display, press the down arrow to show r000. Press ENTER and the display changes to r.0.0.1. 2. Use the up/down buttons to select the Remote Reset Control mode address (1‐512) Note: this must be a unique DMX address and set to independent on the control desk. 3. Press ENTER and the display will show the selected address. 4. Use the selected DMX address on the remote desk as follows: DMX values 0‐254 = reset disabled DMX values 255 = reset spotlight 13.6 To control the panel display sleep mode from a remote desk Luci della Ribalta srl, Via Berna 14, 46042 Castel Goffredo (MN) Italy Tel. +39 0376 771 777 – fax +39 0376 772 140 – email info@ldr.it – web www.ldr.it ... -
Page 12: To Set The Maximum Fan Speed
001 Dimming mode dL0‐ 1=use DMX, 2=local control 1 Dimming mode control address d‐‐‐ e.g. d124 = DMX 124 for dimming mode remote 1 control 01‐127 = use DMX, 128‐255=use local control Live show mode 5L0‐ 5L00 = Temperature protection OFF 0 5L01 = Temperature protection ON (normal operating mode) Live show mode control 5‐‐‐ e.g. 5125 = DMX 125 for live show mode 001 address remote control 000‐254 = Temperature protection off 255 = Temperature protection on (normal operating mode) Preloaded effects 9n0‐ 9n00 = effects off 0 9n01 = Flashing 10 times 9n02 = Flashing 20 times 9n03 = Flashing 10 times 9n04 = Flashing 20 times 9n05 = Fade in and fade out 10 times 9n06 = Fade in and fade out 5 times 9n07 = Fade in and fade out 3 times 9n08 = Fade in and fade out 2 times Luci della Ribalta srl, Via Berna 14, 46042 Castel Goffredo (MN) Italy Tel. +39 0376 771 777 – fax +39 0376 772 140 – email info@ldr.it – web www.ldr.it ... - Page 13 0 FL01 = 90% of max. FL02 = 80% of max. FL03 = 70% of max. FL04 = 60% of max. Maximum fan speed control F‐‐‐ e.g. L130 = DMX 130 for Max fan speed remote 001 address control 000‐031 = 100% (maximum) 032‐063 = 90% of max. 064‐095 = 80% of max. 096‐127 = 70% of max. 128‐255 = 60% of max. LED temperature t‐‐‐ e.g. t35.6 = 35.6°C, t105 = 105°F LED temperature alarm tER‐ tERL = under temperature tERH = over temperature Dimming control value AH00 e.g. AH37 = 37% from DMX Ad00 Ad55 = 55% from local control Parameter status dEFA Indicates changes to settings from the default. Press ENTER for 5 secs to reset and display U5Er Luci della Ribalta srl, Via Berna 14, 46042 Castel Goffredo (MN) Italy Tel. +39 0376 771 777 – fax +39 0376 772 140 – email info@ldr.it – web www.ldr.it ...
-
Page 14: Fuse Replacement
To ensure optimum performance of the product, a regular maintenance service should be carried out. Please make sure the product is cold and disconnected from power supply when doing this. General maintenance • clean all optical parts such as lenses, and if necessary opening the product to clean inside surfaces. • check the lenses for cracks or chips and replace any visibly damaged component. • clean air ducts and fans to ensure adequate ventilation for the LED engine and power supply. • check internal and external wiring and replace any cable which has obvious mechanical damage or has been affected by heat. 17. SPARE PARTS All components are available as spare parts. We strongly recommend you always use original LDR components as spare parts. Please refer to our technical assistance should you need to order and/or replace any part of the unit. 18. WARRANTY Our warranty covers all structural and manufacturing defects for a period of one year from the date of purchase. In case of complaint, we strongly recommend that in the first instance you contact the local dealer who supplied the product to you. In all cases, please refer to the serial number located at the rear of the spotlight. Luci della Ribalta srl reserves the right to modify the present document without prior notice. Luci della Ribalta srl, Via Berna 14, 46042 Castel Goffredo (MN) Italy Tel. +39 0376 771 777 – fax +39 0376 772 140 – email info@ldr.it – web www.ldr.it ... -
Page 15: Ldr Conformity Certificate
certificato di conformità certificate of conformity Konformitätserklärung certificat de conformité certificado de conformidad I Noi sottoscritti dichiariamo, sotto la nostra completa responsabilità, che i prodotti: GB We hereby declare under our own responsibility, that the products listed here below: D Wir beglaubigen, daß die nachfolgend genannten Produkte: F Nous certifions sous notre responsabilitè, que les produits mentionnés ci‐dessous: E Los que subscriben, declaran, bajo su responsabilidad, que los productos aquì listados: 01207070 Astro 200 W, LED 3200K 01207080 Astro 200 C, LED 5600K I sono conformi alle seguenti norme ed ai requisiti delle seguenti direttive CEE: GB conform to the following standards and to the requirements of following EEC directives: D den nachfolgend aufgeführten Normen und EEC‐Vorschriften entsprechen: F sont conformes aux normes et prescriptions CEE ci‐aprés: E cumplen de hecho con las siguientes normas y directivas CEE: EN 61000‐3‐2, EN61000‐3‐3, EN 55024, EN 55022 EN 60‐598‐2‐17 1989 including amendments 1/2 EN 60‐598‐1 1992 including amendment 1 CE marking directive 93/68 EEC Low voltage directive 73/23/EEC as amended by directive 93/98/EEC EMC directive 89/336/EEC as amended by directive 91/263/EEC and 92/31/EEC Luci della Ribalta srl Fabiano Besio... -
Page 16: Complaint Form - Modulo Di Reclamo - Reklamationsformular
modulo di reclamo ‐ complaint form Reklamationsformular ‐ formulaire de réclamation ‐ hoja de reclamaciones fax: +39 0376 772140 Azienda ed Indirizzo ‐ Company's name and address ‐ Firmenname und Addresse ‐ Nom et adresse ‐ Nombre y direcciòn _______________________________________________________________________________________________________ _______________________________________________________________________________________________________ Nome del rivenditore da cui il prodotto è stato acquistato ‐ Name of the dealer where you have purchased the product ‐ Namen der Firma, die Ihnen das Produkt verkauft hat ‐ Nom de la société qui vous a vendu ce produit ‐ Nombre de la compañia donde han comprado el producto: ____________________________________________________________________________________________________ 01207070 Astro 200 W, LED 3200K Prodotto difettoso 01207080 Astro 200 C, LED 5600K Faulty product Defekte s Produkt Produit défectueux Producto defectuoso Descrizione del problema /Problem found/Beschreibung des Defekts/Description du défaut/Descripciòn del problema ________________________________________________________________________________________________________ ________________________________________________________________________________________________________ ________________________________________________________________________________________________________ ________________________________________________________________________________________________________ Data d'acquisto ‐ Date of purchase ‐ Kaufdatum ‐ Date de l'achat ‐ Fecha de compra ________________________ Si prega di allegare prova d'acquisto ‐ Please attach copy of purchase invoice ‐ Bitte Kaufnachweis beilegen ‐ Veuillez joindre une quittance d'achat ‐ Les rogamos incluyan lcopia de la factura de compra. Nome e qualifica ‐ Name and position ‐ Name und Funktion ‐ Nom et fonction ‐ Nombre y cargo ____________________________________________________________________ Data ‐ Date ‐ Datum ‐ Date ‐ Fecha _____________________________... -
Page 17: Weee Directive - Direttiva Raee - Weee Richtlinie
local de escoamento de residuos, ou a loja na qual efectuou a compra. Richtlinie 2002/96/EU (Elektro- und Elektronik- Altgeräte - WEEE): Benutzerinformationen. Dieses Produkt entspricht Richtlinie WEEE-symbolet (Waste Electrical 2002/96/EU. Das Symbol des auf dem Gerät Electronic Equipment). dargestellten, durchgestrichenen Korbes gibt an, dass Bruken av WEEE-symbolet indikerer at dette Produkt Ende... - Page 18 Luci della Ribalta srl, Via Berna 14, 46042 Castel Goffredo mn Italy. tel +39 0376 771 777 ‐ fax +39 0376 772 140 ‐ email info@ldr.it...
