01204320
01204330
01204340
Luci della Ribalta srl, Via Berna 14, 46042 Castel Goffredo mn Italy. tel +39 0376 771 777 ‐ fax +39 0376 772 140 ‐ email info@ldr.it
380W LED, Tunable White
100/260V, DMX512
istruzioni per l'uso
operating instructions
Bedienungsanleitung
instrucciones de
mode d'emploi
gebruiksaanwijzing

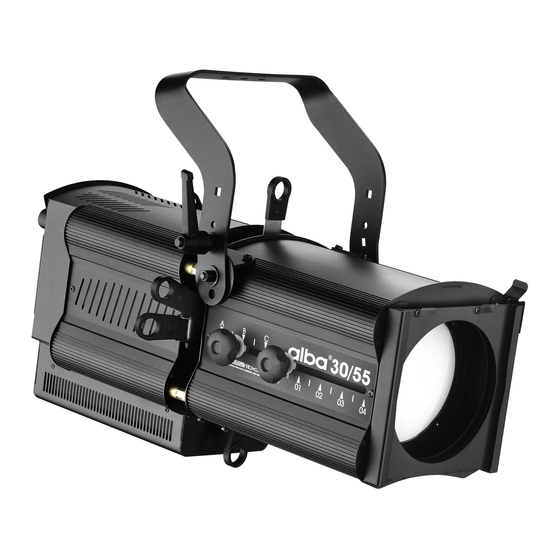

Alba 8/22 TW
Alba 18/36 TW
Alba 30/55 TW
manejo
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for LDR Alba 8/22 TW
Summary of Contents for LDR Alba 8/22 TW
- Page 1 Bedienungsanleitung instrucciones de manejo mode d'emploi gebruiksaanwijzing Alba 8/22 TW 01204320 Alba 18/36 TW 01204330 Alba 30/55 TW 01204340 380W LED, Tunable White 100/260V, DMX512 Luci della Ribalta srl, Via Berna 14, 46042 Castel Goffredo mn Italy. tel +39 0376 771 777 ‐ fax +39 0376 772 140 ‐ email info@ldr.it...
-
Page 2: Table Of Contents
17. Warranty ...................... . .12 SUMMARY OF CONTROLS AND OPERATION 18. Summary of the ALBA functions .............. 1 3 19. DMX Charts ...................... 1 4 19.1 DMX Chart 1 .................... 1 4 19.2 DMX Chart 2 .................... 1 5 19.3 DMX Chart 3 .................... 1 6 19.4 DMX Chart 4 .................... 1 7 LDR Conformity Certificate – Certificato di Conformità – Konformitätserklärung 18 Complaint form – Modulo di reclamo – Reklamationsformular …………………………. 19 WEEE Directive – Direttiva RAEE – WEEE Richtlinie …………………………………………… 20 1 Luci della Ribalta srl, Via Berna 14, 46042 Castel Goffredo (MN) Italy ... -
Page 3: Important Safety Norms
The limitation extends to damages for personal injury, property damage, loss of operations, loss of profits, loss of product or loss of time, whether incurred in by the customer, the customer’s employees or a third party. Apart from the instructions given on this manual, all relevant safety and health standards of the appropriate Directives of the country where the unit will be installed must be complied with. 1. IMPORTANT SAFETY NORMS This product is a professional lighting fixture, namely a profile spot, fitted with a LED light source, which can only be operated by professional staff This product must be fitted with a secondary fixing system such as a safety chain or bond. Should this not be supplied as a standard accessory, please make sure you buy it separately and install it before using the product Warning, high voltage ignition. Disconnect the unit from power before servicing Continuous mains power is required for this spotlight as an internal dimmer controls the intensity via DMX or local rotary knob. Use of a phase control dimmed mains supply may damage the internal electronics This product features fan‐assisted ventilation. Make sure you do not cover the fans or obstruct the air flow at any time Make sure all fans are working correctly at any one time. Should you detect even the slightest malfunction, switch the luminaire off and carry out the necessary servicing. Replace the fans if necessary. This product is rated IP 20 and is therefore designed for interior use only. For details on maximum ambient temperature and tilt angle please refer to what indicated on the product label or screen‐printing on the side of the lens‐tube or the rear of the LED‐house Repairing and replacement of any component of this product must be carried out exclusively by professional personnel in conformity with the relevant safety and health standards and only with original Luci della Ribalta srl components. 2 Luci della Ribalta srl, Via Berna 14, 46042 Castel Goffredo (MN) Italy Tel. +39 0376 771 777 – fax +39 0376 772 140 – email info@ldr.it – web www.ldr.it ... -
Page 4: Box Contents
Alba Tunable White LED profiles User’s Manual – 2.0 Replacement of any part of the wiring system must be carried out exclusively by professional personnel in compliance with the original wiring diagram and with components identical to or compatible with those originally fitted. Installation of this product must be exclusively carried out by professional personnel in compliance with the safety norms in force in the country where the product is used WARNING: DANGER OF ELECTRICAL SHOCK DO NOT OPERATE ON LIVE EQUIPMENT Disconnect power before opening this fixture to access its light source or electronics. The replacement of the LED source or any of its electronic components can be carried out exclusively by professional personnel upon LDR’s written authorization and only with original Luci della Ribalta srl components. Failure to obtain the manufacturer’s authorization to carry out the replacement/repair, will immediately invalidate the product’s warranty WARNING: EYE DAMAGE HAZARD Make sure this fixture is installed so as to avoid prolonged direct staring at its operating light source (LED) from a distance of less than 7m / 23ft. WARNING: FIRE HAZARD Never locate this fixture on any flammable surface. Minimum distance of any part of the body of the luminaire from any flammable surface or object: 0,5m / 20in Minimum distance from lit surface, please refer to product label ... -
Page 5: Weight And Dimensions
The gobo holder must be inserted in the gate area instead of the iris diaphragm. Usage of both accessories at the same time is not possible. In order to fit or replace a gobo holder, please: Remove the iris diaphragm if fitted (see above) Slide the gobo‐holder in the gate area – bent metal wings must look to the LED‐house Make sure it is correctly positioned and apply pressure to the plastic holder if needed CAUTION: the metal surface of the gobo holder reaches very high temperatures during operation. Make sure the unit is totally cold before attempting to remove it, protect you hands with gloves and avoid skin direct contact with its metal surface IMPORTANT NOTICE BEFORE THE INSTALLATION / INSTALLATION Before installing this fixture check its weight on the product label and the weight of each accessory you are adding and make sure the structure you are installing it to withstands the total weight. The mounting stirrup is mounted on the rear upper profiles of the lens‐tube and is designed to allow the spotlight to be suspended from above using a C‐clamp with M12 screw or a DIN plate 4 Luci della Ribalta srl, Via Berna 14, 46042 Castel Goffredo (MN) Italy Tel. +39 0376 771 777 – fax +39 0376 772 140 – email info@ldr.it – web www.ldr.it ... -
Page 6: Wiring
Strongly tighten the 4 screws If not supplied choose a suitable clamp or spigot and make sure it is correctly fixed and strongly tightened to the stirrup according to the clamp’s / spigot manufacturer’s instructions If not supplied choose a suitable safety cable or bond. Clamp it to the eyelet provided on the upper rear part of the luminaire (see picture here below), run it twice around the stirrup and the structure the luminaire is hung to so as to bond them together and close the loop. When tilting the unit make sure the knob blocking the stirrup is strongly tightened at any time and that the luminaire can hold the desired tilt angle 7. WIRING Before being connected to the mains power, this unit may need to be wired with a suitable plug if not already installed. Make sure the plug you are using is rated for the product’s power load and it conforms to the relevant EU/UL electrical standards. Make sure the plug you are fitting withstands the LED power load. This fixture must be grounded To perform a correct wiring, please note that the cores in this mains lead are colour‐coded as follows: Ground: green+yellow – Neutral: blue ‐ Phase: brown In case the colours of the wires do not correspond to the colour of the connection points on your plug, please proceed as follows: The green or green and yellow wire must be connected to the connection point marked with the letter E or with the symbol or coloured in green or in green‐yellow 5 Luci della Ribalta srl, Via Berna 14, 46042 Castel Goffredo (MN) Italy Tel. +39 0376 771 777 – fax +39 0376 772 140 – email info@ldr.it – web www.ldr.it ... -
Page 7: Voltage
Note: the spotlight’s location must provide suitable ventilation for the LED module. For minimum distance from flammable and lit surface please refer to the FIRE HAZARD section in this manual or to the product’s label Focus control: the ALBA range of LED profile spots is available in 3 variable beam angle models, including 8° to 22°, 18° to 36° and 30° to 55°. Two large, easy‐to‐grab control knobs on the right‐hand side of the lens‐tube control the focus. The variable beam is modified by adjusting the front and rear zoom lenses in relation to each other. The front lens defines the beam spread, the rear lens defines the focus degree of ‘softness’ or ‘hardness’ of the beam edge or shutters. The beam distribution (peak/flat) is fixed . Gently turn the knobs anti‐clockwise until you have reached the desired size/focus of the beam in relation to the distance you are projecting at. Turn the knobs clockwise and tightly close them so that the lenses are held in position at any tilt angle Beam‐shaping: 4 shutter blades are provided with each fixture to shape the beam geometrically Beam‐sizing: an accessory iris diaphragm, part # A20100707 can be purchased separately and used to size the beam of the ALBA Tilt control: The stirrup is factory‐balanced and fitted with a positive friction clamp controlled by a user‐ friendly, effective lever‐knob. Turn the lever anticlockwise to release it, position the profile at the desired tilt angle and turn the lever clockwise to hold the desired position. Press the button at the top of the lever and keep it pressed while turning the lever if you need to change its position. Make sure the lever is strongly tightened at any time during operation 11. CONNECT TO THE POWER SUPPLY Connect the unit to a continuous mains power source Make sure the power supply is protected by a suitable thermal magnetic circuit breaker This fixture must be grounded 6 Luci della Ribalta srl, Via Berna 14, 46042 Castel Goffredo (MN) Italy Tel. +39 0376 771 777 – fax +39 0376 772 140 – email info@ldr.it – web www.ldr.it ... -
Page 8: Local Control Panel And Operation
The dimming resolution can be controlled at 8 bits from one DMX channel to 16 bits with 2 DMX channels. Factory setting is 8 Bits. 3 8/16b 3 8/16b 3 8/16b PRESS THE ROTARY TURN TO SELECT 8 OR 7 SELECTOR TO 16 BITS AND PRESS TO 16 BITS 8 BITS 8 BITS ACTIVATE CONFIRM Luci della Ribalta srl, Via Berna 14, 46042 Castel Goffredo (MN) Italy Tel. +39 0376 771 777 – fax +39 0376 772 140 – email info@ldr.it – web www.ldr.it ... -
Page 9: Lost Dmx Signal
This function allows to select a response curve for the Alba LED. A choice of two curves is available: Square and Linear. Factory setting is SQUARE. PRESS TO ACTIVATE 7 Curves 7 Curves SQUARE TO INCREASE THE MENU, AN VOLTAGE RESPONSE AT SQUARE SQUARE ARROW SHOULD LOWER VALUE APPEAR 7 Curves LINEAR DIMMING LINEAR CONTROL 8 Luci della Ribalta srl, Via Berna 14, 46042 Castel Goffredo (MN) Italy Tel. +39 0376 771 777 – fax +39 0376 772 140 – email info@ldr.it – web www.ldr.it ... -
Page 10: Cut Off Dimming Response
PRESS TO ACTIVATE 10 Fan 10 Fan FAN SPEED IS THE MENU, AN REGULATED BY LED AUTO ARROW SHOULD AUTO TEMPERATURE APPEAR 10 Fan SLOW FAN SPEED TO SILENT REDUCE THE NOISE 10 Fan CONSTANT FAN SPEED STEADY 9 Luci della Ribalta srl, Via Berna 14, 46042 Castel Goffredo (MN) Italy Tel. +39 0376 771 777 – fax +39 0376 772 140 – email info@ldr.it – web www.ldr.it ... -
Page 11: Lcd Screen Illumination
PRESS TO CONFIRM 13.15 TEMPERATURE CONTROL (Tled) This function allows to visualize the LED temperature. Factory setting is °C. PRESS TO ACTIVATE 15 Tled 15 Tled 15 Tled TURN TO SELECT °C THE MENU, AN OR °F AND PRESS TO ##°C ARROW SHOULD ##°C ###°F CONFIRM APPEAR 13.16 SOFTWARE VERSION (SwVer) This function allows to display the software version. There are also four different hidden menus which allow to select the advanced settings of the ALBA LED. To activate this function turn OFF and ON the Alba by pressing the rotary switch at power on. 10 Luci della Ribalta srl, Via Berna 14, 46042 Castel Goffredo (MN) Italy Tel. +39 0376 771 777 – fax +39 0376 772 140 – email info@ldr.it – web www.ldr.it ... -
Page 12: B Factory Settings
SOFTWARE UPGRADE – REMOTO control device Software upgrades are available for download from the reserved area of our website (password requested). An accessory gateway REMOTO, ‐ GATEWAY FULL LINE DISPLAY REMOTER DMX512A‐ ARTNET (part # 20107072) allows to upload the desired software version on your Albas. Please contact your local distributor for more detailed information. 11 Luci della Ribalta srl, Via Berna 14, 46042 Castel Goffredo (MN) Italy Tel. +39 0376 771 777 – fax +39 0376 772 140 – email info@ldr.it – web www.ldr.it ... -
Page 13: Cleaning And Maintenance
Zoom lenses: Slide the front zoom panels positioned at the bottom of the lens tube and clean with a soft cloth. 16. SPARE PARTS All components are available as spare parts. We strongly recommend you always use original LDR components as spare parts. Please refer to our technical assistance should you need to order and/or replace any part of the unit. 17. WARRANTY ... - Page 14 Warm Warm White intensity for 12 From 00% to 100% ‐‐‐ White manual mode Cold Cold White intensity for manual 13 From 00% to 100% ‐‐‐ White mode White colour temperature for ####°K = 10 available colour 14 Col.T ‐‐‐ manual mode temperature preset 15 Tled Visualizes the LED temperature Select the LED Temp in °C or F° °C 16 SwVer Visualizes the software version ‐‐‐ SPECIAL FUNCTIONS: to activate these functions press the rotary switch at power on # Function Description Available Options Factory Setting 13 Luci della Ribalta srl, Via Berna 14, 46042 Castel Goffredo (MN) Italy Tel. +39 0376 771 777 – fax +39 0376 772 140 – email info@ldr.it – web www.ldr.it ...
-
Page 15: Dmx Charts
156 ‐ 180 62% ‐ 70% Step White 5200°K 181 ‐ 205 71% ‐ 80% Step White 5600°K 206 ‐ 230 81% ‐ 90% Step White 5800°K 231 ‐ 255 91% ‐ 100% Alba Tunable White Chart name: DMX512 Functions chart 1 (Default) Revision: 1.0 Date: February 2021 Luminaire: 14 Luci della Ribalta srl, Via Berna 14, 46042 Castel Goffredo (MN) Italy Tel. +39 0376 771 777 – fax +39 0376 772 140 – email info@ldr.it – web www.ldr.it ... -
Page 16: Dmx Chart 2
156 ‐ 180 62% ‐ 70% Step White 5200°K 181 ‐ 205 71% ‐ 80% Step White 5600°K 206 ‐ 230 81% ‐ 90% Step White 5800°K 231 ‐ 255 91% ‐ 100% Alba Tunable White Chart name: DMX512 Functions chart 2 (16bits) Revision: 1.0 Date: February 2021 Luminaire: 15 Luci della Ribalta srl, Via Berna 14, 46042 Castel Goffredo (MN) Italy Tel. +39 0376 771 777 – fax +39 0376 772 140 – email info@ldr.it – web www.ldr.it ... -
Page 17: Dmx Chart 3
161 ‐ 180 64% ‐ 71% Step Strobe speed 9 181 ‐ 200 72% ‐ 78% Step Strobe speed 10 (maximum frequency) 201 ‐ 220 79% ‐ 86% Step Closed 221 ‐ 255 87% ‐ 100% Alba Tunable White Chart name: DMX512 Functions chart 3 (Strobe) Revision: 1.0 Date: February 2021 Luminaire: 16 Luci della Ribalta srl, Via Berna 14, 46042 Castel Goffredo (MN) Italy Tel. +39 0376 771 777 – fax +39 0376 772 140 – email info@ldr.it – web www.ldr.it ... -
Page 18: Dmx Chart 4
Step Strobe speed 9 181 ‐ 200 72% ‐ 78% Step Strobe speed 10 (maximum frequency) 201 ‐ 220 79% ‐ 86% Step Closed 221 ‐ 255 87% ‐ 100% Chart name: DMX512 Functions chart 4 (16 bits + Alba Tunable White Revision: 1.0 Date: February 2021 Luminaire: Strobe) Luci della Ribalta srl reserves the right to modify the present document without prior notice. 17 Luci della Ribalta srl, Via Berna 14, 46042 Castel Goffredo (MN) Italy Tel. +39 0376 771 777 – fax +39 0376 772 140 – email info@ldr.it – web www.ldr.it ... - Page 19 P .iva 01815640204 c.iso IT01815640204 Luci della Ribalta srl, Via Berna 14, 46042 Castel Goffredo MN Italy - tel +39 0376 771777 - web www.ldr.it - email info@ldr.it IT/015/MN/11 VAT registration # It01815640204 - REA MN 198438 - Authorized Exporter #...
- Page 20 Reklamationsformular ‐ formulaire de réclamation ‐ hoja de reclamaciones email: info@ldr.it Azienda ed Indirizzo ‐ Company's name and address ‐ Firmenname und Addresse ‐ Nom et adresse ‐ Nombre y direcciòn _______________________________________________________________________________________________________ _______________________________________________________________________________________________________ Nome del rivenditore da cui il prodotto è stato acquistato ‐ Name of the dealer where you have purchased the product ‐ Namen der Firma, die Ihnen das Produkt verkauft hat ‐ Nom de la société qui vous a vendu ce produit ‐ Nombre de la compañia donde han comprado el producto: ____________________________________________________________________________________________________ 01204320 Alba 8/22 TW Prodotto difettoso 01204330 Alba 18/36 TW Faulty product 01204340 Alba 30/55 TW Defekte s Produkt 380W LED, Tunable White Produit défectueux Producto defectuoso 100/260V, DMX512 Descrizione del problema /Problem found/Beschreibung des Defekts/Description du défaut/Descripciòn del problema ________________________________________________________________________________________________________ ________________________________________________________________________________________________________ ________________________________________________________________________________________________________ ________________________________________________________________________________________________________ Data d'acquisto ‐ Date of purchase ‐ Kaufdatum ‐ Date de l'achat ‐ Fecha de compra ________________________ Si prega di allegare prova d'acquisto ‐ Please attach copy of purchase invoice ‐ Bitte Kaufnachweis beilegen ‐ Veuillez joindre une quittance d'achat ‐ Les rogamos incluyan lcopia de la factura de compra. Nome e qualifica ‐ Name and position ‐ Name und Funktion ‐ Nom et fonction ‐ Nombre y cargo ____________________________________________________________________ Data ‐ Date ‐ Datum ‐ Date ‐ Fecha _____________________________...
- Page 21 local de escoamento de residuos, ou a loja na qual efectuou a compra. Richtlinie 2002/96/EU (Elektro- und Elektronik- Altgeräte - WEEE): Benutzerinformationen. Dieses Produkt entspricht Richtlinie WEEE-symbolet (Waste Electrical 2002/96/EU. Das Symbol des auf dem Gerät Electronic Equipment). dargestellten, durchgestrichenen Korbes gibt an, dass Bruken av WEEE-symbolet indikerer at dette Produkt Ende...
- Page 22 Luci della Ribalta srl, Via Berna 14, 46042 Castel Goffredo mn Italy. tel +39 0376 771 777 ‐ fax +39 0376 772 140 ‐ email info@ldr.it...
