istruzioni per l'uso
operating instructions
Bedienungsanleitung
instrucciones de
manejo
mode d'emploi
gebruiksaanwijzing

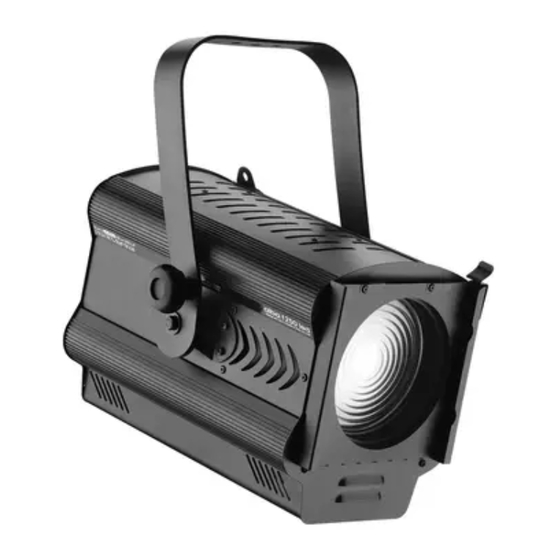

Alba F250 TW 380W
01201300
100/260V, DMX512 + RDM
Alba PC250 TW, 380W
01202300
100/260V, DMX512 + RDM
Luci della Ribalta srl, Via Berna 14, 46042 Castel Goffredo mn Italy. tel +39 0376 771 777 ‐ fax +39 0376 772 140 ‐ email info@ldr.it
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for LDR Alba F250 TW 380W 100/260V, DMX512 + RDM
Summary of Contents for LDR Alba F250 TW 380W 100/260V, DMX512 + RDM
- Page 1 Bedienungsanleitung instrucciones de manejo mode d'emploi gebruiksaanwijzing Alba F250 TW 380W 01201300 100/260V, DMX512 + RDM Alba PC250 TW, 380W 01202300 100/260V, DMX512 + RDM Luci della Ribalta srl, Via Berna 14, 46042 Castel Goffredo mn Italy. tel +39 0376 771 777 ‐ fax +39 0376 772 140 ‐ email info@ldr.it...
-
Page 2: Table Of Contents
16. Summary of Controls and Functions ......... 1 2 17. DMX Charts ................ 1 3 17.1 DMX Chart 1 ............ 1 3 17.2 DMX Chart 2 ............ 1 4 17.3 DMX Chart 3 ............ 1 5 17.4 DMX Chart 4 ............ 1 6 LDR Conformity Certificate – Certificato di Conformità – Konformitätserklärung 17 Complaint form – Modulo di reclamo – Reklamationsformular …………………………. 1 8 WEEE Directive – Direttiva RAEE – WEEE Richtlinie …………………………………………… 19 1 Luci della Ribalta srl, Via Berna 14, 46042 Castel Goffredo (MN) Italy Tel. +39 0376 771 777 – fax +39 0376 772 140 – email info@ldr.it – web www.ldr.it ... -
Page 3: Important Safety Norms
EU Directives or the local safety and health standards of the country where the unit is installed, must be complied with. IMPORTANT SAFETY NORMS This product is rated IP 20 and is therefore designed for interior use only. For details on maximum ambient temperature and tilt angle please refer to what indicated on the product label or screen‐printing on the side of the lens‐tube or the rear of the LED‐house Warning, high voltage ignition. Disconnect the unit from power before servicing Continuous mains power is required for this spotlight as an internal dimmer controls the intensity via DMX or local rotary knob. Use of a phase control dimmed mains supply may damage the internal electronics. Use of a phase control dimmed mains supply may damage the internal electronics This product features fan‐assisted ventilation. Make sure you do not cover the fans or obstruct the air flow at any one time. Make sure the fans are working correctly. Should you detect even the slightest malfunction, switch the luminaire off and carry out the necessary servicing. Replace the fan if necessary. 2 Luci della Ribalta srl, Via Berna 14, 46042 Castel Goffredo (MN) Italy Tel. +39 0376 771 777 – fax +39 0376 772 140 – email info@ldr.it – web www.ldr.it ... -
Page 4: Box Contents
Installation of this product must be exclusively carried out by professional personnel in compliance with the safety norms in force in the country where the product is used. This product must be fitted with a secondary fixing system such as a safety chain or bond. Should this not be supplied as a standard accessory, please make sure you buy it separately and install it before using the product. WARNING: DANGER OF ELECTRICAL SHOCK DO NOT OPERATE ON LIVE EQUIPMENT Disconnect power before opening this fixture to access its light source or electronics. The replacement of the LED source or any of its electronic components can be carried out exclusively by professional personnel upon LDR’s written authorization and only with original Luci della Ribalta srl components. Failure to obtain the manufacturer’s authorization to carry out the replacement/repair, will immediately invalidate the product’s warranty WARNING: EYE DAMAGE HAZARD Make sure this fixture is installed so as to avoid prolonged direct staring at its operating light source (LED) from a distance of less than 7m / 23ft. WARNING: FIRE HAZARD Never locate this fixture on any flammable surface. Minimum distance of any part of the body of the luminaire from any flammable surface or object: 0,5m Minimum distance from lit surface, please refer to product label ... -
Page 5: Weight And Dimensions
gross weight: 12,3 kg packing dim.: 60x40x45h cm packing dim: 60x40x45h cm 4. IMPORTANT NOTICE BEFORE THE INSTALLATION / INSTALLATION Before installing this fixture check its weight on the product label and the weight of each accessory you are adding and make sure the structure you are installing it to withstands the total weight. The mounting stirrup rotates around the body of the luminaire and is designed to allow the spotlight to be suspended from above using a C‐clamp or similar, or supported on a stand or bracket from below. CAUTION DO NOT TURN THE LUMINAIRE UPSIDE‐DOWN BUT ALWAYS TURN THE STIRRUP IF YOU NEED TO MOUNT IT ON A STAND OR BRACKET Note: the spotlight’s location must provide suitable ventilation for the LED module. If not supplied choose a suitable clamp and make sure it is correctly fixed and strongly tightened to the stirrup according to the clamp’s manufacturer’s instructions If not supplied choose a suitable safety cable or bond. Clamp it to the eyelet provided on the upper rear part of the luminaire (see picture here below), run it twice around the stirrup and the structure the luminaire is hung to so as to bond them together and close the loop. 4 Luci della Ribalta srl, Via Berna 14, 46042 Castel Goffredo (MN) Italy Tel. +39 0376 771 777 – fax +39 0376 772 140 – email info@ldr.it – web www.ldr.it ... -
Page 6: Mechanical Operation
Before you finally position this product for use, temporarily connect it to a properly fused power supply to check the lamp works correctly. 7. VOLTAGE Before operating this unit please refer to the product label mounted at the back of the luminaire to check you are operating with the correct voltage. The Alba F/PC Tunable White can be operated between 90V and 260V and the electronic PSU inside the fixture will automatically switch to the available voltage. 8. FREQUENCY Frequency on this product is automatically selected by the electronic PSU (50/60Hz) 9. CONNECT TO THE POWER SUPPLY Connect the unit to a continuous mains power source 5 Luci della Ribalta srl, Via Berna 14, 46042 Castel Goffredo (MN) Italy Tel. +39 0376 771 777 – fax +39 0376 772 140 – email info@ldr.it – web www.ldr.it ... -
Page 7: Control Functions And Operation
00 % (000) = LED OFF TAP THE ROTARY SELECTOR TO DISPLAY 100% (FFF) = LED FULL XX % XXX MANUAL THE VALUE 11.2 DMX ADDRESS (Addr) It allows to select the initial DMX starting address to remotely control the LED functions. To change the initial DMX address press the rotary switch until an arrow appears, then turn to change to the desired DMX starting address. Press to confirm your selection. Factory setting is 001. PRESS TO ACTIVATE 2 Addr 2 Addr 2 Addr TURN TO ASSIGN THE THE MENU, AN DMX ADDRESS AND ARROW SHOULD PRESS TO CONFIRM APPEAR 6 Luci della Ribalta srl, Via Berna 14, 46042 Castel Goffredo (MN) Italy Tel. +39 0376 771 777 – fax +39 0376 772 140 – email info@ldr.it – web www.ldr.it ... -
Page 8: Dimmer Resolution (8/16 Bit)
PRESS TO ACTIVATE 6 SetStr 6 SetStr THE MENU, AN WITH STROBE ENABLE OPEN ARROW SHOULD OPEN THE LIGHT IS SET TO ON APPEAR 6 SetStr CHOOSE THE STROBE SPEED VALUE FROM SPEED # 1(SLOW) TO 10 (FAST) WITH STROBE ENABLE 6 SetStr THE LIGHT IS SET TO CLOSED OFF 7 Luci della Ribalta srl, Via Berna 14, 46042 Castel Goffredo (MN) Italy Tel. +39 0376 771 777 – fax +39 0376 772 140 – email info@ldr.it – web www.ldr.it ... -
Page 9: Dimming Curve
FAST 11.10 FAN SETTING (Fan) This function allows to set the fan response. A choice of three modes is available: Automatic, Silent or Steady. When the fan is in Auto mode, its speed is controlled by the temperature of the LED. When Silent mode is chosen the fan runs slowly to reduce the noise. If Steady is activated the fan runs at constant speed, halfway between the minimum and maximum speed. In all cases, if the temperature on the LED exceeds the maximum admitted value, the LED is protected by a de‐rating security system, which lowers the light output until the temperature goes back to safe levels, when full power is then restored automatically. Factory setting is AUTO. PRESS TO ACTIVATE 10 Fan 10 Fan FAN SPEED IS THE MENU AN REGULATED BY LED AUTO ARROW SHOULD AUTO TEMPERATURE APPEAR 10 Fan SLOW FAN SPEED TO SILENT REDUCE THE NOISE 8 Luci della Ribalta srl, Via Berna 14, 46042 Castel Goffredo (MN) Italy Tel. +39 0376 771 777 – fax +39 0376 772 140 – email info@ldr.it – web www.ldr.it ... -
Page 10: Lcd Screen Illumination
####°K APPEAR PRESS TO CONFIRM 11.15 TEMPERATURE CONTROL (Tled) This function allows to visualize the LED temperature. Factory setting is °C. PRESS TO ACTIVATE 15 Tled 15 Tled 15 Tled TURN TO SELECT °C THE MENU AN OR °F AND PRESS TO ##°C ARROW SHOULD ##°C ###°F CONFIRM APPEAR 11.16 SOFTWARE VERSION (SwVer) This function allows to display the software version. There are also four different hidden menus which allow to select the advanced settings of the ALBA LED. To activate this function turn OFF and ON the Alba by pressing the rotary switch at power on. 9 Luci della Ribalta srl, Via Berna 14, 46042 Castel Goffredo (MN) Italy Tel. +39 0376 771 777 – fax +39 0376 772 140 – email info@ldr.it – web www.ldr.it ... -
Page 11: A Pro Or Basic Control
Min Cold Min Cold THE CALIBRATION VALUE AND PRESS TO #### #### CONFIRM 11.21‐E EXIT HIDDEN MENU (Exit) It allows to exit from hidden menus. 12. SOFTWARE UPGRADE – REMOTO control device Software upgrades are available for download from the reserved area of our website (password requested). An accessory gateway REMOTO ‐ GATEWAY FULL LINE DISPLAY REMOTER DMX512A‐ ARTNET (part # 20107072) 10 Luci della Ribalta srl, Via Berna 14, 46042 Castel Goffredo (MN) Italy Tel. +39 0376 771 777 – fax +39 0376 772 140 – email info@ldr.it – web www.ldr.it ... -
Page 12: Cleaning And Maintenance
check internal and external wirings and replace any cable which should be damaged by heat or mechanical agents. 14. SPARE PARTS All components are available as spare parts. We strongly recommend you always use original LDR components as spare parts. Please refer to our technical assistance should you need to order and/or replace any part of the unit. 15. ... -
Page 13: Summary Of Controls And Functions
ON; AutoOFF = LCD light off after 11 BackL LCD screen retro‐illumination AutoOff 1'30" Warm Warm White intensity for 12 From 00% to 100% ‐‐‐ White manual mode Cold Cold White intensity for manual 13 From 00% to 100% ‐‐‐ White mode White colour temperature for ####°K = 10 available colour 14 Col.T ‐‐‐ manual mode temperature preset 15 Tled Visualizes the LED temperature Select the LED Temp in °C or F° °C 16 SwVer Visualizes the software version ‐‐‐ 12 Luci della Ribalta srl, Via Berna 14, 46042 Castel Goffredo (MN) Italy Tel. +39 0376 771 777 – fax +39 0376 772 140 – email info@ldr.it – web www.ldr.it ... -
Page 14: Dmx Charts
156 ‐ 180 62% ‐ 70% Step White 5200°K 181 ‐ 205 71% ‐ 80% Step White 5600°K 206 ‐ 230 81% ‐ 90% Step White 5800°K 231 ‐ 255 91% ‐ 100% Alba Tunable White Chart name: DMX512 Functions chart 1 (Default) Revision: 1.0 Date: February 2021 Luminaire: 13 Luci della Ribalta srl, Via Berna 14, 46042 Castel Goffredo (MN) Italy Tel. +39 0376 771 777 – fax +39 0376 772 140 – email info@ldr.it – web www.ldr.it ... -
Page 15: Dmx Chart 2
156 ‐ 180 62% ‐ 70% Step White 5200°K 181 ‐ 205 71% ‐ 80% Step White 5600°K 206 ‐ 230 81% ‐ 90% Step White 5800°K 231 ‐ 255 91% ‐ 100% Alba Tunable White Chart name: DMX512 Functions chart 2 (16bits) Revision: 1.0 Date: February 2021 Luminaire: 14 Luci della Ribalta srl, Via Berna 14, 46042 Castel Goffredo (MN) Italy Tel. +39 0376 771 777 – fax +39 0376 772 140 – email info@ldr.it – web www.ldr.it ... -
Page 16: Dmx Chart 3
161 ‐ 180 64% ‐ 71% Step Strobe speed 9 181 ‐ 200 72% ‐ 78% Step Strobe speed 10 (maximum frequency) 201 ‐ 220 79% ‐ 86% Step Closed 221 ‐ 255 87% ‐ 100% Alba Tunable White Chart name: DMX512 Functions chart 3 (Strobe) Revision: 1.0 Date: February 2021 Luminaire: 15 Luci della Ribalta srl, Via Berna 14, 46042 Castel Goffredo (MN) Italy Tel. +39 0376 771 777 – fax +39 0376 772 140 – email info@ldr.it – web www.ldr.it ... -
Page 17: Dmx Chart 4
161 ‐ 180 64% ‐ 71% Step Strobe speed 9 181 ‐ 200 72% ‐ 78% Step Strobe speed 10 (maximum frequency) 201 ‐ 220 79% ‐ 86% Step Closed 221 ‐ 255 87% ‐ 100% Chart name: DMX512 Functions chart 4 (16 bits + Alba Tunable White Revision: 1.0 Date: February 2021 Luminaire: Strobe) Luci della Ribalta srl reserves the right to modify the present document without prior notice. 16 Luci della Ribalta srl, Via Berna 14, 46042 Castel Goffredo (MN) Italy Tel. +39 0376 771 777 – fax +39 0376 772 140 – email info@ldr.it – web www.ldr.it ... - Page 18 P .iva 01815640204 c.iso IT01815640204 Luci della Ribalta srl, Via Berna 14, 46042 Castel Goffredo MN Italy - tel +39 0376 771777 - web www.ldr.it - email info@ldr.it IT/015/MN/11 VAT registration # It01815640204 - REA MN 198438 - Authorized Exporter #...
- Page 19 Reklamationsformular ‐ formulaire de réclamation ‐ hoja de reclamaciones email: info@ldr.it Azienda ed Indirizzo ‐ Company's name and address ‐ Firmenname und Addresse ‐ Nom et adresse ‐ Nombre y direcciòn _______________________________________________________________________________________________________ _______________________________________________________________________________________________________ Nome del rivenditore da cui il prodotto è stato acquistato ‐ Name of the dealer where you have purchased the product ‐ Namen der Firma, die Ihnen das Produkt verkauft hat ‐ Nom de la société qui vous a vendu ce produit ‐ Nombre de la compañia donde han comprado el producto: ____________________________________________________________________________________________________ 01201300 Alba F250 TW 380W Prodotto difettoso 100/260V, DMX512 + RDM Faulty product 01202300 Alba PC250 TW, 380W Defekte s Produkt 100/260V, DMX512 + RDM Produit défectueux Producto defectuoso Descrizione del problema /Problem found/Beschreibung des Defekts/Description du défaut/Descripciòn del problema ________________________________________________________________________________________________________ ________________________________________________________________________________________________________ ________________________________________________________________________________________________________ ________________________________________________________________________________________________________ Data d'acquisto ‐ Date of purchase ‐ Kaufdatum ‐ Date de l'achat ‐ Fecha de compra ________________________ Si prega di allegare prova d'acquisto ‐ Please attach copy of purchase invoice ‐ Bitte Kaufnachweis beilegen ‐ Veuillez joindre une quittance d'achat ‐ Les rogamos incluyan lcopia de la factura de compra. Nome e qualifica ‐ Name and position ‐ Name und Funktion ‐ Nom et fonction ‐ Nombre y cargo ____________________________________________________________________ Data ‐ Date ‐ Datum ‐ Date ‐ Fecha _____________________________...
- Page 20 local de escoamento de residuos, ou a loja na qual efectuou a compra. Richtlinie 2002/96/EU (Elektro- und Elektronik- Altgeräte - WEEE): Benutzerinformationen. Dieses Produkt entspricht Richtlinie WEEE-symbolet (Waste Electrical 2002/96/EU. Das Symbol des auf dem Gerät Electronic Equipment). dargestellten, durchgestrichenen Korbes gibt an, dass Bruken av WEEE-symbolet indikerer at dette Produkt Ende...
- Page 21 Luci della Ribalta srl, Via Berna 14, 46042 Castel Goffredo mn Italy. tel +39 0376 771 777 ‐ fax +39 0376 772 140 ‐ email info@ldr.it...
