istruzioni per l'uso
operating instructions
Bedienungsanleitung
instrucciones de manejo
mode d'emploi
gebruiksaanwijzing

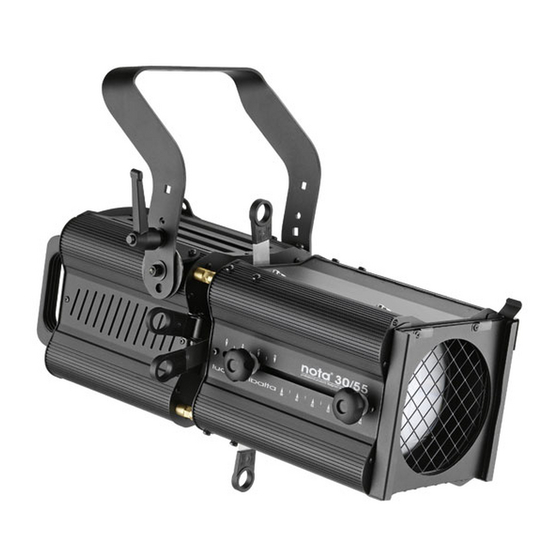

Alba 8/22 250 CM
01204220
Alba 18/36 250 CM
01204230
01204240
Alba 30/55 250 CM
380W LED, RGBW
100/260V, DMX512
Luci della Ribalta srl, Via Berna 14, 46042 Castel Goffredo mn Italy. tel +39 0376 771 777 ‐ fax +39 0376 772 140 ‐ email info@ldr.it
Advertisement
Table of Contents
Related Manuals for LDR Alba 8/22 250 CM
Summary of Contents for LDR Alba 8/22 250 CM
- Page 1 Bedienungsanleitung instrucciones de manejo mode d'emploi gebruiksaanwijzing Alba 8/22 250 CM 01204220 Alba 18/36 250 CM 01204230 01204240 Alba 30/55 250 CM 380W LED, RGBW 100/260V, DMX512 Luci della Ribalta srl, Via Berna 14, 46042 Castel Goffredo mn Italy. tel +39 0376 771 777 ‐ fax +39 0376 772 140 ‐ email info@ldr.it...
-
Page 2: Table Of Contents
17. Warranty ...................... . .13 SUMMARY OF CONTROLS AND OPERATION 18. Summary of the ALBA functions .............. 1 4 19. DMX Charts ...................... 1 5 19.1 DMX Chart 1 .................... 1 5 19.2 DMX Chart 2 .................... 1 6 19.3 DMX Chart 3 .................... 1 6 19.4 DMX Chart 4 .................... 1 7 LDR Conformity Certificate – Certificato di Conformità – Konformitätserklärung 19 Complaint form – Modulo di reclamo – Reklamationsformular …………………………. 20 WEEE Directive – Direttiva RAEE – WEEE Richtlinie …………………………………………… 21 1 Luci della Ribalta srl, Via Berna 14, 46042 Castel Goffredo (MN) Italy Tel. +39 0376 771 777 – fax +39 0376 772 140 – email info@ldr.it – web www.ldr.it ... -
Page 3: Important Safety Norms
Luci della Ribalta accepts no liability for direct, indirect, incidental, special, or consequential damages resulting from the customer’s failure to follow the installation, operating, maintenance and safety procedures in this manual or those generally applicable to lighting equipment. The limitation extends to damages for personal injury, property damage, loss of operations, loss of profits, loss of product or loss of time, whether incurred in by the customer, the customer’s employees or a third party. Apart from the instructions given on this manual, all relevant safety and health standards of the appropriate Directives of the country where the unit will be installed must be complied with. 1. IMPORTANT SAFETY NORMS This product is a professional lighting fixture, namely a profile spot, fitted with a LED light source, which can only be operated by professional staff This product must be fitted with a secondary fixing system such as a safety chain or bond. Should this not be supplied as a standard accessory, please make sure you buy it separately and install it before using the product Warning, high voltage ignition. Disconnect the unit from power before servicing Continuous mains power is required for this spotlight as an internal dimmer controls the intensity via DMX or local rotary knob. Use of a phase control dimmed mains supply may damage the internal electronics This product features fan‐assisted ventilation. Make sure you do not cover the fans or obstruct the air flow at any time Make sure all fans are working correctly at any one time. Should you detect even the slightest malfunction, switch the luminaire off and carry out the necessary servicing. Replace the fans if necessary. This product is rated IP 20 and is therefore designed for interior use only. For details on maximum ambient temperature and tilt angle please refer to what indicated on the product label or screen‐printing on the side of the lens‐tube or the rear of the LED‐house 2 Luci della Ribalta srl, Via Berna 14, 46042 Castel Goffredo (MN) Italy Tel. +39 0376 771 777 – fax +39 0376 772 140 – email info@ldr.it – web www.ldr.it ... -
Page 4: Box Contents
Repairing and replacement of any component of this product must be carried out exclusively by professional personnel in conformity with the relevant safety and health standards and only with original Luci della Ribalta srl components. Replacement of any part of the wiring system must be carried out exclusively by professional personnel in compliance with the original wiring diagram and with components identical to or compatible with those originally fitted. Installation of this product must be exclusively carried out by professional personnel in compliance with the safety norms in force in the country where the product is used WARNING: DANGER OF ELECTRICAL SHOCK DO NOT OPERATE ON LIVE EQUIPMENT Disconnect power before opening this fixture to access its light source or electronics. The replacement of the LED source or any of its electronic components can be carried out exclusively by professional personnel upon LDR’s written authorization and only with original Luci della Ribalta srl components. Failure to obtain the manufacturer’s authorization to carry out the replacement/repair, will immediately invalidate the product’s warranty WARNING: EYE DAMAGE HAZARD Make sure this fixture is installed so as to avoid prolonged direct staring at its operating light source (LED) from a distance of less than 7m / 23ft. WARNING: FIRE HAZARD Never locate this fixture on any flammable surface. Minimum distance of any part of the body of the luminaire from any flammable surface or object: 0,5m / 20in ... -
Page 5: Weight And Dimensions
part # A20100807/A B‐size glass gobo part # A20100807/B The gobo holder must be inserted in the gate area instead of the iris diaphragm. Usage of both accessories at the same time is not possible. In order to fit or replace a gobo holder, please: Remove the iris diaphragm if fitted (see above) Slide the gobo‐holder in the gate area – bent metal wings must look to the LED‐house Make sure it is correctly positioned and apply pressure to the plastic holder if needed CAUTION: the metal surface of the gobo holder reaches very high temperatures during operation. Make sure the unit is totally cold before attempting to remove it, protect you hands with gloves and avoid skin direct contact with its metal surface 4 Luci della Ribalta srl, Via Berna 14, 46042 Castel Goffredo (MN) Italy Tel. +39 0376 771 777 – fax +39 0376 772 140 – email info@ldr.it – web www.ldr.it ... -
Page 6: Important Notice Before The Installation/Installation
Lift the stirrup and re‐position the screws Remove the 4x M5 screws from the lower sets of holes Position the stirrup on the 4x holes, making sure its bend looks to the front of the luminaire Strongly tighten the 4 screws If not supplied choose a suitable clamp or spigot and make sure it is correctly fixed and strongly tightened to the stirrup according to the clamp’s / spigot manufacturer’s instructions If not supplied choose a suitable safety cable or bond. Clamp it to the eyelet provided on the upper rear part of the luminaire (see picture here below), run it twice around the stirrup and the structure the luminaire is hung to so as to bond them together and close the loop. When tilting the unit make sure the knob blocking the stirrup is strongly tightened at any time and that the luminaire can hold the desired tilt angle WIRING Before being connected to the mains power, this unit may need to be wired with a suitable plug if not already installed. Make sure the plug you are using is rated for the product’s power load and it conforms to the relevant EU/UL electrical standards. Make sure the plug you are fitting withstands the LED power load. This fixture must be grounded To perform a correct wiring, please note that the cores in this mains lead are colour‐coded as follows: 5 Luci della Ribalta srl, Via Berna 14, 46042 Castel Goffredo (MN) Italy Tel. +39 0376 771 777 – fax +39 0376 772 140 – email info@ldr.it – web www.ldr.it ... -
Page 7: Voltage
(suspended) using a C‐clamp or similar. In case you need to install the fixture on a tripod or support, (see above for reference) Note: the spotlight’s location must provide suitable ventilation for the LED module. For minimum distance from flammable and lit surface please refer to the FIRE HAZARD section in this manual or to the product’s label Focus control: the ALBA range of LED profile spots is available in 3 variable beam angle models, including 8° to 22°, 18° to 36° and 30° to 55°. Two large, easy‐to‐grab control knobs on the right‐hand side of the lens‐tube control the focus. The variable beam is modified by adjusting the front and rear zoom lenses in relation to each other. The front lens defines the beam spread, the rear lens defines the focus degree of ‘softness’ or ‘hardness’ of the beam edge or shutters. The beam distribution (peak/flat) is fixed. Gently turn the knobs anti‐clockwise until you have reached the desired size/focus of the beam in relation to the distance you are projecting at. Turn the knobs clockwise and tightly close them so that the lenses are held in position at any tilt angle Beam‐shaping: 4 shutter blades are provided with each fixture to shape the beam geometrically Beam‐sizing: an accessory iris diaphragm, part # A20100707 can be purchased separately and used to size the beam of the ALBA Tilt control: The stirrup is factory‐balanced and fitted with a positive friction clamp controlled by a user‐ friendly, effective lever‐knob. Turn the knob anticlockwise to release it, position the profile at the desired tilt angle and turn the knob clockwise to hold the desired position. 6 Luci della Ribalta srl, Via Berna 14, 46042 Castel Goffredo (MN) Italy Tel. +39 0376 771 777 – fax +39 0376 772 140 – email info@ldr.it – web www.ldr.it ... -
Page 8: Connect To The Power Supply
APPEAR CONFIRM Tap the rotary selector and the LCD screen will display the mode status and the current value: 1 Mode M: DMX TAP THE ROTARY 00 % = LED OFF SELECTOR TO DISPLAY 100 % = LED FULL XX % THE VALUE 1 Mode M: Manual 00 % (000) = LED OFF TAP THE ROTARY 100% (FFF) = LED FULL SELECTOR TO DISPLAY XX % XXX MANUAL THE VALUE 7 Luci della Ribalta srl, Via Berna 14, 46042 Castel Goffredo (MN) Italy Tel. +39 0376 771 777 – fax +39 0376 772 140 – email info@ldr.it – web www.ldr.it ... -
Page 9: Dmx Address
PRESS TO ACTIVATE 6 SetStr 6 SetStr THE MENU, AN WITH STROBE ENABLE OPEN ARROW SHOULD OPEN THE LIGHT IS SET TO ON APPEAR 6 SetStr CHOOSE THE STROBE SPEED VALUE FROM SPEED # 1(SLOW) TO 10 (FAST) WITH STROBE ENABLE 6 SetStr THE LIGHT IS SET TO CLOSE OFF 8 Luci della Ribalta srl, Via Berna 14, 46042 Castel Goffredo (MN) Italy Tel. +39 0376 771 777 – fax +39 0376 772 140 – email info@ldr.it – web www.ldr.it ... -
Page 10: Dimming Curve
FAST 13.10 FAN SETTING (Fan) This function allows to set the fan response. A choice of three modes is available: Automatic, Silent or Steady. When the fan is in Auto mode, its speed is controlled by the temperature of the LED. When Silent mode is chosen the fan runs slowly to reduce the noise. If Steady is activated the fan runs at constant speed, halfway between the minimum and maximum speed. In all cases, if the temperature on the LED exceeds the maximum admitted value, the LED is protected by a de‐rating security system, which lowers the light output until the temperature goes back to safe levels, when full power is then restored automatically. Factory setting is AUTO. PRESS TO ACTIVATE 10 Fan 10 Fan FAN SPEED IS THE MENU, AN REGULATED BY LED AUTO ARROW SHOULD AUTO TEMPERATURE APPEAR 10 Fan SLOW FAN SPEED TO SILENT REDUCE THE NOISE 9 Luci della Ribalta srl, Via Berna 14, 46042 Castel Goffredo (MN) Italy Tel. +39 0376 771 777 – fax +39 0376 772 140 – email info@ldr.it – web www.ldr.it ... -
Page 11: Lcd Screen Illumination
###% PRESS TO CONFIRM APPEAR 13.15 WHITE COLOUR INTENSITY (White) This function allows to set the intensity of white color for manual mode. Selecting the manual mode, 100% is automatically set. PRESS TO ACTIVATE TURN TO SELECT THE 15 White 15 White 15 White THE MENU, AN WHITE INTENSITY ###% ARROW SHOULD ###% AND PRESS TO ###% APPEAR CONFIRM 10 Luci della Ribalta srl, Via Berna 14, 46042 Castel Goffredo (MN) Italy Tel. +39 0376 771 777 – fax +39 0376 772 140 – email info@ldr.it – web www.ldr.it ... -
Page 12: White Colour Temperature Selections (Col.t)
PRESS TO ACTIVATE PRESS TO CONFIRM BASIC Reset SURE? THE MENU THE RESET 13.21‐C ID REMOTO (ID Rem) It allows to select the ID number to connect Alba to Remoto for upload and download firmware. To change the initial ID press the rotary switch until an arrow appears, then turn to change to the desired ID number. Press to confirm your selection. It is possible to select an ID number from 0 to 250. If ID number=0 remote control is not active. Factory setting is 000. PRESS TO ACTIVATE Choose ID Rem ID Rem TURN TO ASSIGN THE THE MENU, AN ID NUMBER AND ID Rem ARROW SHOULD PRESS TO CONFIRM APPEAR 11 Luci della Ribalta srl, Via Berna 14, 46042 Castel Goffredo (MN) Italy Tel. +39 0376 771 777 – fax +39 0376 772 140 – email info@ldr.it – web www.ldr.it ... -
Page 13: Calibration
CONFIRM 13.23‐E EXIT HIDDEN MENU (Exit) It allows to exit from hidden menus. 14. SOFTWARE UPGRADE – REMOTO control device Software upgrades are available for download from the reserved area of our website (password requested). An accessory gateway REMOTO, ‐ GATEWAY FULL LINE DISPLAY REMOTER DMX512A‐ ARTNET (part # 20107072) Allows to upload the desired software version on your Albas. Please contact your local distributor for more detailed information. 15. CLEANING AND MAINTENANCE To ensure maximum performance of the product, a regular maintenance service should be carried out. Please make sure the product is cold and disconnected from power supply when doing this. General maintenance * Clean all reflective parts such as lenses opening the product, if necessary. * Check the lenses and replace any visibly damaged component. * Clean air ducts and fans in order to allow a proper ventilation activity on the product. * Check internal and external wiring and replace any cable which should be damaged by heat or mechanical agents Cleaning of optical components LEDhouse lenses: Open the lens compartment door by removing the two M4 cross head screws on the top of the LEDhouse tube and slide the top cover free Remove the condensor lenses assembled block by removing the two M5 cross head screws. Clean the lenses with a soft cloth and re‐position Zoom lenses: 12 Luci della Ribalta srl, Via Berna 14, 46042 Castel Goffredo (MN) Italy Tel. +39 0376 771 777 – fax +39 0376 772 140 – email info@ldr.it – web www.ldr.it ... -
Page 14: Spare Parts
ALBA profiles 250W RGBW LED User’s Manual – 2.0 Slide the front zoom panels positioned at the bottom of the lens tube and clean with a soft cloth. 16. SPARE PARTS All components are available as spare parts. We strongly recommend you always use original LDR components as spare parts. Please refer to our technical assistance should you need to order and/or replace any part of the unit. 17. WARRANTY Our warranty covers all structural and manufacturing defects for a period of one year from the date of purchase. In case of complaint, we strongly recommend that in the first instance you contact the local dealer who supplied the product to you. In all cases, please refer to the serial number located at the rear of the spotlight. ... - Page 15 From 00% to 100% ‐‐‐ Green intensity for manual 13 Green From 00% to 100% ‐‐‐ mode 14 Blue Blue intensity for manual mode From 00% to 100% ‐‐‐ White intensity for manual 15 White From 00% to 100% ‐‐‐ mode White colour temperature for ####°K = 10 available colour 16 Col.T ‐‐‐ manual mode temperature preset 17 Tled Visualizes the LED temperature Select the LED Temp in °C or F° °C 1 SwVer Visualizes the software version ‐‐‐ 14 Luci della Ribalta srl, Via Berna 14, 46042 Castel Goffredo (MN) Italy Tel. +39 0376 771 777 – fax +39 0376 772 140 – email info@ldr.it – web www.ldr.it ...
-
Page 16: Dmx Charts
156 ‐ 180 62% ‐ 70% Step White 5200°K 181 ‐ 205 71% ‐ 80% Step White 5600°K 206 ‐ 230 81% ‐ 90% Step White 5800°K 231 ‐ 255 91% ‐ 100% Alba RGBW Chart name: DMX512 Functions chart 1 (Default) Revision: 2.0 Date: February 2021 Luminaire: 15 Luci della Ribalta srl, Via Berna 14, 46042 Castel Goffredo (MN) Italy Tel. +39 0376 771 777 – fax +39 0376 772 140 – email info@ldr.it – web www.ldr.it ... -
Page 17: Dmx Chart 2
0% ‐ 1% Step White 2700°K 6 ‐ 30 2% ‐ 11% 7 Tunable White Step White 3000°K 31 ‐ 55 12% ‐ 21% Step White 3200°K 56 ‐ 80 22% ‐ 31% Step White 3800°K 81 ‐ 105 32% ‐ 41% 16 Luci della Ribalta srl, Via Berna 14, 46042 Castel Goffredo (MN) Italy Tel. +39 0376 771 777 – fax +39 0376 772 140 – email info@ldr.it – web www.ldr.it ... -
Page 18: Dmx Chart 4
156 ‐ 180 62% ‐ 70% Step White 5200°K 181 ‐ 205 71% ‐ 80% Step White 5600°K 206 ‐ 230 81% ‐ 90% Step White 5800°K 231 ‐ 255 91% ‐ 100% 8 Strobe Step Open 0 ‐ 20 0% ‐ 8% 17 Luci della Ribalta srl, Via Berna 14, 46042 Castel Goffredo (MN) Italy Tel. +39 0376 771 777 – fax +39 0376 772 140 – email info@ldr.it – web www.ldr.it ... - Page 19 161 ‐ 180 64% ‐ 71% Step Strobe speed 9 181 ‐ 200 72% ‐ 78% Step Strobe speed 10 (maximum frequency) 201 ‐ 220 79% ‐ 86% Step Closed 221 ‐ 255 87% ‐ 100% Chart name: DMX512 Functions chart 4 (16 bits + Alba RGBW Revision: 2.0 Date: February 2021 Luminaire: Strobe) Luci della Ribalta srl reserves the right to modify the present document without prior notice. 18 Luci della Ribalta srl, Via Berna 14, 46042 Castel Goffredo (MN) Italy Tel. +39 0376 771 777 – fax +39 0376 772 140 – email info@ldr.it – web www.ldr.it ...
- Page 20 P .iva 01815640204 c.iso IT01815640204 Luci della Ribalta srl, Via Berna 14, 46042 Castel Goffredo MN Italy - tel +39 0376 771777 - web www.ldr.it - email info@ldr.it IT/015/MN/11 VAT registration # It01815640204 - REA MN 198438 - Authorized Exporter #...
- Page 21 Reklamationsformular ‐ formulaire de réclamation ‐ hoja de reclamaciones email: info@ldr.it Azienda ed Indirizzo ‐ Company's name and address ‐ Firmenname und Addresse ‐ Nom et adresse ‐ Nombre y direcciòn _______________________________________________________________________________________________________ _______________________________________________________________________________________________________ Nome del rivenditore da cui il prodotto è stato acquistato ‐ Name of the dealer where you have purchased the product ‐ Namen der Firma, die Ihnen das Produkt verkauft hat ‐ Nom de la société qui vous a vendu ce produit ‐ Nombre de la compañia donde han comprado el producto: ____________________________________________________________________________________________________ 01204220 Alba 8/22 250 CM Prodotto difettoso 01204230 Alba 18/36 250 CM Faulty product 01204240 Alba 30/55 250 CM Defekte s Produkt 250W LED, RGBW Produit défectueux Producto defectuoso 100/260V, DMX512 Descrizione del problema /Problem found/Beschreibung des Defekts/Description du défaut/Descripciòn del problema ________________________________________________________________________________________________________ ________________________________________________________________________________________________________ ________________________________________________________________________________________________________ ________________________________________________________________________________________________________ Data d'acquisto ‐ Date of purchase ‐ Kaufdatum ‐ Date de l'achat ‐ Fecha de compra ________________________ Si prega di allegare prova d'acquisto ‐ Please attach copy of purchase invoice ‐ Bitte Kaufnachweis beilegen ‐ Veuillez joindre une quittance d'achat ‐ Les rogamos incluyan lcopia de la factura de compra. Nome e qualifica ‐ Name and position ‐ Name und Funktion ‐ Nom et fonction ‐ Nombre y cargo ____________________________________________________________________ Data ‐ Date ‐ Datum ‐ Date ‐ Fecha _____________________________...
- Page 22 local de escoamento de residuos, ou a loja na qual efectuou a compra. Richtlinie 2002/96/EU (Elektro- und Elektronik- Altgeräte - WEEE): Benutzerinformationen. Dieses Produkt entspricht Richtlinie WEEE-symbolet (Waste Electrical 2002/96/EU. Das Symbol des auf dem Gerät Electronic Equipment). dargestellten, durchgestrichenen Korbes gibt an, dass Bruken av WEEE-symbolet indikerer at dette Produkt Ende...
- Page 23 Luci della Ribalta srl, Via Berna 14, 46042 Castel Goffredo mn Italy. tel +39 0376 771 777 ‐ fax +39 0376 772 140 ‐ email info@ldr.it...
