01154020
01154120
01154030
01154130
01154040
01154140
Luci della Ribalta srl, Via Berna 14, 46042 Castel Goffredo mn Italy. tel +39 0376 771 777 ‐ fax +39 0376 772 140 ‐ email info@ldr.it

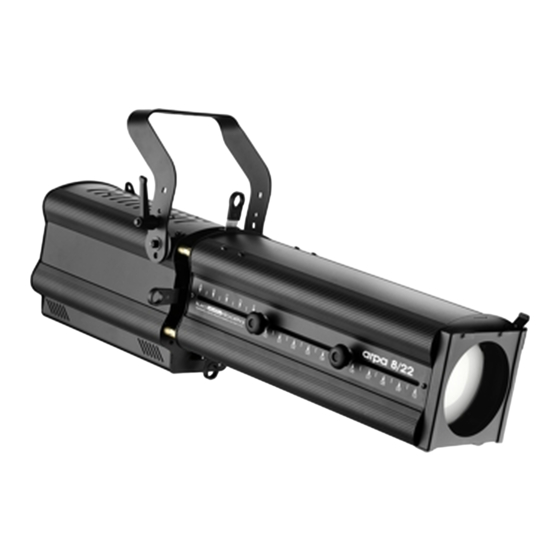

Arpa 8/22 150 W LED, 3200K
Arpa 8/22 150 C LED, 5600K
Arpa 18/36 W LED, 3200K
Arpa 18/36 C LED, 5600K
Arpa 30/55 W LED, 3200K
Arpa 30/55 C LED, 5600K
istruzioni per l'uso
operating instructions
Bedienungsanleitung
instrucciones de manejo
mode d'emploi
gebruiksaanwijzing
DMX512 +RDM
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for LDR Arpa 8/22 150 W LED
Summary of Contents for LDR Arpa 8/22 150 W LED
- Page 1 Bedienungsanleitung instrucciones de manejo mode d'emploi gebruiksaanwijzing Arpa 8/22 150 W LED, 3200K 01154020 Arpa 8/22 150 C LED, 5600K 01154120 01154030 Arpa 18/36 W LED, 3200K Arpa 18/36 C LED, 5600K 01154130 Arpa 30/55 W LED, 3200K 01154040 Arpa 30/55 C LED, 5600K 01154140 DMX512 +RDM Luci della Ribalta srl, Via Berna 14, 46042 Castel Goffredo mn Italy. tel +39 0376 771 777 ‐ fax +39 0376 772 140 ‐ email info@ldr.it...
-
Page 2: Table Of Contents
8.13 Software version ..................... 8 8.14 PRO or BASIC control ..................8 8.15 Factory settings…………………………………………………………………………………………….8 8.16 ID for Remoto……………………………………………………………………………………………….8 8.17 Calibration…………………………………………………………………………………………………….8 8.18 Exit hidden menu………………………………………………………………………………………….8 MAINTENANCE 9 Cleaning and maintenance ................... . 9 10 Spare parts ...................... . 9 11 Warranty ...................... ..9 SUMMARY OF CONTROLS AND OPERATION 12 Summary of the ARPA functions ............... 1 0 13 DMX Chart……………………………………………………………………………………………………. 11 13.1 DMX Chart 1………………………………………………………………………………………………. 11 13.2 DMX Chart 2………………………………………………………………………………………………. 11 13.3 DMX Chart 3………………………………………………………………………………………………..12 LDR Conformity Certificate – Certificato di Conformità – Konformitätserklärung Page 13 Complaint form – Modulo di reclamo – Reklamationsformular …………………………. Page 14 WEEE Directive – Direttiva RAEE – WEEE Richtlinie …………………………………………… Page 15 1 Luci della Ribalta srl, Via Berna 14, 46042 Castel Goffredo (MN) Italy Tel. +39 0376 771 777 – fax +39 0376 772 140 – email info@ldr.it – web www.ldr.it ... -
Page 3: Important Safety Norms
Apart from the instructions given in this manual, all relevant safety and health standards of the appropriate EU and local Directives must be complied with IMPORTANT: Read these user instructions before using this lighting unit The instructions given here ensure a safe and correct usage of this product. A user’s failure to comply with the installation, operating, maintenance and safety procedures mentioned in this manual, as well as those generally applicable to this lighting equipment, may cause the luminaire not to perform as expected. Luci della Ribalta accepts no liability for direct, indirect, incidental, special, or consequential damages resulting from the customer’s failure to follow the installation, operating, maintenance and safety procedures in this manual or those generally applicable to lighting equipment. The limitation extends to damages for personal injury, property damage, loss of operations, loss of profits, loss of product or loss of time, whether incurred in by the customer, the customer’s employees or a third party. Apart from the instructions given on this manual, all relevant safety and health standards of the appropriate EU Directives must be complied with. IMPORTANT SAFETY NORMS * Warning, high voltage ignition. Disconnect the unit from power before servicing * This product features fan‐assisted ventilation. Make sure you do dot cover the fans or obstruct the air flow at any one time. * Make sure the fans are working correctly. Should you detect even the slightest malfunction, switch the luminaire off and carry out the necessary servicing. Replace the fan if necessary. * This product is rated IP 20 and is therefore designed for interior use only. For details on maximum ambient temperature, minimum distance from flammable objects and tilt angle, please refer to what indicated on the product label. * Repairing and replacement of any component of this product must be carried out exclusively by professional personnel in conformity with the relevant safety and health standards and only with original Luci della Ribalta srl components. * Replacement of any part of the wiring system must be carried out exclusively by professional personnel in compliance with the original wiring diagram and with components identical to or compatible with those originally fitted. * Installation of this product must be exclusively carried out by professional personnel in compliance with the safety norms in force in the country where the product is used. * Continuous mains power is required for this spotlight as an internal dimmer controls the intensity via DMX or local rotary knob. Use of a phase control dimmed mains supply may damage the internal electronics. 2 Luci della Ribalta srl, Via Berna 14, 46042 Castel Goffredo (MN) Italy Tel. +39 0376 771 777 – fax +39 0376 772 140 – email info@ldr.it – web www.ldr.it ... -
Page 4: Box Contents
‐ Installation: this fixtures is fitted with a mounting stirrup which is factory‐set for the installation from above (suspended) using a C‐clamp or similar. In case you need to install the fixture on a tripod or support, remove the stirrup by its current position (top), re‐mount it on the bottom profile, or supported on a stand or bracket from below. Make sure the structure you are installing the fixture on withstands the weight (see above for reference) Note: the spotlight’s location must provide suitable ventilation for the LED module. ‐ Focus control: is located on the right –end side of the lens‐tube. Operate the rear knob to control the zoom (size of the beam) and the front knob to control the focus . The beam distribution (peak/flat) is fixed. ‐ Beam‐shaping: 4 shutter blades are provided with each fixture. An accessory iris diaphragm, part # A20100707 can be purchased separately. 4. WIRING Before being connected to the mains power, this unit may need to be wired with a suitable plug if not already installed. Make sure the plug you are using is rated for the proper power load and it conforms to the relevant EU/UL electrical standards. Make sure the plug you are fitting withstands the lamp power load. This fixture must be grounded To perform a correct wiring, please note that the cores in this mains lead are colour‐coded as follows: Ground: green+yellow – Neutral: blue ‐ Phase: brown In case the colours of the wires do not correspond to the colour of the connection points on your plug, please proceed as follows: The green or green and yellow wire must be connected to the connection point marked with the letter E or with the symbol or coloured in green or in green‐yellow The blue wire must be connected to the connection point marked with the letter N or coloured in black The brown wire must be connected to the connection point marked with the letter L or coloured in red Before you finally position this product for use, temporarily connect it to a properly fused power supply to check the lamp works correctly. 3 Luci della Ribalta srl, Via Berna 14, 46042 Castel Goffredo (MN) Italy Tel. +39 0376 771 777 – fax +39 0376 772 140 – email info@ldr.it – web www.ldr.it ... -
Page 5: Voltage
OPERATION: LCD display for DMX address, system setup and status details. POWER: power LED status indicator , red color. ON= power DMX: DMX LED status indicator, green color. LED OFF = DMX OFF and manual control activated , LED ON = DMX MODE activated with no DMX signal, FLASHING LED = receiving DMX MENU: rotary switch selector to select and modify the operational modes. Turn left or right to navigate through the menu and press to select or to confirm DMX IN: input DMX signal (pin1=0 , pin2= DATA‐ , pin3=DATA+ ). DMX OUT : Loop through DMX signal output POWER IN: Mains power input t POWER OUT: Mains power outpu 4 Luci della Ribalta srl, Via Berna 14, 46042 Castel Goffredo (MN) Italy Tel. +39 0376 771 777 – fax +39 0376 772 140 – email info@ldr.it – web www.ldr.it ... -
Page 6: Menu
DIMMER RESOLUTION (8/16b): The dimming resolution can be controlled at 8 bits from one DMX channel or 16 bits with 2 DMX channels. Factory setting is 8 Bit. 3 8/16b 3 8/16b 3 8/16b PRESS THE ROTARY TURN TO SELECT 8 SELECTOR TO OR 16 BITS AND 16 BITS 8 BITS 8 BITS ACTIVATE PRESS TO CONFIRM 5 Luci della Ribalta srl, Via Berna 14, 46042 Castel Goffredo (MN) Italy Tel. +39 0376 771 777 – fax +39 0376 772 140 – email info@ldr.it – web www.ldr.it ... -
Page 7: Lost Dmx Signal
8.7 DIMMING CURVE (Curves) This function allows to select a response curve for the ARPA LED. A choice of two curves is available: Square and Linear. Factoring setting is SQUARE . PRESS TO ACTIVATE 7 Curves 7 Curves SQUARE TO INCREASE THE MENU AN VOLTAGE RESPONSE AT SQUARE SQUARE ARROW SHOULD LOWER VALUE APPEAR 7 Curves LINEAR DIMMING LINEAR CONTROL 6 Luci della Ribalta srl, Via Berna 14, 46042 Castel Goffredo (MN) Italy Tel. +39 0376 771 777 – fax +39 0376 772 140 – email info@ldr.it – web www.ldr.it ... -
Page 8: Cut Off Dimming Response
STEADY 8.11 LCD SCREEN ILLUMINATION (BackL) : This function allows to turn off the LCD backlight, the LED POWER and LED DMX after 1’30” from last setting. Factory setting is AutoOFF. PRESS TO ACTIVATE 11 BackL 11 BackL LCD BACKLIGHT OFF THE MENU AN AFTER 1 MINUTE AND AutoOFF AutoOFF ARROW SHOULD 30 SECONDS APPEAR 11 BackL LCD BACKLIGHT ALWAYS ON 7 Luci della Ribalta srl, Via Berna 14, 46042 Castel Goffredo (MN) Italy Tel. +39 0376 771 777 – fax +39 0376 772 140 – email info@ldr.it – web www.ldr.it ... -
Page 9: Temperature Control
ID Rem ARROW SHOULD PRESS TO CONFIRM APPEAR 8.17 CALIBRATION (Set Min): It allows to calibrate the minimum level of the output. PRESS TO ACTIVATE TURN TO ASSIGN Choose Set Min Set Min THE MENU AN THE CALIBRATION Set Min ARROW SHOULD VALUE AND PRESS TO #### #### APPEAR CONFIRM 8.18 EXIT HIDDEN MENU (Exit): It allows to exit from hidden menus. 8 Luci della Ribalta srl, Via Berna 14, 46042 Castel Goffredo (MN) Italy Tel. +39 0376 771 777 – fax +39 0376 772 140 – email info@ldr.it – web www.ldr.it ... -
Page 10: 9 Cleaning And Maintenance
To ensure maximum performance of the product, a regular maintenance service should be carried out. Please make sure the product is cold and disconnected from power supply when doing this. clean all lenses, opening the product, if necessary. check the COB and the lenses and replace any visibly damaged component. clean air ducts and fans in order to allow a proper ventilation on the product. check internal and external wiring and replace any cable which should be damaged by heat or mechanical agents. Cleaning of optical components LEDhouse lenses: Open the lens compartment door by removing the two M4 cross head screws on the top of the ledhouse tube and slide the top cover free Remove the condensor lenses assembled block by removing the two M5 cross head screws. Clean the lenses with a soft cloth and re‐position Zoom lenses: Slide the front zoom panels positioned at the bottom of the lens tube and clean with a soft cloth. 10. SPARE PARTS All components are available as spare parts. We strongly recommend you always use original LDR components as spare parts. Please refer to our technical assistance should you need to order and/or replace any part of the unit. 11. WARRANTY Our warranty covers all structural and manufacturing defects for a period of one year from the date of purchase. In case of complaint, we strongly recommend that in the first instance you contact the local dealer who supplied the product to you. In all cases, please refer to the serial number located at the rear of the spotlight. 9 Luci della Ribalta srl, Via Berna 14, 46042 Castel Goffredo (MN) Italy Tel. +39 0376 771 777 – fax +39 0376 772 140 – email info@ldr.it – web www.ldr.it ... - Page 11 SLOW dimming behaviour at cut off SLOW = ACTIVE NORMAL = 150ms ; SLOW = 9 Smooth Dimmer response 300ms FAST = Immediate NORMAL response AUTO = regulated by Tled ; 10 Fan Fan setting SILENT = slow speed, low noise ; AUTO STEADY = constant speed ON ; AutoOFF = LCD light off after 11 BackL LCD screen retro‐illumination AutoOff 1'30" 12 Tled Visualize the LED temperature Select the LED Temp in °C or F° °C 13 SwVer Visualize the software version ‐‐‐ ENCODER = Rotary switch ; 14 Manu Select the manual dimmer type ENCODER POTENT = External slider Luci della Ribalta srl, Via Berna 14, 46042 Castel Goffredo (MN) Italy Tel. +39 0376 771 777 – fax +39 0376 772 140 – email info@ldr.it – web www.ldr.it ...
-
Page 12: Dmx Chart 1
13.2 DMX chart 2 (16 bit dimmer enable, strobe disabled) This DMX chart refers to the unit set at 16 bits resolution (See chapter 9.3 of this user guide). DMX Type of Function Effect Decimal Percentage Channel Control Master Adjust luminous output intensity 1 Proportional 0 ‐ 255 0% ‐ 100% Dimmer from 0 to 100% 2 Dimmer Fine Proportional Fine dimmer control 16 bit 0 ‐ 255 0% ‐ 100% Table name: DMX512 Functions Date: Projector: ARPA White Edition: 1 chart 2 (16 bits) 16/05/2018 Luci della Ribalta srl, Via Berna 14, 46042 Castel Goffredo (MN) Italy Tel. +39 0376 771 777 – fax +39 0376 772 140 – email info@ldr.it – web www.ldr.it ... -
Page 13: Dmx Chart 3
Strobe speed 8 161 ‐ 180 64% ‐ 71% Step Strobe speed 9 181 ‐ 200 72% ‐ 78% Strobe speed 10 (maximum Step 201 ‐ 220 79% ‐ 86% frequency) Step Closed 221 ‐ 255 87% ‐ 100% Table name: DMX512 Functions Date: Projector: ARPA White Edition: 1 chart 3 (Strobe) 16/05/2018 Luci della Ribalta srl, Via Berna 14, 46042 Castel Goffredo (MN) Italy Tel. +39 0376 771 777 – fax +39 0376 772 140 – email info@ldr.it – web www.ldr.it ... - Page 14 161 ‐ 180 64% ‐ 71% Step Strobe speed 9 181 ‐ 200 72% ‐ 78% Strobe speed 10 (maximum Step 201 ‐ 220 79% ‐ 86% frequency) Step Closed 221 ‐ 255 87% ‐ 100% Table name: DMX512 Functions Date: Projector: ARPA White Edition: 1 chart 4 (16 bits + Strobe) 16/05/2018 Luci della Ribalta srl reserves the right to modify the present document without prior notice. Luci della Ribalta srl, Via Berna 14, 46042 Castel Goffredo (MN) Italy Tel. +39 0376 771 777 – fax +39 0376 772 140 – email info@ldr.it – web www.ldr.it ...
- Page 15 P .iva 01815640204 c.iso IT01815640204 Luci della Ribalta srl, Via Berna 14, 46042 Castel Goffredo MN Italy - tel +39 0376 771777 - web www.ldr.it - email info@ldr.it IT/015/MN/11 VAT registration # It01815640204 - REA MN 198438 - Authorized Exporter #...
- Page 16 Reklamationsformular ‐ formulaire de réclamation ‐ hoja de reclamaciones email: info@ldr.it Azienda ed Indirizzo ‐ Company's name and address ‐ Firmenname und Addresse ‐ Nom et adresse ‐ Nombre y direcciòn _______________________________________________________________________________________________________ _______________________________________________________________________________________________________ Nome del rivenditore da cui il prodotto è stato acquistato ‐ Name of the dealer where you have purchased the product ‐ Namen der Firma, die Ihnen das Produkt verkauft hat ‐ Nom de la société qui vous a vendu ce produit ‐ Nombre de la compañia donde han comprado el producto: ____________________________________________________________________________________________________ 01154020 Arpa 8/22 150 W LED, 3200K Prodotto difettoso 01154120 Arpa 8/22 150 C LED, 5600K Faulty product 01154030 Arpa 18/36 W LED, 3200K Defekte s Produkt 01154130 Arpa 18/36 C LED, 5600K Produit défectueux Arpa 30/55 W LED, 3200K Producto defectuoso 01154040 Arpa 30/55 C LED, 5600K 01154140 Descrizione del problema /Problem found/Beschreibung des Defekts/Description du défaut/Descripciòn del problema ________________________________________________________________________________________________________ ________________________________________________________________________________________________________...
- Page 17 local de escoamento de residuos, ou a loja na qual efectuou a compra. Richtlinie 2002/96/EU (Elektro- und Elektronik- Altgeräte - WEEE): Benutzerinformationen. Dieses Produkt entspricht Richtlinie WEEE-symbolet (Waste Electrical 2002/96/EU. Das Symbol des auf dem Gerät Electronic Equipment). dargestellten, durchgestrichenen Korbes gibt an, dass Bruken av WEEE-symbolet indikerer at dette Produkt Ende...
- Page 18 Luci della Ribalta srl, Via Berna 14, 46042 Castel Goffredo mn Italy. tel +39 0376 771 777 ‐ fax +39 0376 772 140 ‐ email info@ldr.it...
