01104020
01104120
01104030
01104130
Luci della Ribalta srl, Via Berna 14, 46042 Castel Goffredo mn Italy. tel +39 0376 771 777 ‐ fax +39 0376 772 140 ‐ email info@ldr.it

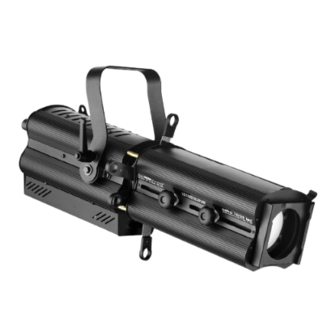

Cetra 10/28W,89W LED,3200K
Cetra 10/28C,89W LED,5600K
Cetra 20/40W,89W LED,3200K
Cetra 20/40C,89W LED,5600K
istruzioni per l'uso
operating instructions
Bedienungsanleitung
instrucciones de
mode d'emploi
gebruiksaanwijzing
manejo
Advertisement
Table of Contents
Related Manuals for LDR Cetra 10/28W,89W LED,3200K
Summary of Contents for LDR Cetra 10/28W,89W LED,3200K
- Page 1 Bedienungsanleitung instrucciones de manejo mode d'emploi gebruiksaanwijzing Cetra 10/28W,89W LED,3200K 01104020 Cetra 10/28C,89W LED,5600K 01104120 Cetra 20/40W,89W LED,3200K 01104030 Cetra 20/40C,89W LED,5600K 01104130 Luci della Ribalta srl, Via Berna 14, 46042 Castel Goffredo mn Italy. tel +39 0376 771 777 ‐ fax +39 0376 772 140 ‐ email info@ldr.it...
-
Page 2: Table Of Contents
13.15 Reset ................ 1 0 14. Cleaning and Maintenance .............. 1 0 15. Spare Parts .................... 1 1 16. Warranty .................... 1 1 SUMMARY OF CONTROLS AND FUNCTIONS 17 Summary of Controls and Functions ............. 1 2 18 DMX Charts .................... 1 3 LDR Conformity Certificate – Certificato di Conformità – Konformitätserklärung 14 Complaint form – Modulo di reclamo – Reklamationsformular …………………………. 15 WEEE Directive – Direttiva RAEE – WEEE Richtlinie …………………………………………… 16 ... -
Page 3: Important Safety Norms
Luci della Ribalta accepts no liability for direct, indirect, incidental, special, or consequential damages resulting from the customer’s failure to follow the installation, operating, maintenance and safety procedures in this manual or those generally applicable to lighting equipment. The limitation extends to damages for personal injury, property damage, loss of operations, loss of profits, loss of product or loss of time, whether incurred in by the customer, the customer’s employees or a third party. Apart from the instructions given on this manual, all relevant safety and health standards of the appropriate Directives of the country where the unit will be installed must be complied with. 1. IMPORTANT SAFETY NORMS This product is a professional lighting fixture, namely a profile spot, fitted with a LED light source, which can only be operated by professional staff This product must be fitted with a secondary fixing system such as a safety chain or bond. Should this not be supplied as a standard accessory, please make sure you buy it separately and install it before using the product Warning, high voltage ignition. Disconnect the unit from power before servicing Continuous mains power is required for this spotlight as an internal dimmer controls the intensity via DMX or local rotary knob. Use of a phase control dimmed mains supply may damage the internal electronics This product features fan‐assisted ventilation. Make sure you do not cover the fans or obstruct the air flow at any time Make sure all fans are working correctly at any one time. Should you detect even the slightest malfunction, switch the luminaire off and carry out the necessary servicing. Replace the fans if necessary. This product is rated IP 20 and is therefore designed for interior use only. For details on maximum ambient temperature and tilt angle please refer to what indicated on the product label or screen‐ printing on the side of the lens‐tube or the rear of the LED‐house 2 Luci della Ribalta srl, Via Berna 14, 46042 Castel Goffredo (MN) Italy Tel. +39 0376 771 777 – fax +39 0376 772 140 – email info@ldr.it – web www.ldr.it ... -
Page 4: Box Contents
Repairing and replacement of any component of this product must be carried out exclusively by professional personnel in conformity with the relevant safety and health standards and only with original Luci della Ribalta srl components. Replacement of any part of the wiring system must be carried out exclusively by professional personnel in compliance with the original wiring diagram and with components identical to or compatible with those originally fitted. Installation of this product must be exclusively carried out by professional personnel in compliance with the safety norms in force in the country where the product is used WARNING: DANGER OF ELECTRICAL SHOCK DO NOT OPERATE ON LIVE EQUIPMENT Disconnect power before opening this fixture to access its light source or electronics. The replacement of the LED source or any of its electronic components can be carried out exclusively by professional personnel upon LDR’s written authorization and only with original Luci della Ribalta srl components. Failure to obtain the manufacturer’s authorization to carry out the replacement/repair, will immediately invalidate the product’s warranty WARNING: EYE DAMAGE HAZARD Make sure this fixture is installed so as to avoid prolonged direct staring at its operating light source (LED) from a distance of less than 7m / 23ft. WARNING: FIRE HAZARD Never locate this fixture on any flammable surface. Minimum distance of any part of the body of the luminaire from any flammable surface or object: 0,5m / 20in ... -
Page 5: Weight And Dimensions
Using a Phillips screw‐driver remove the two cross‐head screws from the sides of the iris plate. Slide the diaphragm in the gate area. Tighten the screws back in position MOUNTING / REPLACING THE GOBO‐HOLDER – not supplied Cetra profile spots can be fitted with a gobo holder – not supplied in standard delivery but obtainable as a separate accessory, for the projection of: M/D size metal gobo part # A20100801 The gobo holder must be inserted in the gate area instead of the iris diaphragm. Usage of both accessories at the same time is not possible. In order to fit or replace a gobo holder, please: Remove the iris diaphragm if fitted (see above) Slide the gobo‐holder in the gate area – bent metal wings must look to the LED‐house Make sure it is correctly positioned and apply pressure to the plastic holder if needed CAUTION: the metal surface of the gobo holder reaches very high temperatures during operation. Make sure the unit is totally cold before attempting to remove it, protect your hands with gloves and avoid skin direct contact with its metal surface IMPORTANT NOTICE BEFORE THE INSTALLATION / INSTALLATION Before installing this fixture check its weight on the product label and the weight of each accessory you are 4 Luci della Ribalta srl, Via Berna 14, 46042 Castel Goffredo (MN) Italy Tel. +39 0376 771 777 – fax +39 0376 772 140 – email info@ldr.it – web www.ldr.it ... -
Page 6: Wiring
When tilting the unit make sure the knob blocking the stirrup is strongly tightened at any time and that the luminaire can hold the desired tilt angle WIRING Before being connected to the mains power, this unit may need to be wired with a suitable plug if not already installed. Make sure the plug you are using is rated for the proper power load and it conforms to the relevant EU/UL electrical standards. Make sure the plug you are fitting withstands the lamp power load. This fixture must be grounded To perform a correct wiring, please note that the cores in this mains lead are colour‐coded as follows: Ground: green+yellow – Neutral: blue ‐ Phase: brown In case the colours of the wires do not correspond to the colour of the connection points on your plug, please proceed as follows: The green or green and yellow wire must be connected to the connection point marked with the letter E or with the symbol or coloured in green or in green‐yellow The blue wire must be connected to the connection point marked with the letter N or coloured in black The brown wire must be connected to the connection point marked with the letter L or coloured in red Before you finally position this product for use, temporarily connect it to a properly fused power supply to check the lamp works correctly. VOLTAGE 5 Luci della Ribalta srl, Via Berna 14, 46042 Castel Goffredo (MN) Italy Tel. +39 0376 771 777 – fax +39 0376 772 140 – email info@ldr.it – web www.ldr.it ... -
Page 7: Frequency
Gently turn the knobs anti‐clockwise and move the lenses until you have reached the desired size/focus of the beam in relation to the distance you are projecting at. Turn the knobs clockwise and tightly close them so that the lenses are held in position at any tilt angle Beam‐shaping: 4 shutter blades are provided with each fixture to shape the beam geometrically Beam‐sizing: an accessory iris diaphragm, part # A20100707 can be purchased separately and used to size the beam of the CETRA Tilt control: The stirrup is factory‐balanced and fitted with a positive friction clamp controlled by a user‐ friendly, effective lever‐knob. Turn the lever anticlockwise to release it, position the profile at the desired tilt angle and turn the lever clockwise to hold the desired position. Press the button at the top of the lever and keep it pressed while turning the lever if you need to change its position. Make sure the lever is strongly tightened at any time during operation 11. CONNECT TO THE POWER SUPPLY Connect the unit to a continuous mains power source Make sure the power supply is protected by a suitable thermal magnetic circuit breaker This fixture must be grounded CONTROL FUNCTIONS AND OPERATION OPERATION: LCD display for DMX address, system setup and status details. POWER: power LED status indicator, red colour. ON= power DMX: DMX LED status indicator, green colour. LED OFF = DMX OFF and manual control activated, LED ON = DMX MODE activated with no DMX signal, FLASHING LED = receiving DMX MENU: rotary switch selector to select and modify the operational modes. Turn left or right to navigate through the menu and press to select or to confirm DMX IN: input DMX signal (pin1=0, pin2= DATA‐, pin3=DATA+). DMX OUT: Loop through DMX signal output POWER IN: Mains power input POWER OUT: Mains power output 6 Luci della Ribalta srl, Via Berna 14, 46042 Castel Goffredo (MN) Italy Tel. +39 0376 771 777 – fax +39 0376 772 140 – email info@ldr.it – web www.ldr.it ... -
Page 8: Menu
8 BITS 8 BITS 16 BITS AND PRESS TO ACTIVATE CONFIRM 13.4 DMX FREQUENCY CONTROL (DMXCfg) If turned ON it allows to remotely control the LED Frequency or the strobe speed through a dedicated DMX channel. Factory setting is OFF. TURN TO SELECT 4 DMXCfg PRESS THE ROTARY 4 DMXCfg 4 DMXCfg MANUAL OR DMX SELECTOR TO AND PRESS TO ACTIVATE CONFIRM 7 Luci della Ribalta srl, Via Berna 14, 46042 Castel Goffredo (MN) Italy Tel. +39 0376 771 777 – fax +39 0376 772 140 – email info@ldr.it – web www.ldr.it ... -
Page 9: Lost Dmx Signal
7 SetStr 7 SetStr WITH STROBE ENABLE THE MENU AN THE LIGHT IS SET TO OPEN OPEN ARROW SHOULD ON APPEAR 7 SetStr CHOOSES THE STROBE SPEED VALUE FROM SPEED # 1(SLOW) TO 10 (FAST) 7 SetStr WITH STROBE ENABLE THE LIGHT IS SET TO CLOSED OFF 8 Luci della Ribalta srl, Via Berna 14, 46042 Castel Goffredo (MN) Italy Tel. +39 0376 771 777 – fax +39 0376 772 140 – email info@ldr.it – web www.ldr.it ... -
Page 10: Dimming Curve
FAST DIMMING RESPONSE = 150 ms FAST 13.11 LED FREQUENCY ADJUSTMENT (Freq) This function allows to adjust the LED frequency to avoid interference with TV cameras. The frequency can be adjusted from a selection of 13 different values between 2KHz to 460Hz. When DMXCfg function is enabled, the frequency is controlled through the dedicated DMX channel and this menu becomes inactive. Factory setting is 2kHz. PRESS TO ACTIVATE TURN TO SELECT 11 Freq 11 Freq 11 Freq THE MENU ONE OF THE 13 2.0 kHz 2.0 kHz XXX kHz AN ARROW SHOULD PRESET VALUE AND APPEAR PRESS TO CONFIRM 9 Luci della Ribalta srl, Via Berna 14, 46042 Castel Goffredo (MN) Italy Tel. +39 0376 771 777 – fax +39 0376 772 140 – email info@ldr.it – web www.ldr.it ... -
Page 11: Lcd Screen Illumination
PRO, to enable access to all the functions BASIC, to limit access to functions 13.1 DMX or MANUAL MODE, 13.2 DMX ADDRESS and 13.13 Software version and temperature control Factory setting PRO. 13.15 RESET The RESET control is a special function which allows to RESET the product to factory settings. To activate this function turn OFF and ON the Cetra and press the rotary switch at power on. Select RESET with the rotary switch and press to RESET Cetra to factory settings. 14. CLEANING AND MAINTENANCE To ensure maximum performance of the product, a regular maintenance service should be carried out. Please make sure the product is cold and disconnected from power supply when doing this. General maintenance * Clean all reflective parts such as lenses opening the product, if necessary. * Check the lenses and replace any visibly damaged component. * Clean air ducts and fans in order to allow a proper ventilation activity on the product. * Check internal and external wiring and replace any cable which should be damaged by heat or mechanical agents. Cleaning of optical components LEDhouse lenses: Open the LED compartment door by removing the two M4 cross head screws on the top of the LEDhouse tube and slide the top cover free Remove the condensor lenses assembled block by removing the two M5 cross head screws. Clean the lenses with a soft cloth and re‐position Zoom lenses: Slide the front zoom panels positioned at the bottom of the lens tube and clean with a soft cloth. 10 Luci della Ribalta srl, Via Berna 14, 46042 Castel Goffredo (MN) Italy Tel. +39 0376 771 777 – fax +39 0376 772 140 – email info@ldr.it – web www.ldr.it ... -
Page 12: Spare Parts
Cetra 10/28 & 20/40 3200K and 5600K White LED User’s Manual – 2.0 15. SPARE PARTS All components are available as spare parts. We strongly recommend you always use original LDR components as spare parts. Please refer to our technical assistance should you need to order and/or replace any part of the unit. 16. WARRANTY Our warranty covers all structural and manufacturing defects for a period of one year from the date of purchase. In case of complaint, we strongly recommend that in the first instance you contact the local dealer who supplied the product to you. In all cases, please refer to the serial number located at the rear of the spotlight. 11 Luci della Ribalta srl, Via Berna 14, 46042 Castel Goffredo (MN) Italy Tel. +39 0376 771 777 – fax +39 0376 772 140 – email info@ldr.it – web www.ldr.it ... -
Page 13: Summary Of Controls And Functions
ON; AutoOFF=LCD light off after AutoOff 1'30" 13 V 1.0 visualizes the software version and select the LED Temp in °C or F° °C LED temperature SPECIAL FUNCTIONS: to activate this function press the rotary switch at power‐on # function description available options Factory setting A ProBasic sets the operation modes. To PRO=enable access to all the CETRA PRO activate this function press the functions ‐ BASIC = limit the access rotary switch at power‐on to functions: 1 Mode, 2 Addr and 13 V 1,0 B RESET factory RESET returns to factory settings 12 Luci della Ribalta srl, Via Berna 14, 46042 Castel Goffredo (MN) Italy Tel. +39 0376 771 777 – fax +39 0376 772 140 – email info@ldr.it – web www.ldr.it ... - Page 14 Available only 21‐40: 2.4kHz if DMX Cfg ON 41‐60: 2.0kHz (Off by default) 61‐80: 1.7kHz Note: for 81‐100: 1.5kHz technical reasons, all 101‐120: 1.3kHz frequencies 121‐140: 1.2kHz may not be available 141‐160: 1.1kHz on all 161‐180: 939Hz products. 181‐200: 760Hz 201‐220: 610Hz 221‐240: 469Hz 241‐255: Reserved Luci della Ribalta srl reserves the right to modify the present document without prior notice. 13 Luci della Ribalta srl, Via Berna 14, 46042 Castel Goffredo (MN) Italy Tel. +39 0376 771 777 – fax +39 0376 772 140 – email info@ldr.it – web www.ldr.it ...
- Page 15 P .iva 01815640204 c.iso IT01815640204 Luci della Ribalta srl, Via Berna 14, 46042 Castel Goffredo MN Italy - tel +39 0376 771777 - web www.ldr.it - email info@ldr.it IT/015/MN/11 VAT registration # It01815640204 - REA MN 198438 - Authorized Exporter #...
-
Page 16: Complaint Form - Modulo Di Reclamo - Reklamationsformular
Reklamationsformular ‐ formulaire de réclamation ‐ hoja de reclamaciones email: info@ldr.it Azienda ed Indirizzo ‐ Company's name and address ‐ Firmenname und Addresse ‐ Nom et adresse ‐ Nombre y direcciòn _______________________________________________________________________________________________________ _______________________________________________________________________________________________________ Nome del rivenditore da cui il prodotto è stato acquistato ‐ Name of the dealer where you have purchased the product ‐ Namen der Firma, die Ihnen das Produkt verkauft hat ‐ Nom de la société qui vous a vendu ce produit ‐ Nombre de la compañia donde han comprado el producto: ____________________________________________________________________________________________________ 01104020 Cetra 10/28W,89W LED,3200K Prodotto difettoso 01104120 Cetra 10/28C,89W LED,5600K Faulty product Defekte s Produkt 01104030 Cetra 20/40W, 89W LED, 3200K Produit défectueux Producto defectuoso 01104130 Cetra 20/40C,89W LED,5600K Descrizione del problema /Problem found/Beschreibung des Defekts/Description du défaut/Descripciòn del problema ________________________________________________________________________________________________________ ________________________________________________________________________________________________________ ________________________________________________________________________________________________________ ________________________________________________________________________________________________________ Data d'acquisto ‐ Date of purchase ‐ Kaufdatum ‐ Date de l'achat ‐ Fecha de compra ________________________ Si prega di allegare prova d'acquisto ‐ Please attach copy of purchase invoice ‐ Bitte Kaufnachweis beilegen ‐ Veuillez joindre une quittance d'achat ‐ Les rogamos incluyan lcopia de la factura de compra. Nome e qualifica ‐ Name and position ‐ Name und Funktion ‐ Nom et fonction ‐ Nombre y cargo ____________________________________________________________________ Data ‐ Date ‐ Datum ‐ Date ‐ Fecha _____________________________... -
Page 17: Weee Directive - Direttiva Raee - Weee Richtlinie
local de escoamento de residuos, ou a loja na qual efectuou a compra. Richtlinie 2002/96/EU (Elektro- und Elektronik- Altgeräte - WEEE): Benutzerinformationen. Dieses Produkt entspricht Richtlinie WEEE-symbolet (Waste Electrical 2002/96/EU. Das Symbol des auf dem Gerät Electronic Equipment). dargestellten, durchgestrichenen Korbes gibt an, dass Bruken av WEEE-symbolet indikerer at dette Produkt Ende... - Page 18 Luci della Ribalta srl, Via Berna 14, 46042 Castel Goffredo mn Italy. tel +39 0376 771 777 ‐ fax +39 0376 772 140 ‐ email info@ldr.it...
