01607170
01607180
K01607170
K01607180
Luci della Ribalta srl, Via Berna 14, 46042 Castel Goffredo MN, Italy. tel +39 0376 771 777 ‐ email info@ldr.it
operating instructions

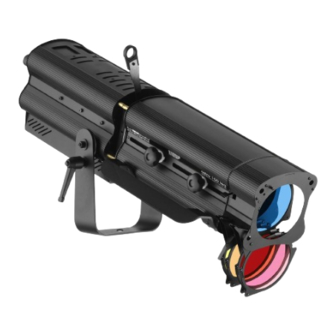

Astro 600W 6000K
Astro 600W 3200K
Astro 600W 6000K kit
Astro 600W 3200K kit
DMX512+RDM
istruzioni per l'uso
Bedienungsanleitung
instrucciones de
mode d'emploi
gebruiksaanwijzing
manejo
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for LDR Astro 600W 6000K
Summary of Contents for LDR Astro 600W 6000K
- Page 1 Bedienungsanleitung instrucciones de manejo mode d'emploi gebruiksaanwijzing Astro 600W 6000K 01607170 Astro 600W 3200K 01607180 Astro 600W 6000K kit K01607170 Astro 600W 3200K kit K01607180 DMX512+RDM Luci della Ribalta srl, Via Berna 14, 46042 Castel Goffredo MN, Italy. tel +39 0376 771 777 ‐ email info@ldr.it...
-
Page 2: Table Of Contents
page 12 16.19 Exit Hidden Menu page 12 17.Cleaning and maintenance………………………………………………..……………….. page 13 18. Spare parts………………………………………………………………………………………… page 13 19. Warranty.…..………………………………………………….………………………………….. page 13 20. Available accessories ………………………………………………………………………… page 13 21. Summary of Controls and functions.………………………………………………… page 15 22. DMX charts……………………………………………………………………………………….. page 16 22.1 DMX chart 1……………………………………………………………………………………. page 16 22.2 DMX chart 2……………………………………………………………………………………. page 16 22.3 DMX chart 3……………………………………………………………………………………. page 16 22.4 DMX chart 4……………………………………………………………………………………. page 17 LDR Conformity Certificate – Certificato di Conformità – Konformitätserklärung p age 18 Complaint form – Modulo di reclamo – Reklamationsformular ………………………….page 19 WEEE Directive – Direttiva RAEE – WEEE Richtlinie ……………………………………………page 20 1 Luci della Ribalta srl, Via Berna 14, 46042 Castel Goffredo (MN) Italy Tel. +39 0376 771 777 – fax +39 0376 772 140 – email info@ldr.it – web www.ldr.it ... -
Page 3: Important Safety Norms
Luci della Ribalta accepts no liability for direct, indirect, incidental, special, or consequential damages resulting from the customer’s failure to follow the installation, operating, maintenance and safety procedures in this manual or those generally applicable to lighting equipment. The limitation extends to damages for personal injury, property damage, loss of operations, loss of profits, loss of product or loss of time, whether incurred in by the customer, the customer’s employees or a third party. Apart from the instructions given on this manual, all relevant safety and health standards of the appropriate Directives of the country where the unit will be installed must be complied with. 1. IMPORTANT SAFETY NORMS This product is a professional lighting fixture, namely a followspot, fitted with a LED light source, which can only be operated by professional staff Warning, high voltage ignition. Disconnect the unit from power before servicing Continuous mains power is required for this spotlight as an internal dimmer controls the intensity via DMX or local rotary knob. An accessory clamp‐on digital dimmer, for positioning on the side grab handles of the followspot, is furthermore supplied to locally control the dimming Use of a phase control dimmed mains supply may damage the internal electronics This product features fan‐assisted ventilation. Make sure you do not cover the fans or obstruct the air flow at any time Make sure all fans are working correctly at any one time. Should you detect even the slightest malfunction, switch the luminaire off and carry out the necessary servicing. Replace the fans if necessary This product is rated IP 20 and is therefore designed for interior use only. For details on maximum ambient temperature and tilt angle please refer to what indicated on the product label or screen‐printing on the side of the lens‐tube or the rear of the LED‐house 2 Luci della Ribalta srl, Via Berna 14, 46042 Castel Goffredo (MN) Italy Tel. +39 0376 771 777 – fax +39 0376 772 140 – email info@ldr.it – web www.ldr.it ... - Page 4 Repairing and replacement of any component of this product must be carried out exclusively by professional personnel in conformity with the relevant safety and health standards and only with original Luci della Ribalta srl components Replacement of any part of the wiring system must be carried out exclusively by professional personnel in compliance with the original wiring diagram and with components identical to or compatible with those originally fitted Installation of this product must be exclusively carried out by professional personnel in compliance with the safety norms in force in the country where the product is used WARNING: DANGER OF ELECTRICAL SHOCK DO NOT OPERATE ON LIVE EQUIPMENT Disconnect power before opening this fixture to access its light source or electronics. The replacement of the LED source or any of its electronic components can be carried out exclusively by professional personnel upon LDR’s written authorization and only with original Luci della Ribalta srl components. Failure to obtain the manufacturer’s authorization to carry out the replacement/repair, will immediately invalidate the product’s warranty WARNING: EYE DAMAGE HAZARD Make sure this fixture is installed so as to avoid prolonged direct staring at its operating light source (LED) from a distance of less than 7m / 23ft. WARNING: FIRE HAZARD Never locate this fixture on any flammable surface. Minimum distance of any part of the body of the luminaire from any flammable surface or object: 0,5m / 20in ...
-
Page 5: Box Content
gross weight: 36 kg packing dimensions: 1x 115x46x46h cm + 2x 31x26x15h cm (spigot with fluid head + colour changer) 4. MOUNTING THE SPIGOT ‐ # A20102100 This product is a followspot meant for tripod‐ or pole‐mounting only and is therefore not fitted with any secondary fixing point. Do not hang it. A ø28mm/1.12in spigot with fluid‐head is supplied in standard delivery for you to tripod‐mount your To mount the spigot please refer to the relevant instruction manual supplied with this part (separate box) 5. MOUNTING THE COLOUR CHANGER (supplied, part nr. 20105206) The Astro 600 comes with a 6‐colour colour changer unit which is packed separately in an outer box or in the flight case and needs to be fitted to the lens‐tube of your followspot as follows: Mount the colour filters on the colour changer units. See relevant instructions supplied with the colour changer At the front of the followspot, slacken the 3 cross‐head black M4 screws (two at the top angles, one at the bottom, left‐hand side angle) so that they remain inserted approximately half‐way through 4 Luci della Ribalta srl, Via Berna 14, 46042 Castel Goffredo (MN) Italy Tel. +39 0376 771 777 – fax +39 0376 772 140 – email info@ldr.it – web www.ldr.it ... -
Page 6: Mounting / Replacing The Iris Diaphragm
By pulling (to remove) or pushing (to insert) from the lever handle, slide the iris diaphragm out / in the gate area Fix the iris in position by tightening the previously removed screws Re‐position the top lids and fix the M3 screws Important notice: do not leave the iris totally closed for over 5 minutes while the LED is on FAILURE TO COMPLY WITH THE ABOVE NOTICE MAY CAUSE THE IRIS AND THE FOLLOWSPOT TO SUFFER MAJOR HEAT DAMAGES AND WILL INVALIDATE THE PRODUCT WARRANTY 7. GOBO HOLDER (accessory, part nr. A20100808) The gate area of the ASTRO 600 can accommodate a gobo holder for B‐size metal gobos. The gobo‐ holder sits in front of the iris diaphragm and they can be used simultaneously. The gobo‐holder is not part of the standard delivery and must be ordered separately. In order to fit the gobo holder: Using a Phillips screw‐driver (M3) remove the cross‐head screws from the top lids of the gate area (2 lids, 2 screws each) Remove the two M4 screws fitted to each side of the gobo holder By pushing from the lever handle, slide the gobo‐holder in the gate area. The bent top‐lid of the gobo holder must overlook the inner part of the gate area Fix the gobo‐holder in position by tightening the previously removed screws Re‐position the top lids and fix the M3 screws 5 Luci della Ribalta srl, Via Berna 14, 46042 Castel Goffredo (MN) Italy Tel. +39 0376 771 777 – fax +39 0376 772 140 – email info@ldr.it – web www.ldr.it ... -
Page 7: Adjusting The Yoke
Tighten the 4 M5 screws IMPORTANT NOTICE BEFORE THE INSTALLATION / INSTALLATION This fixture is meant for tripod‐mount installation only. No hanging is allowed Before installing this fixture check its weight on the product label and the weight of each accessory you are adding and make sure the structure you are installing it to withstands the total weight. The mounting stirrup is designed to allow the spotlight to be fitted to a suitable tripod or pole. CAUTION DO NOT TURN THE LUMINAIRE UPSIDE‐DOWN AND MAKE SURE THE STIRRUP ALWAYS SITS DOWNWARDS Note: the fixture’s location must provide suitable ventilation for the LED module. WIRING Before being connected to the mains power, this unit may need to be wired with a suitable plug if not already installed. Make sure the plug you are using is rated for the product’s power load. This fixture must be grounded Ensure the plug conforms to the relevant EU/UL or local electrical standards To perform a correct wiring, please note that the cores in this mains lead are colour‐coded as follows: Ground: green+yellow – Neutral: blue ‐ Phase: brown In case the colours of the wires do not correspond to the colour of the connection points on your plug, please proceed as follows: The green or green and yellow wire must be connected to the connection point marked with the letter E or with the symbol or coloured in green or in green‐yellow The blue wire must be connected to the connection point marked with the letter N or coloured in black 6 Luci della Ribalta srl, Via Berna 14, 46042 Castel Goffredo (MN) Italy Tel. +39 0376 771 777 – fax +39 0376 772 140 – email info@ldr.it – web www.ldr.it ... -
Page 8: Voltage
Connect the unit to a continuous mains power source Make sure the power supply is protected by a suitable thermal magnetic circuit breaker This fixture must be grounded 14. MECHANICAL OPERATION Focus control: this fixture features a variable beam angle from 7° to 12° which can be controlled through the two control knobs on the right‐hand side of the lens‐tube. The variable beam is modified by adjusting the front and rear zoom lenses in relation to each other. The front lens defines the beam spread, the rear lens defines the focus degree of ‘softness’ or ‘hardness’ of the beam edge or shutters. Gently turn the knobs anti‐clockwise until you have reached the desired size/focus of the beam in relation to the distance you are projecting at. Turn the knobs clockwise and tightly close them so that the lenses are held in position at any tilt angle Beam‐sizing: the size of the beam is controlled using the supplied iris diaphragm Beam‐dimming and black‐out: this followspot can be dimmed and backed‐outby: ‐ Local manual control, rotary switch on the backplate of the unit ‐ Local, via clamp‐on digital dimmer, supplied – see relevant instructions ‐ Remote, by DMX512 signal CAUTION: Make sure you always use the one of the above options to black‐out the light and never the sizing iris diaphragm as keeping the latter closed may cause overheating, damage and even fire inside the LED‐house. Pan & Tilt control: this unit is fitted with 2 soft, comfortable side bars covering the full length of the followspot for an easy and safe control of the pan and tilt angle by the followspot’s operator from any position The stirrup is factory‐balanced and fitted with a positive friction clamp controlled by a user‐friendly, effective lever‐knob. Turn the knob anticlockwise to release it, position the followspot at the desired tilt angle and turn the knob clockwise to hold the desired position. Press the button at the top of the lever and keep it pressed while turning the lever if you need to change its position. 7 Luci della Ribalta srl, Via Berna 14, 46042 Castel Goffredo (MN) Italy Tel. +39 0376 771 777 – fax +39 0376 772 140 – email info@ldr.it – web www.ldr.it ... -
Page 9: Local Control Panel And Operation
Tap the rotary selector and the LCD screen will display the mode status and the current value: 1 Mode M: DMX TAP THE ROTARY 00 % = LED OFF SELECTOR TO DISPLAY XX % 100 % = LED FULL THE VALUE 1 Mode M: Manual TAP THE ROTARY 00 % (000) = LED OFF SELECTOR TO DISPLAY XX % XXX MANUAL 100% (FFF) = LED FULL THE VALUE 16.2 DMX ADDRESS (Addr) It allows to select the initial DMX starting address to remotely control the LED functions. To change the initial DMX address press the rotary switch until an arrow appears, then turn to change to the desired DMX starting address. Press to confirm your selection. Factory setting is 001. 8 Luci della Ribalta srl, Via Berna 14, 46042 Castel Goffredo (MN) Italy Tel. +39 0376 771 777 – fax +39 0376 772 140 – email info@ldr.it – web www.ldr.it ... -
Page 10: Dmx Address Page
ENABLE DISABLE ARROW SHOULD PRESS TO CONFIRM APPEAR 16.6 STROBE SPEED (SetStr) It allows to set the strobe speed. This menu is not active when the strobe function is disabled or when it is remotely controlled through DMX. Factory setting is OPEN. PRESS TO ACTIVATE 6 SetStr 6 SetStr THE MENU. AN WITH STROBE ENABLE OPEN ARROW SHOULD OPEN THE LIGHT IS SET TO ON APPEAR 6 SetStr CHOOSE THE STROBE SPEED VALUE FROM SPEED # 1(SLOW) TO 10 (FAST) 9 Luci della Ribalta srl, Via Berna 14, 46042 Castel Goffredo (MN) Italy Tel. +39 0376 771 777 – fax +39 0376 772 140 – email info@ldr.it – web www.ldr.it ... - Page 11 9 Smooth 9 Smooth THE MENU. AN FAST DIMMING NORMAL NORMAL ARROW SHOULD RESPONSE = 150ms APPEAR 9 Smooth SLOW DIMMING SLOW RESPONSE = 300ms 9 Smooth IMMEDIATE DIMMING FAST RESPONSE 16.10 LCD SCREEN ILLUMINATION (BackL) This function allows to turn off the LCD backlight, the LED POWER and LED DMX after 1’30” from the last setting. Factory setting is AutoOFF. 10 Luci della Ribalta srl, Via Berna 14, 46042 Castel Goffredo (MN) Italy Tel. +39 0376 771 777 – fax +39 0376 772 140 – email info@ldr.it – web www.ldr.it ...
- Page 12 16.14 MANUAL DIMMER TYPE (Manu) This function allows to select the manual dimmer type. The Astro 600 is supplied with a mobile clamp‐on digital dimmer which can be clamped‐on in any position of each of the side control bars and needs to be set as follows. Factory setting is ENCODER. PRESS TO ACTIVATE 14 Manu 14 Manu THE MENU. AN MANUAL DIMMING BY ENCODER ARROW SHOULD ENCODER ROTARY SWITCH APPEAR 14 Manu MANUAL DIMMING BY EXTERNAL SLIDER POTENT (OPTIONAL) HIDDEN MENUS There are also four different hidden menus to select the advanced settings of the ASTRO LED. To activate this function turn the Astro OFF and then ON again by pressing the rotary switch at power on. 11 Luci della Ribalta srl, Via Berna 14, 46042 Castel Goffredo (MN) Italy Tel. +39 0376 771 777 – fax +39 0376 772 140 – email info@ldr.it – web www.ldr.it ...
-
Page 13: Factory Settings Page
ARROW SHOULD PRESS TO CONFIRM APPEAR 16.18‐D CALIBRATION (Set Min) It allows to calibrate the minimum level of the output. PRESS TO ACTIVATE TURN TO ASSIGN Choose Set Min Set Min THE MENU. AN THE CALIBRATION Set Min ARROW SHOULD VALUE AND PRESS TO #### #### APPEAR CONFIRM 16.19‐E EXIT HIDDEN MENU (Exit) It allows to exit from the hidden menus. 12 Luci della Ribalta srl, Via Berna 14, 46042 Castel Goffredo (MN) Italy Tel. +39 0376 771 777 – fax +39 0376 772 140 – email info@ldr.it – web www.ldr.it ... -
Page 14: Cleaning And Maintenance
* Check the lenses and replace any visibly damaged component. * Clean air ducts and fans in order to allow proper ventilation activity on the product. * Check internal and external wiring and replace any cable which should be damaged by heat or mechanical agents. Cleaning of optical components LEDhouse lenses: Open the lens compartment lid by removing the two M4 cross head screws at the rear of the led‐house tube and slide the top lid free Remove the condensor lenses assembled block by removing the two M5 cross head screws. Clean the lenses with a soft cloth and re‐position Zoom lenses: Slide the front zoom panels positioned at the bottom of the lens tube and clean with a soft cloth. 18. SPARE PARTS All components are available as spare parts. We strongly recommend you always use original LDR components as spare parts. Please refer to our technical assistance should you need to order and/or replace any part of the unit. 19. WARRANTY Our warranty covers all structural and manufacture defects for two years from the date you purchased this product. In case of complaints we strongly recommend you use the complaint form at the end of this manual or contact the local dealer who supplied the product to you. In any case please report the serial number of the product. In case of complaints under warranty proof of purchase will have to be provided. 20. AVAILABLE ACCESSORIES A20100106 185x185mm colour frame ... - Page 15 Astro 600 3200K_6000K, DMX 512+ RDM LED followspot ‐ User’s Manual – 2.0 A20102401 Black followspot tripod A20102402 Chrome‐plated followspot tripod A20107180 Flight‐case with braking wheels, stackable A20202401 Set of 3 braking wheels for followspot tripod A20702071 Side‐handle clamp‐on digital dimmer A20702072 Remoto control unit for software upgrade V90MLRT100FR Braking wheel (1pc) for flight case 14 Luci della Ribalta srl, Via Berna 14, 46042 Castel Goffredo (MN) Italy Tel. +39 0376 771 777 – fax +39 0376 772 140 – email info@ldr.it – web www.ldr.it ...
-
Page 16: Summary Of Controls And Functions
# Function Description Available Options Factory Setting PRO = Enables access to all functions; Sets the functions available from A ProBasic BASIC = Limits the access to: PRO the control menu 1 Mode, 2 Addr, 11 TBoard, 12 Tled and 13 SwVer B RESET Factory RESET Returns to factory settings ‐‐‐ Sets the ID number to activate the C ID Rem Remoto control unit to upload and From 000 (no remote control) to 250 000 download firmware Sets the minimum level of the D Set Min From 000 to 9999 ‐‐‐ output E Exit Exits from hidden menus ‐‐‐ 15 Luci della Ribalta srl, Via Berna 14, 46042 Castel Goffredo (MN) Italy Tel. +39 0376 771 777 – fax +39 0376 772 140 – email info@ldr.it – web www.ldr.it ... -
Page 17: Dmx Charts
161 ‐ 180 64% ‐ 71% Step Strobe speed 9 181 ‐ 200 72% ‐ 78% Step Strobe speed 10 (maximum frequency) 201 ‐ 220 79% ‐ 86% Step Closed 221 ‐ 255 87% ‐ 100% Astro 600W White Table name: DMX512 Functions chart 3 (Strobe) Issue: 1 Date: 13/11/2019 Projector: 16 Luci della Ribalta srl, Via Berna 14, 46042 Castel Goffredo (MN) Italy Tel. +39 0376 771 777 – fax +39 0376 772 140 – email info@ldr.it – web www.ldr.it ... -
Page 18: Dmx Chart 4
221 ‐ 255 87% ‐ 100% Table name: DMX512 Functions chart 4 (16 bits + Astro 600W White Issue: 1 Date: 13/11/2019 Projector: Strobe) Luci della Ribalta srl reserves the right to modify the present document without prior notice. 17 Luci della Ribalta srl, Via Berna 14, 46042 Castel Goffredo (MN) Italy Tel. +39 0376 771 777 – fax +39 0376 772 140 – email info@ldr.it – web www.ldr.it ... - Page 19 P .iva 01815640204 c.iso IT01815640204 Luci della Ribalta srl, Via Berna 14, 46042 Castel Goffredo MN Italy - tel +39 0376 771777 - web www.ldr.it - email info@ldr.it IT/015/MN/11 VAT registration # It01815640204 - REA MN 198438 - Authorized Exporter #...
- Page 20 Reklamationsformular ‐ formulaire de réclamation ‐ hoja de reclamaciones email: info@ldr.it Azienda ed Indirizzo ‐ Company's name and address ‐ Firmenname und Addresse ‐ Nom et adresse ‐ Nombre y direcciòn _______________________________________________________________________________________________________ _______________________________________________________________________________________________________ Nome del rivenditore da cui il prodotto è stato acquistato ‐ Name of the dealer where you have purchased the product ‐ Namen der Firma, die Ihnen das Produkt verkauft hat ‐ Nom de la société qui vous a vendu ce produit ‐ Nombre de la compañia donde han comprado el producto: ____________________________________________________________________________________________________ 01607170 Astro 600W 6000K Prodotto difettoso 01607180 Astro 600W 3200K Faulty product K01607170 Astro 600W 6000K kit Defekte s Produkt K01607180 Astro 600W 3200K kit Produit défectueux Producto defectuoso DMX512+RDM Descrizione del problema /Problem found/Beschreibung des Defekts/Description du défaut/Descripciòn del problema ________________________________________________________________________________________________________ ________________________________________________________________________________________________________ ________________________________________________________________________________________________________ ________________________________________________________________________________________________________ Data d'acquisto ‐ Date of purchase ‐ Kaufdatum ‐ Date de l'achat ‐ Fecha de compra ________________________ Si prega di allegare prova d'acquisto ‐ Please attach copy of purchase invoice ‐ Bitte Kaufnachweis beilegen ‐ Veuillez joindre une quittance d'achat ‐ Les rogamos incluyan lcopia de la factura de compra. Nome e qualifica ‐ Name and position ‐ Name und Funktion ‐ Nom et fonction ‐ Nombre y cargo ____________________________________________________________________ Data ‐ Date ‐ Datum ‐ Date ‐ Fecha _____________________________...
- Page 21 local de escoamento de residuos, ou a loja na qual efectuou a compra. Richtlinie 2002/96/EU (Elektro- und Elektronik- Altgeräte - WEEE): Benutzerinformationen. Dieses Produkt entspricht Richtlinie WEEE-symbolet (Waste Electrical 2002/96/EU. Das Symbol des auf dem Gerät Electronic Equipment). dargestellten, durchgestrichenen Korbes gibt an, dass Bruken av WEEE-symbolet indikerer at dette Produkt Ende...
- Page 22 Luci della Ribalta srl, Via Berna 14, 46042 Castel Goffredo mn Italy. tel +39 0376 771 777 ‐ fax +39 0376 772 140 ‐ email info@ldr.it...
