- Page 1 Bedienungsanleitung instrucciones de manejo mode d'emploi gebruiksaanwijzing 01203020 Alba 8/22 W, 200W LED 01203030 Alba 18/36 W, 200W LED 01203040 Alba 30/55 W, 200W LED 01203120 Alba 8/22 C, 200W LED 01203130 Alba 18/36 C, 200W LED 01203140 Alba 30/55 C, 200W LED Luci della Ribalta srl, Via Berna 14, 46042 Castel Goffredo mn Italy. tel +39 0376 771 777 ‐ fax +39 0376 772 140 ‐ email info@ldr.it...
-
Page 2: Table Of Contents
6.4 To change dimmer resolution ..............9 6.5 To reset the spotlight from a remote desk..........9 6.6 To control the panel display sleep mode............ 9 6.7 To set the maximum fan speed ..............9 7. Control menu summary ..................10 8. Fuse replacement ....................11 MAINTENANCE 9. Cleaning and maintenance ..................11 10. Spare parts......................11 11. Warranty........................ 11 CERTIFICATES 12. LDR Conformity Certificate – Certificato di Conformità – Konformitätserklärung 12 13. Complaint form – Modulo di reclamo – Reklamationsformular......13 14. WEEE Directive – Direttiva RAEE – WEEE Richtlinie..........14 Luci della Ribalta srl, Via Berna 14, 46042 Castel Goffredo (MN) Italy Tel. +39 0376 771 777 – fax +39 0376 772 140 – email info@ldr.it – web www.ldr.it ... -
Page 3: Important Safety Information
ENGLISH Thank you for choosing a quality product from Luci della Ribalta srl. We trust our products and services meet your requirements, but if not please contact us directly using the attached feedback form to help us improve our service quality. This spotlight has been manufactured with great care and left our factory in perfect condition, but if it has been damaged in transport please contact your dealer in the first instance. A feedback form is appended. Our warranty covers all manufacturing and component defects for one year from the date you received the product. Our products are designed for the use of professional technicians, and the instructions provided here ensure safe and correct operation of this product. Luci della Ribalta srl will not accept any responsibility where damage has been caused to the product or persons through improper use of the product and/or non‐compliance with the regulations described herein. IMPORTANT: Read these user instructions before using the lighting unit The instructions given here ensure a safe and correct usage of this product. A user’s failure to comply with the installation, operating, maintenance and safety procedures mentioned in this manual, as well as those generally applicable to this lighting equipment, may cause the luminaire not to perform as expected. Luci della Ribalta accepts no liability for direct, indirect, incidental, special, or consequential damages resulting from the customer’s failure to follow the installation, operating, maintenance and safety procedures in this manual or those generally applicable to lighting equipment. The limitation extends to damages for personal injury, property damage, loss of operations, loss of profits, loss of product or loss of time, whether incurred in by the customer, the customer’s employees or a third party. Apart from the instructions given on this manual, all relevant safety and health standards of the appropriate EU Directives must be complied with. IMPORTANT SAFETY INFORMATION This product is designed for interior use only. For details on maximum ambient temperature, minimum distance from flammable objects, please refer to the product label. Continuous mains power is required for this spotlight as an internal dimmer controls the intensity via DMX or local rotary knob. Use of a phase control dimmed mains supply may damage the internal electronics. This product must be fitted with a front protection shield (wire guard or safety glass). Should this not be supplied as a standard accessory, please make sure you buy it separately and install it before using the product. There are no user serviceable parts in this product. Replacement of any internal component of this product must be carried out exclusively by professional personnel and only with original Luci della Ribalta srl components. Replacement of any part of the wiring system must comply with the original wiring diagram and with components identical or compatible with those originally fitted. This product must be fitted with a secondary fixing system such as a safety chain or bond. Should this not be supplied as a standard accessory, please make sure you buy it separately and install it before using the product. Installation of this product must be exclusively carried out by professional personnel in compliance with the safety norms in force in the country where the product is used. Luci della Ribalta srl, Via Berna 14, 46042 Castel Goffredo (MN) Italy Tel. +39 0376 771 777 – fax +39 0376 772 140 – email info@ldr.it – web www.ldr.it ... -
Page 4: Box Contents

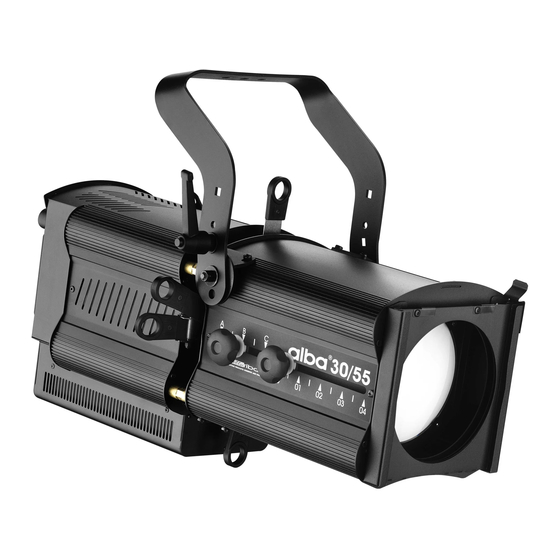

Alba zoom profile spotlight Separate mains power cable XLR5 male + female connector Colour filter frame Lens safety guard 4 shutter blades Operating instructions OVERVIEW OF THE LED SPOTLIGHT In comparison with conventional tungsten‐halogen spotlights, Alba has an LED solid‐state electronic light source, which is more energy efficient and longer lasting than a tungsten‐halogen lamp. The implications of using an LED source are as follows: A 200W LED is ‘built‐in’ to the spotlight, and when the time comes to replace it, this will require servicing via your local dealer. The LED is not a plug‐in replacement component and is not user‐serviceable. The colour temperature of the LED is fixed at either ‘warm’ 3200K theatre‐standard, or ‘cool’ 5600K, which is becoming more common in TV studio applications and in theatres using colour filters. Although regular colour filters may be used with an LED source, the non‐continuous spectrum of the LED produces a different effect with many standard colours. Lee Filters supply colour filters specifically for use with LED spotlights. These LED filters are matched to 5600K (cool) white sources. Please check you are using the correct source/filter combination. The spotlight requires a constant mains power supply (not a dimmed supply) and a DMX signal. The DMX signal is used to control intensity and performance features of the spotlight. Refer to the operational section of this manual for details. Fig. 1: Main features and controls 1: LED Module 2: Mounting stirrup 3: Shutter blades x 4 4: Lens safety guard and colour frame 5: Beam diameter slider 6: Beam focus slider 7: Gobo holder (optional accessory) Luci della Ribalta srl, Via Berna 14, 46042 Castel Goffredo (MN) Italy Tel. +39 0376 771 777 – fax +39 0376 772 140 – email info@ldr.it – web www.ldr.it ... -
Page 5: Controls
Alba LED profile User’s Manual – 1.0 The mounting stirrup is designed to allow the spotlight to be suspended from above using a C‐clamp or similar, or supported on a stand or bracket from below. The stirrup has two height settings to allow for installation in restricted locations, and to change the stirrup position the side pivot nuts should be removed first. Note: the spotlight’s location must provide suitable ventilation for the LED module. Focus controls are located to the side of the lens tube. The front slider alters the maximum beam diameter, and the rear slider softens or sharpens the focus of the beam. The beam distribution (peak/flat) is fixed. Four beam‐shaping shutters are supplied and these are fitted top, bottom, left and right in the gate area between the lens tube and LED module. An optional gobo (pattern) holder and an iris diaphragm are available. Fig. 2: LED module 1: Top ventilation slots (do not obstruct) 2: Side ventilation slots (do not obstruct) 3: PWM variable Power Supply Unit 4: LED light source CONTROLS The spotlight’s internal dimmer provides the following functions: Intensity control Dimming resolution (number of steps) DMX address Priority of light over thermal control Pre‐programmed special effects Remote reset LED display sleep mode Maximum fan speed LED temperature display Locate the separate mains cable with Neutrik powerCON locking mains connector, insert it into the panel socket at the rear of the LED module, and twist to lock it in place. When mains power is first connected the power indicator will light. When the power switch is turned on the spotlight will perform a self‐check and if a DMX signal is present the display will show the dimmer DMX address (initial factory default setting is A001). One DMX address is used for intensity, and up to 7 additional addresses may be used for other remotely controlled functions. Luci della Ribalta srl, Via Berna 14, 46042 Castel Goffredo (MN) Italy Tel. +39 0376 771 777 – fax +39 0376 772 140 – email info@ldr.it – web www.ldr.it ... - Page 6 Fig 3: Rear Panel details 1: 4‐digit display 2: Power and data status display 3: Manual dimming control 4: DMX loop out (XLR5 F) 5: Main power switch 6: Fuse (slow‐blow, 110V/6A, 220V/3A) 7: AC input 100‐240VAC powerCON 8: DMX input (XLR5 M) 9: Function control buttons Fig 4: Control panel details STATUS: 7‐segment, 4‐digit display for DMX address and system setup and status details. SYSTEM: LED operational status indicator. Normally off, flashes red if the LED source is over temperature. SIGNAL: Continuous yellow = DMX OK. Flashing yellow = invalid DMX. Off = no DMX. POWER: Continuous green when power is applied. MANUAL: Rotary intensity control if the dimming mode is set to ‘local’ UP/DOWN: Buttons to step forward or backwards in the menu or settings. ENTER: Confirms selection. RESET: Returns all settings to factory default. Luci della Ribalta srl, Via Berna 14, 46042 Castel Goffredo (MN) Italy Tel. +39 0376 771 777 – fax +39 0376 772 140 – email info@ldr.it – web www.ldr.it ...
-
Page 7: Local Control Panel Operation
4. This feature can be also overridden from the control desk (details below). 5.3 To change LED temperature priority (from Live Show mode to longer life mode) The LED priority setting defaults to high performance to maintain light levels for TV recordings, or specific scenes of a live show. A temperature control feature is included to lengthen the life of the LED source by reducing intensity proportionally as the temperature reaches a critical limit (greater than 65°C / 140°F). Note: switching the temperature priority ON can lengthen the LED life, but this may result in the light level dimming automatically in hot ambient conditions. 1. From the DMX address display; press the down arrow to show 5L00. Press ENTER and the display changes to 5.L.0.0. (i.e. over temperature protection OFF). 2. Use the up/down buttons to change to 5.L.0.1. (i.e. over temperature protection ON). 3. Press ENTER and the display will show the selected mode. 4. This feature can be also controlled from the desk (details below). 5.4 To use a preloaded lighting effect The spotlight has 8 pre‐programmed effects to provide stand‐alone display illumination or for demonstrations without a control desk: 0 = effects off 1 = Flashing 10 times 2 = Flashing 20 times 3 = Flashing 10 times 4 = Flashing 20 times 5 = Fade in and fade out 10 times 6 = Fade in and fade out 5 times 7 = Fade in and fade out 3 times 8 = Fade in and fade out 2 times 1. From the DMX address display, press the down arrow to show 9n00. Press ENTER and the display changes to 9.n.0.0. (0 = effects off). 2. Use the up/down buttons to change to 9.n.0.x (change 0 to an effects number 1‐8). 3. Press ENTER and the display will show the selected mode. 4. This feature can be also controlled from the desk (details below). Luci della Ribalta srl, Via Berna 14, 46042 Castel Goffredo (MN) Italy Tel. +39 0376 771 777 – fax +39 0376 772 140 – email info@ldr.it – web www.ldr.it ... -
Page 8: To Change Dimmer Resolution
2 = Display off after 45 seconds 3 = Display off after 60 seconds 4 = Continuously on (default) 3. Press ENTER and the display will show the selected mode. 4. This feature can be also controlled from the desk (details below). 5.8 To set the maximum fan speed The internal ventilation fan only operates when the LED temperature is elevated above 35°C (95°F), and it starts at its slowest speed and increases in proportion to the temperature measured. The maximum fan speed can be set locally or remotely. 1. From the DMX address display, press the down arrow to show FL00. Press ENTER and the display changes to F.L.0.0. 2. Use the up/down buttons to select the maximum fan speed: 0 = 100% (maximum) 1 = 90% of max. 2 = 80% of max. 3 = 70% of max. 4 = 60% of max. 3. Press ENTER and the display will show the selected mode. 4. This feature can be also controlled from the desk (details below). 5.9 To check LED temperature 1. From the DMX address display, press the down arrow to show t‐‐‐‐ (temperature is displayed). Press ENTER and the display changes to t.0.0.0 2. Use the up/down buttons to select range: 0 = 0.1°C – 99.9°C or 1 = 32°F – 212°F 3. Press ENTER and the display will show the selected temperature range. 4. NOTE: there are two possible error messages: tErL = under the lowest limit tErH = over temperature Luci della Ribalta srl, Via Berna 14, 46042 Castel Goffredo (MN) Italy Tel. +39 0376 771 777 – fax +39 0376 772 140 – email info@ldr.it – web www.ldr.it ... -
Page 9: To Check Dimming Value
3. Press ENTER and the display will show the selected address. 4. DMX values 0‐127 = intensity controlled by DMX remote desk DMX values 128‐255 = intensity controlled by rotary manual control on spotlight 6.2 To override LED temperature priority (Live Show Mode) from a remote desk 1. From the DMX address display, press the down arrow to show 5000. Press ENTER and the display changes to 5.0.0.1 2. Use the up/down buttons to select the Live Show Mode address (1‐512) Note: this must be a unique DMX address and set to independent on the control desk. 3. Press ENTER and the display will show the selected address. 4. Use the selected DMX address on the remote desk as follows: DMX values 0‐254 = intensity controlled by DMX DMX values 128‐255 = intensity controlled by rotary manual control on spotlight 6.3 To control preloaded lighting effects from a remote desk 1. From the DMX address display, press the down arrow to show 9000. Press ENTER and the display changes to 9.0.0.1. 2. Use the up/down buttons to select the Preloaded Effects Control address (1‐512) Note: this must be a unique DMX address and set to independent on the control desk. 3. Press ENTER and the display will show the selected address. 4. Use the selected DMX address on the remote desk as follows: DMX values 0‐15 = effects off DMX values 16‐31 = Flashing 10 times DMX values 32‐47 = Flashing 20 times DMX values 48‐63 = Flashing 10 times DMX values 64‐79 = Flashing 20 times DMX values 80‐95 = Fade in and fade out 10 times DMX values 96‐111 = Fade in and fade out 5 times DMX values 112‐127 = Fade in and fade out 3 times DMX values 128‐255 = Fade in and fade out 2 times Luci della Ribalta srl, Via Berna 14, 46042 Castel Goffredo (MN) Italy Tel. +39 0376 771 777 – fax +39 0376 772 140 – email info@ldr.it – web www.ldr.it ... -
Page 10: To Change Dimmer Resolution
3. Press ENTER and the display will show the selected address. 4. Use the selected DMX address on the remote desk as follows: DMX values 0‐254 = reset disabled DMX values 255 = reset spotlight 6.6 To control the panel display sleep mode from a remote desk 1. From the DMX address display, press the down arrow to show L000. Press ENTER and the display changes to L.0.0.1. 2. Use the up/down buttons to select the Remote Reset Control mode address (1‐512) Note: this must be a unique DMX address and set to independent on the control desk. 3. Press ENTER and the display will show the selected mode. 4. Use the selected DMX address on the remote desk as follows: DMX values 0‐63 = Display off after 30 seconds DMX values 64‐127 = Display off after 45 seconds DMX values 128‐191 = Display off after 60 seconds DMX values 192‐255 = Continuously on (default) 6.7 To set the maximum fan speed from a remote desk 1. From the DMX address display, press the down arrow to show F000. Press ENTER and the display changes to F.0.0.1. 2. Use the up/down buttons to select the Max Fan Speed Control mode address (1‐512) Note: this must be a unique DMX address and set to independent on the control desk. 3. Press ENTER and the display will show the selected mode. 4. Use the selected DMX address on the remote desk follows: DMX values 0‐31 = 100% (maximum) DMX values 32‐63 = 90% of max. DMX values 64‐95 = 80% of max. DMX values 96‐127 = 70% of max. DMX values 128‐255 = 60% of max. Luci della Ribalta srl, Via Berna 14, 46042 Castel Goffredo (MN) Italy Tel. +39 0376 771 777 – fax +39 0376 772 140 – email info@ldr.it – web www.ldr.it ... -
Page 11: Control Menu Summary
Maximum fan speed FL0‐ FL00 = 100% (maximum) 0 FL01 = 90% of max. FL02 = 80% of max. FL03 = 70% of max. FL04 = 60% of max. Maximum fan speed control address F‐‐‐ e.g. L130 = DMX 130 for Max fan speed remote control 001 000‐031 = 100% (maximum) 032‐063 = 90% of max. 064‐095 = 80% of max. 096‐127 = 70% of max. 128‐255 = 60% of max. LED temperature t‐‐‐ e.g. t35.6 = 35.6°C, t105 = 105°F LED temperature alarm tER‐ tERL = under temperature tERH = over temperature Dimming control value AH00 e.g. AH37 = 37% from DMX Ad00 Ad55 = 55% from local control Parameter status dEFA Indicates changes to settings from the default. Press ENTER for 5 secs to reset and display U5Er Luci della Ribalta srl, Via Berna 14, 46042 Castel Goffredo (MN) Italy Tel. +39 0376 771 777 – fax +39 0376 772 140 – email info@ldr.it – web www.ldr.it ... -
Page 12: Fuse Replacement
Alba LED profile User’s Manual – 1.0 FUSE REPLACEMENT The fuse holder is fitted on the rear of the unit. Type: 6A slow blow for 110V, 3A slow blow for 230V CAUTION: Replace the fuse only when power is disconnected. CLEANING AND MAINTENANCE To ensure optimum performance of the product, a regular maintenance service should be carried out. Please make sure the product is cold and disconnected from power supply when doing this. General maintenance clean all optical parts such as lenses, and if necessary opening the product to clean inside surfaces. check the lenses for cracks or chips and replace any visibly damaged component. clean air ducts and fans to ensure adequate ventilation for the LED engine and power supply. check internal and external wiring and replace any cable which has obvious mechanical damage or has been affected by heat. SPARE PARTS All components are available as spare parts. We strongly recommend you always use original LDR components as spare parts. Please refer to our technical assistance should you need to order and/or replace any part of the unit. WARRANTY Our warranty covers all structural and manufacturing defects for a period of one year from the date of purchase. In case of complaint, we strongly recommend that in the first instance you contact the local dealer who supplied the product to you. In all cases, please refer to the serial number located at the rear of the spotlight. Luci della Ribalta srl reserves the right to modify the present document without prior notice. Luci della Ribalta srl, Via Berna 14, 46042 Castel Goffredo (MN) Italy Tel. +39 0376 771 777 – fax +39 0376 772 140 – email info@ldr.it – web www.ldr.it ... - Page 13 modulo di reclamo ‐ complaint form Reklamationsformular ‐ formulaire de réclamation ‐ hoja de reclamaciones fax: +39 0376 772140 Azienda ed Indirizzo ‐ Company's name and address ‐ Firmenname und Addresse ‐ Nom et adresse ‐ Nombre y direcciòn _______________________________________________________________________________________________________ _______________________________________________________________________________________________________ Nome del rivenditore da cui il prodotto è stato acquistato ‐ Name of the dealer where you have purchased the product ‐ Namen der Firma, die Ihnen das Produkt verkauft hat ‐ Nom de la société qui vous a vendu ce produit ‐ Nombre de la compañia donde han comprado el producto: ____________________________________________________________________________________________________ 01203020 Alba 8/22 W, 200W LED 3200°K Prodotto difettoso 01203030 Alba 18/36 W, 200W LED 3200°K Faulty product 01203040 Alba 30/55 W, 200W LED 3200°K Defekte s Produkt 01203120 Alba 8/22 C, 200W LED 5600°K Produit défectueux Producto defectuoso 01203130 Alba 18/36 C, 200W LED 5600°K 01203140 Alba 30/55 C, 200W LED 5600°K Descrizione del problema /Problem found/Beschreibung des Defekts/Description du défaut/Descripciòn del problema _____________________________________________________________________________________________________ _____________________________________________________________________________________________________ _____________________________________________________________________________________________________ _____________________________________________________________________________________________________ Data d'acquisto ‐ Date of purchase ‐ Kaufdatum ‐ Date de l'achat ‐ Fecha de compra ________________________ Si prega di allegare prova d'acquisto ‐ Please attach copy of purchase invoice ‐ Bitte Kaufnachweis beilegen ‐ Veuillez joindre une quittance d'achat ‐ Les rogamos incluyan lcopia de la factura de compra. Nome e qualifica ‐ Name and position ‐ Name und Funktion ‐ Nom et fonction ‐ Nombre y cargo ____________________________________________________________________...
-
Page 14: Ldr Conformity Certificate - Certificato Di Conformità - Konformitätserklärung 12 13. Complaint Form - Modulo Di Reclamo - Reklamationsformular
certificato di conformità certificate of conformity Konformitätserklärung certificat de conformité certificado de conformidad I Noi sottoscritti dichiariamo, sotto la nostra completa responsabilità, che i prodotti: GB We hereby declare under our own responsibility, that the products listed here below: D Wir beglaubigen, daß die nachfolgend genannten Produkte: F Nous certifions sous notre responsabilitè, que les produits mentionnés ci‐dessous: E Los que subscriben, declaran, bajo su responsabilidad, que los productos aquì listados: 01203020 Alba 8/22 W, 200W LED 01203030 Alba 18/36 W, 200W LED 01203040 Alba 30/55 W, 200W LED 01203120 Alba 8/22 C, 200W LED 01203130 Alba 18/36 C, 200W LED 01203140 Alba 30/55 C, 200W LED I sono conformi alle seguenti norme ed ai requisiti delle seguenti direttive CEE: GB conform to the following standards and to the requirements of following EEC directives: D den nachfolgend aufgeführten Normen und EEC‐Vorschriften entsprechen: F sont conformes aux normes et prescriptions CEE ci‐aprés: E cumplen de hecho con las siguientes normas y directivas CEE: EN 61000‐3‐2, EN61000‐3‐3, EN 55024, EN 55022 EN 60‐598‐2‐17 1989 including amendments 1/2 EN 60‐598‐1 1992 including amendment 1 CE marking directive 93/68 EEC Low voltage directive 73/23/EEC as amended by directive 93/98/EEC EMC directive 89/336/EEC as amended by directive 91/263/EEC and 92/31/EEC Luci della Ribalta srl Fabiano Besio... -
Page 15: Weee Directive - Direttiva Raee - Weee Richtlinie
local de escoamento de residuos, ou a loja na qual efectuou a compra. Richtlinie 2002/96/EU (Elektro- und Elektronik- Altgeräte - WEEE): Benutzerinformationen. Dieses Produkt entspricht Richtlinie WEEE-symbolet (Waste Electrical 2002/96/EU. Das Symbol des auf dem Gerät Electronic Equipment). dargestellten, durchgestrichenen Korbes gibt an, dass Bruken av WEEE-symbolet indikerer at dette Produkt Ende... - Page 16 Luci della Ribalta srl, Via Berna 14, 46042 Castel Goffredo mn Italy. tel +39 0376 771 777 ‐ fax +39 0376 772 140 ‐ email info@ldr.it...
