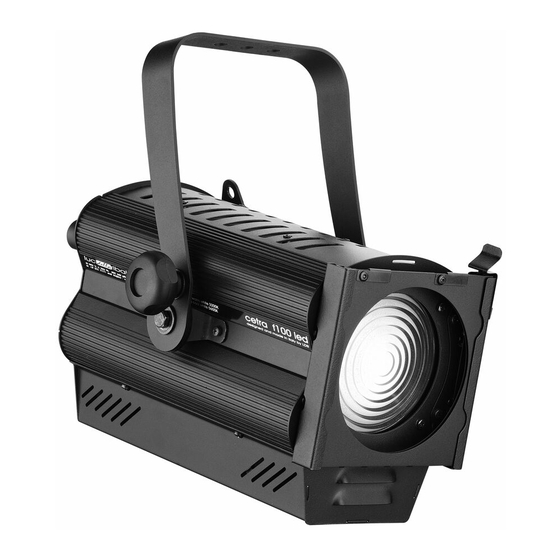

Cetra F100W, LED 3200K,
01101000
Cetra F100 C, LED 5600K
01101100
01102000
Cetra PC100 W, LED 3200K
Cetra PC100 C, LED 5600K
01102100
Luci della Ribalta srl, Via Berna 14, 46042 Castel Goffredo mn Italy. tel +39 0376 771 777 ‐ fax +39 0376 772 140 ‐ email info@ldr.it
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for LDR Cetra F100W, LED 3200K
Summary of Contents for LDR Cetra F100W, LED 3200K
- Page 1 Bedienungsanleitung instrucciones de manejo mode d'emploi gebruiksaanwijzing Cetra F100W, LED 3200K, 01101000 Cetra F100 C, LED 5600K 01101100 01102000 Cetra PC100 W, LED 3200K Cetra PC100 C, LED 5600K 01102100 Luci della Ribalta srl, Via Berna 14, 46042 Castel Goffredo mn Italy. tel +39 0376 771 777 ‐ fax +39 0376 772 140 ‐ email info@ldr.it...
-
Page 2: Table Of Contents
11.8 Dimming curve .................. 7 11.9 Cut off dimming response .............. 7 11.10 Dimming behaviour ................. 7 11.11 LED frequency adjustment ............... 8 11.12 LCD retro illumination ............... 8 11.13 Software version and LED temperature .......... 8 11.14 PRO – BASIC .................. 8 11.15 Reset ....................8 MAINTENANCE 12 Cleaning and maintenance .............. .9 13 Spare parts ..................... .9 14 Warranty .................... ...9 SUMMARY OF CONTROL AND OPERATION 15 Summary of the CETRA function ............ 10 16 DMX Chart………………………………………………………………………………………… 11 LDR Conformity Certificate – Certificato di Conformità – Konformitätserklärung Page 12 Complaint form – Modulo di reclamo – Reklamationsformular …………………………. Page 13 WEEE Directive – Direttiva RAEE – WEEE Richtlinie …………………………………………… Page 14 Luci della Ribalta srl, Via Berna 14, 46042 Castel Goffredo (MN) Italy Tel. +39 0376 771 777 – fax +39 0376 772 140 – email info@ldr.it – web www.ldr.it ... -
Page 3: Important Safety Norms
This product is rated IP 20 and is therefore designed for interior use only. For details on maximum ambient temperature and tilt angle please refer to what indicated on the product label or screen‐printing on the side of the lens‐tube or the rear of the LED‐house Warning, high voltage ignition. Disconnect the unit from power before servicing Continuous mains power is required for this spotlight as an internal dimmer controls the intensity via DMX or local rotary knob. Use of a phase control dimmed mains supply may damage the internal electronics. Use of a phase control dimmed mains supply may damage the internal electronics This product features fan‐assisted ventilation. Make sure you do not cover the fans or obstruct the air flow at any one time. Make sure the fans are working correctly. Should you detect even the slightest malfunction, switch the luminaire off and carry out the necessary servicing. Replace the fan if necessary. Repairing and replacement of any component of this product must be carried out exclusively by professional personnel in conformity with the relevant safety and health standards and only with original Luci della Ribalta srl components. Replacement of any part of the wiring system must be carried out exclusively by professional personnel in compliance with the original wiring diagram and with components identical to or compatible with those originally fitted. Installation of this product must be exclusively carried out by professional personnel in compliance with the safety norms in force in the country where the product is used. This product must be fitted with a secondary fixing system such as a safety chain or bond. Should this not be supplied as a standard accessory, please make sure you buy it separately and install it before using the product. WARNING: DANGER OF ELECTRICAL SHOCK DO NOT OPERATE ON LIVE EQUIPMENT Disconnect power before opening this fixture to access its light source or electronics. Luci della Ribalta srl, Via Berna 14, 46042 Castel Goffredo (MN) Italy Tel. +39 0376 771 777 – fax +39 0376 772 140 – email info@ldr.it – web www.ldr.it ... -
Page 4: Box Contents
Cetra F & PC 100 LED User’s Manual – 2.0 The replacement of the LED source or any of its electronic components can be carried out exclusively by professional personnel upon LDR’s written authorization and only with original Luci della Ribalta srl components. Failure to obtain the manufacturer’s authorization to carry out the replacement/repair, will immediately invalidate the product’s warranty WARNING: EYE DAMAGE HAZARD Make sure this fixture is installed so as to avoid prolonged direct staring at its operating light source (LED) from a distance of less than 7m / 23ft. WARNING: FIRE HAZARD Never locate this fixture on any flammable surface. Minimum distance of any part of the body of the luminaire from any flammable surface or object: 0,5m Minimum distance from lit surface, please refer to product label Make sure the mains power supply the fixture will be connected to is protected by a suitable thermal magnetic circuit breaker 2. BOX CONTENTS Upon opening the packaging, please make sure it contains the following: lighting unit in the chosen model b. metal colour frame 150x150mm, fitted 160cm mains power cable with fitted Neutrik Power‐Con blue connector Should one or more items miss, we kindly ask you to contact your dealer immediately. ... -
Page 5: Important Notice Before The Installation/Installation
When tilting the unit make sure the knob blocking the stirrup is strongly tightened and that the luminaire can hold the desired tilt angle 5. MECHANICAL OPERATION Focus control: is located on the rear end of the product. Turn the knob clockwise to narrow the beam (SPOT). Turn the knob anticlockwise to widen the beam (FLOOD). The beam distribution (peak/flat) is fixed. Beam‐shaping: a 4 leaf barndoor (A20100301) can be fitted on the front of the Cetra to control and shape the beam Tilt: the stirrup is fitted with a positive friction clamp controlled by a large knob. Turn the knob anticlockwise to release it, position the luminaire at the desired tilt angle and turn the knob clockwise to hold the desired position. Make sure the knob is strongly tightened at any time during operation WIRING Before being connected to the mains power, this unit may need to be wired with a suitable plug if not already installed. Make sure the plug you are using is rated for the proper power load and it conforms to the relevant local electrical standards Make sure the plug you are fitting withstands the LED power load. This fixture must be grounded To perform a correct wiring, please note that the cores in this mains lead are colour‐coded as follows: Ground: green+yellow – Neutral: blue ‐ Phase: brown In case the colours of the wires do not correspond to the colour of the connection points on your plug, please proceed as follows: The green or green and yellow wire must be connected to the connection point marked with the letter E or with the symbol or coloured in green or in green‐yellow The blue wire must be connected to the connection point marked with the letter N or coloured in black Luci della Ribalta srl, Via Berna 14, 46042 Castel Goffredo (MN) Italy Tel. +39 0376 771 777 – fax +39 0376 772 140 – email info@ldr.it – web www.ldr.it ... -
Page 6: Voltage
MANUAL DMX ARROW SHOULD AND PRESS TO APPEAR CONFIRM Tap the rotary selector and the LCD screen will display the mode status and the current value: 1 Mode TAP THE ROTARY 1 M: DMX 00 % = LED OFF SELECTOR TO DISPLAY FF % = LED FULL XX % THE VALUE 1 Mode 1 M: TAP THE ROTARY 00 % = LED OFF SELECTOR TO DISPLAY FF % = LED FULL Manual MANUAL THE VALUE Luci della Ribalta srl, Via Berna 14, 46042 Castel Goffredo (MN) Italy Tel. +39 0376 771 777 – fax +39 0376 772 140 – email info@ldr.it – web www.ldr.it ... -
Page 7: Dmx Address
APPEAR 5 DMXMem DIM THE LED TO 0% OFF=0% 11.6 STROBE (Strobe) This function enables to activate the strobe function. Factory setting DISABLE. PRESS TO ACTIVATE TURN TO SELECT 6 Strobe 6 Strobe 6 Strobe THE MENU AN MANUAL OR DMX DISABLE DISABLE ENABLE ARROW SHOULD AND PRESS TO APPEAR CONFIRM Luci della Ribalta srl, Via Berna 14, 46042 Castel Goffredo (MN) Italy Tel. +39 0376 771 777 – fax +39 0376 772 140 – email info@ldr.it – web www.ldr.it ... -
Page 8: Strobe Speed
AT LOWER VALUE 11.9 CUT OFF DIMMING RESPONSE (CutOff) This function allows to select an LED behaviour simulating a tungsten‐halogen lamp during the dimming cut off. Factory setting OFF. PRESS TO ACTIVATE 9 CutOff 9 CutOff THE MENU, AN SOFT LED DIMMING AT SLOW SLOW ARROW SHOULD SHUT DOWN APPEAR 9 CutOff DIRECT DIMMING RESPONSE AT SHUT DOWN 11.10 DIMMING BEHAVIOUR (Smooth) This function allows to set the LED dimming response. Factory setting SLOW. Luci della Ribalta srl, Via Berna 14, 46042 Castel Goffredo (MN) Italy Tel. +39 0376 771 777 – fax +39 0376 772 140 – email info@ldr.it – web www.ldr.it ... -
Page 9: Led Frequency Adjustment
11.13 SOFTWARE VERSION AND TEMPERATURE CONTROL (V 1.0) This function allows to visualize the software version and the LED temperature in °C. 11.14 PRO or BASIC CONTROL (ProBasic) The PRO‐BASIC control is a special function which allows to limit the access to the control menu. To activate this function turn OFF and ON the Cetra and press the rotary switch at power on. Select ProBasic with the rotary switch and press to access the menu. Select: PRO, to enable access to all the functions BASIC, to limit access to functions 11.1 DMX or MANUAL MODE, 11.2 DMX ADDRESS and 11.13 Software version and temperature control Factory setting PRO. 11.15 RESET The RESET control is a special function which allows to RESET the product to factory settings. To activate this function turn OFF and ON the Cetra and press the rotary switch at power on. Select RESET with the rotary switch and press to RESET Cetra to factory settings. Luci della Ribalta srl, Via Berna 14, 46042 Castel Goffredo (MN) Italy Tel. +39 0376 771 777 – fax +39 0376 772 140 – email info@ldr.it – web www.ldr.it ... - Page 10 Cetra F & PC 100 LED User’s Manual – 2.0 12. CLEANING AND MAINTENANCE To ensure maximum performance of the product, a regular maintenance service should be carried out. Please make sure the product is cold and disconnected from power supply when doing this. General maintenance * Clean all reflective parts such as lenses opening the product, if necessary. * Check the lenses and replace any visibly damaged component. * Clean air ducts and fans in order to allow proper ventilation activity on the product. * Check internal and external wiring and replace any cable which should be damaged by heat or mechanical agents. 13. SPARE PARTS All components are available as spare parts. We strongly recommend you always use original LDR components as spare parts. Please refer to our technical assistance should you need to order and/or replace any part of the unit. 14. WARRANTY Our warranty covers all structural and manufacture defects for one year from the date you purchased this product. In case of complaints we strongly recommend you use the complaint form at the end of this manual or contact the local dealer who supplied the product to you. In any case please report the serial number of the product. ...
- Page 11 AutoOff 1'30" 13 V 1.0 visualizes the software version and select the LED Temp in °C or F° °C LED temperature SPECIAL FUNCTIONS: to activate this function press the rotary switch at poweron # function description available options Factory setting A ProBasic Sets the operation modes. To PRO=enable access to all the CETRA PRO activate this function press the functions ‐ BASIC = limit the acess rotary switch at poweron to functions: 1 Mode, 2 Addr and 13 V 1,0 B RESET factory RESET return to factory setting 10 Luci della Ribalta srl, Via Berna 14, 46042 Castel Goffredo (MN) Italy Tel. +39 0376 771 777 – fax +39 0376 772 140 – email info@ldr.it – web www.ldr.it ...
- Page 12 101‐120: Speed 121‐140: Speed 141‐160: Speed 161‐180: Speed 181‐200: Speed 201‐220: Speed (fast) 221‐240: Closed and reserved 241‐255: Closed 4 Frequency 0‐20: 3kHz Available 21‐40: 2.4kHz only if DMX 41‐60: 2.0kHz Cfg ON (Off 61‐80: 1.7kHz by default) 81‐100: 1.5kHz Note: for 101‐120: 1.3kHz technical 121‐140: 1.2kHz reasons, all frequencies 141‐160: 1.1kHz may not be 161‐180: 939Hz available on all products. 181‐200: 760Hz 201‐220: 610Hz 221‐240: 469Hz 241‐255: Reserved Luci della Ribalta srl reserves the right to modify the present document without prior notice. 11 Luci della Ribalta srl, Via Berna 14, 46042 Castel Goffredo (MN) Italy Tel. +39 0376 771 777 – fax +39 0376 772 140 – email info@ldr.it – web www.ldr.it ...
- Page 13 P .iva 01815640204 c.iso IT01815640204 Luci della Ribalta srl, Via Berna 14, 46042 Castel Goffredo MN Italy - tel +39 0376 771777 - web www.ldr.it - email info@ldr.it IT/015/MN/11 VAT registration # It01815640204 - REA MN 198438 - Authorized Exporter #...
- Page 14 Reklamationsformular ‐ formulaire de réclamation ‐ hoja de reclamaciones email: info@ldr.it Azienda ed Indirizzo ‐ Company's name and address ‐ Firmenname und Addresse ‐ Nom et adresse ‐ Nombre y direcciòn _______________________________________________________________________________________________________ _______________________________________________________________________________________________________ Nome del rivenditore da cui il prodotto è stato acquistato ‐ Name of the dealer where you have purchased the product ‐ Namen der Firma, die Ihnen das Produkt verkauft hat ‐ Nom de la société qui vous a vendu ce produit ‐ Nombre de la compañia donde han comprado el producto: ____________________________________________________________________________________________________ 01101000 Cetra F100W, LED 3200K, Prodotto difettoso 01101100 Cetra F100 C, LED 5600K Faulty product 01102000 Cetra PC100 W, LED 3200K Defekte s Produkt 01102100 Cetra PC100 C, LED 5600K Produit défectueux Producto defectuoso Descrizione del problema /Problem found/Beschreibung des Defekts/Description du défaut/Descripciòn del problema ________________________________________________________________________________________________________ ________________________________________________________________________________________________________ ________________________________________________________________________________________________________ ________________________________________________________________________________________________________ Data d'acquisto ‐ Date of purchase ‐ Kaufdatum ‐ Date de l'achat ‐ Fecha de compra ________________________ Si prega di allegare prova d'acquisto ‐ Please attach copy of purchase invoice ‐ Bitte Kaufnachweis beilegen ‐ Veuillez joindre une quittance d'achat ‐ Les rogamos incluyan lcopia de la factura de compra. Nome e qualifica ‐ Name and position ‐ Name und Funktion ‐ Nom et fonction ‐ Nombre y cargo ____________________________________________________________________ Data ‐ Date ‐ Datum ‐ Date ‐ Fecha _____________________________...
- Page 15 local de escoamento de residuos, ou a loja na qual efectuou a compra. Richtlinie 2002/96/EU (Elektro- und Elektronik- Altgeräte - WEEE): Benutzerinformationen. Dieses Produkt entspricht Richtlinie WEEE-symbolet (Waste Electrical 2002/96/EU. Das Symbol des auf dem Gerät Electronic Equipment). dargestellten, durchgestrichenen Korbes gibt an, dass Bruken av WEEE-symbolet indikerer at dette Produkt Ende...
- Page 16 Luci della Ribalta srl, Via Berna 14, 46042 Castel Goffredo mn Italy. tel +39 0376 771 777 ‐ fax +39 0376 772 140 ‐ email info@ldr.it...
