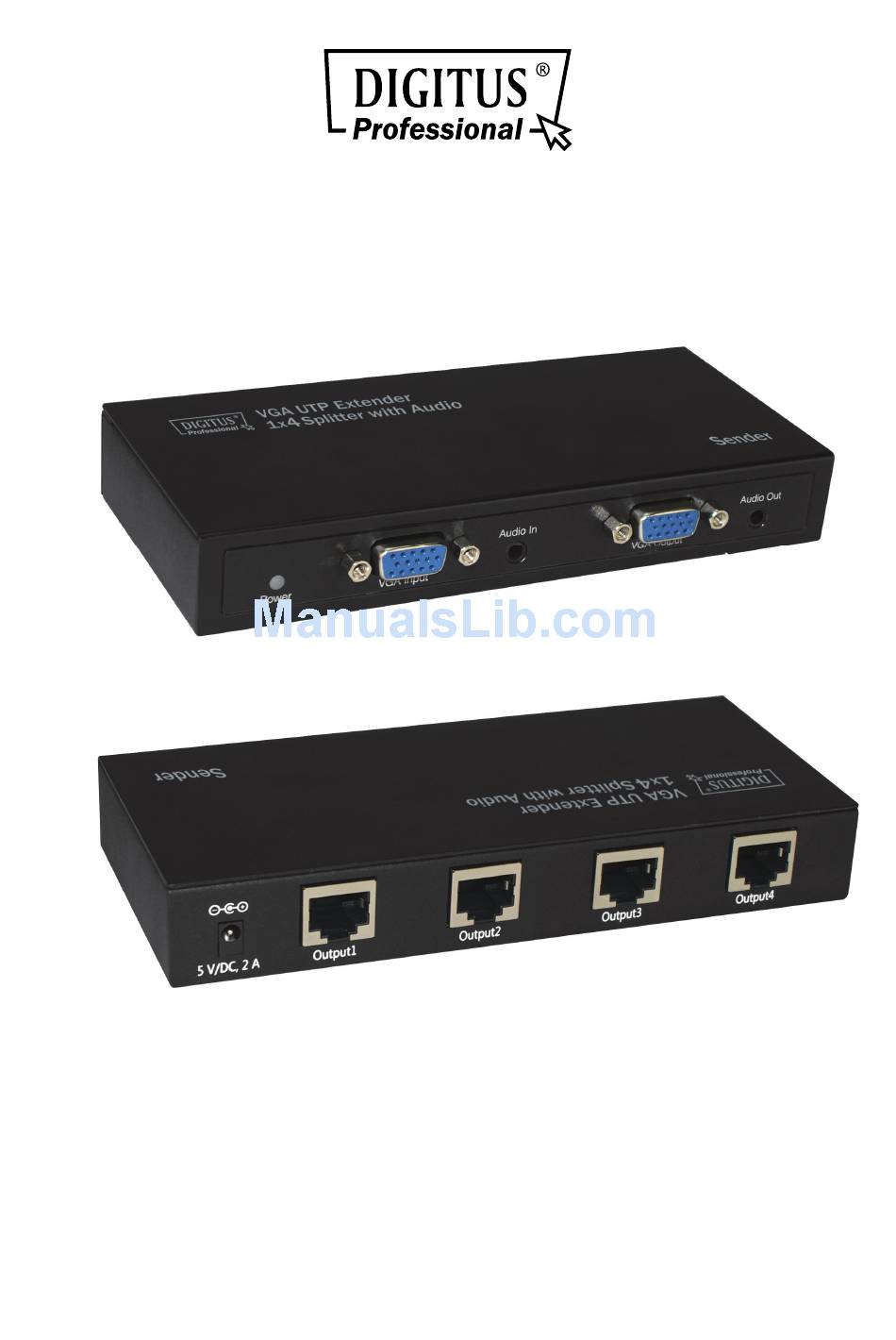

- Page 1 VGA UTP EXTENDER 4-PORT WITH AUDIO Quick Installation Guide DS-53440...
-
Page 2: Package Contents
INTRODUCTION This VGA UTP Extender 1X4 Splitter with Audio is an ideal device for local displaying and remote viewing. It combines split function and extension function. It distributes the input of the VGA signal and audio signal into four identical outputs simultaneously. Each receiver by Cat5 x1 works with the Sender as a full functional module by receiving the distributed signal from the sender and transmitting to displays individually. -
Page 3: Connection And Operation
CONNECTION AND OPERATION: 1) Connect the VGA source to the main VGA input using a VGA cable. 2) Connect VGA output of the Sender to a local display 3) Connect Sender and Receiver using a CAT-5e/6 cable 4) Connect VGA output of Receiver to remote display 5) Plug the 5V@2A power supply into the Sender and the other 5V@2A power supply into the Receiver 6) Optional connect Audio to Sender and Receiver side... -
Page 4: Specifications
SPECIFICATIONS Input /Output Connector Input connector VGA(Female 15pin), Stereo Audio Output connector VGA(Female 15pin), Stereo Audio,4xRJ45 Operating Frequency Vertical Frequency Range 60/75/85Hz Resolutions(PC) 640X480 800X600 1024X768 1280X720 1280X768 1280X960 1280X1024 1600X900 1600X1200 1920X1080 1920X1200 Mechanical Size of VGA UTP Extender 1X2 154×69×23mm Splitter Size of Receiver (L-W-H)
