Digitus DS-55324 Quick Installation Manual

Digitus DS-55324 Quick Installation Manual

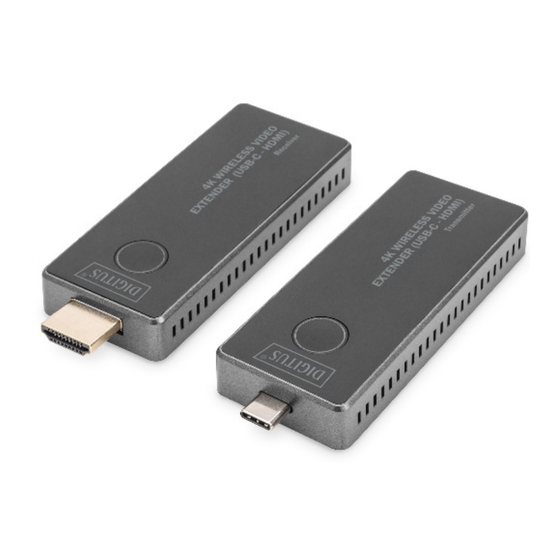

4k wireless video extender, 30 m (usb-c - hdmi)

Advertisement

Quick Links

4K Wireless Video
Extender, 30 m
(USB-C - HDMI)
Quick Installation Guide
DS-55324

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DS-55324 and is the answer not in the manual?

Questions and answers

Summary of Contents for Digitus DS-55324

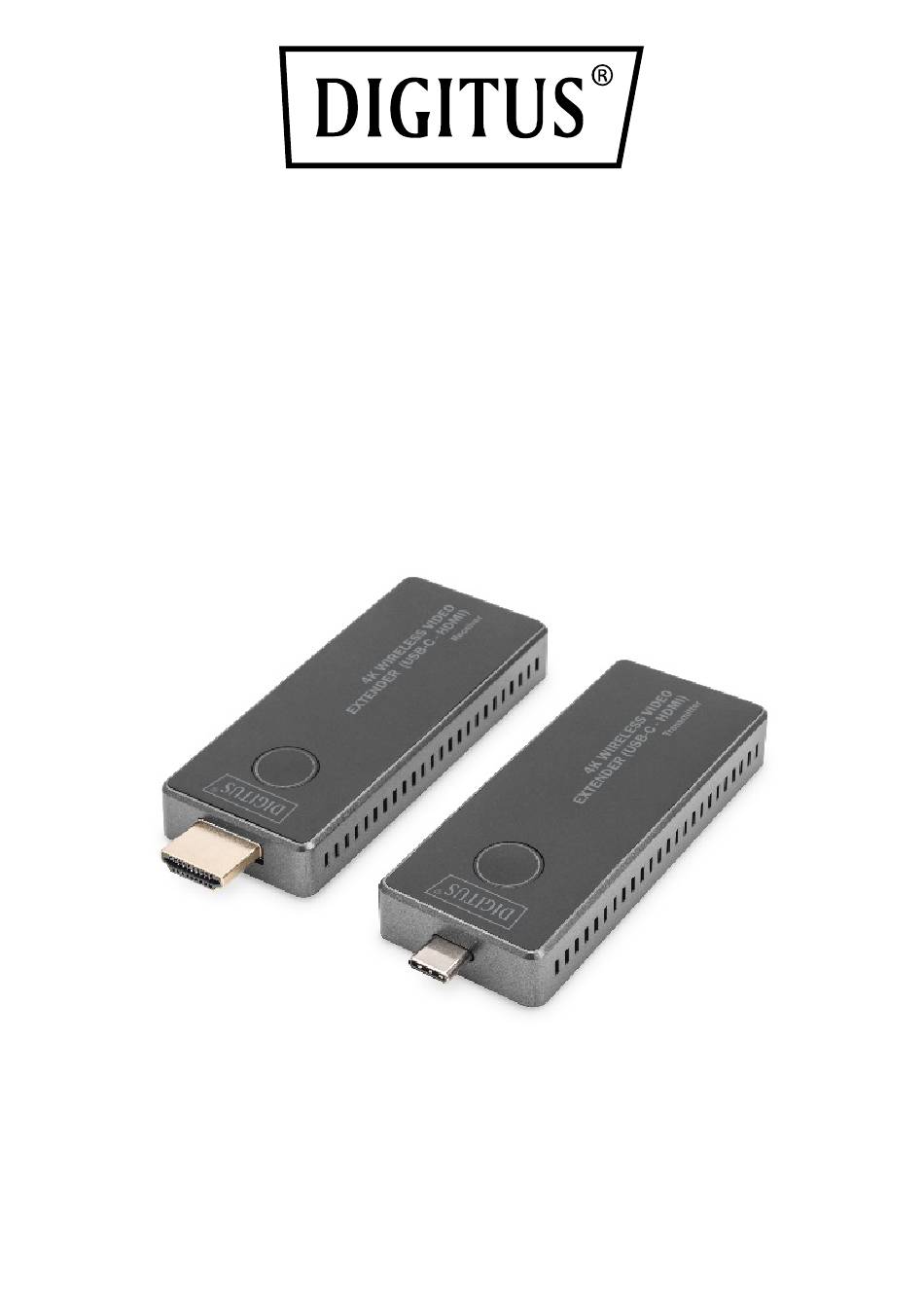

  • Page 1 4K Wireless Video Extender, 30 m (USB-C - HDMI) Quick Installation Guide DS-55324...
  • Page 2: Table Of Contents

    Table of Contents 1. Introduction ................3 2. Main Features ................. 3 3. Package Contents ..............3 4. Product Features ..............4 5. Product Specification ............... 5 6. Overview ................. 9 6.1 Transmitter Unit ..............9 6.2 Receiver Unit ................. 10 7.
  • Page 3: Introduction

    1. Introduction Experience wireless audio and video transmission in sharp UHD 4K/30Hz with the 4K Wireless HDMI Extender. The set is designed for easy setup without a driver or software thanks to Plug & Play. With a range of up to 30 meters with an unobstructed view, it guarantees reliable transmission.
  • Page 4: Product Features

    Supports signal sources with USB- C connection (with DP-Alt Mode or Thunderbolt) with Windows, macOS, iOS, iPadOS, Android Auto Channel Selection The DS-55324 will select the best Wi-Fi channel automatically after power on to ensure streaming smoothly Fast Speed with 5G AC...
  • Page 5: Product Specification

    AES 128-bit security encryption and WPA2/WPA-PSK/WPA2-PSK authentication protocol to protect data. HDCP is supported to protect the content 5. Product Specification Transmitter Specifications USB-C input DP 1.2 HDCP Version HDCP 1.4 Input Resolution 2160p/30fps,1080p/60fps,1080p/30fps, 1080p/24fps 1080i/50fps, 1080i/60fps; 720p/30fps, 720p60fps;480p/60fps Transmission Maximum 2160p/30fps Resolution Audio Format...
  • Page 6 Frequency 5150-5350MHz ; 5470-5725MHz; 5725- 5850MHz ; 5850-5925MHz The specific frequency bands utilized are upon the legal regulations by each country Bandwidth Support 20MHz, 40MHz, 80Mhz WiFi Power 13 dBm Auto Pairing & Auto Automatically establish connection with Connection the most favorable Wi-Fi channel accessible to guaranteeing exceptional wireless performance Distance...
  • Page 7 Humidity Operating 10% to 80% relative humidity Storage 5% to 90% relative humidity Receiver Specification HDMI Output Version HDMI 2.0 HDCP Version HDCP 2.2 HDMI Output Up to 2160p/60fps Resolution Transmission Maximum 2160p/30fps Resolution Audio Format Audio Channel 2 channels Latency As low as 100ms latency (at 60fps) Security...
  • Page 8 Bandwidth Support 20MHz, 40MHz, 80Mhz WiFi 13 dBm Auto Pairing & Auto Automatically establish connection with Connection the most favorable Wi-Fi channel accessible to guaranteeing exceptional wireless performance High Sensitive High sensitive antennas provide stable Antennas wireless connections and optimal coverage Distance Up to 30 meters (clear line of sight)
  • Page 9: Overview

    Storage 5% to 90% relative humidity 6. Overview 6.1 Transmitter Unit 1. USB-C in Connect with the video port of the source devices 2. Connection button Short press: start screen sharing Long press: long press up to 10 seconds for connection (pairing) reset 2.
  • Page 10: Receiver Unit

    Flashing red Transmitter unit is searching for Receiver unit Flashing blue Waiting for connection Static blue Connected Purple No video input signal 6.2 Receiver Unit 1. HDMI output Connect with the HDMI port of the source devices 2. Connection button Short press: start screen sharing Long press: long press up to 10 seconds for connection (pairing)
  • Page 11: Installation

    USB-A port on the output device or to a USB charging adapter and power socket 8. Pairing Transmitter and Receiver A set of DS-55324 includes one receiver and one transmitter, which are paired before shipment. Normally you don’t need to pair them again thanks to auto-pair feature.
  • Page 12: Wireless Video Transmission

    automatically. 3. Click the Transmitter button to stream when the Transmitter LED is turning to flash blue. 9. Wireless Video Transmission 1. Connect the receiver to the video port of the output device (see Installation Receiver) 2. Connect the transmitter to the video port of the signal source device (see Installation Transmitter) 3.
  • Page 13: Remark

    10. Remark For video source devices with at least 5V/0.5A power output via the HDMI port, the wireless transmitter can be powered directly via the HDMI port without additional power supply via the USB-C port. However, we always recommend the additional power supply via the USB-C port with the supplied cable for optimal transmission and stable connection The transmission distance with limited visibility cannot be...
  • Page 14 8. Disconnect the device from connected electrical devices during thunderstorms 9. Use the device only inside buildings 10. Return the device to your dealer in case of repair 11. Dust, humidity, vapors and strong cleaning agents or solvents can cause damage to the unit Disconnect the device from the power supply and connected devices before cleaning.
  • Page 15 Disclaimer The terms HDMI and HDMI High-Definition Multimedia interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries. Hereby ASSMANN Electronic GmbH declares that the Declaration of Conformity is part of the shipping content. If the Declaration of Conformity is missing, you can request it by post under the below mentioned manufacturer address.
