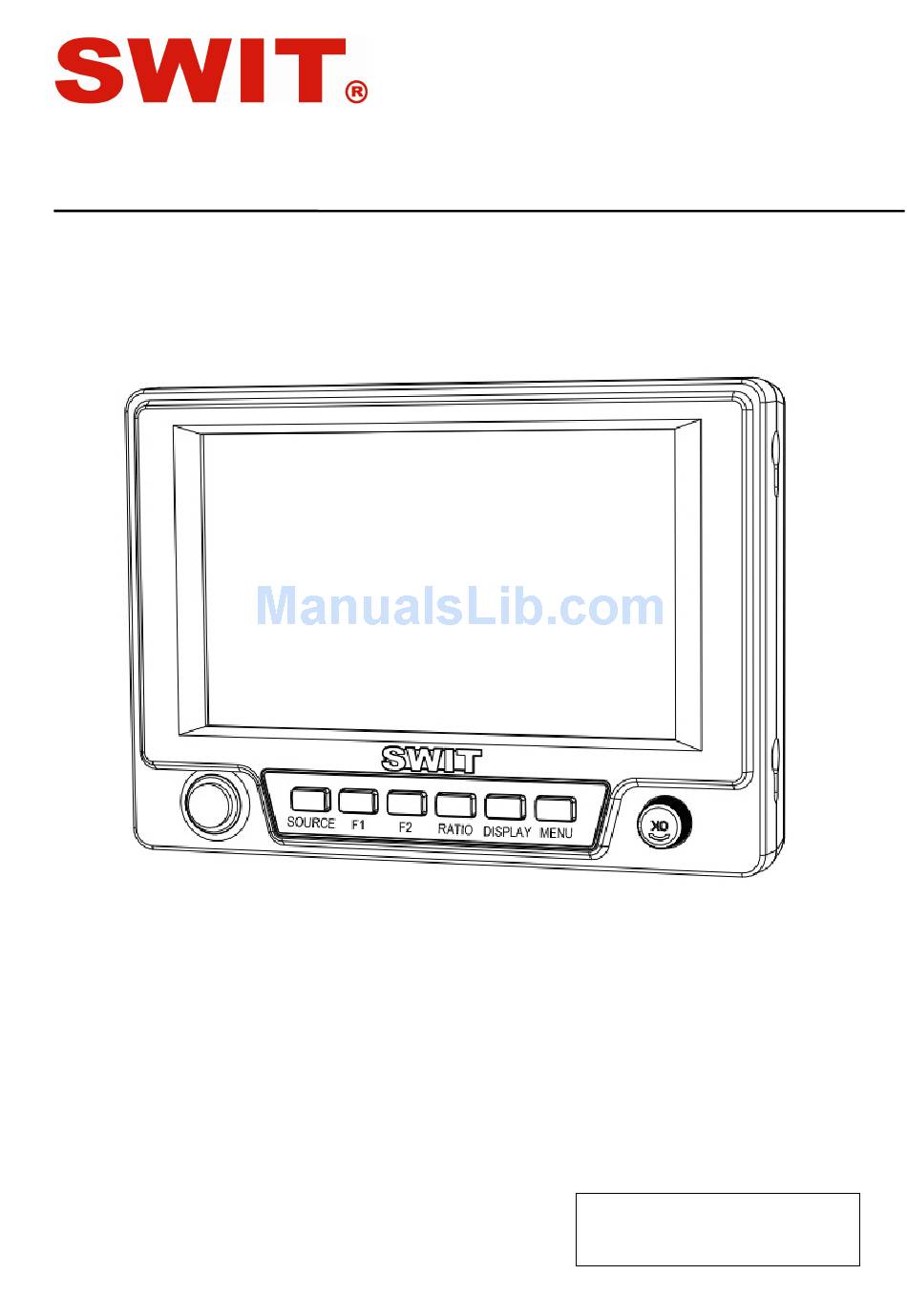

Page 1: User Manual

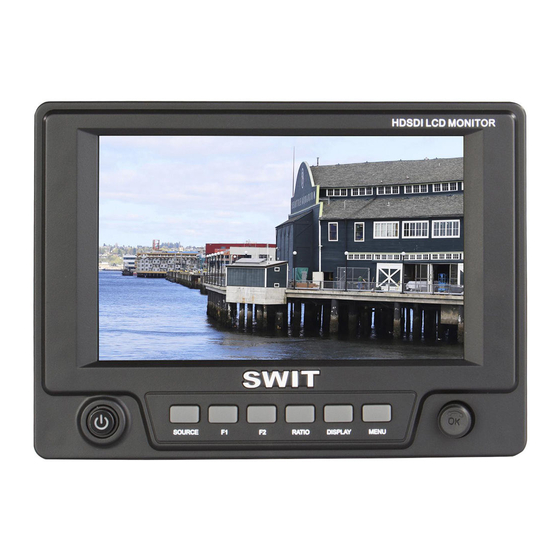

S-1051H Model: 5" Portable On-camera HDSDI&HDMI LCD Monitor User Manual Please read this User Manual throughout before using. - Page 2 Reproduction in whole or in part without written permission is prohibited. ． All brands and trademarks of SWIT Electronics Co., Ltd. are protected and other relative trademarks in this user manual are the property of their respective owners. Due to constant effort of product development, SWIT reserves the right to make changes and ．...
-
Page 3: Maintenance
Maintenance Monitor 1. Please keep the signal terminals and the cooling vent away from knife-edge, metal or liquid in order to avoid short-circuit and damage. 2. Please don't try to disassemble any parts of the monitor by yourself, which would probably damage the monitor and do harm to human body, and it will cause the invalidation of product warranty. - Page 4 1. Features ◆ ◆ ◆ ◆ High resolution LCD Panel 5-inch, 16:9, 800×480 with wide viewing angle ◆ ◆ ◆ ◆ 3Gbps SDI support Accept 3G/HD/SD-SDI input Multi Input/Output ◆ ◆ ◆ ◆ Support SDI, HDMI, CVBS input and loop through output ◆...
- Page 5 2. Panel Instruction Front view ⑴ POWER: Power on/off Connect with power cable or mount battery, press the “POWER” and the power indicator is turned on and after 10 seconds, the monitor will be switched on and get into normal working status. Press the “POWER”...
-
Page 6: Rear View
CVBS-LOOP: Composite video loop through output (BNC connector) ⑷ ⑸ Battery mount install: Connect with SWIT S-7004 series snap-on DV mounts, See details in “Optional Battery Mount”. ⑹ SDI-LOOP: 3G/HD/SD-SDI loop through output (BNC connector) SDI-IN: 3G/HD/SD-SDI input (BNC connector) ⑺... -
Page 7: Menu Operation
3. Menu Operation Press “MENU” and it will display menu system ⑴ Revolve “OK” to select an item. The selected item will be highlighted display. ⑵ ⑶ Press “OK” to enter the selected item. Under menu system, press “MENU” to back to previous menu. ⑷... -
Page 8: Display Submenu
3.4 TITLE submenu Revolve "OK" button to select the letters, and press "OK" to input. Select SPACE to input space and DEL to delete the left letter. Max 10 letters are supported. After setting, press "MENU", the system will save data to current user and quit menu. - Page 9 5. Optional Battery Mount 5.1 Battery mount choice S-1051H monitor can use DV batteries by connecting with SWIT S-7004 snap-on mount. There’re following types of S-7004 for choice: Model Compatible battery type Recommended SWIT battery S-7004F SONY L series NP-F770/970...
-
Page 10: Specifications
6. Specifications LCD Performance Size 5.0 inches Display area 108.0×64.8mm Resolution 800×RGB×480 Aspect ratio 16:9/4:3 Brightness 350cd/m Contrast 500:1 Color 16.77 million colors Viewing angle Horizontal: 140 ° V ertical: 120 ° Video Format CVBS NTSC P AL ∕ SMPTE-425M 1080p (60 / 59.94 / 50) 1080i (60 / 59.94 / 50) SMPTE-274M...
