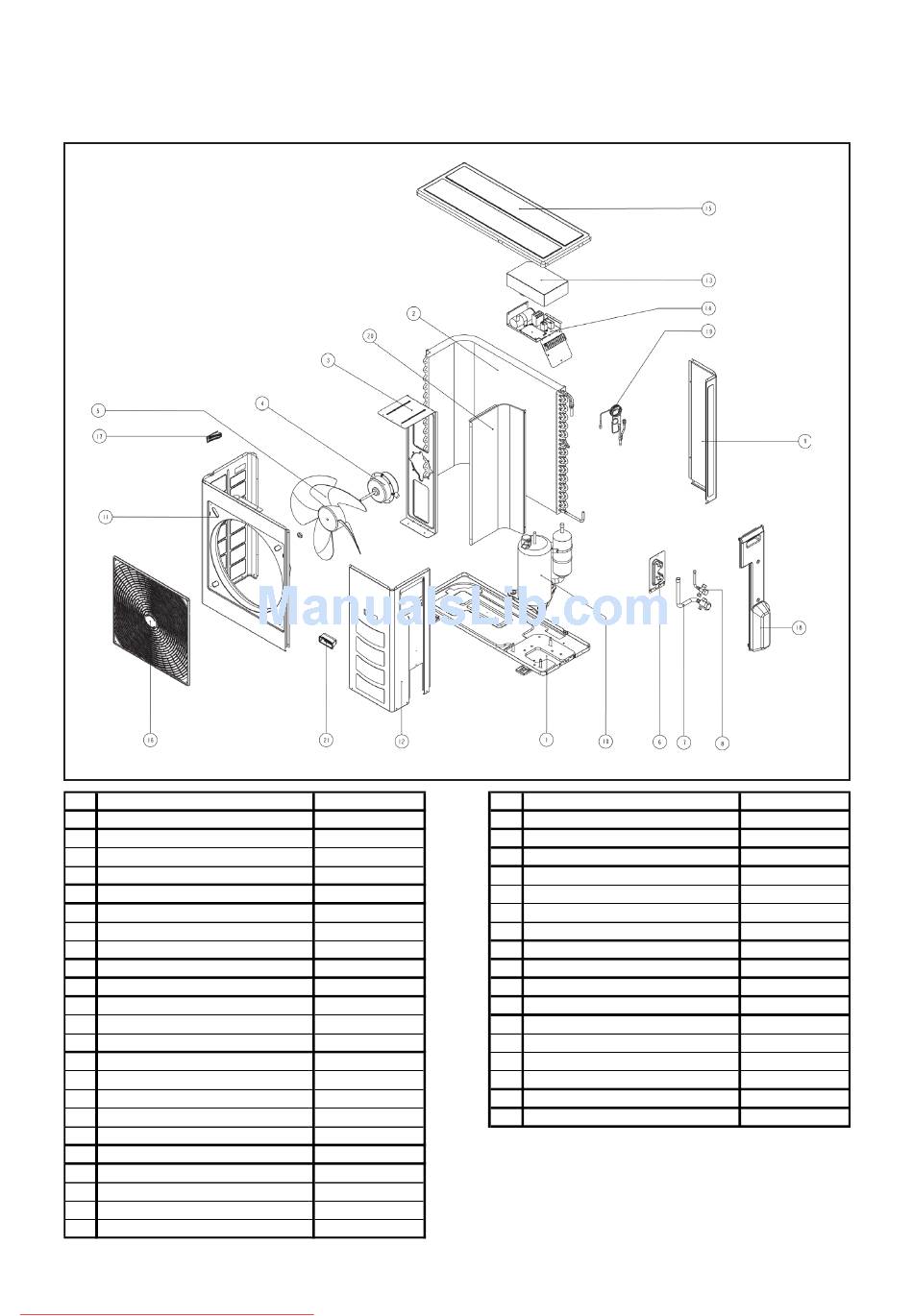

Acson AWM 07G' AWM 07GR User Manual page 154

MODEL: A5LC 25 / 28C
No Descriptions
1 Assy. Base Pan
2 Assy. Outdoor Coil
ALC 25C/28C
A5LC 25C/28C
3 Motor Bracket
4 Fan Motor
A5LC/ALC 25C
A5LC/ALC 28C
5 Fan Blade
6 Valve Bracket
7 Assy. Flare Valve 3 Ways 5/8"
ALC 25C/28C
A5LC 25C/28C
8 Assy. Flare Valve 2 Ways 3/8"
ALC 25C/28C
A5LC 25C
Assy. Flare Valve 3 Ways 3/8"
A5LC 28C
9 Back Panel, Right
10 Compressor
ALC 25C
ALC 28C
A5LC 25C/28C
Downloaded from AC-Manual.com Manuals
Part No No Descriptions
R50014073884
R50024070959
R50024079238
R01014070948
R03039023391
R03039024538
R03019023393
R50014073890
R50054072863
R50059023336
R50059022577
R50059023334
R50059024820
R01014070950
R04019019032
R04019012828
R04019020449
152
11 Front Panel, Left
12 Service Panel
13 Terminal Cover Panel
14 Assy. Control Panel
A5LC/ALC 25C
ALC 28C
A5LC 28C
15 Top Panel
16 Assy. Front Grille
17 Plastic Handle, Side
18 Assy. Valve Cover
19 Assy. Cap Tube
ALC 25C
A5LC 25C
A5LC 28C
20 Partition
21 Plastic Handle, Front
Part No
R01014070947
R01014070949
R01014070838
R50044073902
R50044080172
R50044080648
R01014070596
R50124072880
R12014057948
R50124073905
R50024073895
R50024078311
R50024079593
R01014070951
R12014070955
