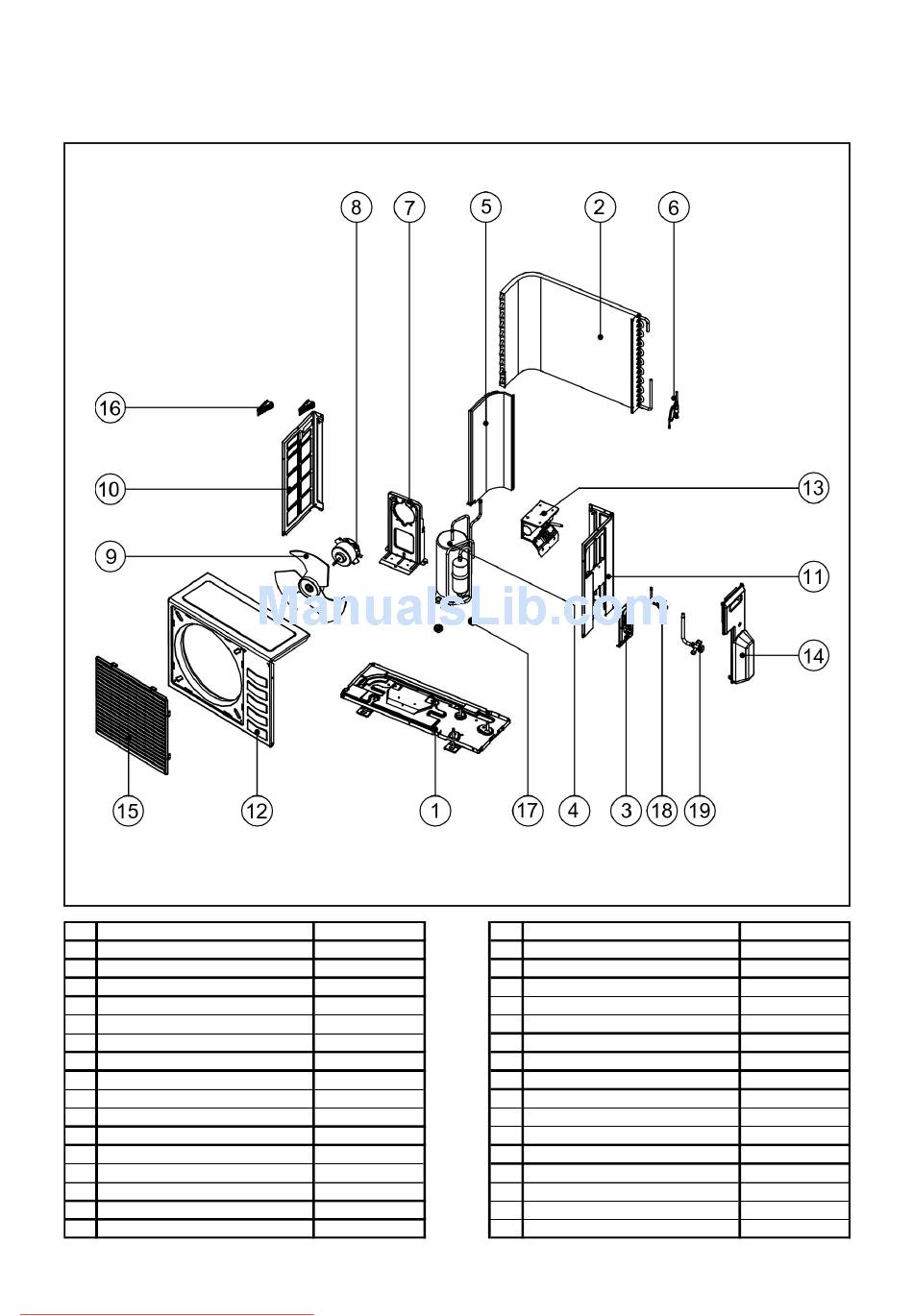

Model: A5LC 10C / 15C
No Descriptions
1
Assy., Base Pan
2
Assy., Condenser Coil
3
Valve Bracket
4
Compressor
A5LC 10C
A5LC 15C
5
Assy., Partition
6
Assy., Cap Tube
A5LC 10C
A5LC 15C
7
Bracket, Fan Motor
8
Fan Motor
A5LC 10C
A5LC 15C
9
Fan Blade
10 Left Panel
Downloaded from AC-Manual.com Manuals
Part No
No Descriptions
R50014051158
R50024064721
R01014051164
R04019019590
R04019019594
R50064055063
R50024056101
R50024054807
R01014051162
R03039016104
R03039015323
R03019015339
R01014051166
150
11 Right Panel
12 Assy., Front Panel
13 Assy. Control Panel
A5LC 10C
A5LC 15C
14 Assy., Valve Cover
15 Assy., Front Grille
16 Plastic, Handle
17 Rubber Grommet
A5LC 10C
A5LC 15C
18 Assy., Flare Vlave 2 Ways 1/4"
19 Assy., Flare Valve 3 Ways 3/8"
A5LC 10C
Assy., Flare Valve 3 Ways 1/2"
A5LC 15C
Part No
R01014051167
R01014051171
R50044058195
R50044057994
R50124051173
R50124056700
R12014057948
R11054000272
R11054000271
R50059019453
R50059019454
R50054019452
