Summary of Contents for Blizzard Lighting ToughPAR Satellight
-

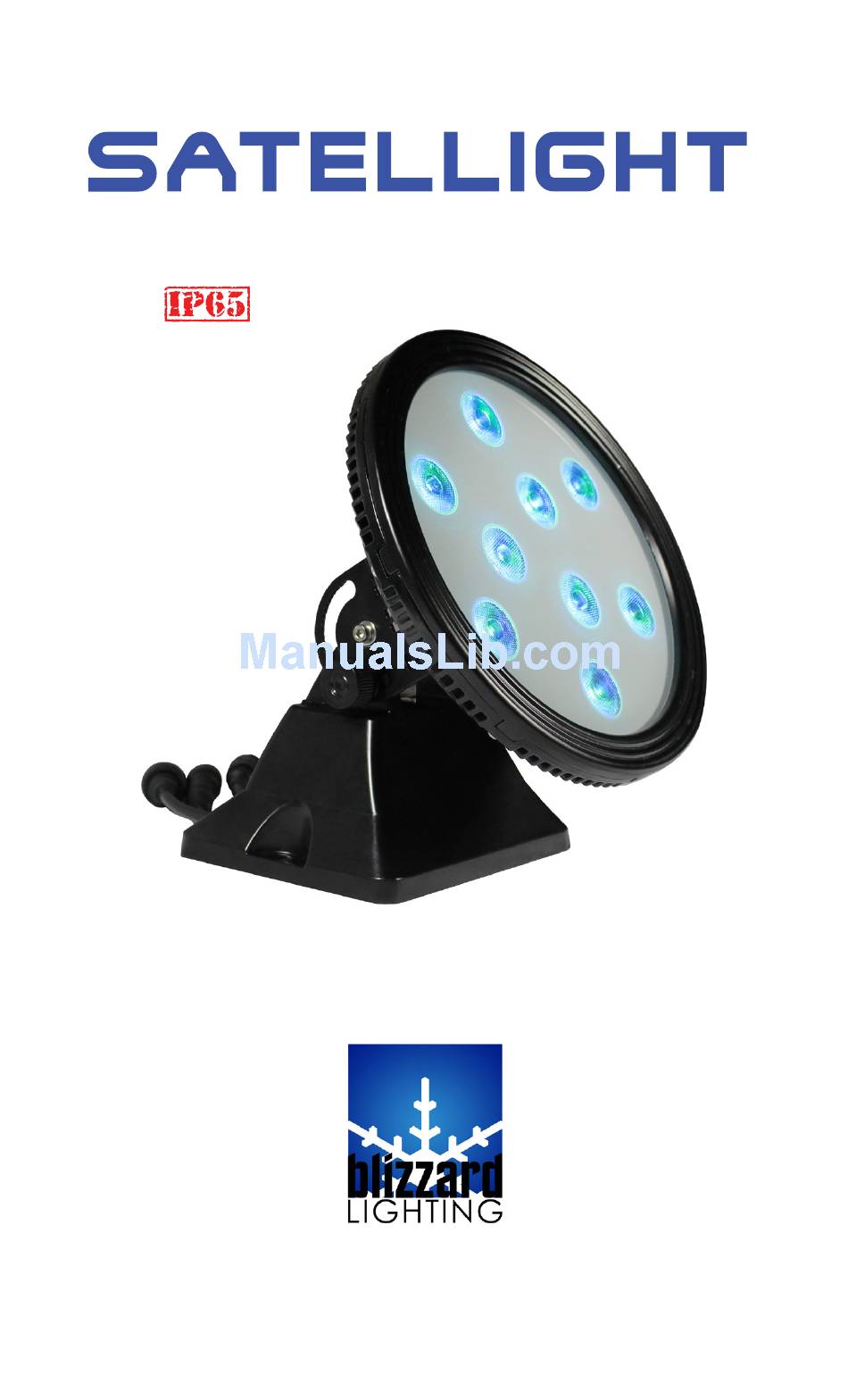

Page 1: Toughpar™ Satellight Led Wash Fixture
OUGH SUITABLE FOR OUTDOOR USE Blizzard Lighting, LLC www.blizzardlighting.com Waukesha, WI USA Copyright (c) 2014... -
Page 2: Table Of Contents
Built-in Programs DMX Channel Values In-Depth Troubleshooting Dimensional Diagram 5. Appendix A Quick DMX Lesson Keeping Your ToughPar™ Satellight As Good As New Returns (Gasp!) Shipping Issues Tech Specs Page 2 ToughPar Satellight Manual Rev. A © 2014 Blizzard Lighting, LLC... -
Page 3: Getting Started
Blizzard Lighting™ assumes no responsibility or liability for any errors or omissions that may appear in this user manual. Blizzard Lighting™ reserves the right to update the existing document or to create a new document to correct any errors or omissions at any time. You can download the latest version of this document from www.blizzardlighting.com. -
Page 4: Safety Instructions (Don't Stick Your Hand In The Toaster!)
• Avoid direct eye exposure to the light source while it is on. Caution! There are no user serviceable parts inside the unit. Do not open the housing or attempt any repairs yourself. In the unlikely event your unit may require service, please contact Blizzard Lighting at sup- port@blizzardlighting.com. Page 4 ToughPar Satellight Manual Rev. -
Page 5: Meet The Toughpar™ Satellight
DMX Quick Reference: 5-Channel Mode Channel What it does... Red Intensity (0% <--> 100%) Green Intensity (0% <--> 100%) Blue Intensity (0% <--> 100%) White Intensity (0% <--> 100%) 32-bit Dimmer Page 5 ToughPar Satellight Manual Rev. A © 2014 Blizzard Lighting, LLC... -
Page 6: The Toughpar™ Satellight Pin-Up Picture
Lens Cover 4-in-1 LEDs Fixture Head LED Display Secure Grip Menu Buttons Locking Knobs IP65-Rated Cast Aluminum Enclosure AC Power Out AC Power In DMX Out DMX In Page 6 ToughPar Satellight Manual Rev. A © 2014 Blizzard Lighting, LLC... -
Page 7: Setup
The fuse is field replaceable, however it is an advanced procedure suited to qualified individuals. Should your ToughPar™ Satellight fuse require replace- ment, please contact Blizzard Lighting for instructions, or to return your unit for service. Connecting A Bunch of ToughPar™ Satellight Fixtures... -
Page 8: Cable Connectors
Step 3: Connect other fixtures in the chain from output to input as above. Place a DMX terminator on the output of the final fixture to ensure best communication. Page 8 ToughPar Satellight Manual Rev. A © 2014 Blizzard Lighting, LLC... -
Page 9: Fixture Linking (Master/Slave Mode)
• Safety cables MUST ALWAYS be used. • Never mount in places where the fixture will be exposed to rain, high humidity, extreme temperature changes or restricted ventilation. Page 9 ToughPar Satellight Manual Rev. A © 2014 Blizzard Lighting, LLC... -
Page 10: Operating Adjustments
3 digits currently on the LED display). If you do not press any key for 30 seconds, the state will be automatically saved and will stop flashing. Page 10 ToughPar Satellight Manual Rev. A © 2014 Blizzard Lighting, LLC... -
Page 11: Control Panel Menu Structure
Strobe intensity from 0-9 (slow <--> fast) P5 - P50 - P59 Color jump, speed 0-9 (slow <--> fast) P6 - P60 - P69 Color fade, speed 0-9 (slow <--> fast) Page 11 ToughPar Satellight Manual Rev. A © 2014 Blizzard Lighting, LLC... -
Page 12: Adjust The Starting Dmx Address
2.) The right digit will be flashing. Use the “B” button to switch between the choices of “5” or “9”. Dimming Mode The ToughPar Satellight features ultra smooth flicker-free 32-bit dimming with 5 user-selectable dimming curves. To manually set the fixture to use one of these 5 dimming curve choices, simply do the following: 1.) Push the “A”... - Page 13 1.) Push the “A” button until the LED display reads “P6-”. 2.) The right digit will be flashing. Use the “B” button to choose the speed from 0-9 (slow <--> fast). Page 13 ToughPar Satellight Manual Rev. A © 2014 Blizzard Lighting, LLC...
-
Page 14: Dmx Channel Values In-Depth
106 <--> 155 Mode 2 = 32-bit, 0-50% intensity range 156 <--> 205 Mode 3 = 32-bit, 0-75% intensity range 206 <--> 255 Mode 4 = 32-bit, full intensity dimming Page 14 ToughPar Satellight Manual Rev. A © 2014 Blizzard Lighting, LLC... -
Page 15: Troubleshooting
Fixture Moving Verify proper mode of operation. Is the fixture in “Auto” On Its Own mode? If your problem isn’t listed, or if problems persist, please contact support: support@blizzardlighting.com. Page 15 ToughPar Satellight Manual Rev. A © 2014 Blizzard Lighting, LLC... -
Page 16: Dimensional Diagram
Dimensional Diagram 9.06 in 230 mm 180° Tilt 8.46 in 214.88 mm Page 16 ToughPar Satellight Manual Rev. A © 2014 Blizzard Lighting, LLC... -
Page 17: Appendix
It is flexible, robust, and scalable, and its ability to control everything from dimmer packs to moving lights to foggers to lasers makes it an indispensable tool for any lighting designer or lighting performer. Page 17 ToughPar Satellight Manual Rev. A © 2014 Blizzard Lighting, LLC... -
Page 18: Keeping Your Toughpar™ Satellight As Good As New
Damage incurred in shipping is the responsibility of the shipper, and must be reported to the carrier immediately upon receipt of the items. Claims must be made within seven (7) days of receipt. Page 18 ToughPar Satellight Manual Rev. A © 2014 Blizzard Lighting, LLC... -
Page 19: Tech Specs
Other Information Rice is really great if you want to eat 2000 of something. 2-year limited warranty, does not cover mal- Warranty function caused by damage to LED’s. Page 19 ToughPar Satellight Manual Rev. A © 2014 Blizzard Lighting, LLC... - Page 20 Enjoy your product! Our sincerest thanks for your purchase! --The team @ Blizzard Lighting...
