- Page 1 Blizzard Lighting, LLC www.blizzardlighting.com Waukesha, WI USA Copyright (c) 2013...
-
Page 2: Table Of Contents
Static Color Display Automatic Programs Run Mode Troubleshooting 5. Appendix A Quick DMX Lesson Keeping Your ProPar™ V12 As Good As New Returns (Gasp!) Shipping Issues Tech Specs Page 2 ProPar™ V12 Manual Rev. A © 2013 Blizzard Lighting, LLC... -
Page 3: Propar™ V12
Blizzard Lighting™ assumes no responsibility or liability for any errors or omissions that may appear in this user manual. Blizzard Lighting™ reserves the right to update the existing document or to create a new document to correct any errors or omissions at any time. -
Page 4: Safety Instructions (Don't Stick Your Hand In The Toaster!)
• Never disconnect the power cord by pulling or tugging on the cord. • Avoid direct eye exposure to the light source while it is on. Caution! There are no user serviceable parts inside the unit. Do not open the housing or attempt any repairs yourself. In the unlikely event your unit may require service, please contact Blizzard Lighting at support@blizzardlighting.com. Page 4 ProPar™ V12 Manual Rev. A © 2013 Blizzard Lighting, LLC... -
Page 5: Meet The Propar™ V12
• Beam Angle: 25°, Field Angle: 29° • Light Source: 12* 15-watt, 5-in-1 RGBWA LEDs • Flicker-free constant-current LED driver Luminous Intensity: Green Blue Amber White Lux/Meter 1 Meter 18,750 2,730 5,480 4,530 1,600 6,410 2 Meter 5,690 1,630 1,470 1,930 CONTROL: • USITT DMX-512 (3/4/5/6/7/ 12-Channels) • 3-pin Input/Output • LED 4-button control panel Page 5 ProPar™ V12 Manual Rev. A © 2013 Blizzard Lighting, LLC... -
Page 6: The Propar™ V12 Pin-Up Picture

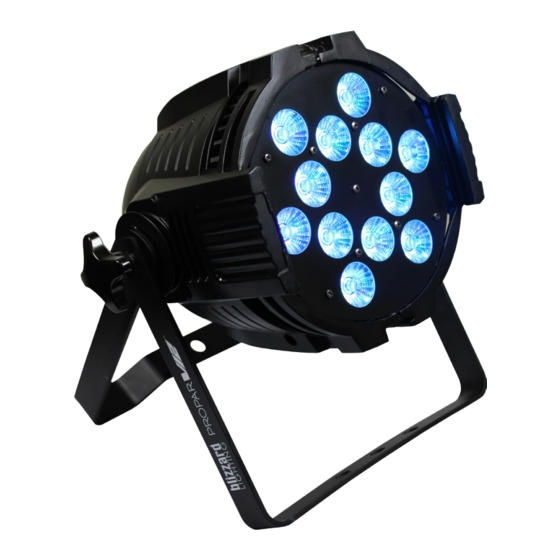

Figure 1: PROPAR™ V12 Pin-Up Picture Dual Mounting 12x 5-in-1 RGBAW LED’s Yokes & Locking Knobs Die-Cast Aluminum Housing Figure 2: The Rear Connections DMX In DMX Out AC Power In Control Panel Page 6 ProPar™ V12 Manual Rev. A © 2013 Blizzard Lighting, LLC... -
Page 7: Setup
Under normal operating conditions, the fuse should not require replacement. The fuse is field replaceable, however it is an advanced procedure suited to qualified individuals. Should your ProPar™ V12 fuse require replacement, please contact Blizzard Lighting for instructions, or to return your unit for service. Connecting A Bunch of ProPar™ V12 Fixtures You will need a serial data link to run light shows using a DMX-512 controller or to run shows on two or more fixtures set to sync in master/slave operating mode. -
Page 8: Cable Connectors
We recommend connecting the fixtures in terms of their proximity to the controller, rather than connecting the lowest fixture number first, and so on. Step 3: Connect other fixtures in the chain from output to input as above. Place a DMX terminator on the output of the final fixture to ensure best communication. Page 8 ProPar™ V12 Manual Rev. A © 2013 Blizzard Lighting, LLC... -
Page 9: Fixture Linking (Master/Slave Mode)
Do not mount to surfaces with unknown strength, and ensure properly “rated” rigging is used when mounting fixtures overhead. Adjust the angle of the fixture by loosening both knobs and tilting the fixture. After finding the desired position, retighten both knobs. • When selecting installation location, take into consideration lamp replacement access (if applicable) and routine maintenance. • Safety cables MUST ALWAYS be used. • Never mount in places where the fixture will be exposed to rain, high humidity, extreme temperature changes or restricted ventilation. Page 9 ProPar™ V12 Manual Rev. A © 2013 Blizzard Lighting, LLC... -
Page 10: Operating Adjustments
Press the <ENTER> button to select the menu function currently displayed, or to enable a menu option. To return to the previous option or menu without changing the value, press the <MENU> button. Page 10 ProPar™ V12 Manual Rev. A © 2013 Blizzard Lighting, LLC... -
Page 11: Control Panel Menu Structure
RGBAW static color settings AUTO AT.01-AT.10 Factory program playback PR.01-PR.10 User program playback SOUd MOd1 Sound Active Mode 1 (Color Jump) MOd2 Sound Active Mode 2 (Color Flash) Sets the fixture to master/DMX mode SLAV Sets the fixture as slave Page 11 ProPar™ V12 Manual Rev. A © 2013 Blizzard Lighting, LLC... -
Page 12: Dmx Mode
R 100% / G 100% / B 100% / W 100% Color temperature (also adjustable through the [CAL1] menu): 201~205: 3200K 206~210: 3400K 211~215: 4200K 216~220: 4900K 201<-->255 221~225: 5600K 226~230: 5900K 231~235: 6500K 236~240: 7200K 241~245: 8000K 246~250: 8500K 251~255: 10000K Page 12 ProPar™ V12 Manual Rev. A © 2013 Blizzard Lighting, LLC... - Page 13 000 <--> 255 Green Intensity (0% <--> 100%) 000 <--> 255 Blue Intensity (0% <--> 100%) 000 <--> 255 Amber Intensity (0% <--> 100%) 000 <--> 255 White Intensity (0% <--> 100%) Page 13 ProPar™ V12 Manual Rev. A © 2013 Blizzard Lighting, LLC...
-
Page 14: Id Address Selection
Allows the user to set a temperature protection cutoff (default is 85 degrees Celsius), and displays the current fixture temperature. • CURR - Displays current temperature. • • TOP - Sets the max temperature before shutoff (0-150, 85=default). Page 14 ProPar™ V12 Manual Rev. A © 2013 Blizzard Lighting, LLC... -
Page 15: Edit Programs & Scenes
SLAVE mode, then on the master unit, enter the lock password (UP/DOWN/UP/DOWN/ENTER), then press enter to confirm. The fixtures will display yellow while uploading is in progress, and will turn green once uploading is complete. • REST Factory reset. Use this to reset the Puck Pro Zoom fixture back to its original factory installed settings. • Id Enables/disables ID address operation. Page 15 ProPar™ V12 Manual Rev. A © 2013 Blizzard Lighting, LLC... -
Page 16: Color Temperature-Based White Balance
R/G/B/W value you want to edit. Hit <ENTER>. Use the <UP> and <DOWN> buttons to change the desired value. Then push the <MENU> button to confirm your choice and return to the previous menu option. Each color has the adjustable values of 000 <--> 255 (0% <--> 100%). Page 16 ProPar™ V12 Manual Rev. A © 2013 Blizzard Lighting, LLC... -
Page 17: Menu Key Protection
- Built-In Programs • PR.01-PR.10 - User-Defined Programs Run Mode This is where you set the fixture to either DMX/Master or Slave Mode • DMX - Set the fixture as the master • SLAV - Set the fixture as a slave Page 17 ProPar™ V12 Manual Rev. A © 2013 Blizzard Lighting, LLC... -
Page 18: Troubleshooting
Install a Terminator. ratically Check all cables for defects. Reset fixture(s). Fixture Moving Verify proper mode of operation. Is the fixture in “Auto” On Its Own mode? If your problem isn’t listed, or if problems persist, please contact support: support@blizzardlighting.com. Page 18 ProPar™ V12 Manual Rev. A © 2013 Blizzard Lighting, LLC... -
Page 19: Appendix
In summary, since its design and evolution in the 1980’s DMX has become the standard for lighting control. It is flexible, robust, and scalable, and its ability to control everything from dimmer packs to moving lights to foggers to lasers makes it an indispensable tool for any lighting designer or lighting performer. Page 19 ProPar™ V12 Manual Rev. A © 2013 Blizzard Lighting, LLC... -
Page 20: Keeping Your Propar™ V12 As Good As New
Damage incurred in shipping is the responsibility of the shipper, and must be reported to the carrier immediately upon receipt of the items. Claims must be made within seven (7) days of receipt. Page 20 ProPar™ V12 Manual Rev. A © 2013 Blizzard Lighting, LLC... -
Page 21: Tech Specs
Other Operating Modes Standalone, Master/Slave, Color Preset Other Information Why doesn’t Tarzan have a beard? 2-year limited warranty, does not cover mal- Warranty function caused by damage to LED’s. Page 21 ProPar™ V12 Manual Rev. A © 2013 Blizzard Lighting, LLC... - Page 22 This page intentionally left blank. Page 22 ProPar™ V12 Manual Rev. A © 2013 Blizzard Lighting, LLC...
