- Page 1 Blizzard Lighting, LLC www.blizzardlighting.com Waukesha, WI USA Copyright (c) 2014...
-
Page 2: Table Of Contents
Static Colors + Color Jumping Manual Color Adjustment DMX Channel Values In-Depth Troubleshooting 5. Appendix A Quick DMX Lesson Keeping Your Tour QT Skywire™ As Good As New Returns (Gasp!) Shipping Issues Tech Specs Dimensional Drawings Page 2 Tour QT Skywire™ User Manual Rev. A... -
Page 3: Tour Qt Skywire
Congratulations on purchasing the cute and tiny, yet powerful and feature packed Tour QT Skywire™ LED par fixture! All your friends are SO going to be like, WOW, and totally jealous! Now that you’ve got your hands on a Tour QT Skywire™ (or hopefully, Q-Tees!), you should carefully unpack the box and check the contents to ensure that all parts are present and in good condition. -
Page 4: Safety Instructions (Don't Stick Your Hand In The Toaster!)
Caution! There are no user serviceable parts inside the unit. Do not open the housing or attempt any repairs yourself. In the unlikely event your unit may require service, please contact Blizzard Lighting by us- ing our support ticket system at www.blizzardlighting.com/tickets. -
Page 5: Meet The Tour Qt Skywire
2. MEET THE TOUR QT SKYWIRE™ LED FIXTURE CONTROL FEATURES • Color mixing via 7x 15-watt 6-in-1 RGBAW+UV LEDs • 2.4Ghz built-in wireless DMX receiver • 512 auto-assigning frequencies in 7 groups • Variable electronic dimming & strobe • 25 degree beam angle •... -
Page 6: The Tour Qt Skywire™ Pin-Up Picture

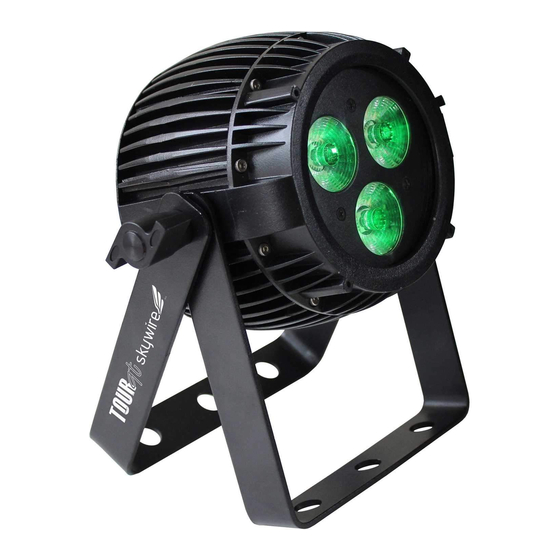

Figure 1: The Tour QT Skywire™ Pin-Up Picture Heavy-Duty Cast Aluminum Enclosure 15w 6-in-1 RGBAW+UV LEDs Secure Grip Locking Knobs Dual Adjustable Mounting Brackets Figure 2: The Rear Connections Antenna DMX In DMX Out AC Power Out AC Power In... -
Page 7: Setup
Should your Tour QT Skywire™ fuse require replacement, please contact Blizzard Lighting for instructions, or to return your unit for service. Connecting A Bunch of Tour QT Skywire™ Fixtures... -
Page 8: Cable Connectors
Step 3: Connect other fixtures in the chain from output to input as above. Place a DMX terminator on the output of the final fixture to ensure best communication. Page 8 Tour QT Skywire™ User Manual Rev. A Copyright © 2014 Blizzard Lighting, LLC... -
Page 9: Fixture Linking (Master/Slave Mode)
• Safety cables MUST ALWAYS be used. • Never mount in places where the fixture will be exposed to rain, high humidity, extreme temperature changes or restricted ventilation. Page 9 Tour QT Skywire™ User Manual Rev. A Copyright © 2014 Blizzard Lighting, LLC... -
Page 10: Using Skywire™ Wireless Dmx
(such as the Kontrol 5 Skywire™) to act as a transmitter for your lights. The 7 DMX receiving frequencies in the Tour QT Skywire™ are designed to match up perfectly with the 7 frequencies of all Blizzard wireless DMX products. -
Page 11: Operating Adjustments
<ENTER> button to select the menu function currently displayed, or to enable a menu option. To return to the previous option or menu without changing the value, press the <MENU> button. Page 11 Tour QT Skywire™ User Manual Rev. A Copyright © 2014 Blizzard Lighting, LLC... -
Page 12: Control Panel Menu Structure
17 Blue+UV 38 Blue+Amber+UV 59 Red+Green+Amber+White+UV 18 Amber+White 39 Blue+White+UV 60 Red+Blue+Amber+White+UV 19 Amber+UV 40 Amber+White+UV 61 Green+Blue+Amber+White+UV 20 White+UV 41 Red+Green+Blue+Amber 62 All Colors: R+G+B+A+W+UV Page 12 Tour QT Skywire™ User Manual Rev. A Copyright © 2014 Blizzard Lighting, LLC... -
Page 13: Dmx Mode
<ENTER> button, then use the <UP/DOWN> buttons to select from SP00 (fastest) to SP15 (slowest), and press the <ENTER> button to confirm your choice. Page 13 Tour QT Skywire™ User Manual Rev. A Copyright © 2014 Blizzard Lighting, LLC... -
Page 14: Manual Color Adjustment
Mode 2 = 32-bit, 0-50% intensity range 156 <--> 205 Mode 3 = 32-bit, 0-75% intensity range 206 <--> 255 Mode 4 = 32-bit, full intensity dimming Page 14 Tour QT Skywire™ User Manual Rev. A Copyright © 2014 Blizzard Lighting, LLC... -
Page 15: Troubleshooting
Use Only DMX Cables and/or check cables for defects Install a Terminator. Reset fixture(s). If your problem persists or isn’t listed, please open a support ticket at: www.blizzardlighting.com/tickets. Page 15 Tour QT Skywire™ User Manual Rev. A Copyright © 2014 Blizzard Lighting, LLC... -
Page 16: Appendix
It is flexible, robust, and scalable, and its ability to control everything from dimmer packs to moving lights to foggers to lasers makes it an indispensable tool for any lighting designer or lighting performer. Page 16 Tour QT Skywire™ User Manual Rev. A Copyright © 2014 Blizzard Lighting, LLC... -
Page 17: Keeping Your Tour Qt Skywire™ As Good As New
Keeping Your Tour QT Skywire™ As Good As New The fixture you’ve received is a rugged, tough piece of pro lighting equip- ment, and as long as you take care of it, it will take care of you. That said, like anything, you’ll need to take care of it if you want it to operate as designed. -
Page 18: Tech Specs
Neutrik AG, Neutrik USA and their related entities, however they are not manufactured by, affiliated with or endorsed by Neutrik AG, Neutrik USA, or any related entity. Neutrik® and power- CON® are registered trademarks of Neutrik AG. Page 18 Tour QT Skywire™ User Manual Rev. A Copyright © 2014 Blizzard Lighting, LLC... -
Page 19: Dimensional Drawings
Dimensional Drawings 5.3 inches (134.9 mm) 3.4 inches (86.40 mm) 7.1 inches (181 mm) 5 inches (127.1 mm) 4 inches (100.1 mm) Page 19 Tour QT Skywire™ User Manual Rev. A Copyright © 2014 Blizzard Lighting, LLC... - Page 20 Enjoy your product! Our sincerest thanks for your purchase! --The team @ Blizzard Lighting...
