27” (68.6 cm) and 36” (91.4 cm) architect series outdoor grills

Advertisement

Table of Contents

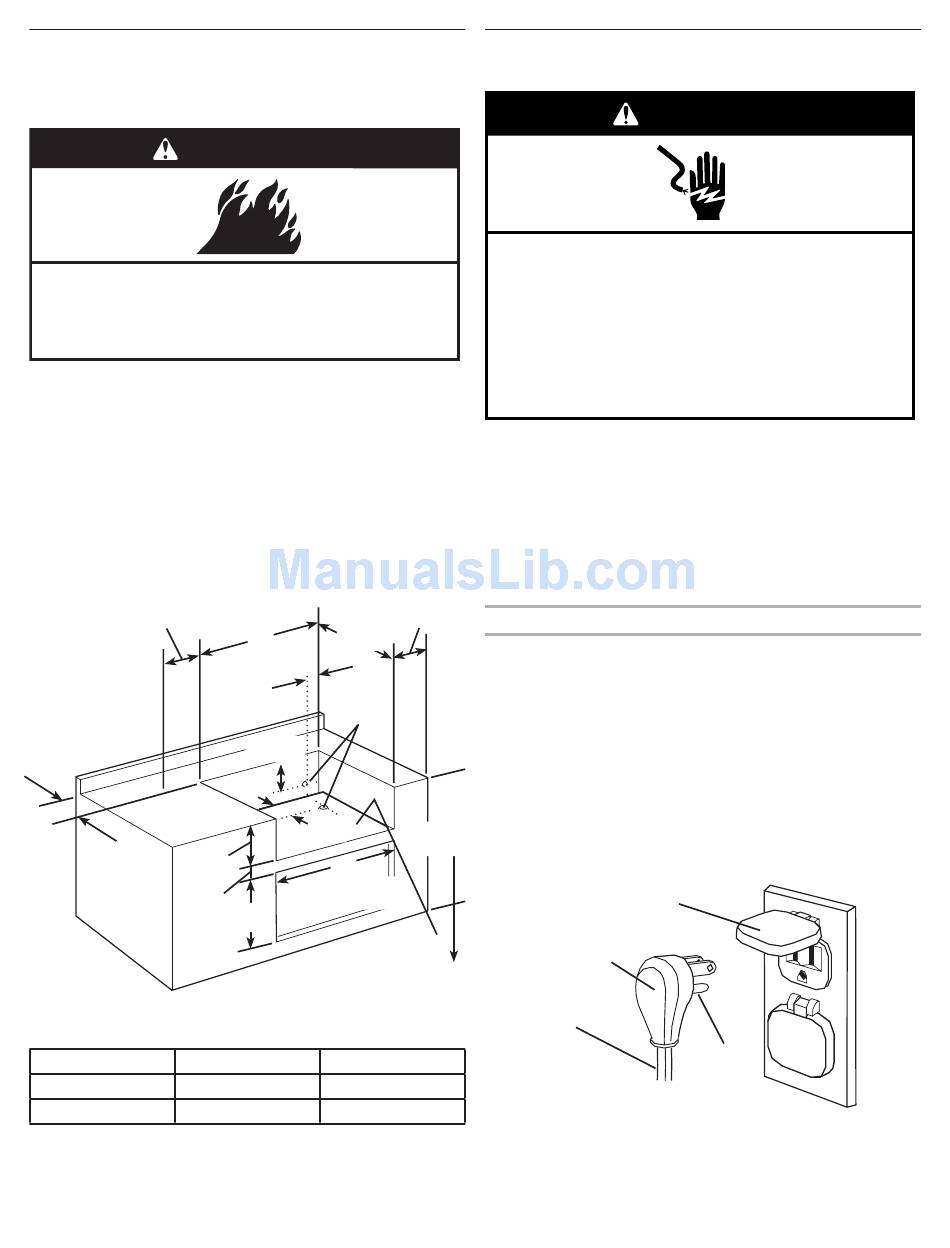

Installation Dimensions for Built-in
Outdoor Grill with Insulation Jacket
(combustible enclosure)
WARNING
Do not install this grill on or near combustible materials.
Doing so can result in death or fire.
Enclosure and clearance dimensions that are shown must be
used. Given dimensions provide required clearances.
The installation of this grill must conform with the current
standards CSA-Z21.58a-2005, or with local codes.
For installations in a combustible enclosure, the insulation jacket
provided with the grill must be used. A ledge on each side or a full
deck beneath the jacket must support the insulation jacket.
Copies of the standards listed may be obtained from:
CSA International
8501 East Pleasant Valley Rd.
Cleveland, Ohio 44131-5575
"
12
(30.5 cm)
minimum to
any accessory
"
2
(5.1 cm)
11-5/8
minimum to
(29.5 cm)
open hood
(2.9 cm)
Combustible enclosure installations
Grill size
27" (68.6 cm)
33" (83.8 cm)
36" (91.4 cm)
42" (106.7 cm)
6
Fire Hazard
"
24
A
(61.0 cm)
"
5
Gas line
(12.7 cm)
locations at
rear of grill
"
7-3/8
(18.7 cm)
"
3
(7.6 cm)
"
B
optional custom
"
1-1/8
access doors
"
19
(48.3 cm)
A
25-1/4" (64.1 cm)
34-1/4" (87.0 cm)
Plug into a grounded 3 prong outlet.
Do not remove ground prong.
Do not use an adapter.
Do not use an extension cord.
Failure to follow these instructions can result in death,
fire, or electrical shock.
If codes permit and a separate ground wire is used, it is
recommended that a qualifi ed electrician determine that the
ground path is adequate.
Check with a qualifi ed electrician if you are not sure whether the
grill is properly grounded.
Do not ground to a gas pipe.
A 120-volt, 60-Hz, AC-only, 15-ampere, fused electrical supply is
required.
"
6
(15.2 cm)
min. clearance
for rotisserie
Recommended ground method
A grounded 3-prong outdoor outlet grounded in accordance with
the National Electrical Code ANSI/NFPA 70 or Canadian Electrical
Code (C22.1) — and local codes and ordinances.
Copies of the standards listed above may be obtained from:
CSA International
8501 East Pleasant Valley Rd.
Cleveland, Ohio 44131-5575
National Fire Protection Association
One Batterymarch Park
"
Quincy, Massachusetts 02269
35-1/2
(90.2 cm)
3-prong polarized ground-
type outdoor outlet
support
3-prong ground
surface
power supply
cord
B

Electrical Requirements

Rotisserrie and Grill Light
WARNING
Electrical Shock Hazard
plug
ground
prong
