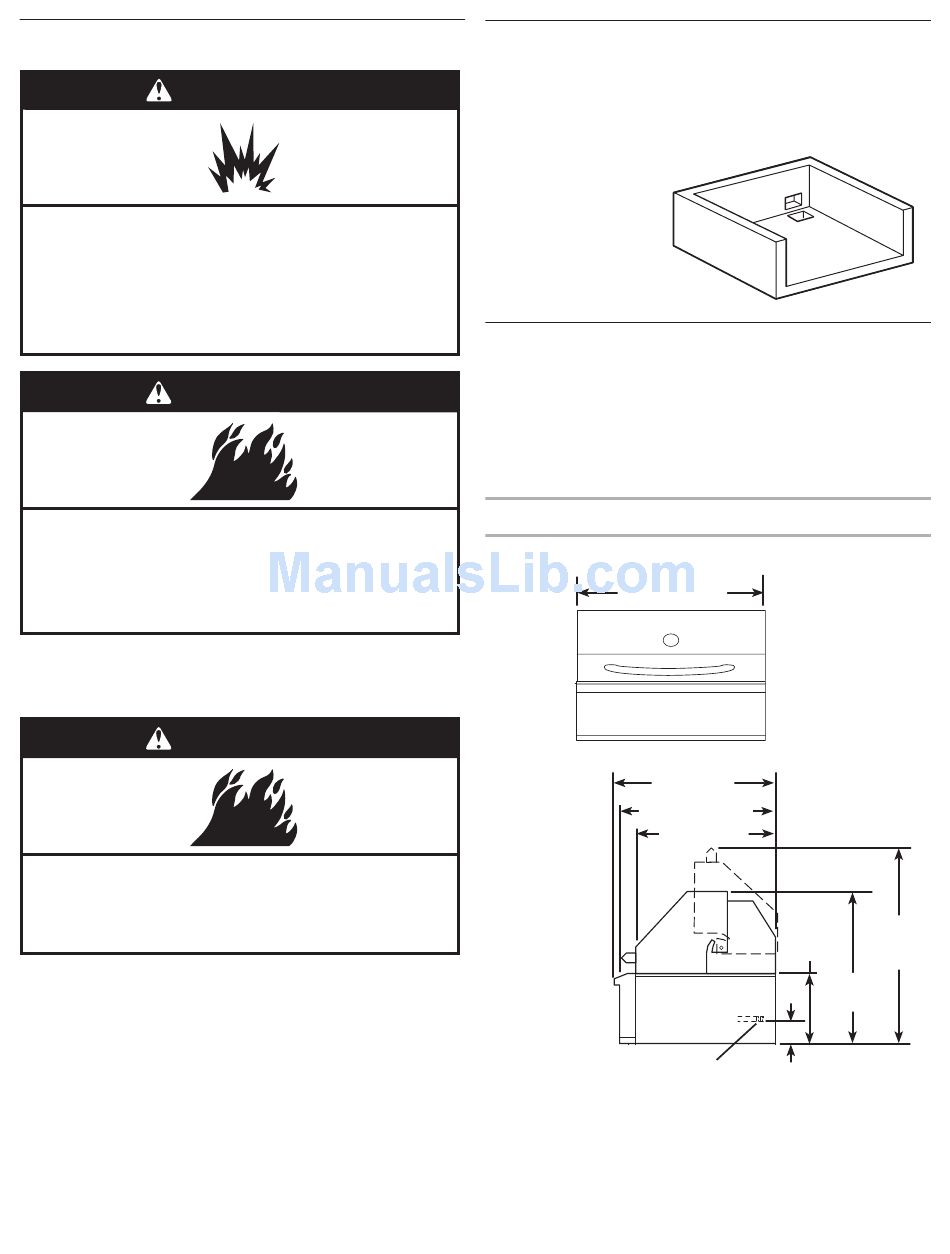

Location Requirements

WARNING
Explosion Hazard
Do not store fuel tank in a garage or indoors.
Do not store grill with fuel tank in a garage or indoors.
Failure to follow these instructions can result in death,
explosion, or fire.
WARNING
Do not use grill near combustible materials.
Do not store combustible materials near grill.
Doing so can result in death or fire.
Select a location that provides minimum exposure to wind and
traffi c paths. The location should be away from strong draft areas.
Do not obstruct fl ow of combustion and ventilation air.
WARNING
Do not install this grill on or near combustible materials.
Doing so can result in death or fire.
Fire Hazard
Fire Hazard

Rotisserie

If your model is equipped with a rotisserie, 6" (15.2 cm) minimum
clearance on each end is needed for the motor and skewer.
A grounded, 3-prong outlet located to the left of the grill is
required. (See "Electrical Requirements" section.)
Insulated Jacket
Built-in outdoor grill for
use in a combustible
enclosure, also includes
an insulated jacket.

Product Dimensions

Clearance to combustible construction for built-in (combustible
construction) outdoor grills:
• A minimum of 12" (30.5 cm) must be maintained between the
outdoor grill hood, sides and back and any combustible
construction.
Built-in models
27" (68.6 cm), or
36" (91.4 cm)
26" (60 cm)
25-1/2" (64.8 cm)
23" (58.4 cm)
11-1/8"
(28.3 cm)
24-5/8"
(62.5 cm)
1/2"
3-5/8"
male NPT
(9.2 cm)
34"
(86.4 cm)
5
