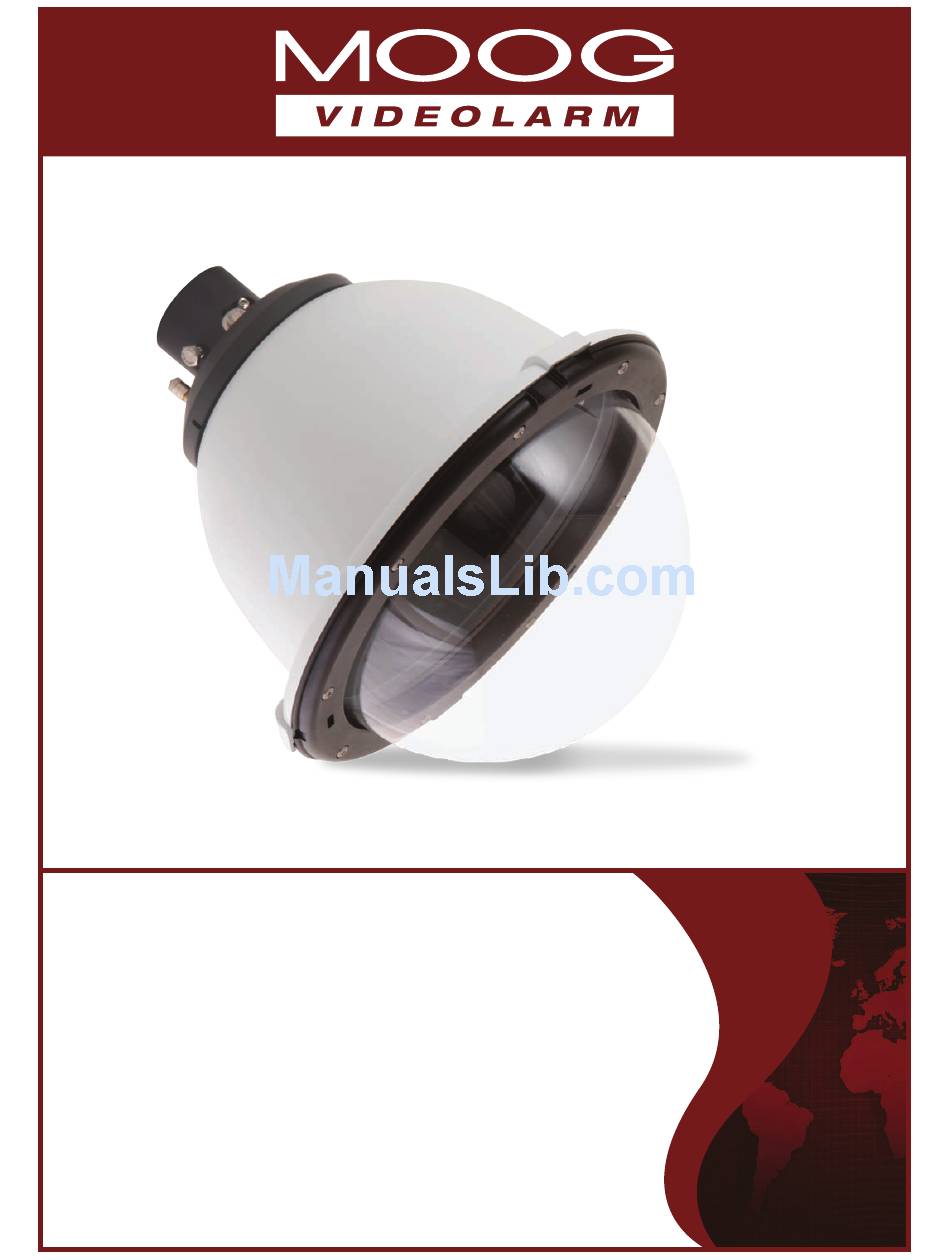

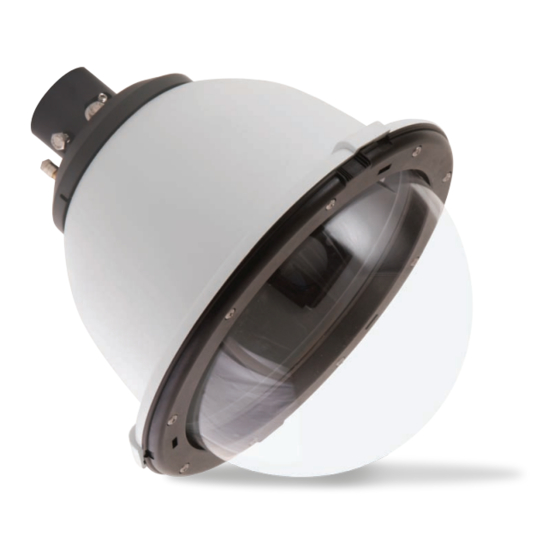

P F D W 7 5 C 2 N
Outdoor Pressurized Network FusionDome™
Installation and Operation Instructions for the following models:
PFDW75C2N
IP Network Ready 7" Outdoor pressurized dome housing with WM20G
gooseneck wall mount, with 24VAC input, heater/blower, for Network cameras,
120 to 24VAC, 96vA transformer, clear dome
PFDW75T2N
IP Network Ready 7" Outdoor pressurized dome housing with WM20G gooseneck
wall mount, with 24VAC input, heater/blower, for Network cameras, 120 to 24VAC,
96vA transformer, tinted dome
Before attempting to connect or operate this product, please read these instructions completely.
To be used with the 81-IN5481 Instruction Manual.
www.videolarm.com
81-IN5353
01-13-2012
Advertisement
Table of Contents
Related Manuals for Moog Videolarm PFDW75C2N
Summary of Contents for Moog Videolarm PFDW75C2N
- Page 1 © 2011, Moog Videolarm, Inc. All Rights Reserved P F D W 7 5 C 2 N Outdoor Pressurized Network FusionDome™ www.videolarm.com Installation and Operation Instructions for the following models: PFDW75C2N IP Network Ready 7” Outdoor pressurized dome housing with WM20G gooseneck wall mount, with 24VAC input, heater/blower, for Network cameras, 120 to 24VAC, 96vA transformer, clear dome PFDW75T2N IP Network Ready 7” Outdoor pressurized dome housing with WM20G gooseneck wall mount, with 24VAC input, heater/blower, for Network cameras, 120 to 24VAC, 96vA transformer, tinted dome 81-IN5353 Before attempting to connect or operate this product, please read these instructions completely.
-
Page 2: Important Safeguards
IMPORTANT SAFEGUARDS SAFETY PRECAUTIONS Read these instructions. Keep these instructions. CAUTION Heed all warnings RISK OF ELECTRIC SHOCK DO NOT OPEN Follow all instructions. Do not use this apparatus near water. CAUTION: TO REDUCE THE RISK OF Clean only with damp cloth. ELECTRIC SHOCK, DO NOT REMOVE COVER ( OR BACK). -
Page 3: Terms And Conditions
If Purchaser believes that the Product is defective in material or workmanship, then written notice with an explanation of the claim shall be given promptly by Purchaser to Moog Videolarm. All claims for warranty service must be made within the warranty period. -
Page 4: Electrical Specifications
Electrical Specifications Contents of Box Power 24VAC PFDW75C2N Class 2 Only 24 VAC 3.3 Amps Total Power: 80 Watts Accessories: Heater: 50 Watts/Blower: 2 Watts Camera Power: 28 Watts Max Tools Required: .100” Flat Head Screwdriver English Phillips Head Screwdriver 7/16”... - Page 5 Wrap Teflon tape around the pipe threads Securely mount bracket to wall. Pull wiring to ensure a tight seal. through bracket and position grommet as shown. • Con seguridad soporte del montaje a emparedar. Tire del cableado • La cinta del Teflon del abrigo alrededor de la pipa rosca a través del soporte y del ojal de la posición según lo demostrado.
- Page 6 Loop the lanyard over the set screw to Make the appropriate wiring connections temporarily hold housing. from the dome to the gooseneck. • Coloque el acollador sobre el tornillo de presión para • Haga las conexiones apropiadas del cableado de la bóveda celebrar temporalmente la cubierta.
- Page 7 RJ45 24VAC POWER Camera Yellow Max 80 Watts Camera Green Heater/Blower Yellow 26 Watts Heater/Blower Green Alarm 1 Blue Alarm 2 Violet Alarm 3 Gray Common White Make the appropriate male and female connections. Indoor model does not include pre-run cables. •...
- Page 8 Undo the lanyard, pull housing up and twist Slide the grommet down over the coupling to prevent secure with the locking bolt and washers. water from entering and complete the assembly. • Resbale el ojal abajo sobre el acoplador para evitar que el agua •...
- Page 9 Air Chuck Fitting Hose Air Chuck Regulator Tank Valve Nitrogen Tank Place the air chuck on the tank valve and When pressurizing unit be sure to set the begin filling until pressure relief valve opens. guage or regulator from 10-20psi (.7-1.4bar). •...
-
Page 11: Product Registration/Warranty
Product Registration/Warranty Thank you for choosing Moog Videolarm. We value your patronage and are solely committed to providing you with the highest quality products available and superior customer service. Should a problem arise, rest assure that Moog Videolarm stands behind its products by offering impressive warranty plans: 3 Years on all Housings, Poles, Power Supplies, and Accessories and 5 Years on camera systems (SView, QView, Warriors), and InfraRed Illuminators. Register Your Products Online Take a few moments and validate your purchase via the Online Product Registration Form at www.videolarm.com/productregistration.jsp Register your recent Moog Videolarm purchases and benefit from the following: • Simple and Trouble-Free RMA process • Added into customer database to receive product updates / news • Eliminate the need to archive original purchase documents: Receipts, Purchase Orders, etc…...
