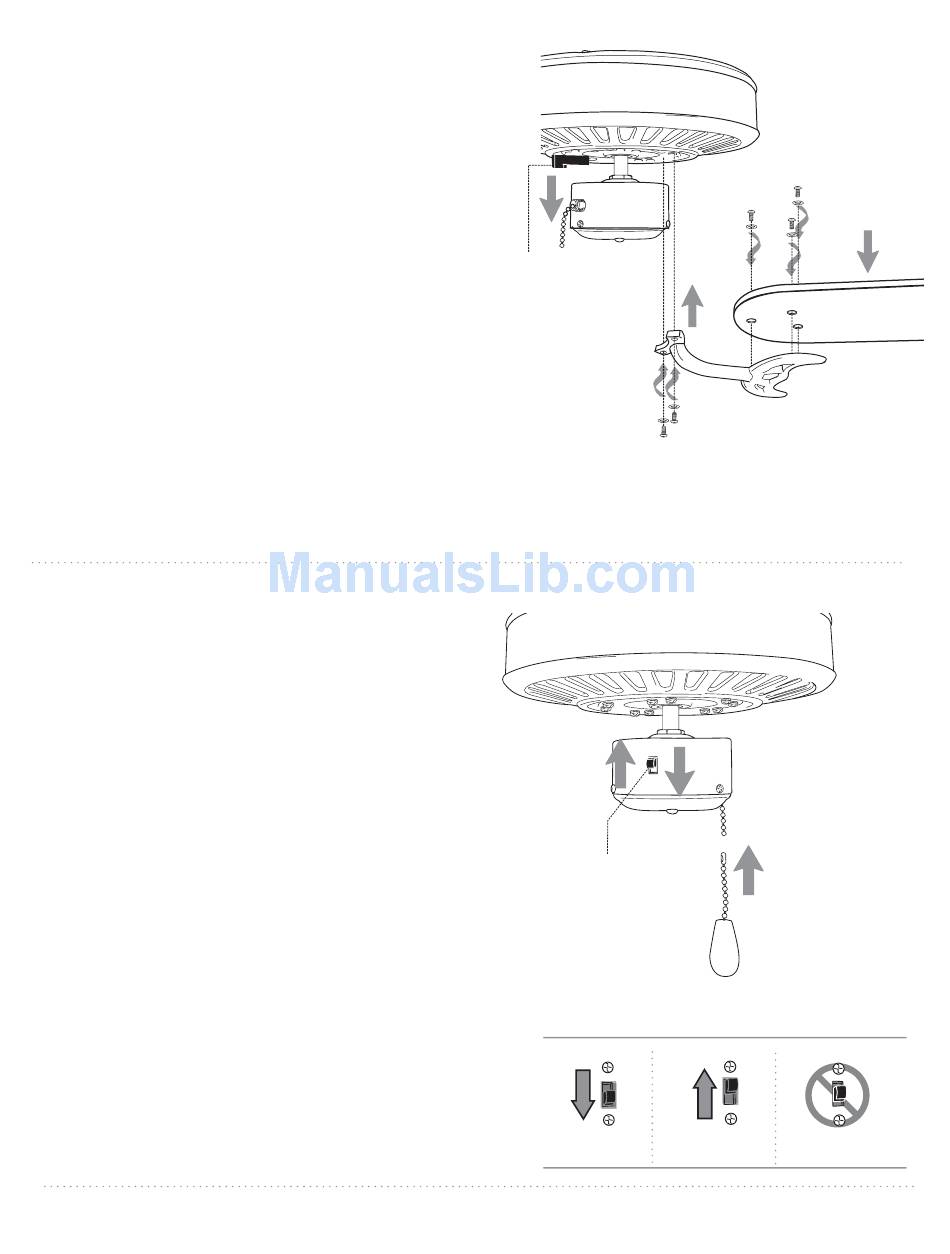

9. Blade Assembly.

Time Saver: Washers for blade screws can be set
on each blade screw prior to installing blades.
Locate 15 blade attachment screws and washers
in hardware pack. Hold blade arm up to blade
and align holes. Insert 3 blade attachment
screws (along with washers) with fingers first
and then tighten screws securely with a Phillips
screwdriver. Repeat for the remaining blades.
Remove blade arm screws and lock washers
from underside of motor. If plastic motor locks
are installed with blade arm screws, discard
plastic motor locks (save blade arm screws and
lock washers to secure blade arms). Align blade
arm holes with motor screw holes and attach
blade arm with lock washers and blade arm
screws. Before securing screws permanently,
repeat with remaining blade arms. Securely
tighten all screws.
Note: Tighten blade arm screws twice a year.

10. Testing Your Fan.

It is recommended that you test fan before
finalizing installation. Restore power from circuit
box and light switch (if applicable). Test fan
speeds with pull chain. (diagram 1) Start at the
OFF position (no blade movement). First pull will
set the fan to HI. Second pull will set the fan to
MEDIUM. Third pull will set the fan to LOW. Fourth
pull will again set the fan to the OFF setting. If fan
does not function, please refer to
"Troubleshooting" section to solve any issues
before contacting Customer Service.
Turn fan completely off before moving the reverse
switch. Set reverse switch to recirculate air
depending on the season:
- DOWN position in summer (diagram 2)
- UP position in winter (diagram 3)
A ceiling fan will allow you to raise your
thermostat setting in summer and lower your
thermostat setting in winter without feeling a
difference in your comfort.
Important: Reverse switch must be set either
completely UP or completely DOWN for fan to
function. If the reverse switch is set in the middle
position (diagram 4), fan will not operate.
Attach pull chain extension supplied or custom
pull chain extension (sold separately) to the end
of the pull chain.
plastic
motor
lock
lock washers
reverse
switch
diagram 1
diagram 2
