Federal regulations require ceiling fans
with light kits manufactured or imported
after January 1, 2009, to limit total
wattage consumed by the light kit to
190W.
Therefore, this fan is equipped
with a wattage limiting device.

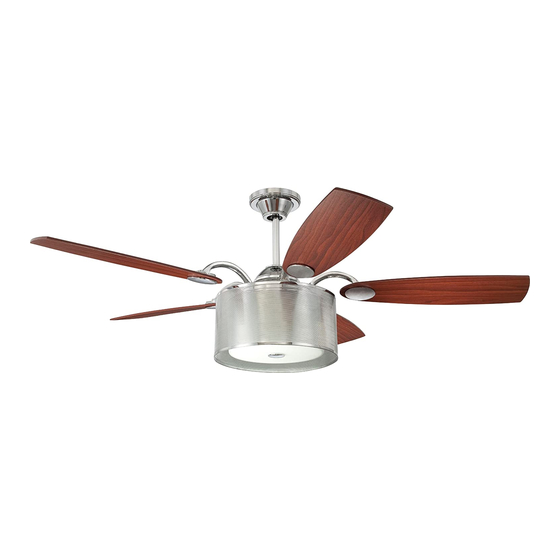

Installation Guide
For Model:
E-BAS54CH5LKRW
E192641
net weight of fan: 27.8 lb (12.61 kg)
READ THESE INSTRUCTIONS AND
SAVE THEM FOR FUTURE USE

Table of Contents:

Warranty. pg. 11
PRINTED IN CHINA

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the E-BAS54CH5LKRW and is the answer not in the manual?

Questions and answers

Related Manuals for Ellington E-BAS54CH5LKRW

Summary of Contents for Ellington E-BAS54CH5LKRW

  • Page 1: Table Of Contents

    Installation Guide Table of Contents: For Model: Safety Tips. pg. 1 E-BAS54CH5LKRW Unpacking Your Fan. pg. 2 Parts Inventory. pg. 2 Installation Preparation. pg. 3 Hanging Bracket Installation. pg. 3 Fan Assembly. pgs. 4 - 5 Wiring.

  • Page 2: Safety Tips

    SAFETY TIPS. WARNING: To reduce the risk of electrical shock, turn off the electricity to the fan at the main fuse box or circuit panel before you begin the fan installation or before servicing the fan or installing accessories. READ ALL INSTRUCTIONS AND SAFETY INFORMATION CAREFULLY BEFORE INSTALLING YOUR FAN AND SAVE THESE INSTRUCTIONS.

  • Page 3: Unpacking Your Fan

    1. Unpacking Your Fan. Carefully open the packaging. Remove items from Styrofoam inserts. Remove motor housing and place on carpet or Styrofoam to avoid damage to finish. Do not discard fan carton or Styrofoam inserts should this fan need to be returned for repairs.

  • Page 4: Installation Preparation

    3. Installation Preparation. blade edge To prevent personal injury and damage, ensure inches 7 feet (76cm) that the hanging location allows the blades a (2.13m) clearance of 7 feet (2.13m) from the floor and 30in. (76cm) from any wall or obstruction. 12ft.

  • Page 5: Fan Assembly. Pgs

    5. Fan Assembly. set screw hole If you wish to extend the hanging length of your fan, set screw you must remove the hanging ball from the 8in. stop pin downrod provided to use with an extended downrod (sold separately). [If you wish to use the 8in. downrod, please proceed to instructions following the dotted line below.] hanging ball...

  • Page 6: Wiring. Pgs

    safety cable loop 5. Fan Assembly. (cont.) wood ceiling joist With the hanging bracket secured to the outlet box wood screw and able to support the fan, you are now ready to and washer hang your fan. Grab the fan firmly with two hands. Slide downrod through opening in hanging bracket and let hanging ball rest on the hanging bracket.

  • Page 7: Canopy Assembly

    6. Wiring. (cont.) IN ORDER TO WIRE WALL CONTROL, remove existing wall switch. Wire the WALL CONTROL with outlet box wire connectors provided as shown in diagram at wall right. control plate * Wrap each wire connector separately with electrical tape as an extra safety measure.

  • Page 8: Blade Assembly

    8. Blade Assembly. Time Saver: Washers for blade screws can be set on each blade screw prior to installing blades. blade Locate 15 blade attachment screws and screws blade washers in one of the hardware packs. Hold lock washer screw blade attachment blade plate up to blade aligning holes in lock...
  • Page 9 9. Light Kit Assembly. (cont.) motor Remove 1 screw from fitter plate on underside of motor and partially loosen the other 2 screws. Align fitter plate motor slotted holes in center of motor housing with housing loosened screws in fitter plate, allowing the molex connection from motor to come through hole in middle of motor housing.

  • Page 10: Automated Learning Process./ Activating Code

    10. Automated Learning Process./ Transmitter Activating Code. (back) code switches CAUTION: The remote control transmitter can be programmed to multiple receivers or fans. If this is not desired, turn wall switch off to any other programmable receiver or fan. Remove battery cover on back side of remote control transmitter.

  • Page 11: Remote Control Operation

    12. Remote Control Operation. HI button - turns fan to HIGH speed MED button - turns fan to MEDIUM speed LOW button - turns fan to LOW speed OFF button - turns fan OFF REV button - used to REVERSE blade direction (fan must be set on low before reversing blade direction) button - turns light ON/OFF 13.

  • Page 12: Troubleshooting

    Warranty. WARNING: Failure to disconnect power supply ELLINGTON LIMITED LIFETIME WARRANTY: prior to troubleshooting any wiring issues may ELLINGTON/LITEX INDUSTRIES, LTD. warrants this fan to the result in serious injury. original household purchaser for indoor use under the following provisions: Problem: Fan fails to operate.
