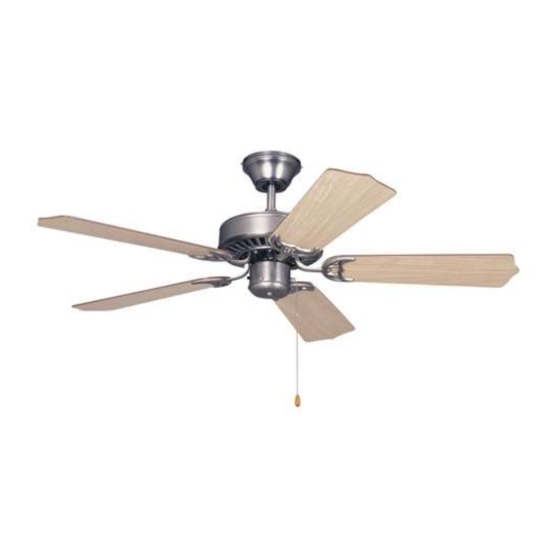

Ellington Elevating Style ELN42ABZ5 Installation Manual

Elevating style

Hide thumbs

Table of Contents

Quick Links

Installation Guide

For Models:

ELN42ABZ5

ELN42MBK5

ELN42AN5

E192641

net weight of fan: 10.01 lb. (4.54 kg)

READ THESE INSTRUCTIONS AND

SAVE THEM FOR FUTURE USE

Need help?

Do you have a question about the Elevating Style ELN42ABZ5 and is the answer not in the manual?

Questions and answers

Summary of Contents for Ellington Elevating Style ELN42ABZ5

Page 1: Table Of Contents
READ THESE INSTRUCTIONS AND SAVE THEM FOR FUTURE USE Installation Guide For Models: ELN42ABZ5 ELN42MBK5 Table of Contents: ELN42AN5 Safety Tips. pg. 1 Unpacking Your Fan. pg. 2 Parts Inventory. pg. 2 Installation Preparation. pg. 3 Hanging Bracket Installation. pg.3 Fan Assembly.
Page 2: Safety Tips
SAFETY TIPS. WARNING: To reduce the risk of electrical shock, turn off the electricity to the fan at the main fuse box or circuit panel before you begin the fan installation or before servicing the fan or installing accessories. Read all instructions and safety information carefully before installing your fan and save these instructions. CAUTION: To avoid personal injury, the use of gloves may be necessary while handling fan parts with sharp edges.
Page 3: Unpacking Your Fan
1. Unpacking Your Fan. Carefully open the packaging. Remove items from Styrofoam inserts. Remove motor housing and place on carpet or Styrofoam to avoid damage to finish. Do not discard fan carton or Styrofoam inserts should this fan need to be returned for repairs.
Page 4: Installation Preparation
3. Installation Preparation. blade edge To prevent personal injury and damage, ensure inches that the hanging location allows the blades a (76cm) 7 feet clearance of 7ft. (2.13m) from the floor and 30in. (2.13m) (76cm) from any wall or obstruction. This fan is suitable for room sizes up to 400 square 12ft.
Page 5: Fan Assembly (With Downrod)
5. Fan Assembly (with downrod). If you wish to extend the hanging length of your fan, you must remove the hanging ball set screw hole set screw from the 4in. downrod provided to use with an stop pin extended downrod (sold separately). [If you wish to use the 4in.
Page 6: Fan Assembly. Pgs
5. Fan Assembly (with downrod). (cont.) With the hanging bracket secured to the outlet box and able to support the fan, you are now ready to hang your fan. Grab the fan firmly with two hands. Slide downrod through opening in hanging hanging bracket tab bracket and let hanging ball rest on the hanging hanging ball slot...
Page 7: Wiring
7. Wiring. white supply wire ground (green or bare) Important: Be sure outlet box is properly grounded and that a black supply wire ground wire (GREEN or Bare) is present. Make sure all electrical connections comply with Local Codes from ceiling or Ordinances and the National Electrical Code.
Page 8: Blade Assembly
9. Blade Assembly. Time Saver: Washers for blade screws can be set on each blade screw prior to installing blades. motor housing Locate 15 blade attachment screws and washers blade attachment in hardware pack. Hold blade arm up to blade screws and washers and align holes.
Page 9: Light Kit Assembly (Optional)
11. Light Kit Assembly (Optional). motor housing WARNING: Failure to disconnect power supply at main panel prior to light kit assembly may result in serious injury. switch housing If you wish to use your fan WITH a light kit (sold blue wire white wire separately), remove 3 screws from switch housing.
Page 10: Troubleshooting
Troubleshooting. Warranty. WARNING: Failure to disconnect power supply ELLINGTON LIFETIME LIMITED WARRANTY: ELLINGTON/LITEX INDUSTRIES, LTD. warrants this fan to the prior to troubleshooting any wiring issues may original household purchaser for indoor use under the result in serious injury. following provisions: 1-YEAR WARRANTY: ELLINGTON/LITEX INDUSTRIES, LTD.
