Concox GPS Electric Cars Positioning Terminal User Manual page 8

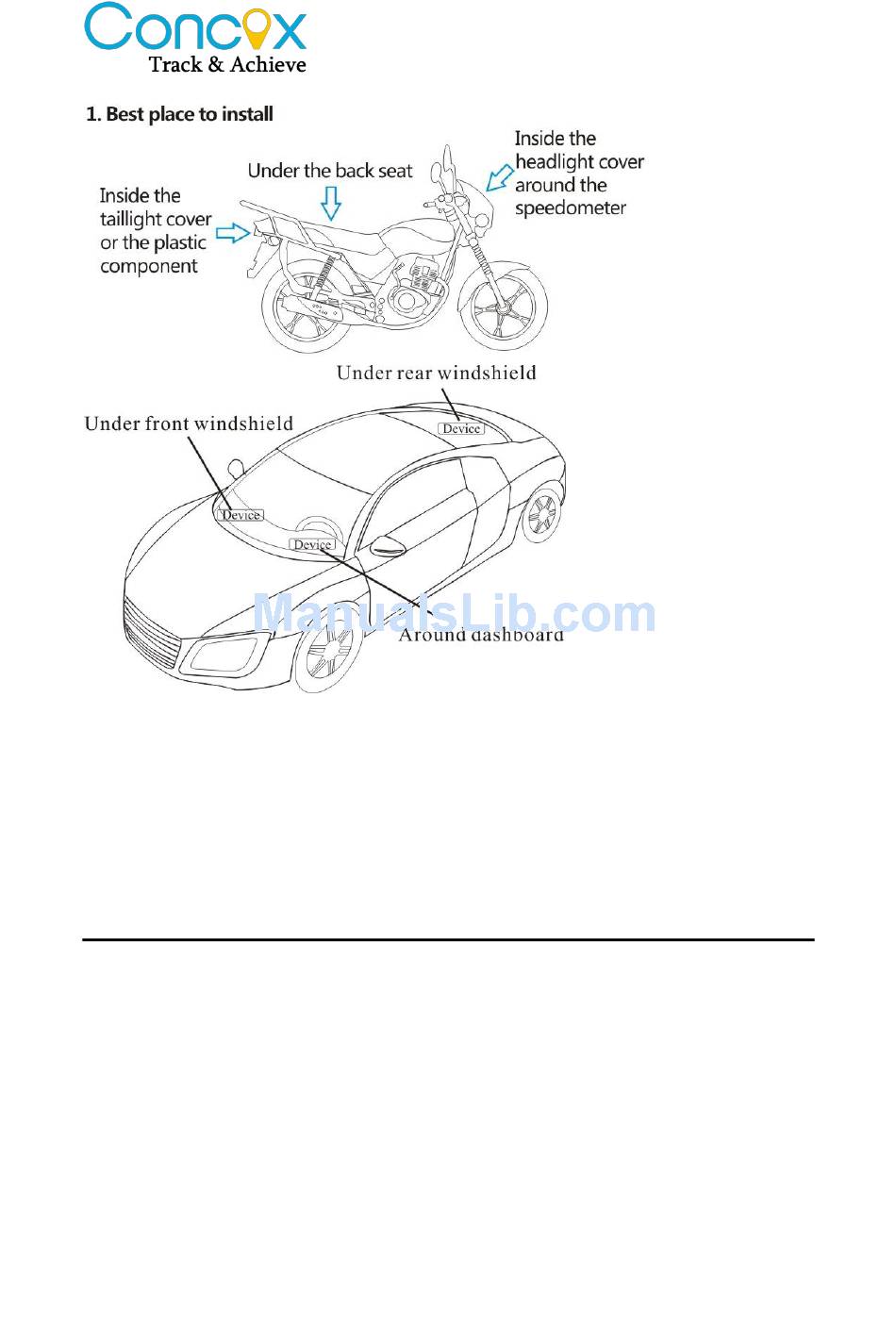

- Under the dash board below the front windshield;
- In the parcel shelf in the rear;
- In the front bumper (non-material face), make sure the device does not get wet;
- Under the wiper version (non-metal), make sure the device does not get wet;
- Non Covert Installation - fix the device on the dash board below windshield.
Device Wiring
1 The standard voltage is 9V-36V, the red wire is the positive, the black wire is the
negative.
2. Connect the black wire to ground.
4.5 Device wiring diagram
