Page 1: User Manual

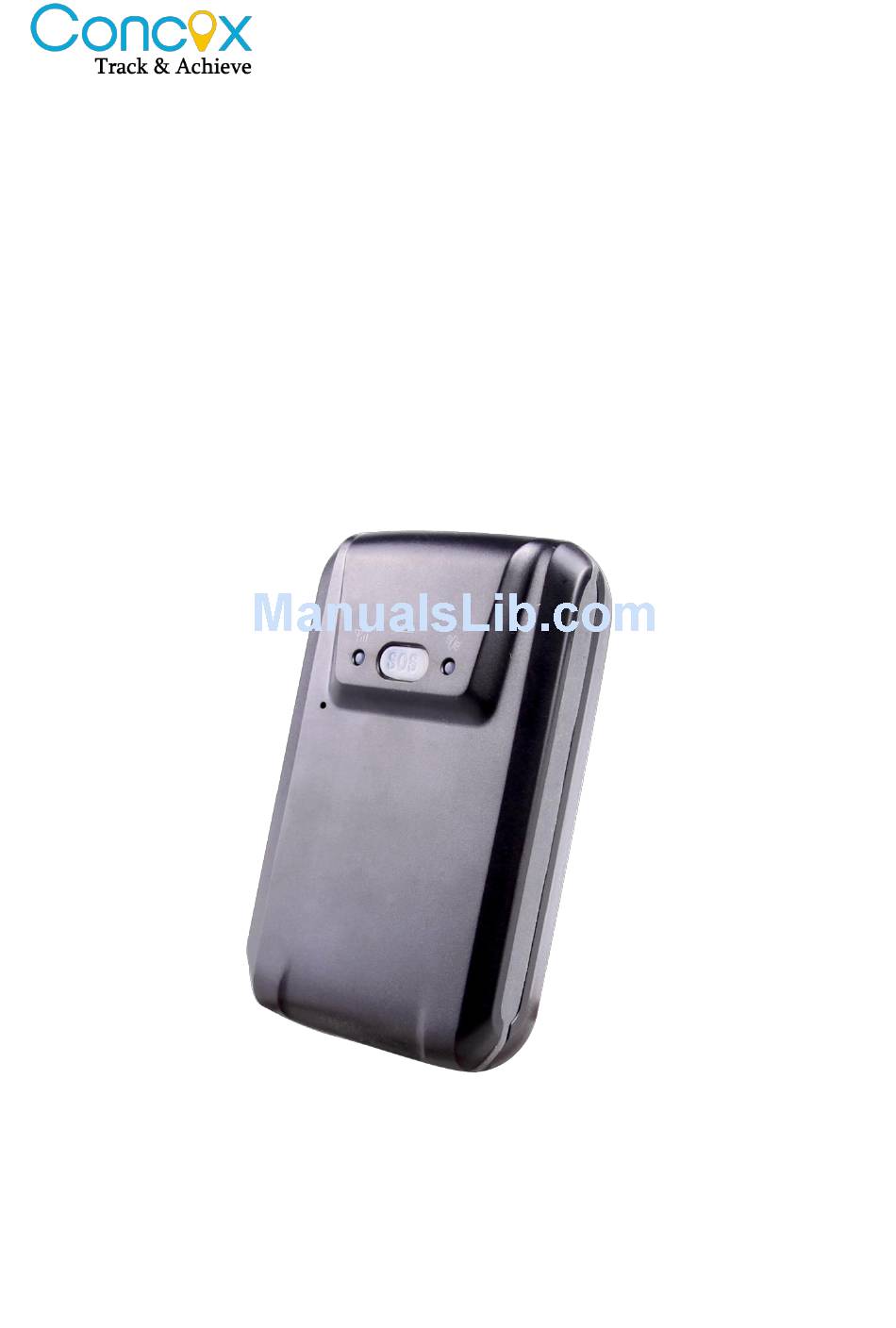

GPS Vehicle tracker GT03A User manual (Version V1.3) Please read this manual carefully before attempting installation and online activation. Pictures are for indication and illustration purposes only. - Page 2 Accessories Please check whether these accessories are included, Pictures are for indication and illustration purposes only.
- Page 3 Appearance SOS button Short press SOS button twice to activate/deactivate defense status Long press SOS button to activate SOS alarm 2.1 LED status (non-sleep mode) 2.1.1Red LED (Power/working status) LED Status Indication Flash quickly (interval 0.1S) Low battery Flash slowly (interval 2s) Full charge/Working normally Flash slowly (Flash 1s after every 2s) Working normally...
-
Page 4: Technical Parameters
2.1.3 Green LED (GSM signal status) LED Status Indication Flash quickly (interval 0.1s) Receive GSM signal normally Flash slowly (flash 0.1s after every 2s) GPRS on line bright Incoming/outgoing calls No GSM signal or no SIM card totally dark installed 2.1.4 Defense Status Indication While the three LEDs (blue/red/green) flash cyclically, it means the device begins to enter defense status. -
Page 5: Charge The Battery
5. Operating instructions 5.1 Install/Remove the SIM card ● Power off the device, remove the battery and external power ● put the SIM card in the SIM card slot Note: 1. Please use a GSM SIM card 2. SIM card in the device should be enabled for GPRS 3. -
Page 6: Settings Of Apn
The recommended installation position is as follows; 1. Below the front windshield with the device front up and make sure there are no sunshade mask and other anti-GPRS reception material on it 2. On the bottom of a car such as the side place below door. Do not put it too far inside, otherwise it can not receive GPS signal. -
Page 7: Sos Numbers Setting
6.2 SOS numbers setting 6.2.1 Add SOS number by SMS SMS command: SOS,A,number 1,number 2,number 3,number 4#(A means add number) For example: SOS, A,13510682360,13511685136,13612687248,13612683621# 4 SOS numbers can be set at one time. It will reply “OK” if succeeded. SOS,A,13527852360# means set the first specific number SOS,A,,,13527852360,12510682360#means set the third and fourth SOS number 6.2.2 Delete SOS numbers by SMS SMS command:... -
Page 8: Anti-Theft Alarm
Short press SOS button twice again to deactivate defense status 6.3.2 Via Calls Any SOS number calls the device and then ends up the call by the mobile side in 10s, the device will enter defense status and then reply SMS “Remote setting up defense Successful”. -
Page 9: Sos Alarm
During vibration alarm time, if the device is located, but fail to connect to the platform, the device will send longitude and latitude information. For example, “Vibration alarm: N23.111748, E114.409215, 11 While if the GPS is neither located nor connect to the platform, the device can not get the position information. - Page 10 (1) Circular fence Set a coordinate as the centre of the circular fence, and then set a distance as radius. Go in/out fence SMS: “FENCE,ON,0,latitude,longitude,radius#” e.g.: FENCE,ON,0,N22.57139,E113.87710,5# It means the radius is 500 meters（radius 1=100M，2=200M· · · · and so on） The device will reply “OK”...
- Page 11 e.g.: FENCE,ON,1,N22.541183,E113.916,N22.557743,E113.892334# The terminal will reply “OK” if set successfully. Any time the terminal enter or leave this rectangle fence, it will send alarm message to the preset SOS numbers. Go in fence SMS: Any number send the command “FENCE,ON,1,the latitude of upper left corner, the longitude of upper left corner, the latitude of lower right corner, the longitude of lower right corner, IN#”.
-
Page 12: Low Battery Alarm
6.6.3 Check Geo fence status Send the command SEEFENCE# to check whether geo fence function is on or off. If geo fence is off, it will reply SMS “Switch:OFF”. If geo fence is on, it will reply SMS “Switch:ON;State:IN&OUT;Lat:N22.567000;Lon:E113.890000,Radius:100M;Fence Type:Circle.” 6.7 Low battery alarm When battery is low, device will send low battery alarm SMS to SOS numbers Low battery alarm SMS: “Warning! Battery is low, please charge in time!”... -
Page 13: Restore Factory Setting
6.9.2 Google link query SOS number can send the command to query the Google link. URL# If GPS is located, it will reply the Google link of the current position. If GPS is not located over 2 minutes, it will send the link of last position. e.g.: <DateTime:10-11-2323:42:51>http://maps.google.com/maps?q=N22.571490,E113.877103 If GPS is never located, the device will reply “No Data!”... -
Page 14: Troubleshooting
After receiving this command, the terminal will reboot in 1 minute. 7. Appendix 7.1 Battery security ● Please use the original battery. The warranty will be invalid by using any other accessory. The manufacturer will not take any responsibility for any damage caused by not using the original battery. - Page 15 Can not get the position data ②contact with your distributor address information It is not a SOS number set SOS number ShenZhen Concox Information Technology CO.,Ltd Tel: +86 755 2912 1200 Fax: +86 755 2912 1290 E-mail: aven@concox.cn. Add: 4/F, Building B, Gaoxinqi Industrial Park, Liuxian 1st Road, No.67 Bao'an District, Shenzhen...
