Summary of Contents for Concox smartracker GT350

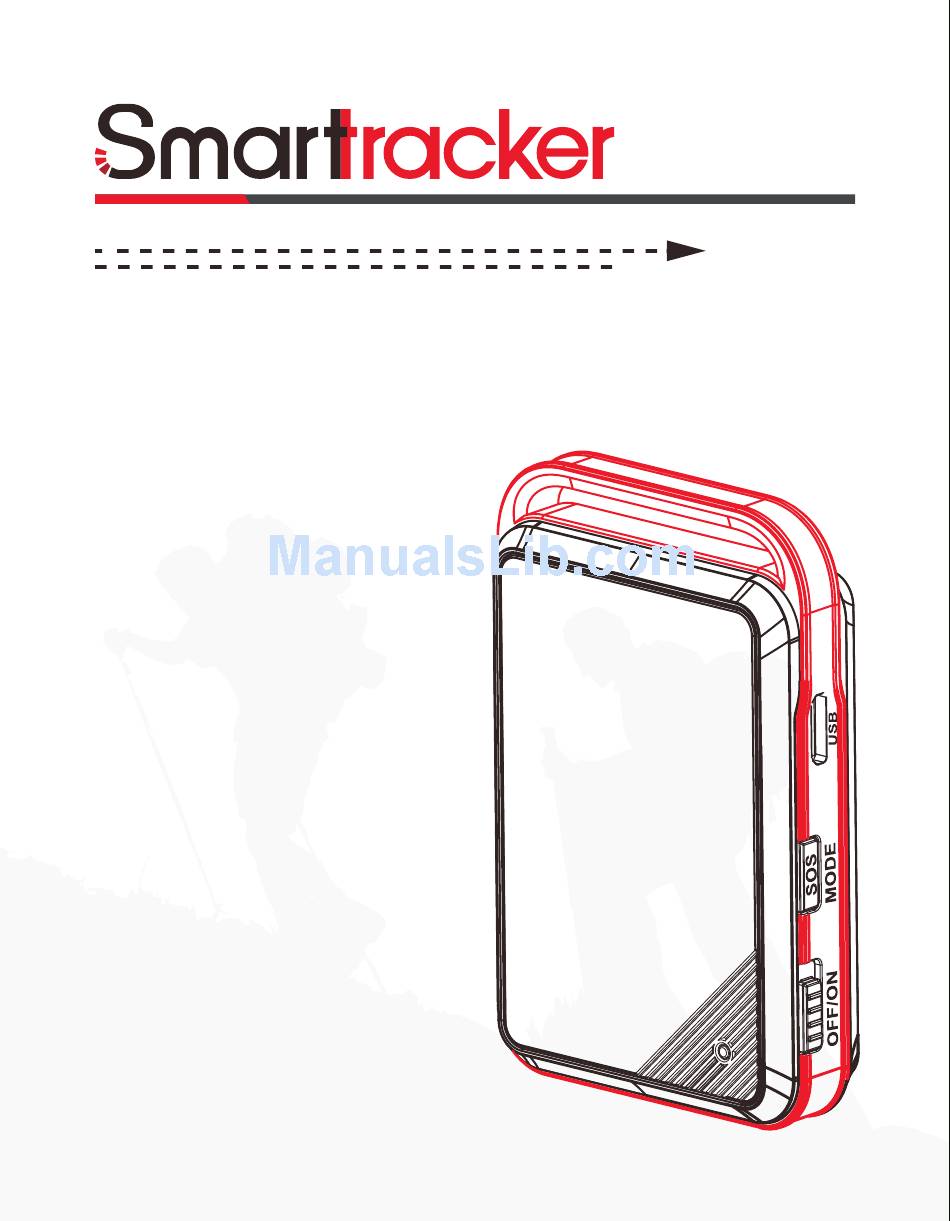

- Page 1 GT350 USER MANUAL Version V1.0...
-
Page 2: Product Accessories
Product Accessories U s e r m a n u a l Battery Charging cable User manual Above pictures are for reference purposes only. Note: You can use smart phone charger (Micro USB 5pin) to charge the device (5V, current >800mA). Key Description Slide switch Mode... - Page 3 Status Definition Tracking mode: Long slide to turn ON/OFF device, short slide to arm/disarm (activate after 20s) Slide switch Power saving mode: Long slide to turn ON device, short slide null. Tracking mode: Long press 3 seconds for SOS, short press to activate LED current status.
- Page 4 Quick Features Guide 4.1 Open back cover, insert SIM card and turn on device. Step 1: Open back cover: Step 2: Open SIM card lock and lock the SIM card in:...
- Page 5 4.2 Set SOS number Use your APP , GPS tracking platform or SMS to set SOS number (SMS only valid at tracking mode), SMS command: 1, Add SOS number: SOS,A, number 1, number 2, number 3# 2, Delete subjected sequence of SOS number: SOS,D,number sequence 1, number sequence 2, number sequence 3# Example:...
- Page 6 Note: in power saving mode, SMS command will only become effective when device wakes up. 2, Tracking mode: GSM will stay active at all time, GPS will sleep when the device is static, when vibration is detected upload GPS data in preset time interval.
-
Page 7: Terminal Application
GPS blind-zone When device enters into GPS blind-zone alert for more than 1 minute sends an alert. When device enters or exit the preset Geo-zone alert geo-zone sends an alert. Note: Alert message will be pushed to APP as default, other type of notification can be set in the APP . -
Page 8: Important Notice
5.2 Please contact your supplier to download APP for both iOS and Android. Important Notice 6.1 SIM card SIM should be compatible with GSM network (2G), and active data for GPRS. Remote voice monitor function should active Caller Identification service. In order to receive alert message, please activate the alert function of the device and set SOS number. - Page 9 6.2 Battery Please use ONLY battery that is from the original manufacturer, otherwise warranty service will become invalid. The dealer and manufacturer will not be liable to any damages that is caused to/by the device by using accessories purchased from third parties. Warranty instructions and service 1.
- Page 10 3. Warranty repairs must be carried out by our Authorized Service Centre. Warranty cover will be void, even if a repair has been attempted by any unauthorized service centre. 4. Repair or replacement under the terms of this warranty does not provide right to extension or renewal of the warranty period.
