Summary of Contents for Shinybow USA SB-5525

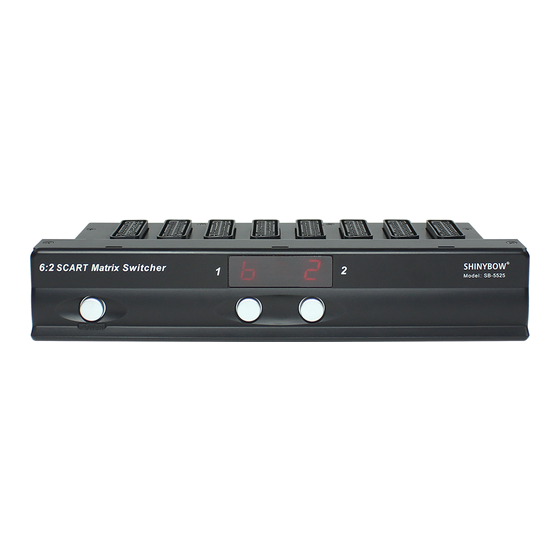

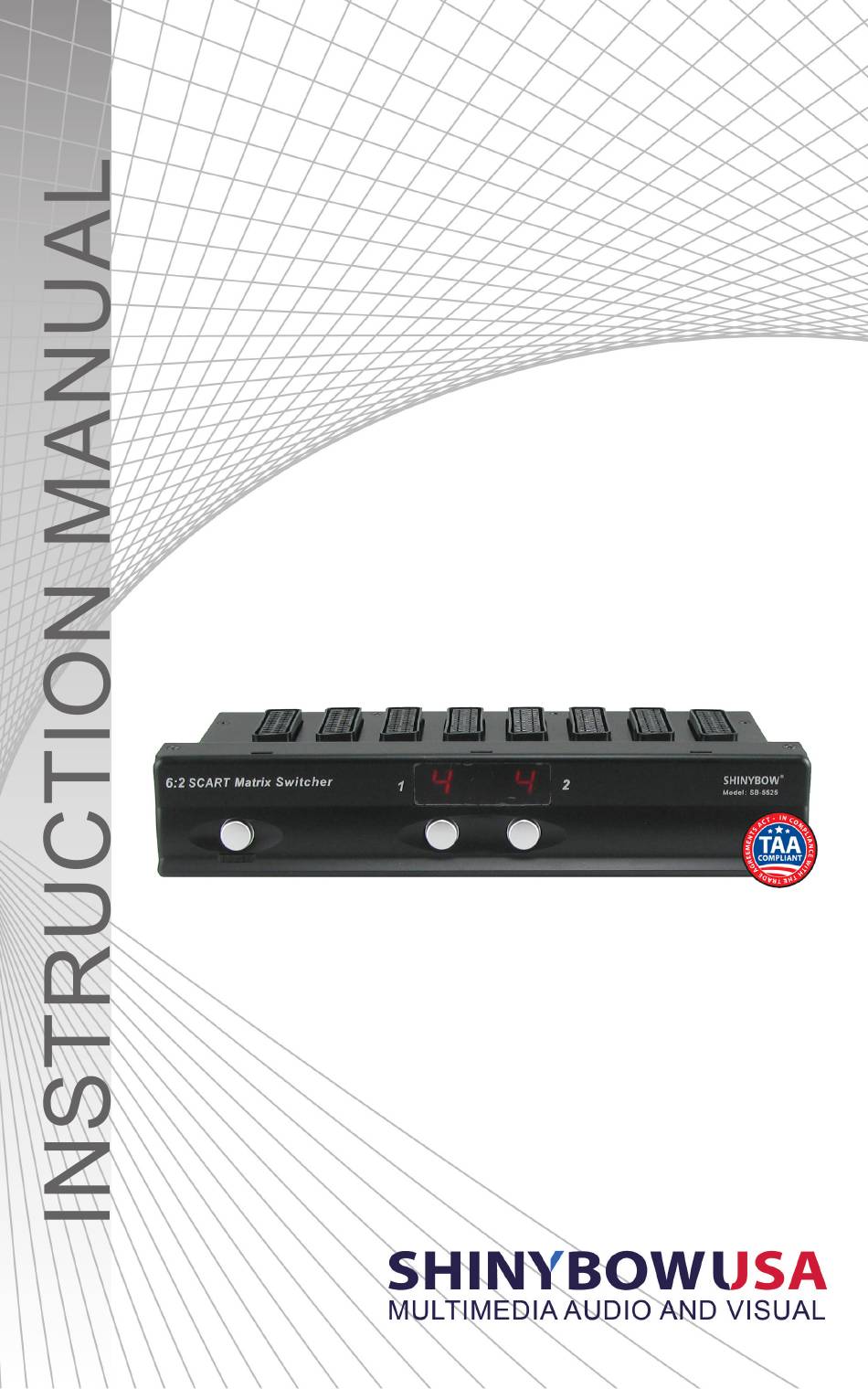

- Page 1 SB-5525 6x2 SCART MATRIX SWITCHER...
-
Page 2: Safety Information
SAFETY INFORMATION 1. To ensure the best results from this product, please read this manual and all other documentation before operating your equipment. Retain all documentation for future reference. 2. Follow all instructions printed on unit chassis for proper operation. 3. -
Page 3: Safety Precautions
SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons. •... -
Page 4: Package Contents
Audio switching product. The switcher supports (6) individual inputs with (2) individual outputs. The matrix function of SB-5525 can route any input and output to each other. The switcher completely eliminates the need to constantly move around SCART input and output cables. -
Page 5: Specifications
SPECIFICATIONS • Type of Switcher: (6) In to (2) Out SCART Matrix Switcher • Type of Signal: SCART (RGB, S-Video, Composite Video and Stereo Audio) • Video Bandwidth: 110 MHz, -3dB (G=+2) • High Speed and fast settling on 5V •... -
Page 6: Typical Hookup And Operation
EN 55013/EN 55020 - REPORT NUMBER: ET93S-10-205-01 FOR FCC 47 CFR/Part 15 Subpart B - FCC 47 CFR/Part 15 Subpart B - REPORT NUMBER: ET93S-10-205-02 Model Number: SB-5525 Comment Number : SB-5519, SB-5518, SB-5517, SB-5516, SB-5515, SB-5514, SB-5513, SB-5512, SB-5511, SB-5510... - Page 7 TYPICAL HOOKUP AND OPERATION...
-
Page 8: Limited Warranty
LIMITED WARRANTY PLEASE READ THE FOLLOWING TERMS AND CONDITIONS CAREFULLY BEFORE USING THIS HARDWARE, COMPONENTS AND SOFTWARE PROVIDED BY, THROUGH OR UNDER SHINYBOWUSA, INC (COLLECTIVELY, THE “PRODUCT”). By using or installing the product, you unconditionally signify your agreement to these Terms and Conditions. If you do not agree to these Terms and Conditions, do not use the product and return the product to SHINYBOWUSA, Inc.
