ScoutGuard SG560-8M User Manual

Infrared digital scouting camera
Hide thumbs

Advertisement

Quick Links

Download this manual

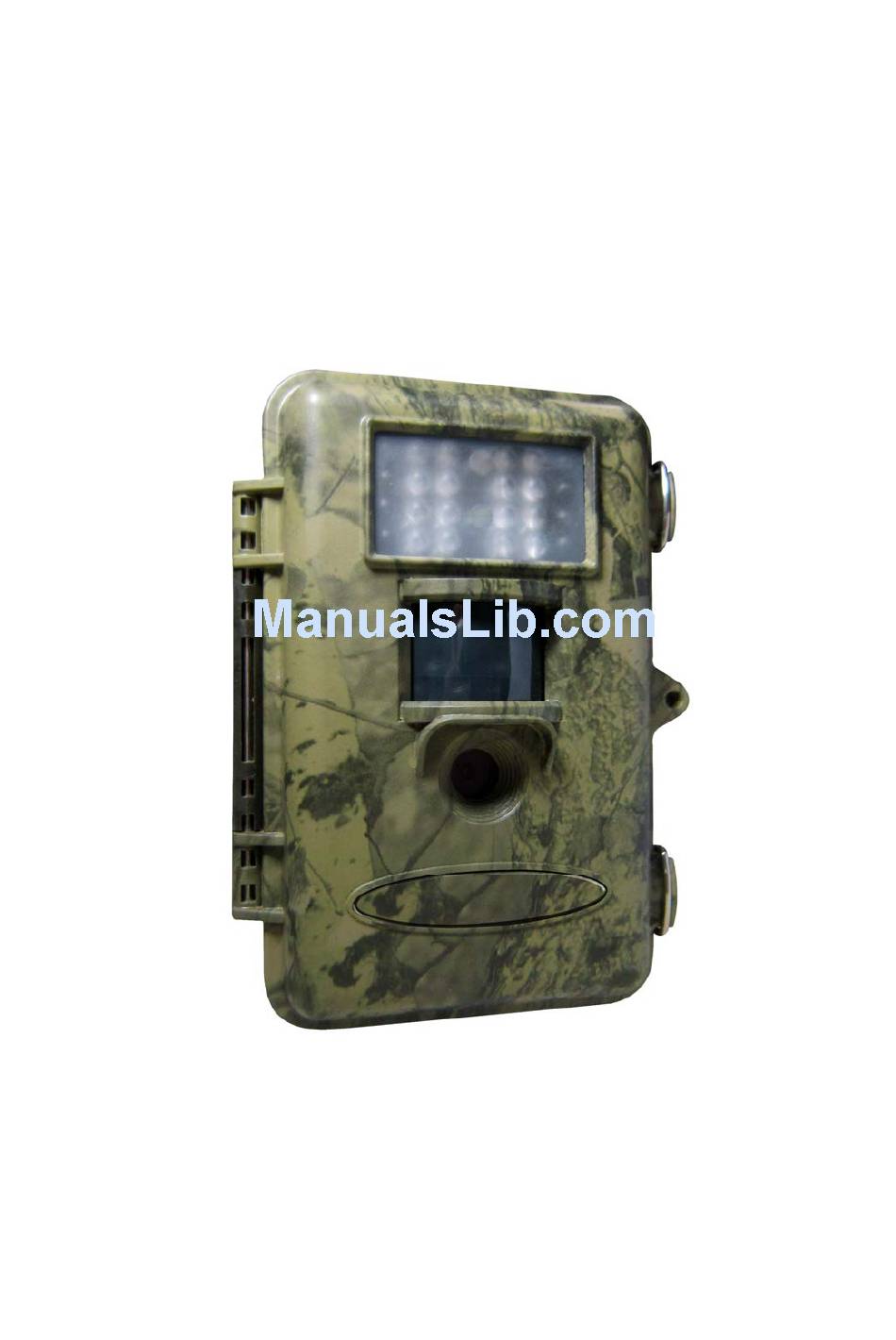

Infrared Digital Scouting Camera
User's Manual
Pocket Camera SG560-8M
For Model：SG560-8M

Advertisement

loading

  Related Manuals for ScoutGuard SG560-8M

  Summary of Contents for ScoutGuard SG560-8M

  • Page 1 Infrared Digital Scouting Camera User’s Manual Pocket Camera SG560-8M For Model：SG560-8M...

  • Page 2: Table Of Contents

    Content Instruction..........................1 General Description.....................1 Camera Body Interfaces.....................1 Shooting Information Display...................2 Supported Format......................2 Cautions ..........................4 Easy Operations ........................5 Power Supply ........................5 Insert the SD-card ......................5 Power on and Entering into the ON Mode .............5 Enter into the TEST Mode ..................6 3.4.1 Customer Settings....................6 Manual Capturing....................6 3.4.2...

  • Page 3: Instruction

    Pocket Camera SG560-8M 1 Instruction 1 Instruction 1.1 General Description This camera, a digital scouting camera, is a surveillance camera working automatically. It can be triggered at once by any movement of human (or animals) in a certain region of interested (ROI) monitored by a high sensitive Passive Infrared (PIR) motion sensor, and then automatically captures high quality pictures (up to 8M pixels) or records video clips (VGA) according to default settings or preset customer settings.

  • Page 4: Shooting Information Display

    Pocket Camera SG560-8M 1 Instruction Figure 2 1.3 Shooting Information Display When the camera is turned on (the power switch is slid to ON position), the shooting information will be displayed in the monitor. Figure 3 1.4 Supported Format Item...
  • Page 5 Pocket Camera SG560-8M 1 Instruction format of the camera unless you have problems with reading the SD-card by your other equipments. If this happened, please format the SD-card in the camera or in a computer at first and then reinsert the card into your camera to make a try.

  • Page 6: Cautions

    Pocket Camera SG560-8M 2 Cautions 2 Cautions ★ The working voltage of the camera is 6V. The camera is supplied by four AA batteries. ★ Please install batteries according to shown polarity. ★ Please unlock the write-protect before inserting the SD-card.

  • Page 7: Easy Operations

    Pocket Camera SG560-8M 3 Quick Introductions 3 Easy Operations 3.1 Power Supply To supply power for the camera, four AA size batteries are needed. Open the bottom cover. Confirm that the power switch is at the OFF position. Install the fully charged batteries into the depot according the polarities sign shown below. The following batteries with 1.5V output can be used:...

  • Page 8: Enter Into The Test Mode

    Pocket Camera SG560-8M 3 Quick Introductions settings, when the user complete the settings, it requires to unplug the control to enter into normal use, that is, if the wired control still be connected with the camera, the camera will not work. The camera (the control must be unplugged when in ON mode) will take pictures or videos automatically according to the default settings or preset customer settings.

  • Page 9: Advanced Operations

    Pocket Camera SG560-8M 4 Advanced Operations 4 Advanced Operations From the basic operations of the camera in previous chapter, we know that the camera has three basic operation modes: 1. OFF mode: Power switch is at OFF position. 2. ON mode: Power switch is at ON position.

  • Page 10: Default Settings

    Pocket Camera SG560-8M 4 Advanced Operations 4.1.1 Default Settings Default settings are listed below: Setting Items Default Options Submenu Camera Mode Image Video Format Enter Yes, No Image Size 8M Pixel 5M Pixel Video Size 640×480 320×240 Set Clock Enter...

  • Page 11: Set Image Size

    Pocket Camera SG560-8M 4 Advanced Operations will show a message “Formatting…” as below. Press MENU to cancel setting and return to info display. 4.1.4 Set Image Size The following shows how to set pixel size as 8M Pixel provided that the previous option is 5M Pixel: a) Press MENU to display the setting menu.

  • Page 12: Set Video Length

    Pocket Camera SG560-8M 4 Advanced Operations b) Press UP or DOWN to select Capture Number. c) Press RIGHT to select 3 Images. d) Press OK to save the current setting and the option will be un-highlighted. Press MENU to cancel setting and return to info display.

  • Page 13: Set Date And Time Stamp

    Pocket Camera SG560-8M 4 Advanced Operations c) Press RIGHT to select Low. d) Press OK to save the current setting and the option will be un-highlighted. Press MENU to cancel setting and return to info display. 4.1.11 Set Date and Time Stamp The following shows how to set time stamp as Off provided that the previous option is a) Press MENU to display the setting menu.

  • Page 14: Delete Image Or Video

    Pocket Camera SG560-8M 4 Advanced Operations TEST mode: Power switch is at ON position and the control needs to be connected. a) Switch to TEST mode and enter into info display. b) Press OK to view the latest picture (or video) in LCD screen on camera, TV monitor or Image viewer with TV-in connector.

  • Page 15: Appendix I: Pir Detection Zone

    Pocket Camera SG560-8M Appendix I: PIR Detection Zone Appendix I: PIR Detection Zone The figure4 shows the detection range in different detection angle. When the detection angle is 35°,the detection range is 50ft. When the detection angle is 52°,the detection range is 30ft.
  • Page 16 Pocket Camera SG560-8M Appendix I: PIR Detection Zone SG560-8M has a new design of PIR and this new PIR is patented. The new patented PIR’s detection range can reach to 25m. The figure 6 shows the compared detection zone between normal PIR and the new patented PIR.

  • Page 17: Appendixⅱ: Technical Specifications

    Pocket Camera SG560-8M AppendixⅡ: Technical Specifications AppendixⅡ: Technical Specifications interpolation Image Sensor F/NO=3.1mm Lens FOV(Field of View)=40° 20m-25m Detection range 1.5” LCD Display Screen From 8 MB to 8 GB Memory Card 8MP = 3328 ×2496 Picture Resolution 5MP = 2560×1920 640×480 (16fps)

  • Page 18: Appendixⅲ: Parts List

    Pocket Camera SG560-8M AppendixⅢ: Parts List AppendixⅢ: Parts List Part Name Quantity Digital Camera Wired control USB Cable Belt User Manual Page 16...
