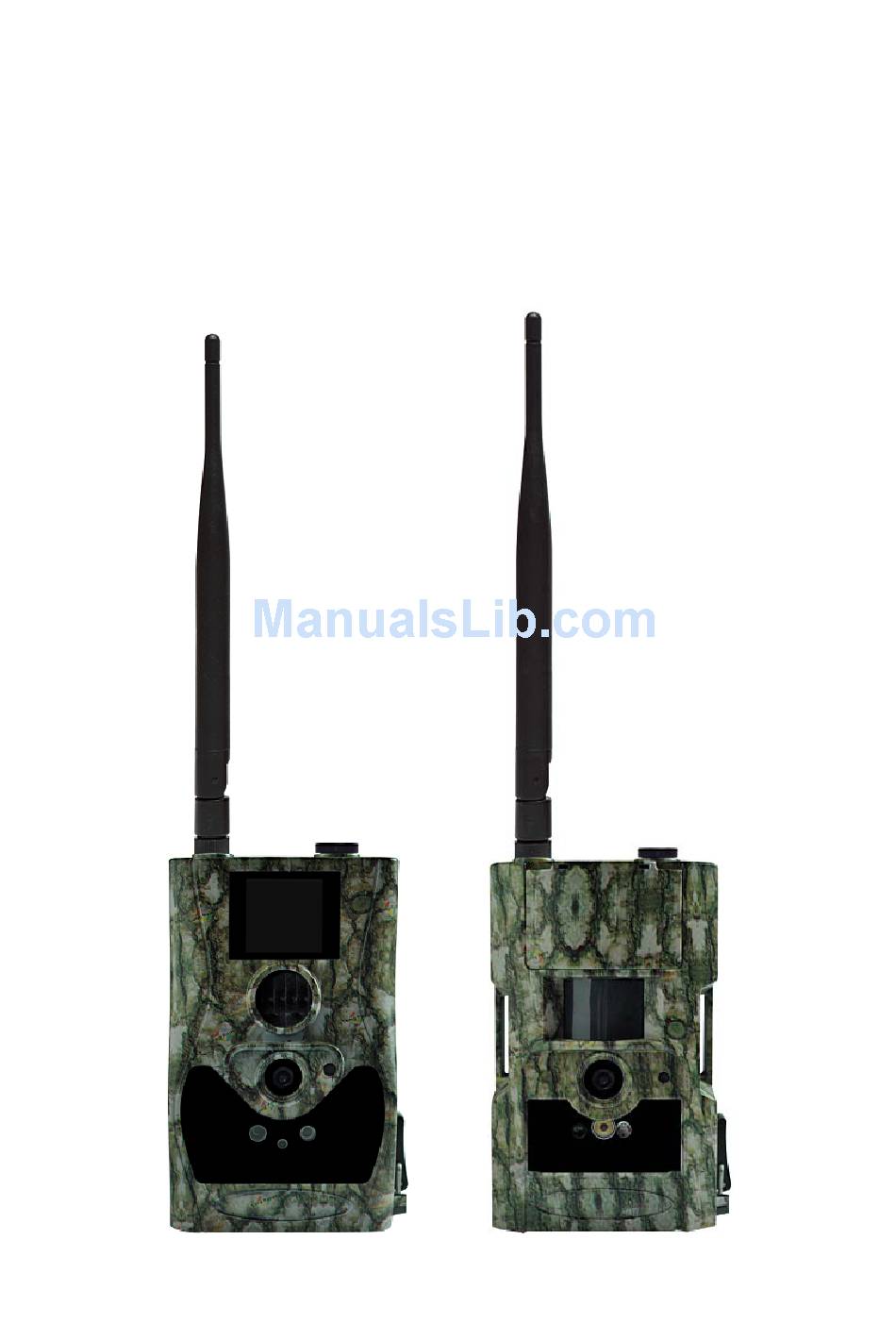

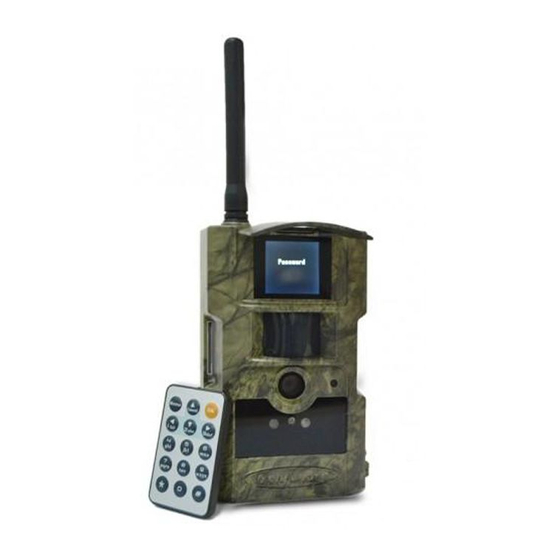

- Page 1 Infrared Mobile Digital Scouting Camera User’s Manual SG880MK-8mHD/MG882K-8mHD...
-
Page 2: Table Of Contents
Content 1 Instruction ................1 General Description ............1 Camera Body Interfaces ..........2 Remote Control ............. 2 1.3.1 Navigating..............4 1.3.2 Characters ..............4 Shooting Information Display ........4 MMS/GPRS function ............ 5 2 Cautions..................7 3 Quick Start Guide ..............8 Power Supply .............. -
Page 3: Instruction
SG880MK-8mHD/MG882K-8mHD 1 Instruction 1 Instruction 1.1 General Description This camera, a digital scouting camera with black IR and MMS function, is a digital infrared surveillance camera, triggered by any movement of humans or animals monitored by a high sensitive Passive Infrared (PIR) motion sensor, and then... -
Page 4: Camera Body Interfaces
SG880MK-8mHD/MG882K-8mHD 1 Instruction 1.2 Camera Body Interfaces The camera has the following I/O interfaces: USB connector, SD card Slot, TV output and external DC power connector. Take a few moments to familiarize yourself with the camera controls and displays. It is helpful to bookmark this section and refer to it when reading through the rest of the manual. - Page 5 SG880MK-8mHD/MG882K-8mHD 1 Instruction primarily used for customer settings and Menu Menu Cancel Cancel password input. This is an infrared type wireless remote control. The maximum remote distance is 30 feet. pqrs pqrs wxyz wxyz Fig.2 Remote control Note: The remote will not work properly without the antenna attached.
-
Page 6: Navigating
SG880MK-8mHD/MG882K-8mHD 1 Instruction 1.3.1 Navigating Press UP or DOWN to select or highlight the menu item. Press LEFT or RIGHT to select the option of each item and press OK to make a selection. 1.3.2 Characters When entering digits, letters or punctuations into an input... -
Page 7: Mms/Gprs Function
SG880MK-8mHD/MG882K-8mHD 1 Instruction Fig.4 Shooting information display 1.5 MMS/GPRS function This camera can send pictures instantly to your mobile device via GSM/GPRS network. You’ll be alerted just when a picture or video has been taken. The camera sends MMS message through GPRS network, so before using this function, you need to open GPRS service from your service provider. - Page 8 SG880MK-8mHD/MG882K-8mHD 1 Instruction There are 4 submenu settings within the MMS/GPRS function. They are Send Mode, MMS Set, GPRS Set and Send to. Send Mode means to choose a way to send MMS (refer to 4.1 table). MMS Set and GPRS Set means to have the right MMS and GPRS setting parameters according to your network.
-
Page 9: Cautions
SG880MK-8mHD/MG882K-8mHD 2 Cautions 2 Cautions ★Please install batteries according to shown polarity. ★Please unlock the write-protect before inserting the SD card. ★Please insert the SD card when the power switch is in the OFF position before testing the camera. The camera has no internal memory for saving images or videos. -
Page 10: Quick Start Guide
SG880MK-8mHD/MG882K-8mHD 3 Quick Start Guide 3 Quick Start Guide 3.1 Power Supply To supply power for the camera, four or eight size AA batteries are needed. The following batteries with 1.5V output can be used: 1. High-density and high-performance alkaline batteries (Recommended) 2. -
Page 11: Insert The Sd Card And The Sim Card
SG880MK-8mHD/MG882K-8mHD 3 Quick Start Guide Fig.5 Battery install Caution: Risk of explosion if battery is replaced by an incorrect type. Also dispose of used batteries according to the instructions. Correct Disposal of this product. This marking indicates that this product should not be disposed with other household wastes throughout the EU. -
Page 12: Do The Camera Settings
SG880MK-8mHD/MG882K-8mHD 3 Quick Start Guide locked) position otherwise the camera will not function correctly. 3.3 Do the Camera Settings Down load the camera set up software (BMC_config.zip) The specified website is written in the last from our website. page of the manual. -
Page 13: Enter Into The Test Mode
SG880MK-8mHD/MG882K-8mHD 3 Quick Start Guide 3.4 Enter into the TEST Mode Slide the power switch to the TEST position and enter into the TEST mode. There are some functions in TEST mode: Custom settings, manual capture, preview or send MMS manually. -
Page 14: Power On And Enter Into The On Mode
SG880MK-8mHD/MG882K-8mHD 3 Quick Start Guide 3.5 Power on and Enter into the ON Mode Slide the power switch to the ON position to power on the camera and enter into the ON mode. Before entering into the ON mode, you can adjust the camera towards the target monitoring area by laser pointer. -
Page 15: Sms Command List
SG880MK-8mHD/MG882K-8mHD 3 Quick Start Guide page of the manual 3.7 SMS Command List Below is a SMS command list for example. Function SMS Command 1 Set Supper User #sg880#4321#13800138000# #mg882#4321#13800138000# #m#http://mmsc.cingular.com#6 Parameters 6.209.11.32#8080#wap.cingular# account#password# (The example parameters are for the carrier of AT&T) GPRS #s#bmctest123@163.com#bmc12... -
Page 16: Power Off
SG880MK-8mHD/MG882K-8mHD 3 Quick Start Guide hour) 9 Format TF Card #P#0000# Administrator’s Password Help 3.8 Power Off Slide the power switch to the OFF position to power off the camera. Please note that even in the OFF mode, the camera still consumes a small amount of battery power. -
Page 17: Advanced Operations
SG880MK-8mHD/MG882K-8mHD 4 Advanced Operations 4 Advanced Operations From the basic operations of the camera previewed in the previous chapter, we know that the camera has three basic operation modes: OFF mode: Power switch is in the OFF position. ON mode: Power switch is in the ON position. - Page 18 SG880MK-8mHD/MG882K-8mHD 4 Advanced Operations Choose capturing images or recording Camera videos. Mode Set camera date and time. You can change the date and time of the device by setting this parameter when necessary, e.g., after every Set Clock battery change.
- Page 19 SG880MK-8mHD/MG882K-8mHD 4 Advanced Operations PIR. There are four sensitivity parameters: High, Normal, Low and Off. The default value is “Normal”. The higher degree indicates that the Camera is more easily to be triggered by motion, taking more pictures or recording more videos.
- Page 20 SG880MK-8mHD/MG882K-8mHD 4 Advanced Operations service provider. You should set the right MMS setting parameters. The settings of MMS: URL, APN, IP and Port.. Please contact the network service provider if you are not familiar with the settings. The camera sends image through GPRS network with SMTP protocol to an Email address.
- Page 21 SG880MK-8mHD/MG882K-8mHD 4 Advanced Operations show you the latest photo and the total qty of the pictures get taken. If it is on Video mode, the camera will send a SMS at the preset time. The SMS will show you how many video clips the camera has taken within 24 hours.
-
Page 22: Default Setting
SG880MK-8mHD/MG882K-8mHD 4 Advanced Operations Also you can retrieve live pictures any time. But the power consumption will be a little bigger than normal hunting status. This parameter shows the information Version about Firmware and IMEI of this camera. All images and videos in the SD card will be... -
Page 23: Playback
SG880MK-8mHD/MG882K-8mHD 4 Advanced Operations Server, Port, GPRS Set Enter Daily Report, Send Mode Manual Instant, Off Phone[MM Email[MMS], Send To Email[GPRS] SMS Control Firmware Version Enter IMEI Format SD Enter Yes, No Default Set Save 4.3 Playback In playback mode, images or videos can be viewed and deleted. -
Page 24: Laser Pointer
SG880MK-8mHD/MG882K-8mHD 4 Advanced Operations View the image (or video) which to be deleted, select the one you want to delete. Press DELETE and LEFT or RIGHT to select all, then OK to delete. 4.4 Laser Pointer The laser light pointer beam can be turned on as an additional function for pointing to an object or a certain region of interested (ROI) by pressing ﹡of the remote. -
Page 25: Appendix I: Pir Detection Zone
SG880MK-8mHD/MG882K-8mHD Appendix I: PIR Detection Zone Appendix I: PIR Detection Zone Figure 6 shows Bolymedia’s 4 kinds of detection range at different detection angles. Fig.6 Different detection range The PIR detection angle (α) is just smaller than the field of view (FOV) angle (β). - Page 26 SG880MK-8mHD/MG882K-8mHD Appendix I: PIR Detection Zone This camera has a new design of PIR and the new PIR is patented. The new patented PIR’s detection range of SG880M-8mHD can reach to 73ft, while MG882K-8mHD with 85ft in good environments. Figure 8 shows the compared detection zone between normal PIR and the new patented PIR.
-
Page 27: Appendix : Technical Specifications
: Technical Specifications AppendixⅡ: Technical Specifications 5MP Color CMOS, Image Sensor 8MP Interpolation F/NO=2.2 Lens FOV(Field of View)=60° SG880MK-8mHD: 73ft PIR detection range MG882K-8mHD: 85ft Display Screen 1.5” LCD Memory Card From 8 MB to 32 GB 8MP = 3264 ×2448 Picture Resolution 5MP = 2560×1920... -
Page 28: Appendix : Parts List
SG880MK-8mHD/MG882K-8mHD Appendix Ⅲ: Parts List AppendixⅢ: Parts List Part Name Quantity Digital Camera Wireless Remote USB Cable Belt User Manual Enhanced Antenna Warranty Card Website Information: Down load the APP software from here: http://www.bolyguard.com/download.html Version 1.4 Page 26...
