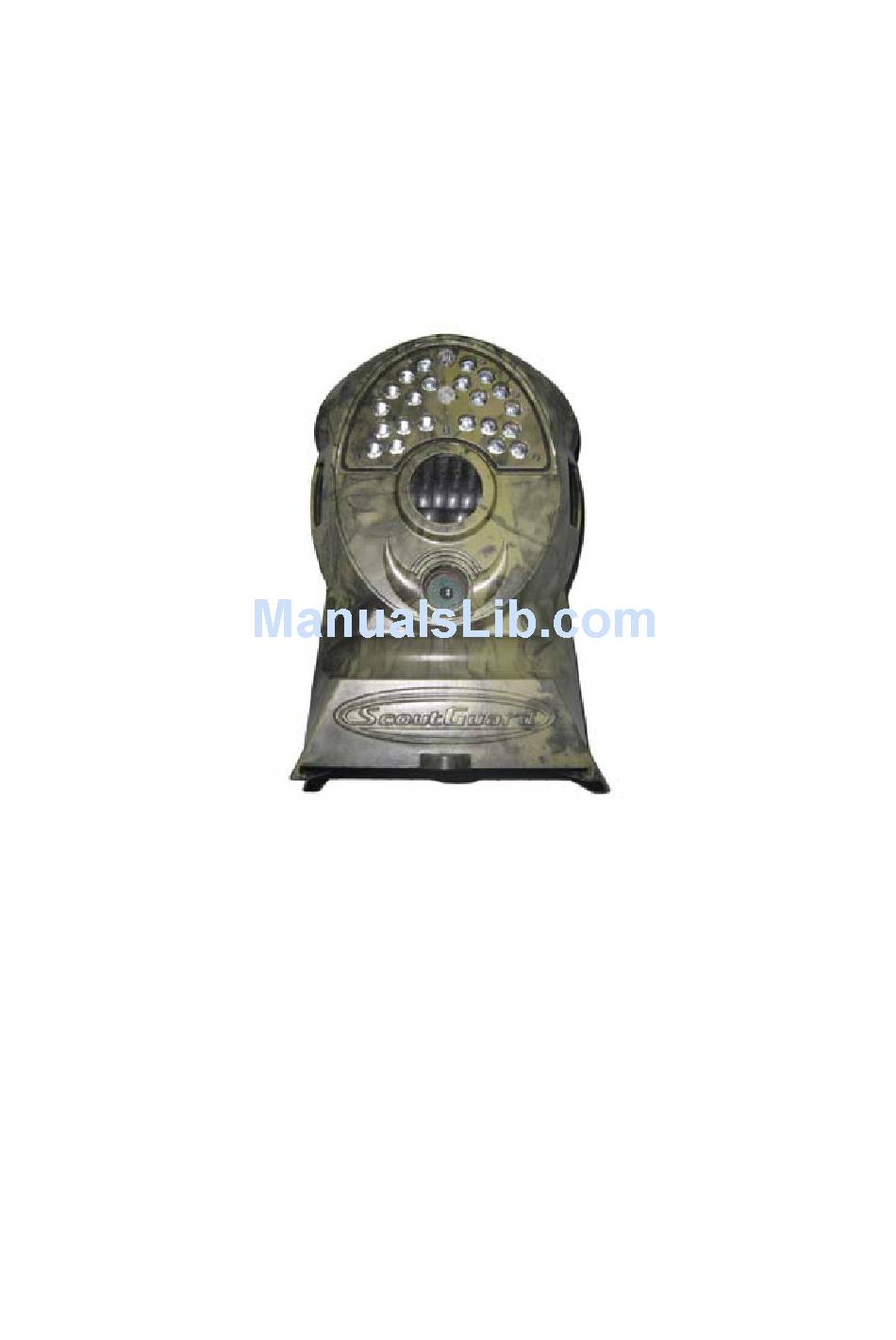

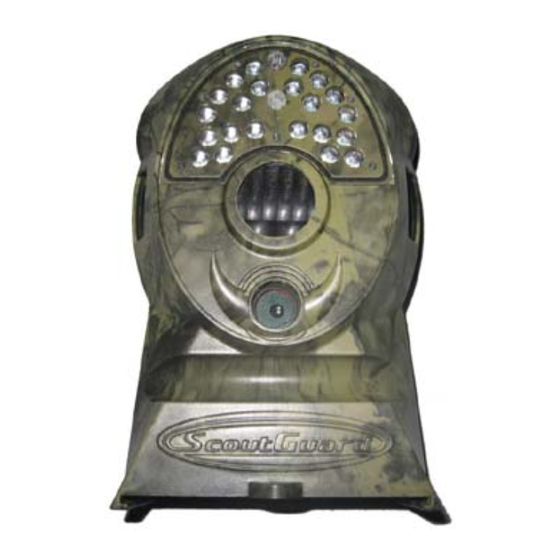

- Page 1 Infrared Digital Scouting Camera User’s Manual Pocket Camera SG550 Series For Model：SG550B/ SG550VB...
-
Page 2: Table Of Contents
Content Instruction ..........................1 General Description ......................1 Camera Body Interfaces....................1 Shooting Information Display..................1 Supported Format......................2 Cautions ...........................3 Easy Operations ........................4 Power Supply........................4 Insert the SD-card......................4 Power on and Entering into the ON Mode ..............4 Enter into the TEST Mode .....................5 Customer Settings ....................5 3.4.1 Manual Capturing ....................5 3.4.2... -
Page 3: Instruction
Pocket Camera SG550 series 1 Instruction 1 Instruction 1.1 General Description This camera, a digital scouting camera, is a surveillance camera working automatically. It can be triggered at once by any movement of human (or animals) in a certain region of interested (ROI) monitored by a high sensitive Passive Infrared (PIR) motion sensor, and then automatically captures high quality pictures (up to 5M pixels) or records video clips (VGA) according to default settings or preset customer settings. -
Page 4: Supported Format
Pocket Camera SG550 series 1 Instruction When the camera is turned on (the power switch is slid to ON position), the shooting information will be displayed in the monitor. 3. Image size 4. SD card 5. Battery level 2. Image mode 6. -
Page 5: Cautions
Pocket Camera SG550 series 2 Cautions 2 Cautions ★ The working voltage of the camera is 6V. The camera is supplied by four AA batteries. ★ Please install batteries according to shown polarity. ★ Please unlock the write-protect before inserting the SD-card. ★... -
Page 6: Easy Operations
Pocket Camera SG550 series 3 Quick Introductions 3 Easy Operations 3.1 Power Supply To supply power for the camera, four AA size batteries are needed. Open the bottom cover. Confirm that the power switch is at the OFF position. Install the fully charged batteries into the depot according the polarities sign shown below. -
Page 7: Enter Into The Test Mode
Pocket Camera SG550 series 3 Quick Introductions into normal use, that is, if the wired control still be connected with the camera, the camera will not work. The camera (the control must be unplugged when in ON mode) will take pictures or videos automatically according to the default settings or preset customer settings. -
Page 8: Advanced Operations
Pocket Camera SG550 series 4 Advanced Operations 4 Advanced Operations From the basic operations of the camera in previous chapter, we know that the camera has three basic operation modes: de: Power switch is at OFF position. 1. OFF 2. ON mode: Power switch is at ON position. 3. -
Page 9: Default Settings
Pocket Camera SG550 series 4 Advanced Operations 4.1.1 Default Settings Default settings are listed below: Setting Items Default Options Submenu Camera Mode Image Video Format Enter Yes, No Image Size 5M Pixel 3M Pixel Video Size × × Set Clock Enter Adjust Clock Capture Number... -
Page 10: Set Image Size
Pocket Camera SG550 series 4 Advanced Operations 4.1.4 Set Image Size The following shows how to set pixel size as 3M Pixel provided that the previous option is 5M Pixel: a) Press MENU to display the setting menu. b) Press UP or DOWN to select Image Size. Press RIGHT to select 3M Pixel. -
Page 11: Set Video Length
Pocket Camera SG550 series 4 Advanced Operations 4.1.8 Set Video Length Press RIGHT to decreases or increases the value by 1 second. The following shows how to set video length to 5 Seconds provided that the previous value is 1 Seconds: a) Press MENU to display the setting menu. -
Page 12: Set Timer
Pocket Camera SG550 series 4 Advanced Operations 4.1.12 Set Timer The setting steps are similar to Set Clock. Please note that the start and stop time can only be effective when the timer is set as On. Provided that the camera should work from eight a.m. to five p.m., the steps are as following: a) Press MENU to display the setting menu. -
Page 13: File Numbering
Pocket Camera SG550 series 4 Advanced Operations 4.2 File Numbering Images and videos are saved in the pre-named folder. File numbering continues by adding one to the last number for each new image or video. The saving name likes IM000001.JPG or IM000001.AVI. Through the suffix you can distinguish whether the file is an image (with suffix .jpg) or a video (with suffix .avi). -
Page 14: Appendixⅰ: Technical Specifications
Pocket Camera SG550 series AppendixⅠ: Technical Specifications AppendixⅠ: Technical Specifications 5MP Color CMOS Image Sensor F/NO=3.1mm Lens FOV(Field of View)=40° 10-12m IR-Flash 1.7” LCD Display Screen From 8 MB to 8 GB Memory Card 5MP = 2560 1920 × Picture Resolution 3MP = 2048 1536 ×... -
Page 15: Appendixⅱ: Parts List
Pocket Camera SG550 series Appendix Ⅱ: Parts List AppendixⅡ: Parts List Part Name Quantity Digital Camera Wired control USB Cable Belt User Manual Page 13...
