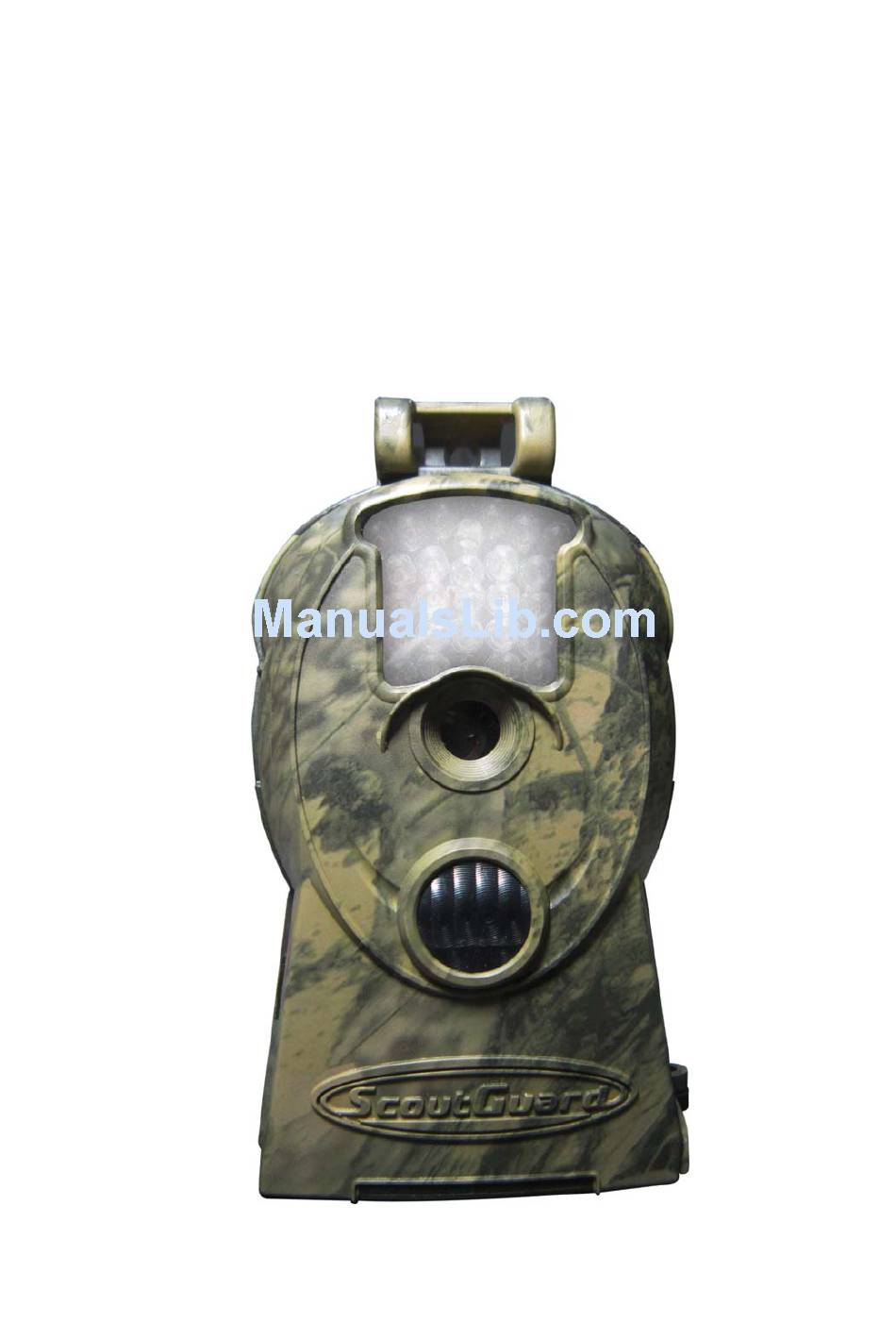

- Page 1 Infrared Digital Scouting Camera User’s Manual Pocket Camera SG570-6M...
-
Page 2: Table Of Contents
Content Instruction....................1 1.1 General Description................1 1.2 Camera Body Interfaces ..............1 1.3 Shooting Information Display ............2 1.4 Supported Format................2 Cautions....................4 Easy Operations ..................5 3.1 Power Supply ..................5 3.2 Insert the SD-card ................5 3.3 Power on and Entering into the ON Mode ........ - Page 3 4.2 File Numbering................17 4.3 Firmware Upgrade ................17 Appendix I: PIR Detection Zone ..............18 AppendixⅡ: Technical Specifications............19 AppendixⅢ: Parts List ................20...
-
Page 4: Instruction
Pocket Camera SG570-6M 1 Instruction 1 Instruction 1.1 General Description This camera, a digital scouting camera, is a surveillance camera working automatically. It can be triggered at once by any movement of human (or animals) in a certain region of interested (ROI) monitored... -
Page 5: Shooting Information Display
Pocket Camera SG570-6M 1 Instruction 1.3 Shooting Information Display When the camera is turned on (the power switch is slid to ON position), the shooting information will be displayed in the monitor. 1.4 Supported Format Item Format Image Video Page... - Page 6 Pocket Camera SG570-6M 1 Instruction File format FAT32 Here are some important notices. You don’t need to concern about the file system format of the camera unless you have problems with reading the SD-card by your other equipments. If this happened, please format the SD-card in the camera or in a computer at first and then reinsert the card into your camera to make a try.
-
Page 7: Cautions
Pocket Camera SG570-6M 2 Cautions 2 Cautions ★ The working voltage of the camera is 6V. It is supplied by four AA batteries.Please install batteries according to shown polarity. ★ Please unlock the write-protect before inserting the SD-card. ★ Please insert the SD-card when the power switch is at OFF position before testing the camera. -
Page 8: Easy Operations
Pocket Camera SG570-6M 3 Quick Introductions 3 Easy Operations 3.1 Power Supply To supply power for the camera, four AA size batteries are needed. Open the bottom cover. Confirm that the power switch is at the OFF position. Install the fully charged batteries into the depot according the polarities sign shown below. -
Page 9: Power On And Entering Into The On Mode
Pocket Camera SG570-6M 3 Quick Introductions 3.3 Power on and Entering into the ON Mode Before switching on, please pay attention to the follows: 1. Avoid temperature and motion disturbances in front of the camera such as big leaf, curtain, air-conditioner, air outlet of the chimney and other heat sources to prevent from false triggering. -
Page 10: Customer Settings
Pocket Camera SG570-6M 3 Quick Introductions in this mode. 3.4.1 Customer Settings Press MENU on the control to enter into menu settings. The camera can be taken over control to manually customize the camera settings which display on the LCD screen on the camera or external TV monitor. - Page 11 Pocket Camera SG570-6M 3 Quick Introductions will not be used for a long time. Page...
-
Page 12: Advanced Operations
Pocket Camera SG570-6M 4 Advanced Operations 4 Advanced Operations From the basic operations of the camera in previous chapter, we know that the camera has three basic operation modes: OFF mode: Power switch is at OFF position. ON mode: Power switch is at ON position. -
Page 13: Default Settings
Pocket Camera SG570-6M 4 Advanced Operations Set camera date and time. Set Clock Capture Choose the continuous shooting numbers after Number each triggering. Video Choose duration of recording video. Length Choose how long the camera will stop functioning Interval after each triggering. The camera’s PIR will be disabled during this interval. -
Page 14: Set Camera Mode
Pocket Camera SG570-6M 4 Advanced Operations 0–59 seconds, 1-60 Interval 1 Minute minutes Sense Normal High, Low Level Time Stamp Timer Start, Stop Switch (00:00 – 23:59) Default Set 4.1.2 Set Camera Mode There are two ways to set the camera mode: 1. Via shortcut key; 2. -
Page 15: Set Image Size
Pocket Camera SG570-6M 4 Advanced Operations b) Press UP or DOWN to select Format. c) Press OK to choose Enter to enter into submenu. d) Press RIGHT to select Yes. Yes will be highlighted. e) Press OK to start formatting the SD-card. During formatting, the display screen will show a message “Formatting…”... -
Page 16: Set Date And Time
Pocket Camera SG570-6M 4 Advanced Operations Press MENU to cancel setting and return to info display. 4.1.6 Set Date and Time The date format is month/day/year, the time format is hour: minute: second. The valid value for year is between 2006 and 2031. -
Page 17: Set Triggering Interval Time
Pocket Camera SG570-6M 4 Advanced Operations that the previous value is 1 Seconds: a) Press MENU to display the setting menu. b) Press UP or DOWN to select Video Length. c) Press RIGHT to increase to 5 Seconds. d) Press OK to save the current setting and the option will be un-highlighted. -
Page 18: Set Date And Time Stamp
Pocket Camera SG570-6M 4 Advanced Operations d) Press OK to save the current setting and the option will be un-highlighted. Press MENU to cancel setting and return to info display. 4.1.11 Set Date and Time Stamp The following shows how to set time stamp as Off provided that the previous option is On. -
Page 19: Reset To Default Settings
Pocket Camera SG570-6M 4 Advanced Operations un-highlighted. Press MENU to return to previous menu. 4.1.13 Reset to Default Settings To reset the setting to the default values, the steps are as follows: a) Press MENU to display the setting menu. -
Page 20: File Numbering
Pocket Camera SG570-6M 4 Advanced Operations d) Press OK, No and Yes are prompted. No is highlighted. e) Press SHOT to highlight Yes. f) Press OK to delete the image or video. Press MENU to cancel and return to playback. -
Page 21: Appendix I: Pir Detection Zone
Pocket Camera SG570-6M AppendixⅠ: PIR Detection Zone Appendix I: PIR Detection Zone The figure4 shows the detection range in different detection angle. When the detection angle is 35°,the detection range is 50ft. When the detection angle is 52°,the detection range is 30ft. -
Page 22: Appendixⅱ: Technical Specifications
Pocket Camera SG570-6M AppendixⅡ:Technical Specifications AppendixⅡ: Technical Specifications 5MP CMOS Sensor Image Sensor 6MP Interpolation F/NO=3.1mm Lens FOV(Field of View)=52° IR-Flash Up to 14m Detection Range Up to 12m Display Screen 1.5” LCD Memory Card Up to 32GB 6MP=2848x2136 Image Resolution 3MP=2048x1536 640×480 (16fps) -
Page 23: Appendixⅲ: Parts List
Pocket Camera SG570-6M Appendix Ⅲ: Parts List AppendixⅢ: Parts List Part Name Quantity Digital Camera Wired control USB Cable TV Cable Belt User Manual Page 20...
