ScoutGuard SG880MK-8M User Manual

Infrared mobile digital scouting camera
Hide thumbs Also See for SG880MK-8M:
Table of Contents

Advertisement

Quick Links

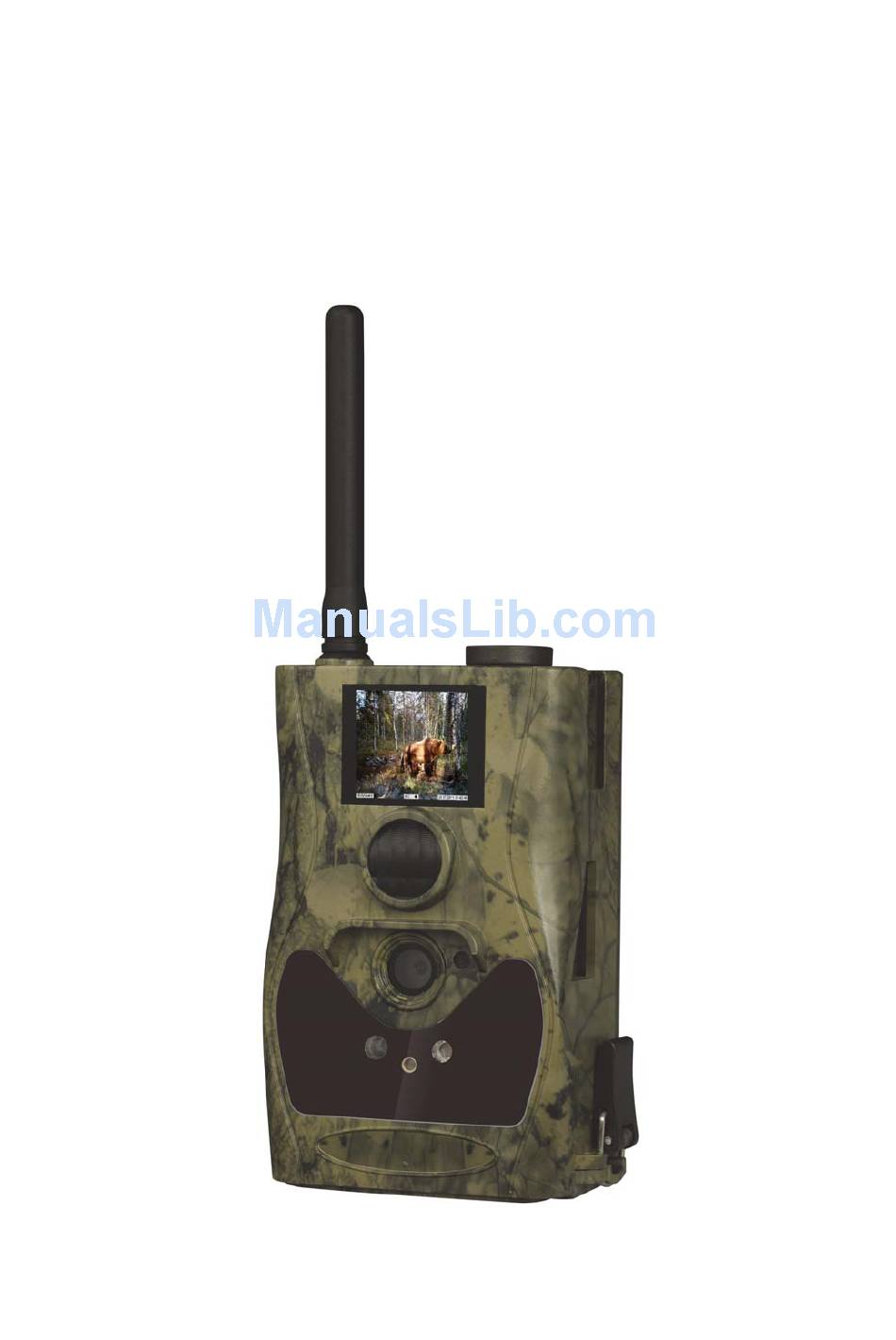

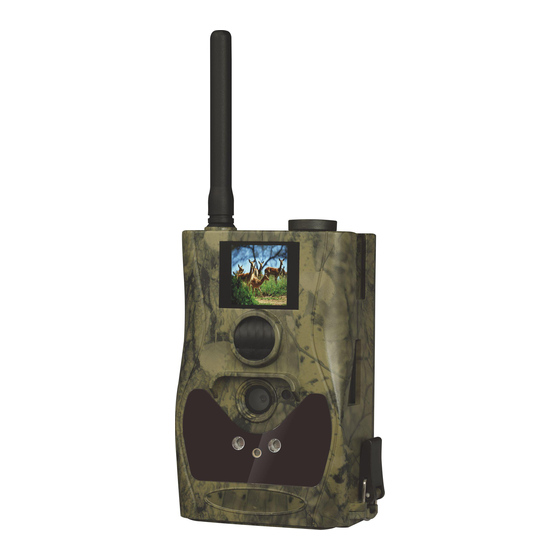

Infrared Mobile Digital Scouting Camera
User's Manual
SG880MK-8M

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SG880MK-8M and is the answer not in the manual?

Questions and answers

Related Manuals for ScoutGuard SG880MK-8M

Summary of Contents for ScoutGuard SG880MK-8M

  • Page 1 Infrared Mobile Digital Scouting Camera User’s Manual SG880MK-8M...

  • Page 2: Table Of Contents

    Content 1 Instruction ..................1 1.1 General Description..............1 1.2 Camera Body Interfaces ............. 1 1.3 Remote Control ................3 1.3.1 Navigating................4 1.3.2 Characters ................4 1.4 Shooting Information Display ............ 5 1.5 MMS/GPRS function..............5 1.6 Supported Format ............... 6 2 Cautions ....................
  • Page 3 4.1.7 Set Photo Burst ..............20 4.1.8 Set Video Length..............20 4.1.9 Set Video Sound ..............21 4.1.10 Set PIR Triggering Interval Time........21 4.1.11 Set PIR Sensitivity ............... 22 4.1.12 Set Timer ................23 4.1.13 MMS Settings ............... 23 4.1.14 GPRS Settings ..............

  • Page 4: Instruction

    SG880MK-8M 1 Instruction 1 Instruction 1.1 General Description This camera, a digital scouting camera with black IR and MMS function , is a digital infrared surveillance camera, triggered by any movement of humans or animals monitored by a high sensitive Passive...
  • Page 5 SG880MK-8M 1 Instruction On the back of camera, there is a lock for theft-proof and an adjuster to change the tilt when mounting on an irregular interface e.g. tree. Take a few moments to familiarize yourself with the camera controls and displays. It is helpful to bookmark this section and refer to it when reading through the rest of the manual.

  • Page 6: Remote Control

    SG880MK-8M 1 Instruction 1.3 Remote Control The remote control is the input device for the Menu Menu Cancel Cancel camera and is primarily used for customer settings and password input. This is an infrared type wireless remote control. The maximum remote distance is 30 feet.

  • Page 7: Navigating

    SG880MK-8M 1 Instruction 1.3.1 Navigating Press UP or DOWN to select or highlight the menu item. Press LEFT or RIGHT to select the option of each item and press OK to make a selection. 1.3.2 Characters When entering digits, letters or punctuations into an input column,...

  • Page 8: Shooting Information Display

    SG880MK-8M 1 Instruction : 1 . / : @ _ : 0 + - Press the punctuation “*” for laser pointer. 1.4 Shooting Information Display When the camera is turned on (the power switch is slid to ON or TEST position), the current settings will be displayed on screen.

  • Page 9: Supported Format

    SG880MK-8M 1 Instruction different installation situations. means the SIM card is inserted and it works well. means the MMS function can’t work correctly because of loss of signal or other communication issues. If the SIM card is not inserted, no SIM card icon will be displayed.

  • Page 10: Cautions

    SG880MK-8M 2 Cautions 2 Cautions ★ The working voltage of the camera is 6V. The camera is supplied by four or eight AA batteries. ★ Please install batteries according to shown polarity. ★ Please unlock the write-protect before inserting the SD-card.

  • Page 11: Quick Start Guide

    SG880MK-8M 3 Quick Introductions 3 Quick Start Guide 3.1 Power Supply To supply power for the camera, four or eight size AA batteries are needed. Open the bottom cover. Confirm that the power switch is in the OFF position and pull out the battery pack by pulling the silver handle. Load the fully charged batteries into the pack according the polarities signs shown below.

  • Page 12: Insert The Sd-Card And The Sim-Card

    SG880MK-8M 3 Quick Introductions 3.2 Insert the SD-card and the SIM-card Open the bottom cover. Insert an SD-card into the card slot with unmarked side upwards. Please note that the SD-card is on the “write” (not locked) position otherwise the camera will not function correctly.

  • Page 13: Enter Into The Test Mode

    SG880MK-8M 3 Quick Introductions default settings or previous custom settings. The camera has the sound recording function, so the sound will be embedded in the video clip while capturing a video. 3.4 Enter into the TEST Mode Slide the power switch to the TEST position and enter into the TEST mode.

  • Page 14: Send Mms

    SG880MK-8M 3 Quick Introductions The detailed operations like deleting images or videos will be described in the “Advanced Operations” chapter. 3.4.4 Send MMS When the Send Mode is set as “Manual”, you can send the selected photo to the preset address in TEST mode. ”Daily Report” and “Instant”...

  • Page 15: Advanced Operations

    SG880MK-8M 4 Advanced Operations 4 Advanced Operations From the basic operations of the camera previewed in the previous chapter, we know that the camera has three basic operation modes: OFF mode: Power switch is in the OFF position. ON mode: Power switch is in the ON position.
  • Page 16 SG880MK-8M 4 Advanced Operations Choose the image size, e.g. 8 mega pixels or 5 mega Photo Size pixels. Video Size Choose the video size, e.g. 640×480 (VGA). Set Clock Set camera date and time. Choose the continuous shooting numbers after each Photo Burst triggering.
  • Page 17 SG880MK-8M 4 Advanced Operations function can be set to Off and will function to the interval settings. The camera sends MMS message through GPRS network, so before using this function, you need to open GPRS service from your service provider. It supports four bands ：850MHz, 900MHz, 1800MHz...
  • Page 18 SG880MK-8M 4 Advanced Operations photos can be sent in TEST mode .Video information SMS can’t be sent in TEST mode. 2)“Daily Report”: Daily Report works only in the ON mode, which means that the camera will report the summarized information at the preset time (if the preset time is, eg.20:00PM) on how many pictures it had taken per...

  • Page 19: Default Setting

    SG880MK-8M 4 Advanced Operations SD-card. After 24 hours, the camera will send MMS again when it captures photos. If it is on Video mode, the Camera will send only SMS instead of MMS. 4) “OFF”: To disable MMS function. Choose send the image to your Phone or to Email.

  • Page 20: Set Camera Mode

    SG880MK-8M 4 Advanced Operations Video Size 640×480 320×240 Set Clock Enter Adjust Clock Photo Burst 1 Photo 2 Photo, 3 Photo Video Avi 10 sec Avi 5–60 sec Length Video Sound 5–60 seconds, Interval 1 Min 1-60 min Sense Level...

  • Page 21: Format Sd-Card

    SG880MK-8M 4 Advanced Operations Video, provided that the previous option is Photo: a) Press MENU to display the setting menu. b) Press UP or DOWN to select Camera Mode. c) Press LEFT or RIGHT to select Video. d) Press OK to save the current setting and the option will be un-highlighted.

  • Page 22: Set Video Size

    SG880MK-8M 4 Advanced Operations a) Press MENU to display the setting menu. b) Press UP or DOWN to select Photo Size. c) Press LEFT or RIGHT to select 8M Pixel. d) Press OK to save the current setting and the option will be un-highlighted.

  • Page 23: Set Photo Burst

    SG880MK-8M 4 Advanced Operations b) Press UP or DOWN to select Set Clock. c) Press OK to enter into submenu. d) Press LEFT or RIGHT to select item, press UP or DOWN to change the value. e) Press OK to save all current setting and return to info display.

  • Page 24: Set Video Sound

    SG880MK-8M 4 Advanced Operations that the previous value is 10 Seconds: a) Press MENU to display the setting menu. b) Press UP or DOWN to select Video Length. c) Press LEFT or RIGHT to decrease or increase to 5 Seconds.

  • Page 25: Set Pir Sensitivity

    SG880MK-8M 4 Advanced Operations The following shows how to set triggering interval time to 5 Minutes provided that the previous value is 1 Minute. a) Press MENU to display the setting menu. b) Press UP or DOWN to select Interval.

  • Page 26: Set Timer

    SG880MK-8M 4 Advanced Operations b) Press UP or DOWN to select Sense Level. c) Press LEFT or RIGHT to select Low. d) Press OK to save the current setting and the option will be un-highlighted. Press MENU to cancel setting and return to info display.
  • Page 27 SG880MK-8M 4 Advanced Operations follows: a) Press MENU to display the setting menu. b) Press UP or DOWN to select MMS Set. c) Press OK to Enter into submenu. d) There are four inputs for key in URL, APN, IP and Port, press ﹟...

  • Page 28: Gprs Settings

    SG880MK-8M 4 Advanced Operations set account and password to launch MMS.) Number: (Max. 24 characters for each phone number) Email: (Max. 48 characters for each email) Please note that this is only an example, for more details please contact your network service provider, and there are only 4 parameters needs to be edited, do not change other parameters expect these 4 parameters to avoid operation failure.

  • Page 29: Set Sending Mode

    SG880MK-8M 4 Advanced Operations 4.1.15 Set Sending Mode There are 3 MMS modes: “Manual” works in TEST mode. “Daily report” and “Instant” work in ON mode. For more information, please refer to 4.1 settings menu. The following shows how to set the MMS mode to Instant provided that the previous option is Off: a) Press MENU to display the setting menu.

  • Page 30: Set Sending To

    SG880MK-8M 4 Advanced Operations Press MENU to cancel setting and return to info display. If you choose “Daily Report”, you need to set the daily report time: xxH, xxM. If you choose “Instant”, you need to set how many MMS you want to send for economy consideration.

  • Page 31: Reset To Default Settings

    SG880MK-8M 4 Advanced Operations Press MENU to display the setting menu. Press UP or DOWN to select Password. Press LEFT or RIGHT to select On. Press OK to enter into submenu. There are three inputs for key in new, old and confirm password, press ﹟...

  • Page 32: Viewing Photo Or Video

    SG880MK-8M 4 Advanced Operations won’t be introduced here. 4.2.1 Viewing Photo or Video a) Switch to TEST mode and enter into info display. b) Press OK to view the latest picture (or video) in LCD screen on camera, TV monitor or Image viewer with TV-in connector.

  • Page 33: Send Mms Manually

    SG880MK-8M 4 Advanced Operations files can’t be restored! Furthermore, in order to delete all images and video clips in the SD-card, it is suggested to format the SD-card. Please refer to 4.2.4. 4.2.3 Send MMS Manually The Send MMS option will only be shown when the setting item Send Mode is selected as Manual.
  • Page 34 SG880MK-8M 4 Advanced Operations Images and videos are saved in the pre-named folder. File numbering continues by adding one to the last number for each new image or video. Saving names are IMAG0001.JPG or IMAG0001.AVI. Through the suffix you can distinguish whether the file is an image (with suffix .jpg) or a video (with suffix .avi).

  • Page 35: Appendix I: Pir Detection Zone

    SG880MK-8M Appendix I: PIR Detection Zone Appendix I: PIR Detection Zone The figure4 shows the detection range in different detection angle. When the detection angle is 35°,the detection range is 50ft. When the detection angle is 52°,the detection range is 30ft.
  • Page 36 Appendix I: PIR Detection Zone Figure 5 SG880MK-8M has a new design of PIR and this new PIR is patented. The new patented PIR’s detection range is ultra-long. The figure 6 shows the compared detection zone between normal PIR and the new patented PIR.

  • Page 37: Appendixⅱ: Technical Specifications

    SG880MK-8M Ⅱ Appendix : Technical Specifications AppendixⅡ: Technical Specifications Image Sensor 5MP Color CMOS, 8MP Interpolation Lens F/NO=3.0 FOV(Field of View)=52° PIR detection range 18M/60F Display Screen 1.5” LCD Memory Card From 8 MB to 32 GB 8MP = 3328 ×2496 Picture Resolution 5MP = 2560×1920...

  • Page 38: Display Screen

    SG880MK-8M Ⅱ Appendix : Technical Specifications Low Battery Alert LED Indicator Display Screen LCD display on camera Sound Recording Available Mounting Rope/Belt/Python lock Dimensions 140 x87 x55 mm Operation Humidity 5% - 90% Security FCC, CE, RoHS authentication *without battery...

  • Page 39: Appendixⅲ: Parts List

    SG880MK-8M Appendix Ⅲ: Parts List AppendixⅢ: Parts List Part Name Quantity Digital Camera Wireless Remote Control USB Cable TV cable Belt User Manual Antenna Enhanced Antenna （Option） Page 36...
