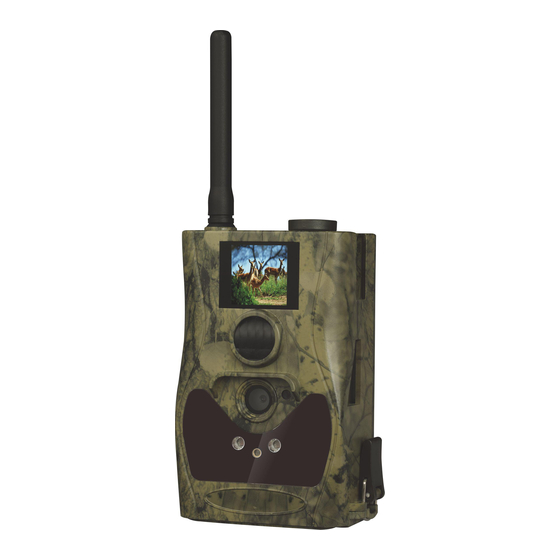

Infrared mobile digital scouting camera
Hide thumbs Also See for SG880MK-8M:

Advertisement

Infrared Mobile Digital Scouting Camera
User's Manual
SG880MK-8M

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SG880MK-8M and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for ScoutGuard SG880MK-8M

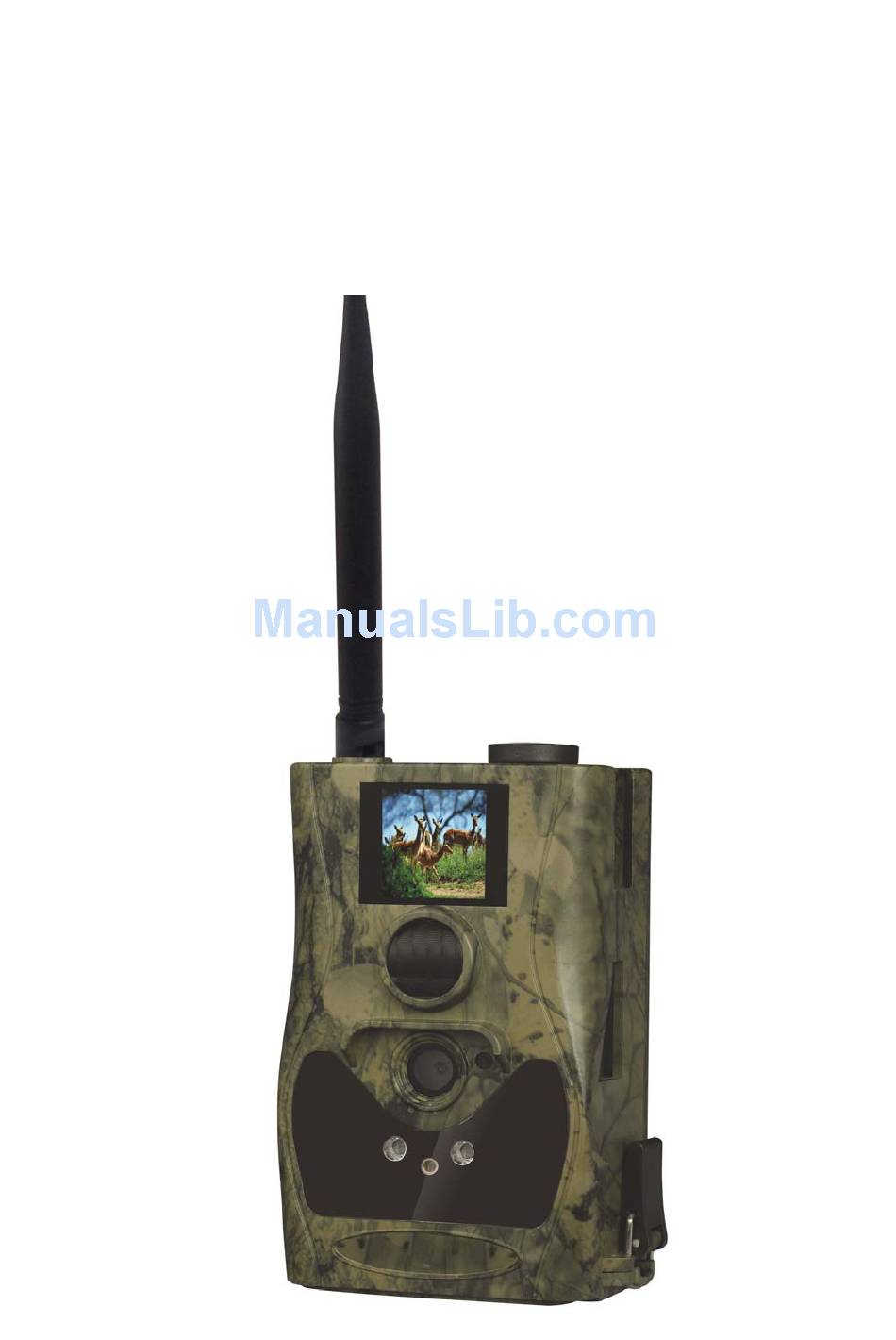

  • Page 1 Infrared Mobile Digital Scouting Camera User’s Manual SG880MK-8M...
  • Page 2: Table Of Contents

    Content 1 Instruction..................1 1.1 General Description ..............1 1.2 Application ...................1 1.3 Camera Overview ................ 2 1.4 Remote Control ................2 1.4.1 Navigating ................3 1.4.2 Characters ................4 1.5 Shooting Information Display............. 4 1.6 MMS/GPRS function ..............5 1.7 Saving Images or Videos ............. 6 2 Cautions.....................7 3 Quick Start Guide ................
  • Page 3: Instruction

    SG880MK-8M 1 Instruction 1 Instruction 1.1 General Description This camera, a digital scouting camera with black IR and MMS function, is a digital infrared surveillance camera, triggered by any movement of human or animal monitored by a high sensitive Passive Infrared (PIR) motion sensor, and then...
  • Page 4: Camera Overview

    SG880MK-8M 1 Instruction alone for weeks and months and it will save event records automatically in digital format. 1.3 Camera Overview The camera has the following I/O interfaces: USB connector, SD card slot, TV output and external DC power connector.
  • Page 5: Navigating

    SG880MK-8M 1 Instruction The remote control is the input device for the camera and is primarily used for customer settings and password input. This is an infrared type wireless remote control. The maximum remote distance is 30 feet (9.1m). There are fifteen buttons on the remote control.
  • Page 6: Characters

    SG880MK-8M 1 Instruction Figure 3 Key description of the remote control Characters 1.4.2 When entering digits, letters or punctuations into an input column, there are some useful characters that can be used by pressing the button continuously: : 1 . / : @ _ : 0 + - Press the punctuation “*”...
  • Page 7: Mms/Gprs Function

    SG880MK-8M 1 Instruction Figure 4 Shooting information display 1.6 MMS/GPRS function This camera can send pictures instantly to your mobile device via GSM/GPRS network. You’ll be alerted just when a picture or video has been taken. The camera sends MMS message through GPRS network, so before using this function, you need to open GPRS service from your service provider.
  • Page 8: Saving Images Or Videos

    SG880MK-8M 1 Instruction function. They are Send Mode, MMS Set, GPRS Set and Send to. Send Mode means to choose a way to send MMS (refer to 4.5). MMS Set and GPRS Set means to have the right MMS and GPRS setting parameters according to your network.
  • Page 9: Cautions

    SG880MK-8M 2 Cautions 2 Cautions ★The working voltage of the camera is 6V. The camera is supplied by 8 or 4 AA batteries. ★Please install batteries according to shown polarity. ★Must insert the SD card before power on camera. The camera has no internal memory for saving images or videos.
  • Page 10: Quick Start Guide

    SG880MK-8M 3 Quick Introductions 3 Quick Start Guide 3.1 Power Supply Use 8 or 4 AA batteries for power supply 3.2 Insert SD card and SIM card Insert an unlocked SD card and an available GPRS enabled SIM card. 3.3 Check cards status Slide the power switch to the TEST position and enter into the TEST mode.
  • Page 11: Enter On Mode To Work

    SG880MK-8M 3 Quick Introductions Enter MMS Set submenu and check the MMS settings and press OK. For more MMS and GPRS settings information, please refer to chapter 4.5. Enter Send To submenu set as Phone[MMS] and input the receive phone number and press OK to save.
  • Page 12: Advanced Operations

    SG880MK-8M 4 Advanced Operations 4 Advanced Operations This chapter explains the advanced operations for customizing the camera settings. 4.1 Power Supply Use 8 or 4 AA batteries or 6V external battery for power supply (Figure 5). Figure 5 Battery Configurations of 8 or 4 batteries...
  • Page 13: Insert Sd Card And Sim Card

    SG880MK-8M 4 Advanced Operations Insert SD card and SIM card Open the bottom cover. Insert an SD card into the card slot with unmarked side upwards. Please note that the SD card is on the “write” (not locked) position, otherwise the camera will not function correctly.
  • Page 14: Enter Into Test Mode

    SG880MK-8M 4 Advanced Operations 4.4 Enter into TEST Mode Slide the power switch to the TEST position and enter into the TEST mode. There are some functions in TEST mode: custom settings, manual capture, preview or send MMS manually. The remote control is needed in TEST mode.
  • Page 15 SG880MK-8M 4 Advanced Operations Video Choose duration of recording video. Length Video Sound Choose if the sound recorder will be used. This parameter indicates how long the PIR (Passive Infrared motion sensor) will be disabled after each triggering in ON mode. During this time...
  • Page 16 SG880MK-8M 4 Advanced Operations way the communication cost will be much cheaper in many countries. You should set the right GPRS setting parameters. The settings of GPRS: Email server port, APN and so on. Please contact the network service provider if you are not familiar with the settings.
  • Page 17: Default Set

    SG880MK-8M 4 Advanced Operations then it continues to capture photos and save them on the SD-card. After 24 hours, the camera will send MMS again when it captures photos. If it is on Video mode, the Camera will send only SMS instead of MMS.
  • Page 18 SG880MK-8M 4 Advanced Operations Start, Stop Timer Switch (00:00 – 23:59) URL, APN, MMS Set Enter IP, Port Server, APN, GPRS Set Enter Port Manual, Daily Send Mode Manual Report, Instant Email[MMS], Send To Phone[MMS] Email[GPRS] Password Default Set Save 4.5.2 Edit MMS Settings in computer...
  • Page 19: Playback

    SG880MK-8M 4 Advanced Operations Port:e-mail server port, for example: 25 APN:internet APN, for example: uninet Account: Password: E-mail user : sending e-mail address, for example: abc@163.com E-mail password: sending e-mail password, for example: 1111 [Addressee] Phone: (max. 24 characters for each phone number) E-mail: (max.
  • Page 20: Send Mms Manually

    SG880MK-8M 4 Advanced Operations g) Press OK to delete the image or video. Press MENU to cancel and return to playback. Please note that after deleting a picture or a video file, the deleted files can’t be restored! Furthermore, in order to delete all images and video clips in the SD card, it is suggested to format the SD card.
  • Page 21: Trouble Shooting

    SG880MK-8M 5 Trouble shooting Trouble shooting There is something in front of the camera lens. Is the camera broken? Figure 6 IR-Cut filter A: The camera is not broken. It’s an IR-Cut filter. When the camera is powered on, the IR-Cut will be reset and cover the lens.
  • Page 22: Appendix I: Pir Detection Zone

    Appendix I: SG880MK-8M PIR Detection Zone Appendix I: PIR Detection Zone Figure 7 shows the detection range in different detection angle. When the detection angle is 35°, the detection range is 50ft (15m). When the detection angle is 52°, the detection range is 30ft (9m).
  • Page 23 Appendix I: SG880MK-8M PIR Detection Zone Figure 8 Detection angle vs. FOV angle This camera has a new design of PIR and the new PIR is patented. The new patented PIR’s detection range is ultra-long. Figure 9 shows the compared detection zone between normal PIR and the new patented PIR.
  • Page 24: Appendix : Technical Specifications

    SG880MK-8M Ⅱ Appendix : Technical Specifications AppendixⅡ: Technical Specifications 5MP Color CMOS, 8MP Image Sensor Interpolation Lens F/NO=3.0 FOV (Field of View)=52° PIR detection range 18M/60F Display Screen 1.5” LCD Memory Card From 8 MB to 32 GB 8MP = 3328 ×2496 Picture Resolution 5MP = 2560×1920...
  • Page 25: Appendix Ⅲ: Parts List

    SG880MK-8M Appendix Ⅲ: Parts List Appendix Ⅲ: Parts List Part Name Quantity Digital Camera Wireless Remote Control USB Cable Belt User’s Manual Antenna (version 1.2) Page 23...
