Installing the CPU Heat Sink

Cybernet iOne-G4

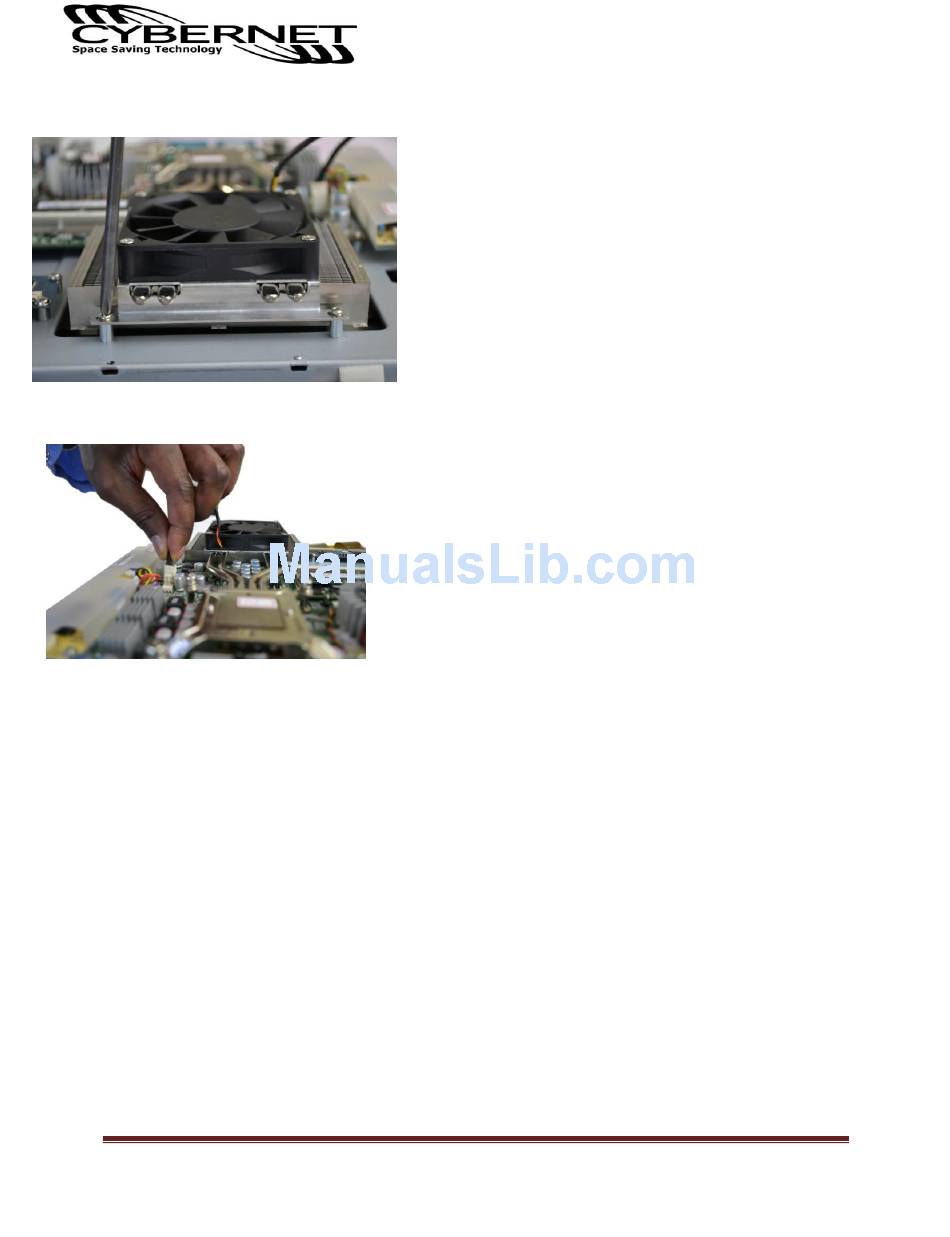

1. Put on the heat sink and make sure that the
four screws fit the corresponding screw holes
on the motherboard.
2. Alternate pressure while securing the four
screws with balance.
Note: Do not fix any screws until the four
screws are in their positions.
3. Secure the two screws at the opposite end
near the top edge of the bezel.
4. Connect the power cable to CPU Fan on the
motherboard labeled FAN 1 CPU FAN.
Page 17
