Installing the Mini PCIe Card (Optional)

Cybernet iOne-G4

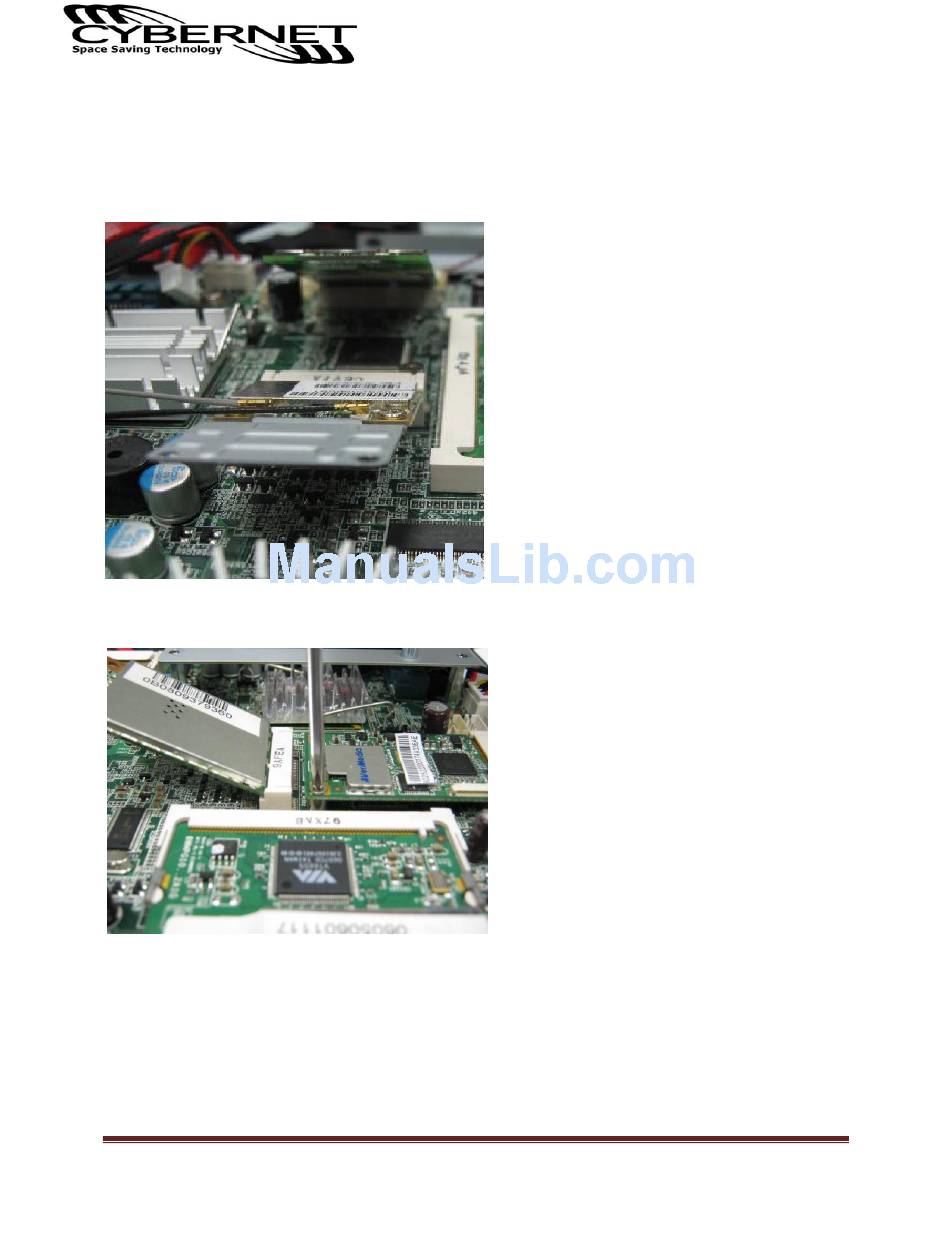

1. The mini PCIE card has only one
notch and will only fit in one way.
Insert the mini PCIe card into the
mini PCIe slot at a 45° angle.
Then push it in until the golden
finger on the mini PCIe card is
deeply inserted into the mini PCIe
slot.
2. Press down the mini PCIe card
and secure the screw to complete
the installation.
Page 23
