iOne-G4 Disassembly
ORIENTATION: Presumes the top of the iOne is away from you and the bottom or I/O
controller board is nearest you.
1.
Place the iOne face down on a padded surface.
2.
Remove the four screws from the base plate that attaches the stand to the LCD.
Support the base when removing the last screw.
3.
Remove the eight back bezel screws.
4.
Carefully remove the back bezel and set aside.
5.
Then remove the metal EMI shield by first removing the I/O cover: remove the
three screws on the bottom and two screws on the face. Lift the plate out and up
and set aside.
6.
Remove the remaining eleven screws around the metal shield covering the
motherboard.
7.
First lift the metal shield and slide it to the right, clearing the optical drive door (at
the top right). Then disconnect the system fan cable connector from the
motherboard at FAN2 next to the top right corner of the CPU.
Cybernet iOne-G4

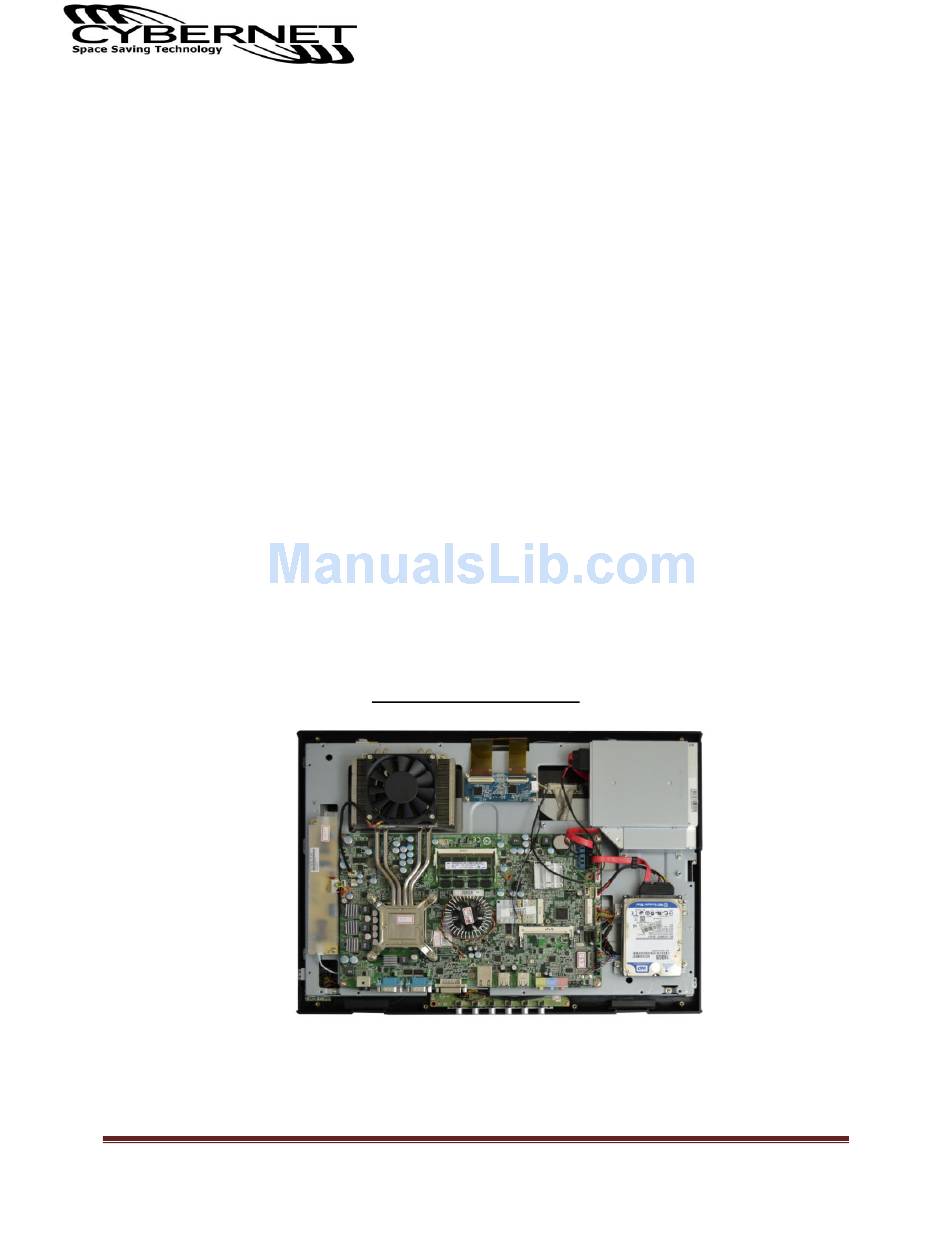

Figure 12: Open System
Page 15
User Guide
