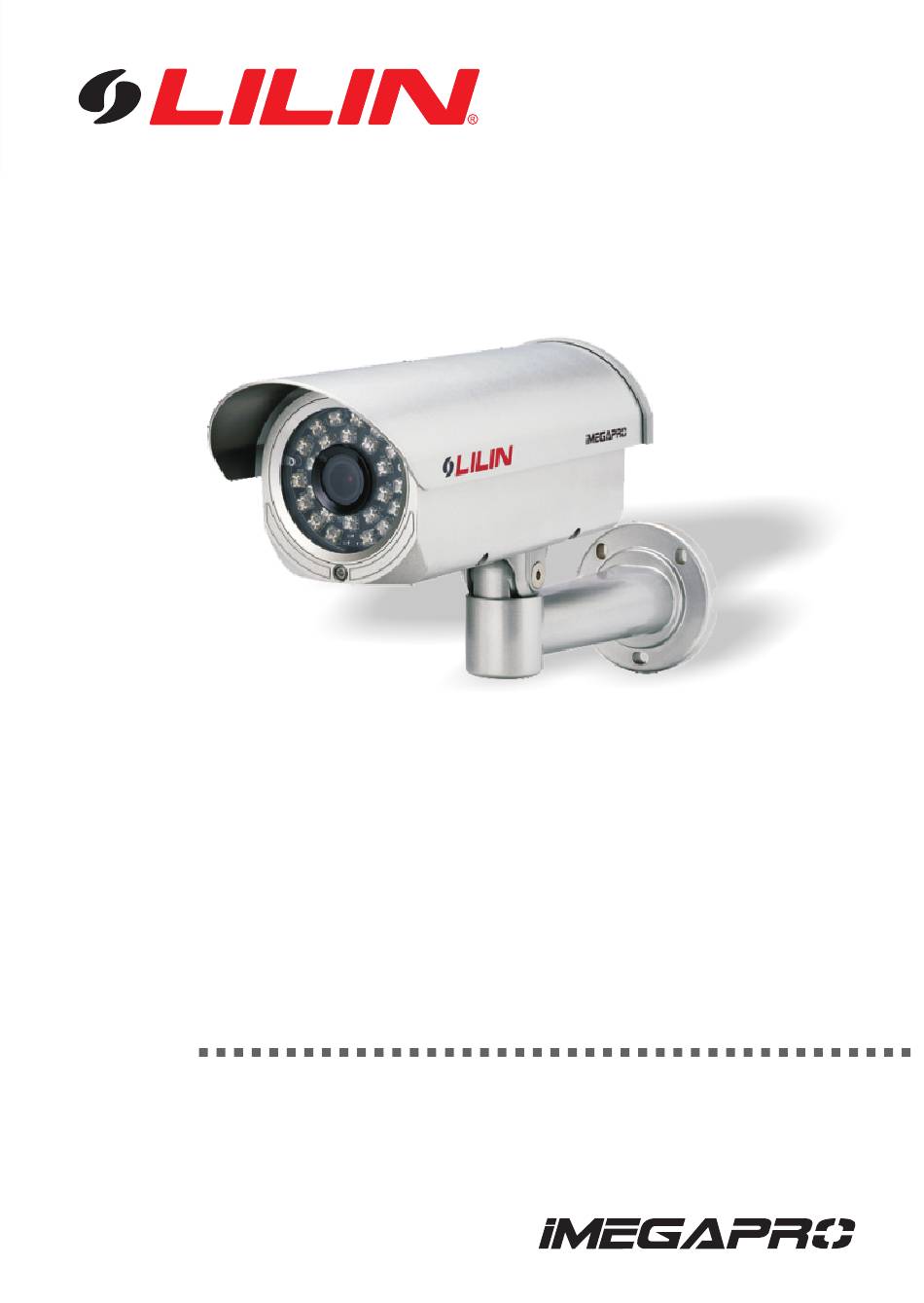

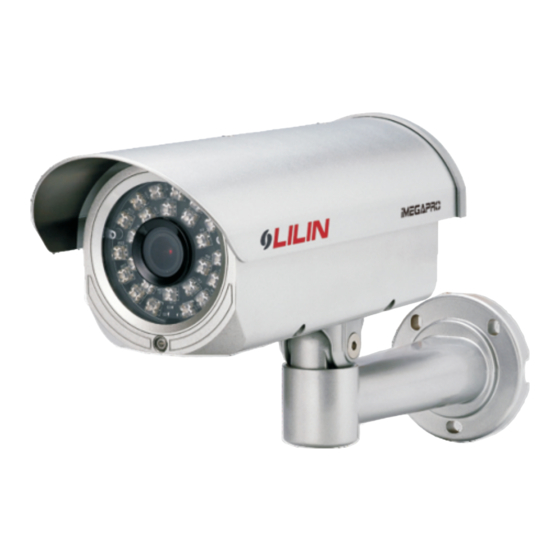

- Page 1 IPR424/428ESX D/N 1080P HD Vari-Focal Infrared IP Camera LR7224/7228EX D/N 1080P HD Vari-Focal Infrared IP Camera IPR434/438ESX D/N 3MP HD Vari-Focal Infrared IP Camera Quick Installation Guide...
- Page 2 CAUTION Do not drop or strike this equipment Do not install the equipment near any naked flames or heat sources Do not expose this unit to rain, moisture, smoke or dust environment Do not cover the opening of the cabinet with cloth and plastic or to install this unit in poor ventilated places.
- Page 3 Product Overview Unit: mm Sun Shield Top Cover Bottom Chassis Bracket Pan Adjustment Screw Tilt Adjustment Screw Lens Light Sensor...
-
Page 4: Installation
Installation 1. Take out the bracket from the box. Put the power cable and network cable through the bracket and then fix it to the wall (FIG.1 & FIG.2). 2. Take out the camera body and open the top cover with screw driver (FIG.3). - Page 5 4. Use the provided 1/4”-20UNC screws (4 silver ones) to fix the camera body on the bracket with hexagon screw driver (FIG.6). 5. Loose the pan and tilt adjustment screws on the bracket to turn the camera body to the desired angle and then tighten the screws (FIG.7).
-
Page 6: System Overview
6. Adjust the lens on focus and zoom for recording clear video image. After that, tighten the screws (FIG.8). 7. Replace the top cover and tighten the screws (FIG.9 & FIG.10). System Overview Top View... - Page 7 Input/Output Device Component Description Alarm In/Out & Audio In/Out Connector SD Card Connector RJ-45 Jack Video Out Jack Load Default Button System Architectures For connecting HD IP cameras to the network, please follow one of the system architectures: (1). Use AC24V or AC100~240V power supply and a network switch to connect to the network.
-
Page 8: Emergency Factory Default
Emergency Factory Default To restore factory default settings by hardware, please follow these steps: 1. Hold “RESET Key” for 10 seconds, then release. 2. After about 40 seconds, the network LED light should turn off, and the back on again. 3. -
Page 9: Software Requirements
JPEG or H.264 Full HD video. When you login to the IP camera by Internet Explorer, the security warning dialog box will prompt the installation of the LILIN Universal ActiveX. Click Install to download it. Configuring IP Addresses by IPScan Software... - Page 10 Configuring IP Addresses via Web Interface To change an IP address via web interface, type the default IP address (192.168.0.200) in the Internet browser and follow the steps below: 1. Login to the H.264 Full HD IP camera by the default username “admin”...
- Page 11 Internet Browser Settings & Application Required Make sure your Internet browser allows the signed ActiveX plug-in to work on your computer. Set “Download Signed ActiveX plug-in controls” to “Prompt” and “Run ActiveX control and plug-in” to “Enable”. You can set this option via Internet Explorer-> Tools-> Options->...
- Page 12 Login There are two levels of user authentication, including admin and guest, that can access the IP camera. Administrator is authorized to reset basic mode settings and see live video, while the guest is allowed to see only live video. The default usernames and passwords are as follows: Administrator Viewer...
- Page 13 66-LR7228CSM-1...
