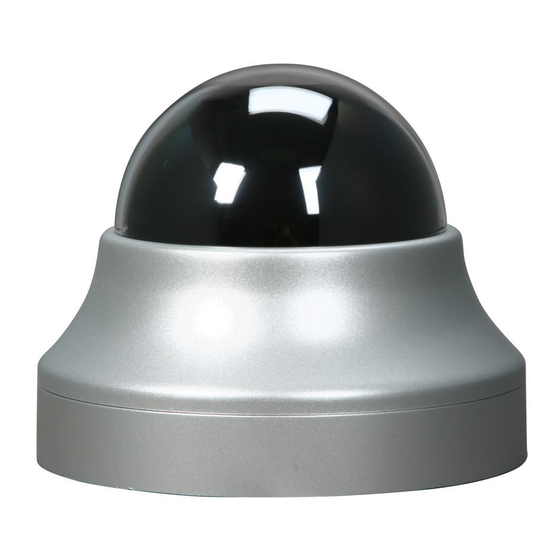

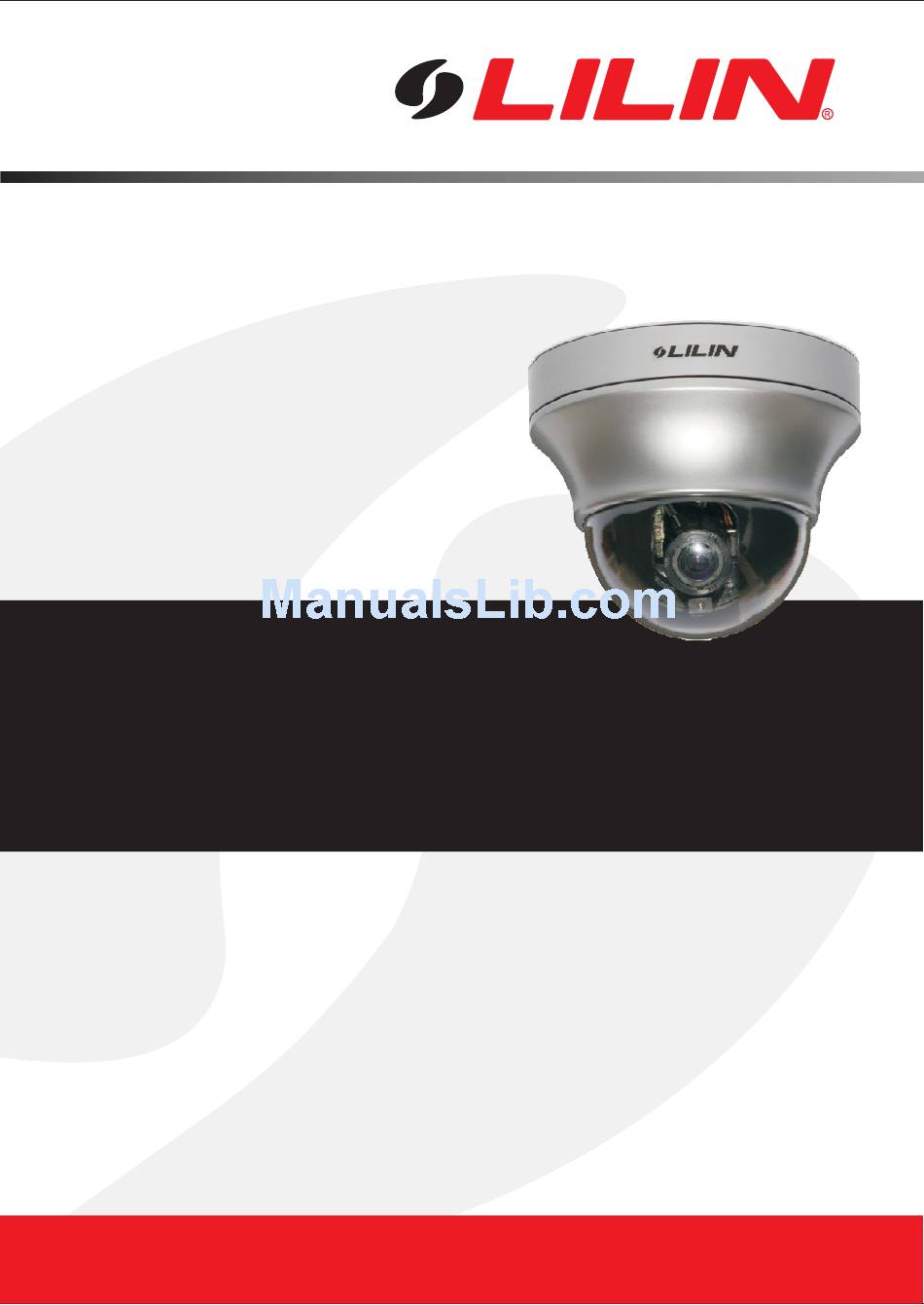

- Page 1 D/N SUPER HI-RES. VARI-FOCAL DOME IP CAMERA IPD552EX4.2 N/P INSTRUCTION MANUAL...
-
Page 2: Important Safeguards
IMPORTANT SAFEGUARDS CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK) NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. GRAPHIC SYMBOL EXPLANATION The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage"... - Page 3 CAUTION Do not drop or strike this equipment. Sensitive electronics inside are vulnerable to excessive shock. Do not install the equipment near any naked flames or heat sources. Excessive heat could damage this unit. Do not expose this unit to rain or excessive moisture, avoid smoke and dust.
-
Page 4: Executive Summary
Executive Summary IPD552EX is an indoor IP camera built-in H.264 AVC(Advanced Video Coding) video compression. H.264 AVC video compression engine supports high video quality, full D1 resolution, bandwidth efficiency with PPPoE and DDNS. Also it provides higher bit rate of internet and diverse alarm functions such as external alarm or movement video detection e-mail or FTP. -
Page 5: Installation
Installation 1. Put the provided screws (M3.0 x 25, wooden screw) through the holes marked as "a", and fix the base in the desired area (FIG.1). FIG. 1 2. The direction of the lens is adjustable through the adjustable Pan/Tilt brackets and rotatable round bracket for Azimuth. - Page 6 3. An extra RCA jack for easy installation. Plug the video input of monitor to the RCA jack and adjust focus and zoom. After finished, unplug the RCA jack. Please refer to FIG.3. FIG. 3 4. Adjust DC iris level by turning the iris level VR. Please refer to FIG.2. ATTENTION: Adjust this VR with care so as not to cause damage to the unit.
- Page 7 6. Other wires installation like connecting DC12V input, audio input, video output and alarm in/out with connector, please follow instruction as below: DC12V Audio In Alarm In/Out Untighten the three screws to take To connect with wire accessory. off the cover of bottom. Take wire through the hole, and Tighten the three screws to fix the configure the cover of bottom.
-
Page 8: Product Components
Product Components 1. D/N Super Hi-Res. Vari-Focal Dome IP Camera 2. Instruction manual H.264 AVC IP Cameras D/N SUPER HI-RES. VARI-FOCAL DOME IP CAMERA IPD552EX2.2/4.2 N/P IPD552EX2.2/4.2 N/P INSTRUCTION MANUAL INSTRUCTION MANUAL 3. Wire & Power Adaptor Accessory 4. CD Software Pack (99-IPD552WR, Option product) System Architectures For connecting IPD552EX to the network, please follow one of the system architectures:... -
Page 9: Emergency Factory Default
(3). Hardware Installation using DC12V Adaptor. LAN / Internet Non-PoE Switch IPD552EX Emergency Factory Default To restore the server to factory default settings, please: 1. Hold Reset Key for 10 second. 2. Green network LED blinks, On-> Off-, ON, to complete load default setting. 3. -
Page 10: Specifications
Specifications D/N SUPERHIGH RESOLUTION VARI-FOCAL DOME IP CAMERA IPD552EX4.2 Model No. Focal Length 2.8 ~ 12mm Iris F1.2 Lens 99.6 ~ 24.9 Angle of View 73.2 ~ 18.8 128.5 ~ 31.0 System NTSC or PAL Sync. Mode Internal Pick Up Element 1/3"... - Page 11 NETWORK Video Compression H.264/AVC Main Profile, Level 3(I/P/B frames), Motion JPEG Full D1 : 720 x 480(NTSC) / 720 x 576(PAL) Resolution CIF : 352 x 240(NTSC) / 352 x 288(PAL) H.264 : up to 30/25 FPS at full D1 resolution Frame Rate JPEG : 1 FPS at CIF Simultaneous Motion JPEG and H.264 AVC Main Profile...
- Page 12 MERIT LILIN ENT. CO., LTD http://www.meritlilin.com 66-IPD552CSE...
