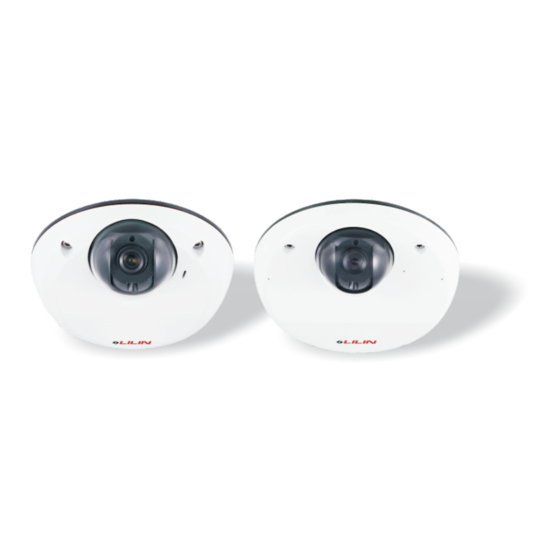

- Page 1 IPD2220ES/LD2222E 1080P HD Dome IP Camera IPD2220-IVS 1080P HD IVS Dome IP Camera SD2222E 1080P60 HD Dome IP Camera IPD6220ES (M12 MODEL) 1080P HD IVS Dome IP Camera IPD6222ES (RJ-45 MODEL) 1080P HD IVS Dome IP Camera Quick Installation Guide...
- Page 2 CAUTION Do not drop or strike this equipment Do not install the equipment near any naked flames or heat sources Do not expose this unit to rain, moisture, smoke or dust environment Do not cover the opening of the cabinet with cloth and plastic or to install this unit in poor ventilated places.
- Page 3 Product Overview [Dome] [Vandal Dome] Unit: mm...
- Page 4 ① Bottom Chassis ② DC Power Input Jack (DC12V ±10%) ③ RJ-45 Network Connector (Support PoE) ④ Dome Cover ⑤ Microphone ⑥ Mask Cover ⑦ Camera Body ⑧ Network Indicator LEDs Green (LINK): Network connection. LED remains lit while connection is in place. Orange (ACT): Data communications.
- Page 5 2. Put the provided screws (M4.0x25, wooden screw) through the holes marked as "a", and fix the bottom chassis in the desired area. [Dome] [Vandal Dome] 3. Loose the screws on the translucent cover to rotate the camera body to the desired angle and then tighten the screws. [Dome] [Vandal Dome]...
- Page 6 4. Attach the dome cover to the bottom chassis. Use hexagon screw driver to tighten the screws. [Dome] [Vandal Dome] System Architectures To connect the Covert IP Camera to the network, please deploy one of the following system architectures: (1). Use a DC12V power adapter and a network switch to connect to the network.
- Page 7 Emergency Factory Default To restore the hardware to factory default settings, please follow these steps: 1. Press and hold “RESET Key” for 10 seconds and release. 2. Wait for about 40 seconds, and the network LED light should turn off, and go back on again. 3.
- Page 8 JPEG or H.264 Full HD video. When you login to the IP camera by Internet Explorer, the security warning dialog box will prompt the installation of the LILIN Universal ActiveX. Click Install to download it. Configuring IP Addresses with IPScan Software...
- Page 9 Configuring IP Addresses via Web Interface To change an IP address via web interface, type the default IP address (192.168.0.200) in the Internet browser and follow the steps below: 1. Login to the H.264 Full HD IP camera by the default username “admin”...
- Page 10 Once complete, you can access the IP camera’s live video by entering the default IP address via your Internet browser. As the security warning dialog box appears, click OK to download the ActiveX directly from the IP camera. Login There are two levels of user authentication, including admin and guest, that can access the IP camera.
- Page 11 The default usernames and passwords are as follows: Administrator Username admin Password pass To logon the H.264 FULL HD IP camera, please type username and password in logon HTML page and click on Submit button to enter the system.
- Page 12 -10-...
- Page 13 66-LD2222CSM...
