Summary of Contents for Lilin IPD6122ESX

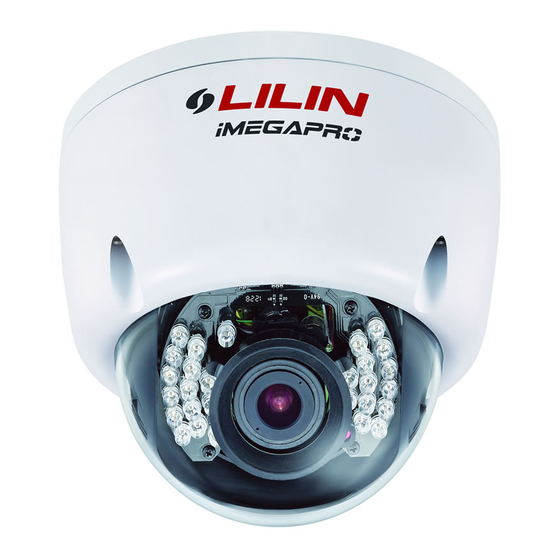

- Page 1 D/N 1080P HD Vandal Resistant Dome IP Camera D/N 1080P HD Vandal Resistant Dome IR IP Camera IPD6122ESX / IPR6122ESX LD6122EX / LR6122EX Instr uction Manual...
-
Page 2: Important Safeguards
IMPORTANT SAFEGUARDS CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION： TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK) NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. GRAPHIC SYMBOL EXPLANATION The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage"... - Page 3 CAUTION Do not drop or strike this equipment. Sensitive electronics inside are vulnerable to excessive shock. Do not install the equipment near any naked flames or heat sources. Excessive heat could damage this unit. Do not expose this unit to rain or excessive moisture, avoid smoke and dust.
- Page 4 CONGRATULATIONS Thank you for purchasing this D/N 1080P HD Vandal Resistant Dome (Infrared) IP Camera. You now own one of the many fine network products we manufactured. This product has been carefully inspected under rigid quality control and should reach you in perfect condition.
- Page 5 Executive Summary IPD6122/IPR6122ESX & LD6122/LR6122EX series is an 2 megapixel Day&Night 1080P HD Vandal Resistant Dome IP Camera, built-in H.264 AVC(Advanced Video Coding) video compression. H.264 AVC video compression engine supports high definition video quality, 1080P(1920x1080) resolution, bandwidth efficiency with PPPoE and DDNS. Also it provides higher bit rate of internet and diverse alarm functions such as movement video detection e-mail or FTP.
-
Page 6: Part Description & Dimension
PART DESCRIPTION & DIMENSION 145.0 10.0 78.7 130.0 (IPD6122 /LD6122 series) 145.0 10.0 78.7 130.0 (IPR6122/LR6122 Series) Unit: mm... - Page 7 Bottom Chassis Top Cover Bottom Hole Side Hole Inner Cover Dome Cover Lens Hole Plug DC12V Input, Alarm In/Out & Audio In/Out Terminal RJ-45 Network Connector Live Video Output RCA Jack Plug the video input of monitor to the RCA jack and adjust focus and zoom. Network Indicator LEDs Green(LINK): Network cable connected, this LED lit.
-
Page 8: Installation
INSTALLATION 1. Please use the enclosed hexagon screw driver to untighten the 4 screws on the top cover (FIG.1). FIG.1 2. Using screw drive to untighten the 3 screw on the camera module (FIG.2 & FIG.3) FIG.2 FIG.3 (IPD6122 / LD6122 series) (IPR6122 / LR6122 series) 3. - Page 9 FIG.4 66mm 120° FIG.5 FIG.6 4. Firstly, put network cable and power cable through a pipe with 1/2" PT at one end (FIG.7), and then screw the pipe to the side hole or bottom hole (FIG.8, please make sure the ...
- Page 10 FIG.9 FIG.10 (IPD6122 / LD6122 series) (IPR6122 / LR6122 series) 6. Plug and fix the power cable to the terminal block and plug the network cable to RJ-45 connector of the camera (FIG.11). FIG.11 7. Take down the inner cover from the camera module (FIG.12, IPD6122/LD6122), and ...
- Page 11 TILT TILT AZIMUTH AZIMUTH Press inward FIG.12 FIG.13 FIG.14 and pull down . (IPD6122 / LD6122 series) (IPD6122 / LD6122 series) (IPR6122 / LR6122 series) 8. Adjust the lens on focus and zoom to form the optimal video image after that tighten the screws (FIG.15 &...
- Page 12 Press and turn FIG.17 FIG.18 FIG.19 (IPD6122 / LD6122 series) (IPR6122 / LR6122 series) (IPR6122 / LR6122 series) 10. Fix the safety rope on the top cover with screw driver (FIG.20). Replace the top cover and tighten the screws (FIG.21). ...
- Page 13 2. Put the video cable and power cable through the bottom hole. Then connect them to video output and power input of the camera. Please refer to INSTALLATION Step 4 for water resistant installation. Installation Micro SD card, please follow instruction as below: 1.
- Page 14 Full HD H.264 IP Cameras IPD552EX2.2/4.2 N/P INSTRUCTION MANUAL D/N 1080P HD Vandal Resistant Dome IP Camera D/N 1080P HD Vandal Resistant Dome IR IP Camera IPD6122ESX / IPR6122ESX IPD6122ELSX / IPR6122ELSX Instr uction Manual 3. CD Software Pack 4. L-type Hex Key Wrench...
-
Page 15: Emergency Factory Default
(2). Use with PoE of the network switch connected to the network. LAN / Internet PoE Switch HD Vandal Dome IP Camera (3). Use PoE power injector and the network switch connected to the network. LAN / Internet Non-PoE Switch PoE Power Injector HD Vandal Dome... -
Page 16: Specifications
SPECIFICATIONS IPD6122ESX/IPR6122ESX (1080P 30fps) D/N 1080P HD Vandal Resistant Dome (IR) IP CAMERA Model No. IPD6122ESX3.6 IPR6122ESX3.6 3.3 ~ 12mm Focal Length F1.4 Iris 79.3° ~ 29.8° Lens Angle of View 59.4° ~ 22.4° 99° ~ 37.3° Pick Up Element 1/2.7"... - Page 17 Android support System Integration ONVIF & LILIN HTTP API CMX HD3.6 support Video Display LILIN Universal ActiveX & LILIN Java Applet Embedded Linux 2.6.32 Two-way Audio G.711/ PCM SD Card Recording Support Micro SD/SDHC card for circular recording (card is not included) Alarm Input/ Output Digital 1 input(TTL, +3~5V) / 1 output(N.O.)
- Page 18 LD6122EX/LR6122EX (1080P 15fps) D/N 1080P HD Vandal Resistant Dome (IR) IP CAMERA Model No. LD6122EX3.6 LR6122EX3.6 Focal Length 3.3 ~ 12mm F1.4 Iris Lens 59.6° ~ 22.6° Angle of View 33.5° ~ 12.9° 68.4° ~ 25.9° Pick Up Element 1/2.5" CMOS Image sensor Effective Pixels 1920(H) x 1080(V) = 2,073,600(pixel) Chip Size...
- Page 19 Android support System Integration ONVIF & LILIN HTTP API CMX HD3.6 support Video Display LILIN Universal ActiveX & LILIN Java Applet Embedded Linux 2.6.32 Two-way Audio G.711/ PCM SD Card Recording Support Micro SD/SDHC card for circular recording (card is not included) Alarm Input / Output Digital 1 input(TTL, +3~5V) / 1 output(N.O.)
- Page 20 MERIT LILIN ENT. CO., LTD http://www.meritlilin.com 66-IPR612CSE...
