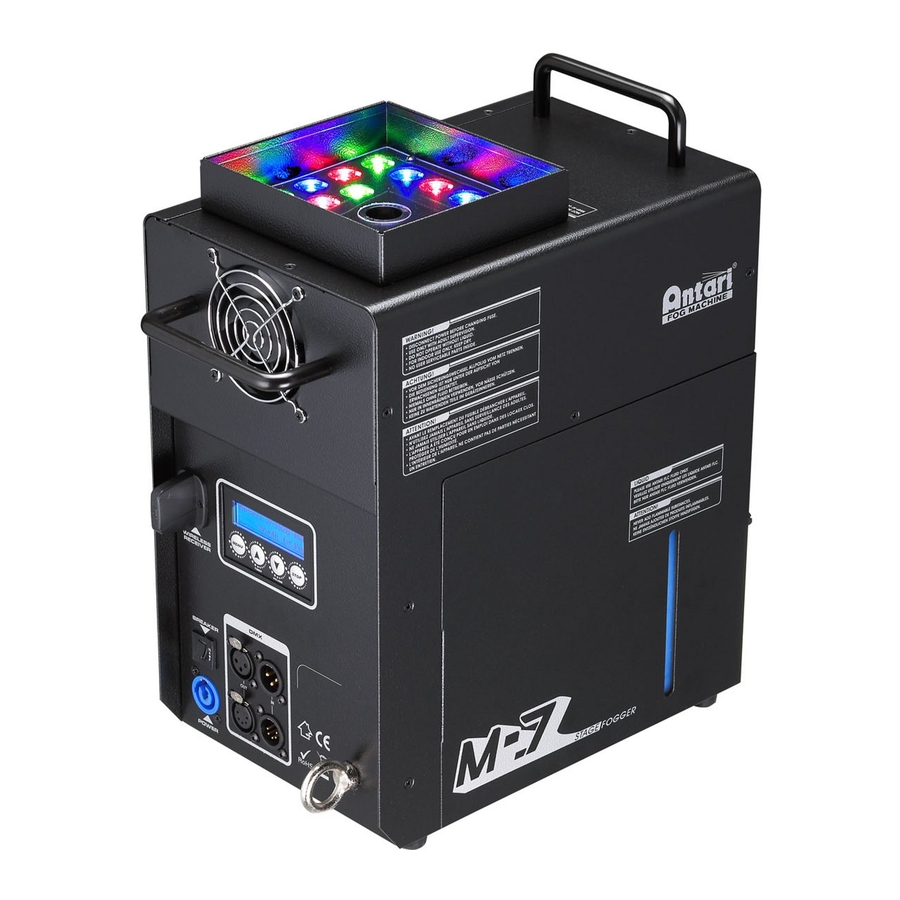

- Page 1 Stage Fog Machine User Manual English © 2014 Antari Lighting and Effects Ltd.
-
Page 2: Safety Information
Make sure there are no flammable materials close to the machine while operating. ․ Only use Antari fluid. Other fluid may lead to heater clog and malfunction. ․ If the machine fails to work, unplug the machine and stop operation immediately. -
Page 3: Unpacking And Inspection
If any parts appear damaged or mishandled from shipping, notify the shipper immediately and retrain the packing material for inspection. What is included: 1 x M-7 Fogger 1 x W-2 Wireless Remote 1 x Power Cord 1 x User Manual Product Dimension 385.7 mm... -
Page 4: Operation
Step 1: Place the machine on a flat surface and in a suitable large area with at least 50 cm open space around the machine. Step 2: Fill the fluid tank with Antari approved fluid. Step 3: Connect the machine to suitable rated power supply. To determine the power requirement for the machine refer to the label on the back of the machine. - Page 5 Button Function [MENU] Scroll through setting menu ▲ [UP]/[TIMER] Up/Activate Timer function ▼ [DOWN]/[VOLUME] Down/Activate Volume function [STOP] Deactivate Timer/Volume function Control Menu DMX512 Set DMX address from 1 to 504 Address: 1 Stand Alone Set Master Set machine as Master of Slave unit Color Mode Turn LED On or Off Color Mode...
- Page 6 Turn On/Off run last setting function Wireless Operation Wireless remote control system W-2 consist of a transmitter equipped with four buttons to activate four user configurable LED setting and fog; with an onboard receiver attach to the rear panel of M-7.
- Page 7 Transmitter can be pair or deleted from the receiver. Each receiver can pair up to 10 transmitters. Follow below steps to pair or delete transmitter from receiver. Step 1: Power off M-7 Fogger Step 2: Press and hold [DOWN] button...
- Page 8 Transmitter battery replacement If effective distance seems to be decreased, it is possible the battery level are low and require replacement. In order to replace the battery, undo the three screws on the back of transmitter to release the cover. Replace with same type and specification of battery which is 27A 12V DMX Connector Pin Assignment The machine provide 3 or 5 pin XLR connector for DMX connection.
- Page 9 1-20 Hz Fluid Use Antari FLC Water-based Fluid for the best effect for the M-7 Fogger. The machine is tested and calibrated with this liquid to get the best output performance. Warranty will be void if any other type of liquid is used, improper use of liquid may lead to machine failure and...
-
Page 10: Service And Maintenance
malfunction. Service and Maintenance Do not allow the machine to become contaminated. ․ Remove dust from air vents with air compressor, vacuum or a soft brush. ․ Only use a damp cloth to clean the casing. ․ Before storing run distilled water through the system to help avoid condensing the pump ․... - Page 11 Max. operating time 8 seconds burst Fluid tank capacity 2.4 L Fluid consumption 25 ml/10 sec. Recommended Fluid Antari FLC Water-based Fluid for the best effect Control option DMX 512, Manual, Timer, Wireless remote DMX channels 8 channels Power connection Neutrik Powercon...
- Page 12 C08M07000...
