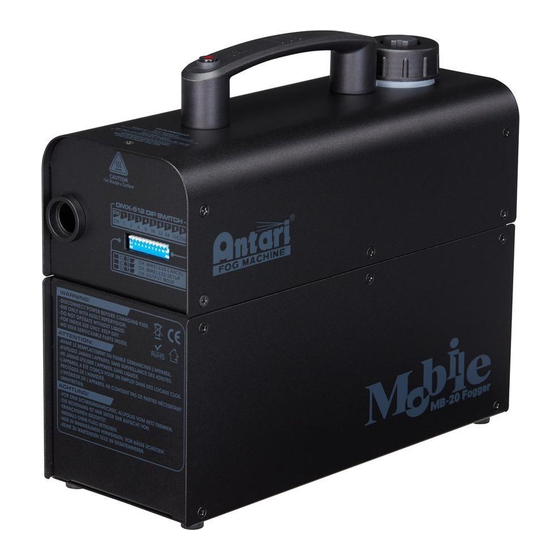

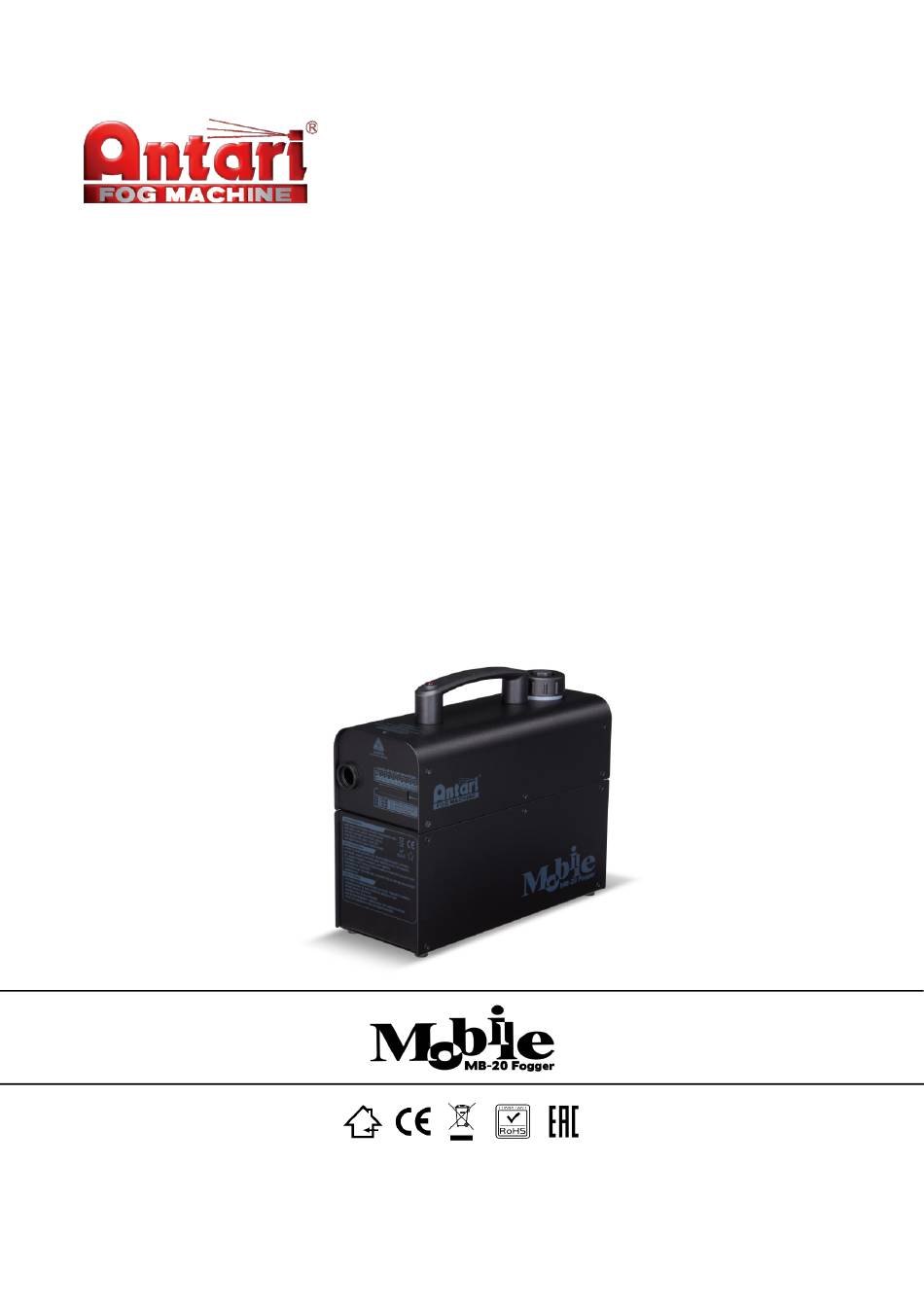

- Page 1 MB-20X MOBILE FOG MACHINE User Manual - ENGLISH © 2020 Antari Lighting and Effects Ltd © 2020 Antari Lighting and Effects Ltd. www.antari.com...
- Page 2 © 2020 Antari Lighting and Effects Ltd. www.antari.com...
-
Page 3: Safety Information
Install the machine in a well-ventilated area. Provide at least 50 cm space around the ․ machine. © 2020 Antari Lighting and Effects Ltd. www.antari.com... -
Page 4: Unpacking And Inspection
Make sure there are no flammable materials close to the machine while operating. ․ Only use Antari fluid. Other fluid may lead to heater clog and malfunction. ․ If the machine fails to work, unplug the machine and stop operation immediately. -
Page 5: Product Dimensions
Product Overview ON / OFF Switch Control Fog Output Nozzle Dip Switch Wire Remote Socket Wireless Receiver Socket Output Level Adjustment Knob Main Power Switch XLR 3-Pin DMX Connector Lock lever Charger Input © 2020 Antari Lighting and Effects Ltd. www.antari.com... - Page 6 Step 1: Place the machine on a flat surface and in a suitably large area with at least 50 cm of open space around the machine. Step 2: Fill the fluid tank with Antari FLM-05P fluid. Step 3: Charge the battery by plugging the charger adaptor into a grounded electrical outlet.
- Page 7 Step 4: Connect the battery base or power base to the machine. Turn on the machine to start operation. Pull to release locking lever Align and insert head unit to base © 2020 Antari Lighting and Effects Ltd. www.antari.com...
-
Page 8: Operation
Rotary Knob Function SMOKE Turn fog on/off, adjust output volume from 0~100% DMX Connector Pin Assignment The machine provides 3-pin XLR connectors for DMX connection. The diagram below indicates pin assignment information. © 2020 Antari Lighting and Effects Ltd. www.antari.com... - Page 9 DMX Channel Function Channel 1 DMX Value Range Function 0 – 4 Fog Off 5 – 255 Output 1-100% © 2020 Antari Lighting and Effects Ltd. www.antari.com...
- Page 10 Press [C] button to increase output volume. Press [D] button to decrease output volume. In a an unobstructed open space the effective distance is 50 meters, usage depending on obstacle level has an effective distance is 10-25 meters. © 2020 Antari Lighting and Effects Ltd. www.antari.com...
- Page 11 In order to replace the battery, undo the three screws on the back of transmitter to release the cover. Replace with the same type and specification of battery which is 27A 12V © 2020 Antari Lighting and Effects Ltd. www.antari.com...
-
Page 12: Service And Maintenance
Fluid Only use Antari FLM-5P water-based liquid for the MB-20X Fog Machine. The machine is tested and calibrated with this liquid to get the best output performance. Warranty will be voided if any other type of liquid is used. Improper use of liquid may lead to machine failure or malfunction. -
Page 13: Technical Specifications
- Connection XLR 3-pin (DMX) - Optional accessories WTR-20 Wireless Remote Z-3 Cable Remote MB-20S Power Base - Dimension L293 W108 H238 mm (L11.54 W4.25 H9.37 inch) - Weight 8.5 kg (18.74 lbs) © 2020 Antari Lighting and Effects Ltd. www.antari.com... - Page 14 © 2020 Antari Lighting and Effects Ltd. www.antari.com...
- Page 15 © 2020 Antari Lighting and Effects Ltd. www.antari.com...
- Page 16 C08MB0203 © 2020 Antari Lighting and Effects Ltd. www.antari.com...
